Technical Parameter

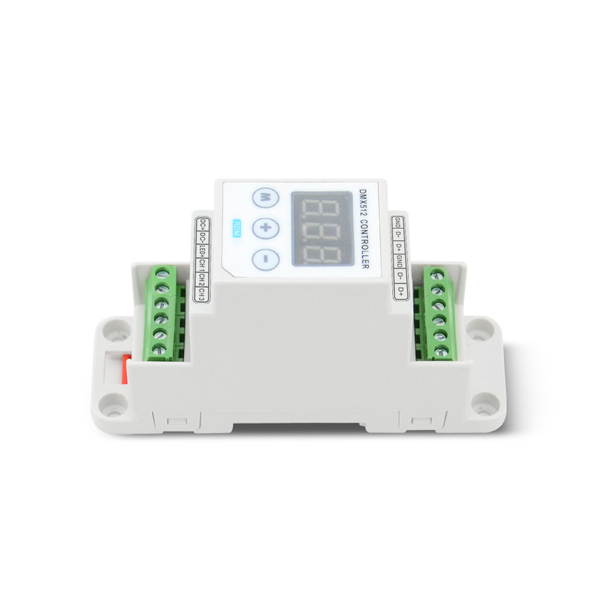

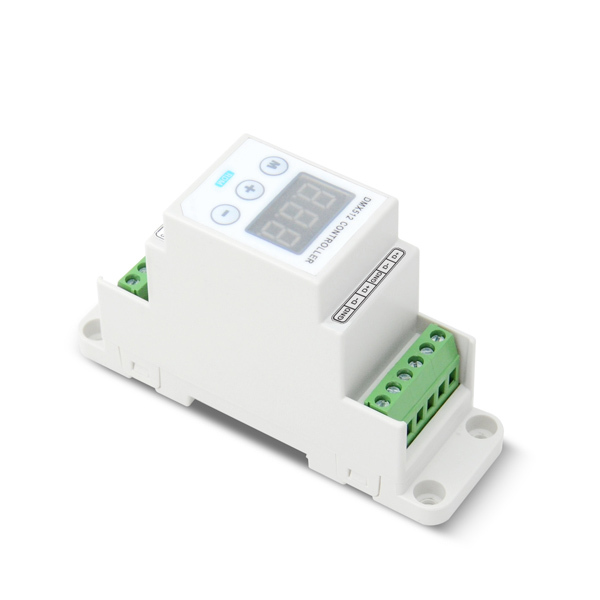

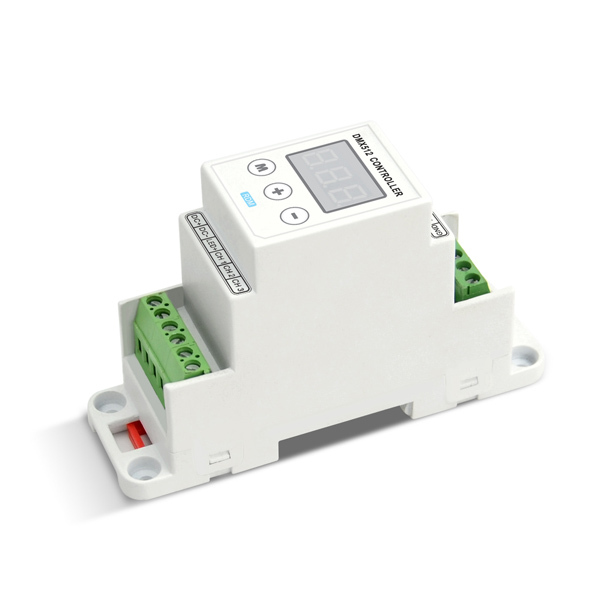

| Product Name | 5A*3channel 12-24VDC Connector Constant Voltage DMX Decoder |
| Item | DIM101M-DIN |
| Input Voltage | 12-24VDC |
| Input Signal | DMX/RDM Dimming signal |
| Output Current | 5A*3Ch (Max) |
| Output Power | 180W(12V)/360W(24V) |
| Output Channels | 3 |
| Dimming Output | PWM |
| Dimming Range | 0-100% |
| Installation | Rail or Screw fixing |
| Mounting Rail | TS-35/7.5 or TS-35/15 |
| Product Size | 112(L)*35(W)*67(H)mm |
| Pack Size | 354(L)*234(W)*232(H)mm ??60Pcs/6.5kg/Carton |
| G.W | 90g |
| Work Temperature | -30 ~ 50⊥ |
Dimension
