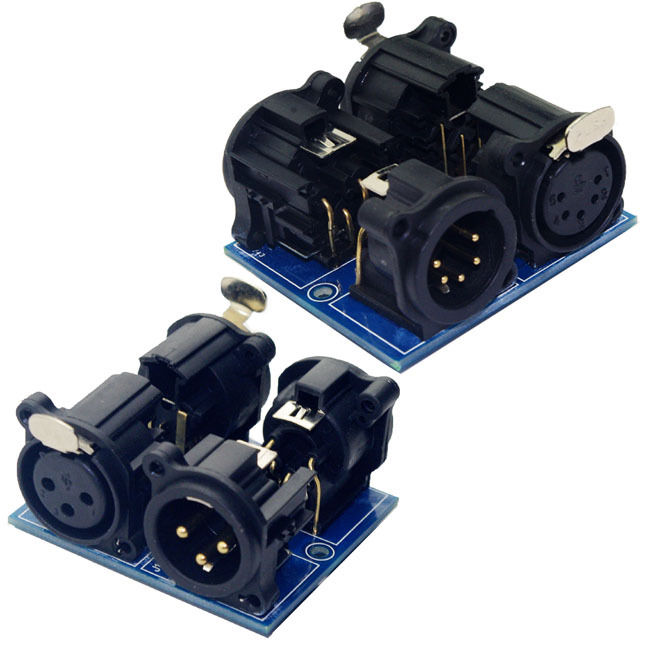

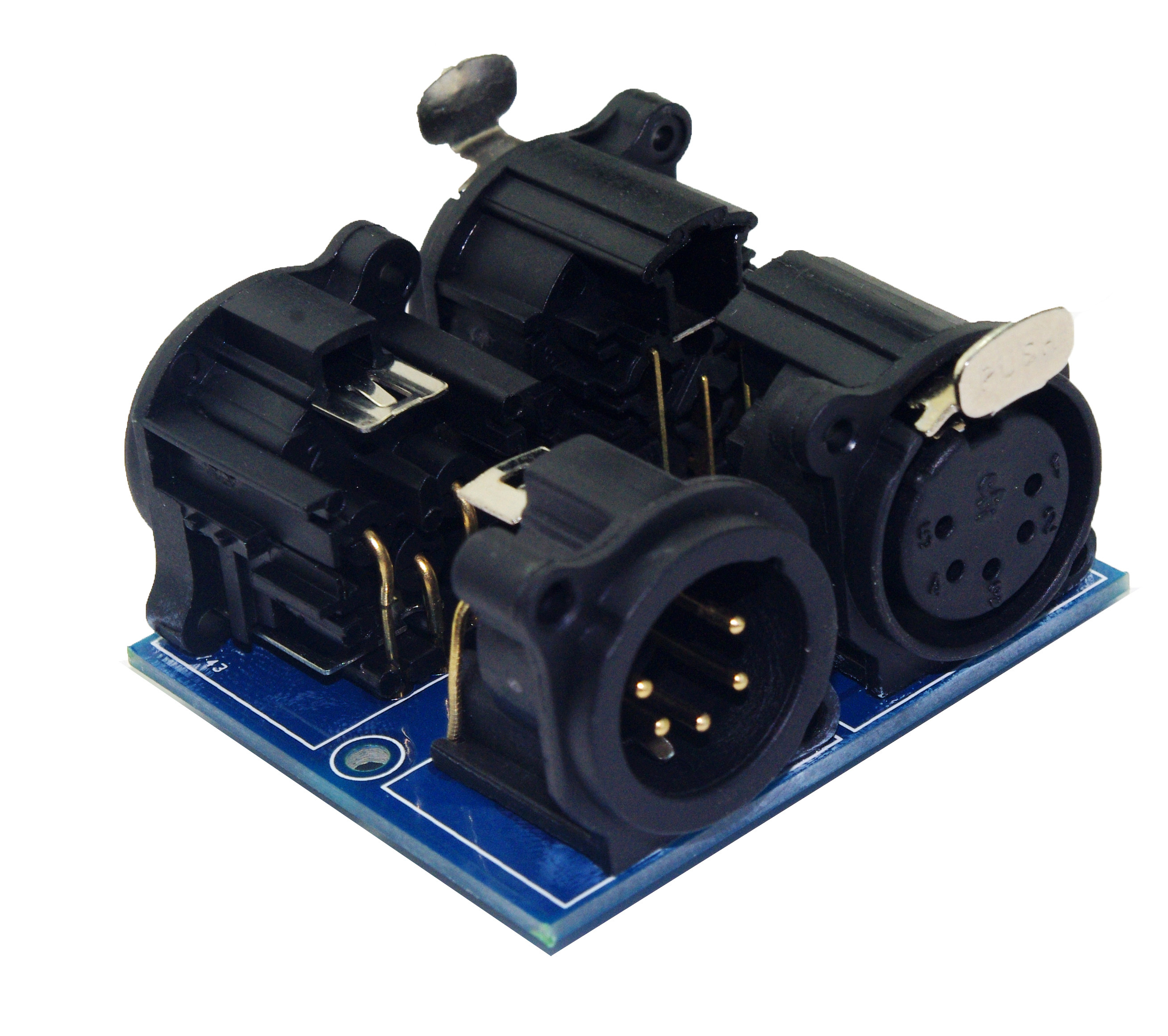

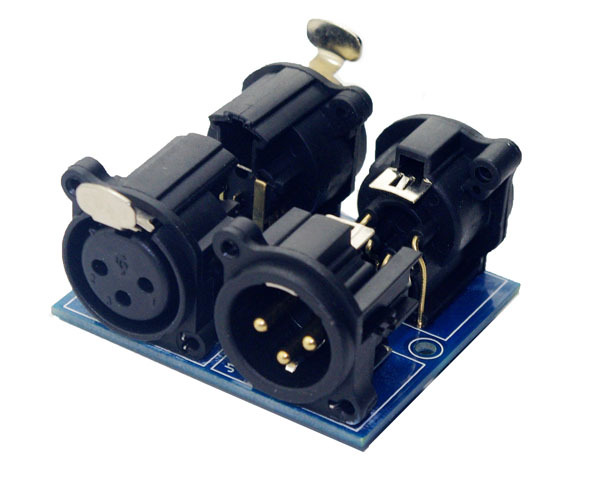

3-Pin/5-Pin XLR Combo: Bridges XLR3 and XLR5 for DMX/RDM/RS485 systems.
Standard Signal Mapping: Pin1 GND, Pin2 D-, Pin3 D+; XLR5 Pin4/Pin5 NOP.

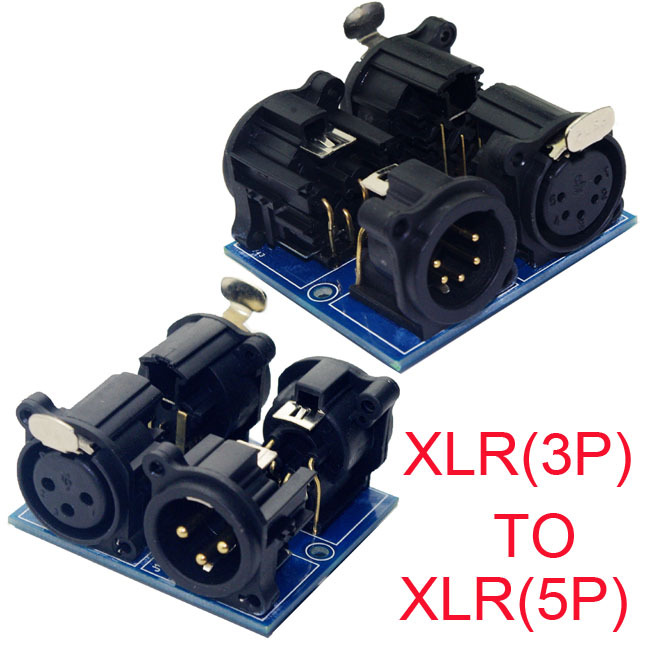

DMX512 Ready: Ideal for converting 3-pin to 5-pin DMX or vice versa on site.
Compact & Robust: 48×55×35mm, 60g, easy to integrate into fixtures or cases.
Pro Install Friendly: Saves soldering time, supports stage, LED, console and control networks.
|
Parameter |
Specification |
|---|---|
|
Product Model / Label |
XLR3-XLR5 (XLR5-XLR3 adapter/converter board) |
|
Interface |
XLR 3-Pin + XLR 5-Pin (per diagram) |
|
Pin Definition (XLR3) |
Pin1 = GND; Pin2 = D-; Pin3 = D+ |
|
Pin Definition (XLR5) |
Pin1 = GND; Pin2 = D-; Pin3 = D+; Pin4 = NOP; Pin5 = NOP |
|
Signal Type |
DMX512 / RDM / RS485 differential control signal |
|
Dimension |

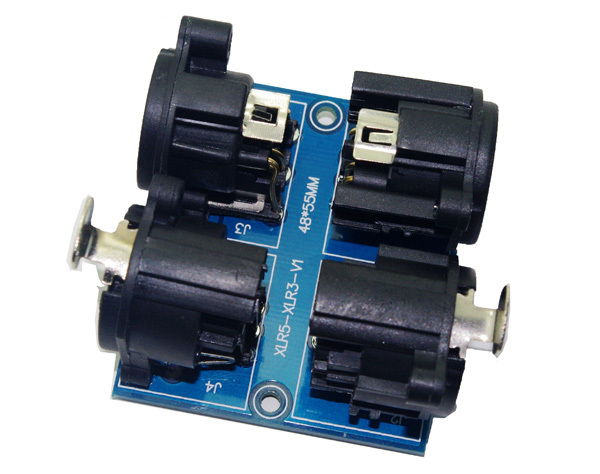

48 × 55 × 35 mm |
|
Weight |
60 g |
|
Mounting |

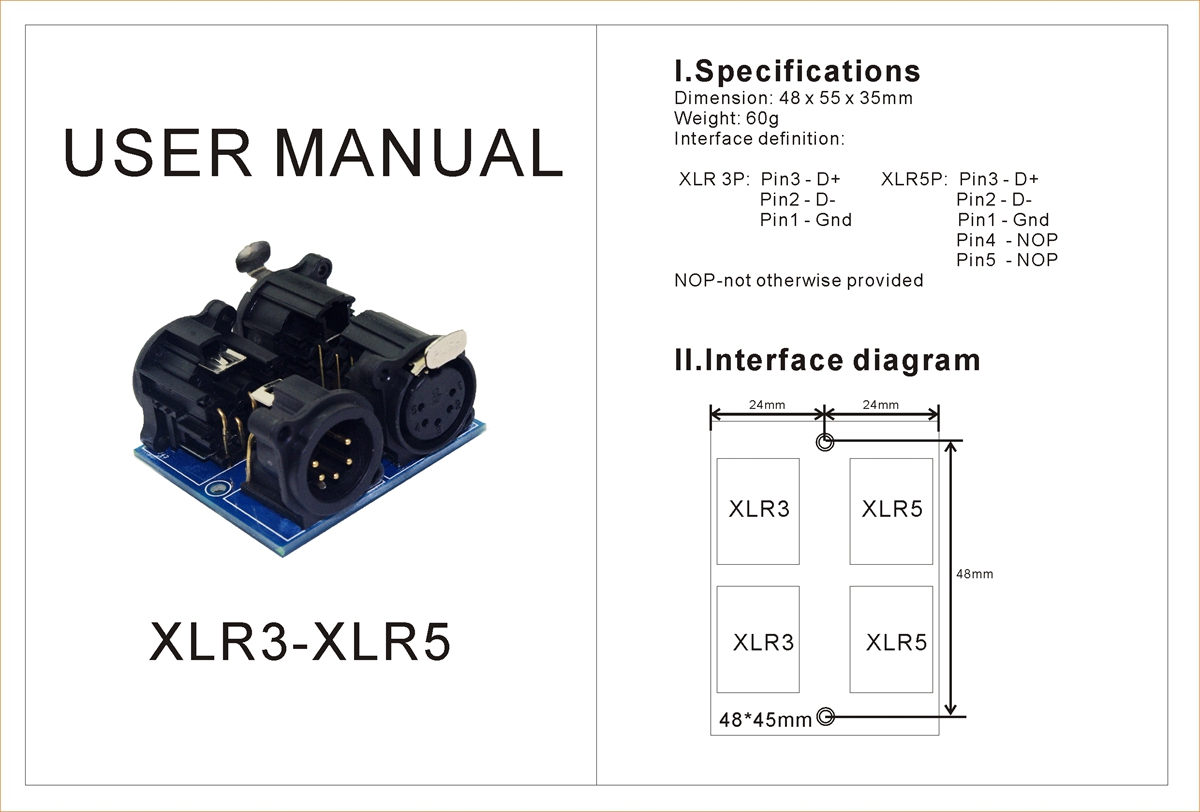

PCB/panel mount holes (see diagram) |
|
Application |
Stage lighting, LED fixtures, DMX console, AV/broadcast control |
|
Note |
Pin4/Pin5 not otherwise provided; check termination/version for DMX bus |
