1. Advanced RGBCW 5-in-1 Lighting & GS8306D IC

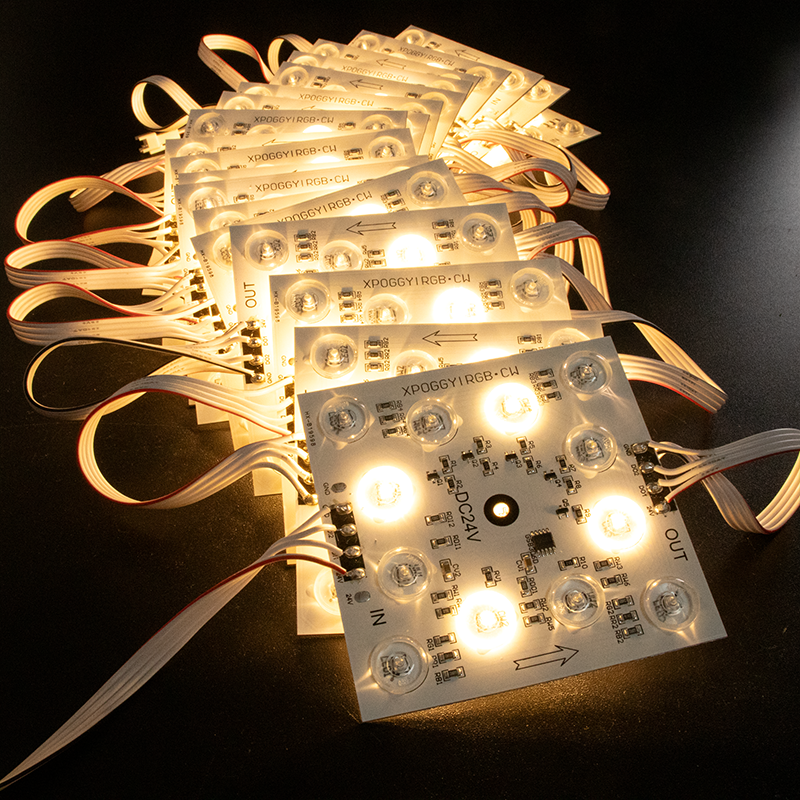

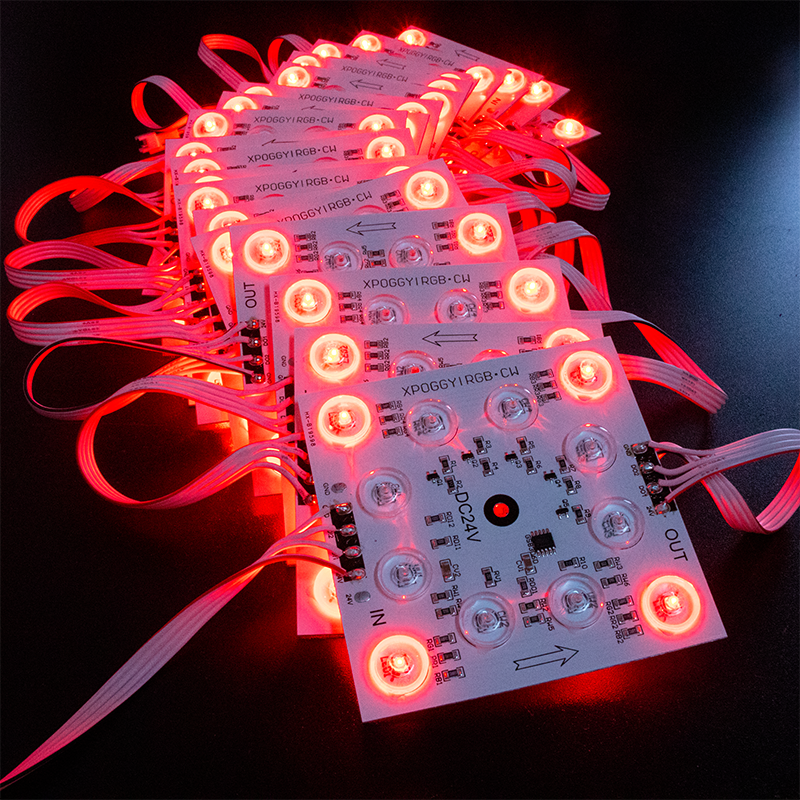

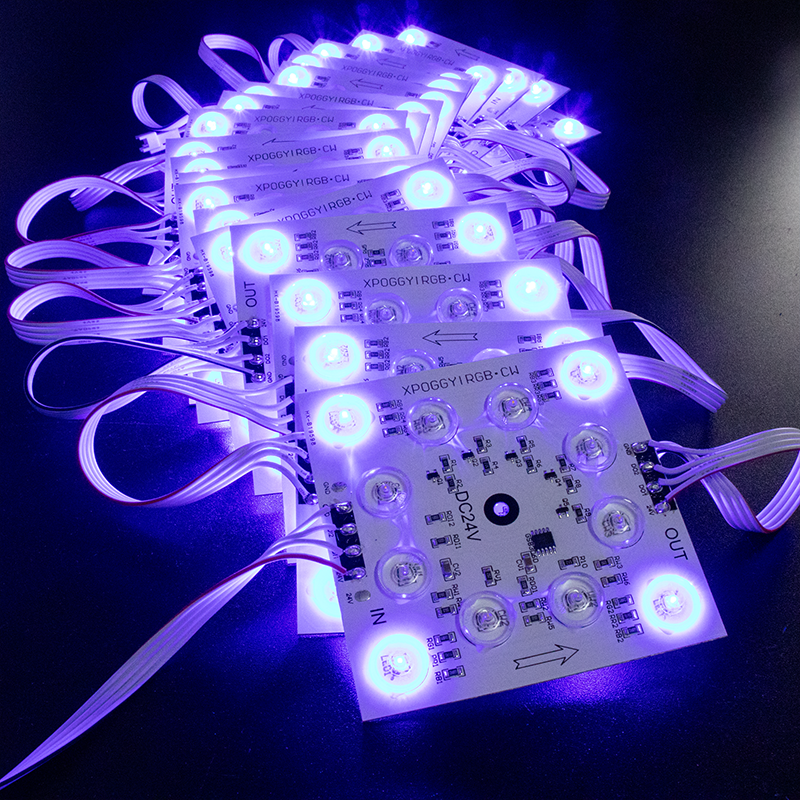

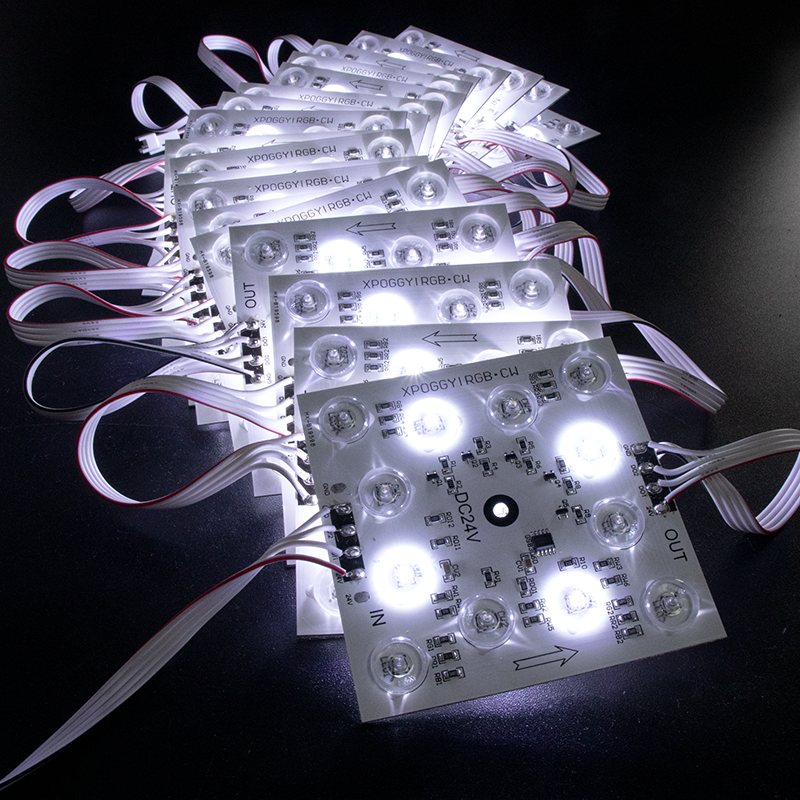

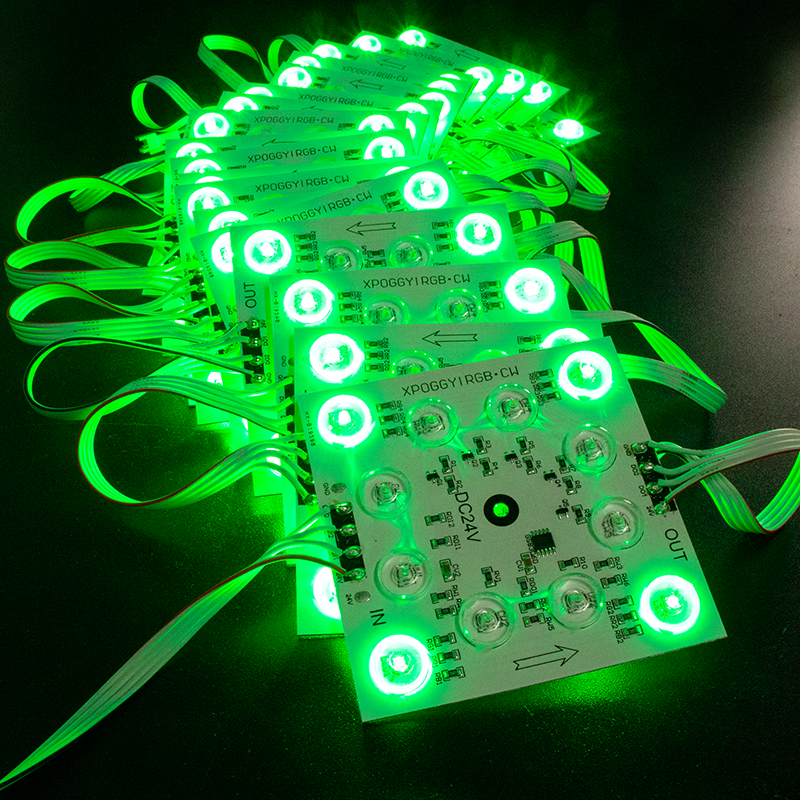

Features a combination of 2835 RGB and 3030 CW LEDs (12 LEDs total) to deliver full-color RGB ambient lighting plus tunable 2700K-6500K white light. Equipped with the high-performance GS8306D chip, it supports SPI signal control, ensuring stable signal transmission and highly synchronized lighting effects.
2. Premium Diffused Reflection Design
Utilizes a specialized diffused reflection optical design that softens the light output, effectively eliminating glare and harsh spots. This provides a uniform, gentle, and eye-friendly glow, making it an ideal choice for high-end commercial displays and architectural lighting.
3. High Voltage DC24V for Stable Performance
Operates on a DC24V safe voltage system, which ensures low heat generation, high energy efficiency, and significantly reduced voltage drop. This allows for longer wire runs and more reliable, maintenance-free operation compared to standard 12V modules.

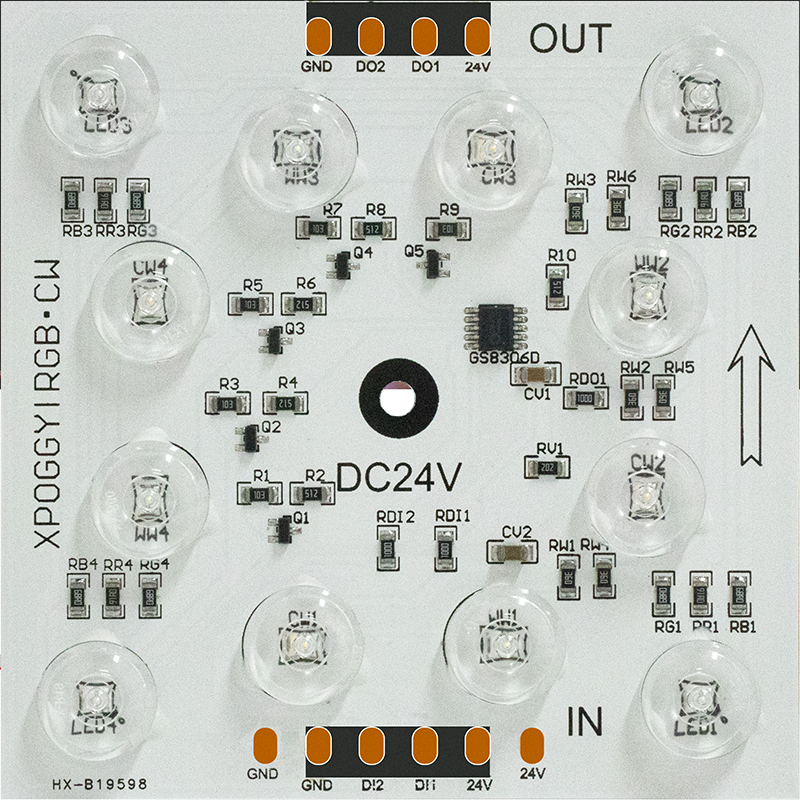

4. Versatile 90x90mm Compact Size
Designed in a compact 90x90mm (approx. 3.54x3.54 inch) square PCB format. Its space-saving design makes it highly flexible for installation in narrow spaces, light boxes, channel letters, and custom LED matrix displays.
5. Wide Application & Easy Installation

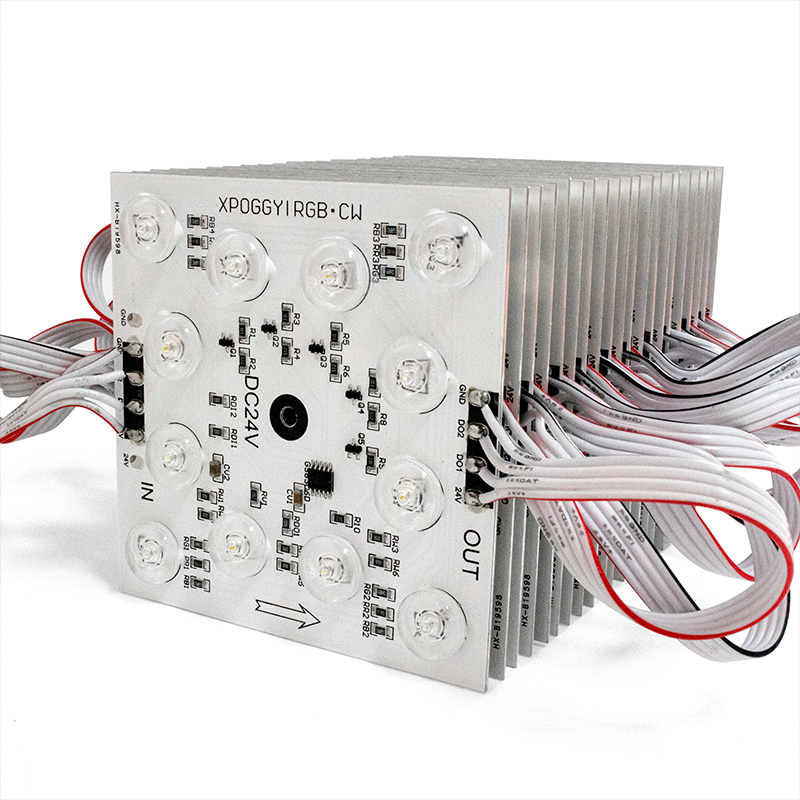

Perfect for creating dynamic pixel art, advertising signs, stage backdrops, and smart home decor. The module is easy to install and can be chained together to build large-scale LED video walls or customized lighting projects.
Product Name: RGBCW SPI Diffused Reflection LED Pixel Module
Control IC: GS8306D
Key Specifications:
|
Parameter |
Specification |
|---|---|
|
Input Voltage |
DC 24V |
|
Max Power |
6.4W / Piece |
|
LED Quantity |
12 LEDs / Piece (3030 + 2835) |
|
Color Channel |
RGBCW (RGB + Cool/Warm White) |
|
Control Protocol |
SPI (1 Pixel / Piece) |
|
PCB Size |
90 × 90 mm |
|
Packaging |
20 Pieces / Set |
|
Protection Rating |
IP20 (Non-waterproof) |
|
Feature |
Diffused Reflection / Magic Color |
Product Features:
5-in-1 Color: Combines RGB and CW LEDs for rich full-color and tunable white light.
Smart Control: Built-in GS8306D IC for stable SPI signal and synchronous pixel control.
Soft Glow: Diffused reflection design eliminates glare, providing uniform and soft lighting.
High Efficiency: DC24V operation reduces voltage drop, suitable for longer cascade installations.
Typical Applications:
LED pixel displays, advertising light boxes, architectural decorative lighting, stage backdrops, and custom smart lighting projects.
