Breakpoint Resume Transmission: Dual-signal line design ensures continuous operation; if one LED is damaged, the rest of the chain keeps functioning normally.
Dedicated White Channel: Integrated RGBW chip with CCT configurable from 2700K to 7000K, delivering pure, high-quality white light alongside vivid colors.
High-Fidelity Grayscale: 8-bit (256 levels) per channel provides ultra-smooth color gradients and precise dimming without visible stepping.
Simplified Single-Wire Control: Uses a single-line zero-code protocol for easy MCU interfacing, reducing wiring complexity and saving PCB space.
Broad Voltage & Stable Drive: Operates reliably at 4.0V–5.3V with a constant 16mA drive, ensuring consistent brightness and color accuracy across long runs.
|
Parameter |
Specification |
|---|---|
|
Part Number |

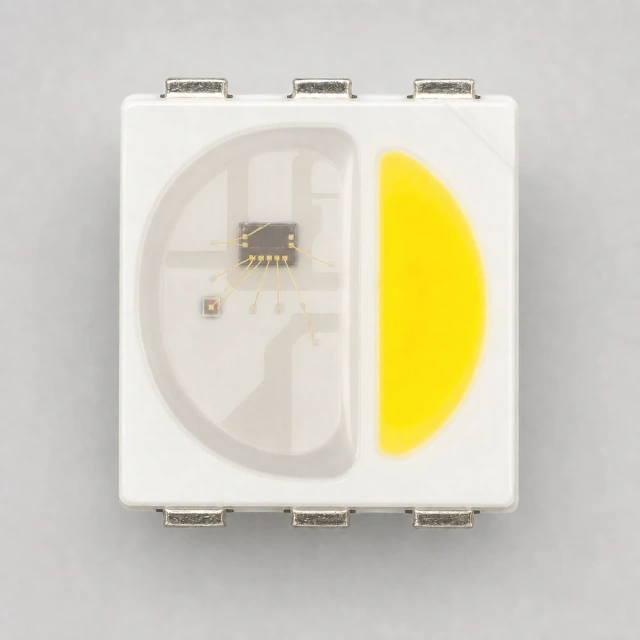

WS2813B-RGBW |
|
Package |
5050 (6-pin SMD) |
|
LED Channels |
Red, Green, Blue, White (RGBW) |
|
Control Protocol |
Single-wire NZR (Return-to-Zero) |
|
Grayscale Resolution |
8-bit per channel (256 levels) |
|
Data Rate |
800 kbps |
|
White CCT Range |
2700K – 7000K (Configurable via mixing) |
|
Operating Voltage |
4.0V – 5.3V (Typical 5V) |
|
Current per Channel |
16 mA (RGB channels) |
|
Refresh Rate |
~2 kHz |
|
Reset Time |
>280 µs |
|
Breakpoint Resume |
Yes (DIN1 + DIN2/BIN dual-signal) |
|
Cascade Capability |
Up to 1024+ pixels at 30 fps |
|
Applications |
Smart lighting, LED strips, displays, decorative/architectural fixtures |
