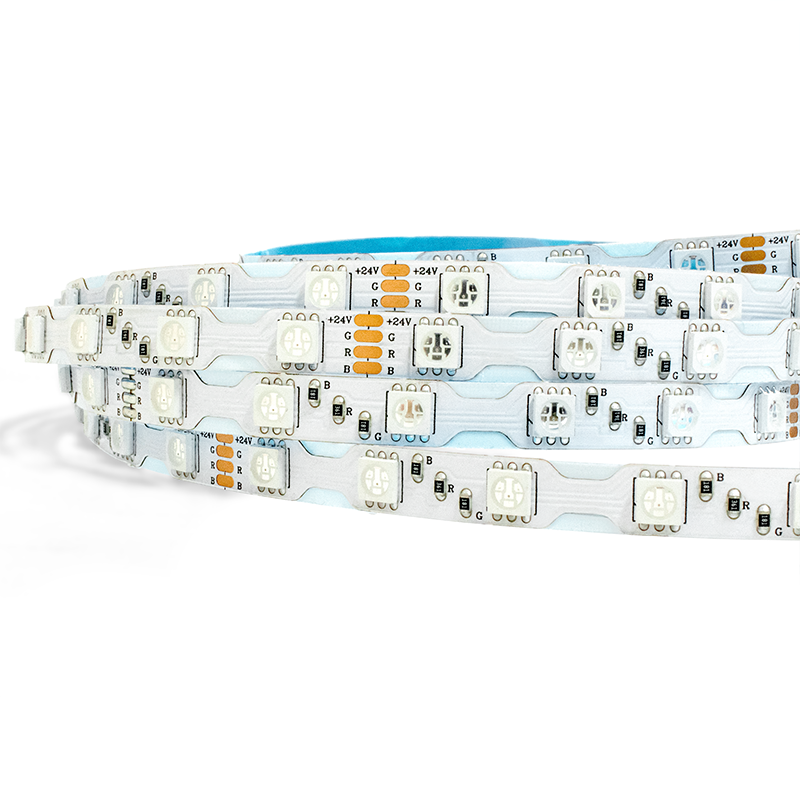

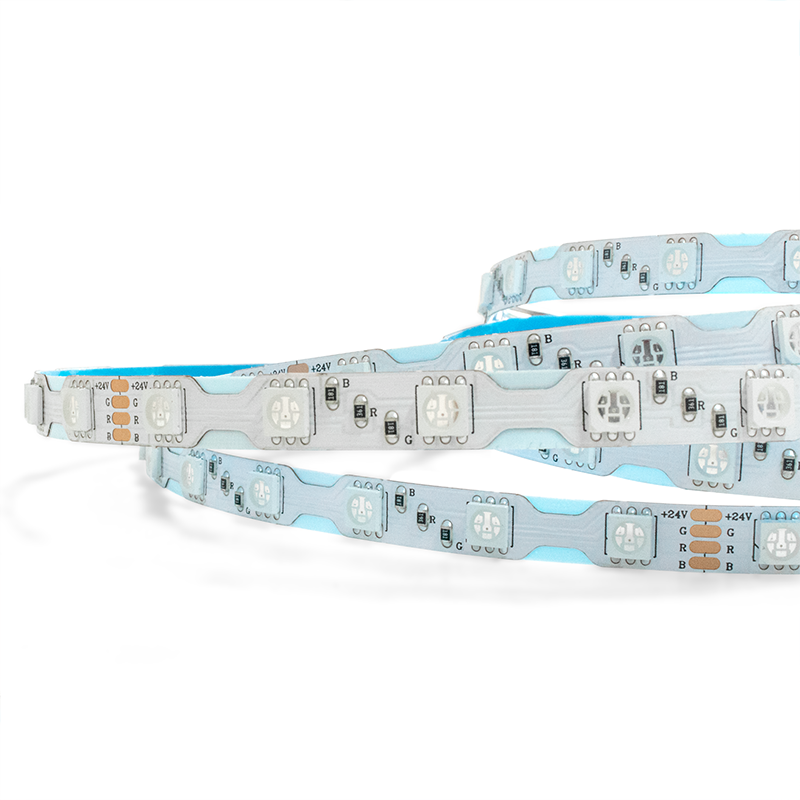

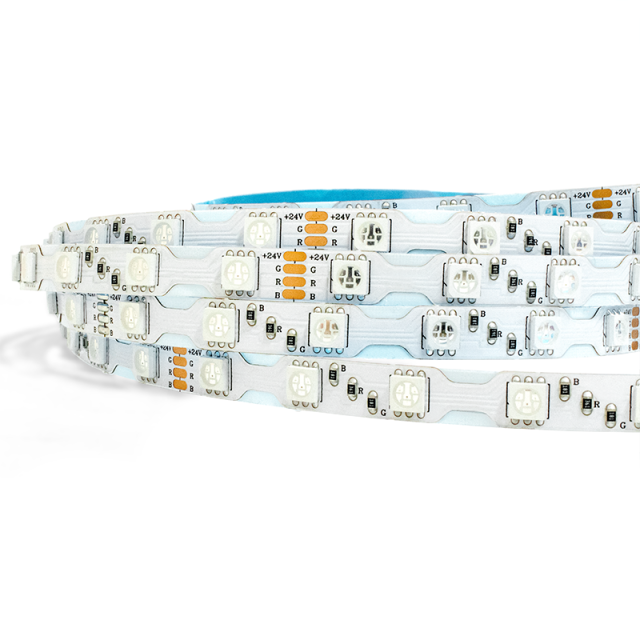

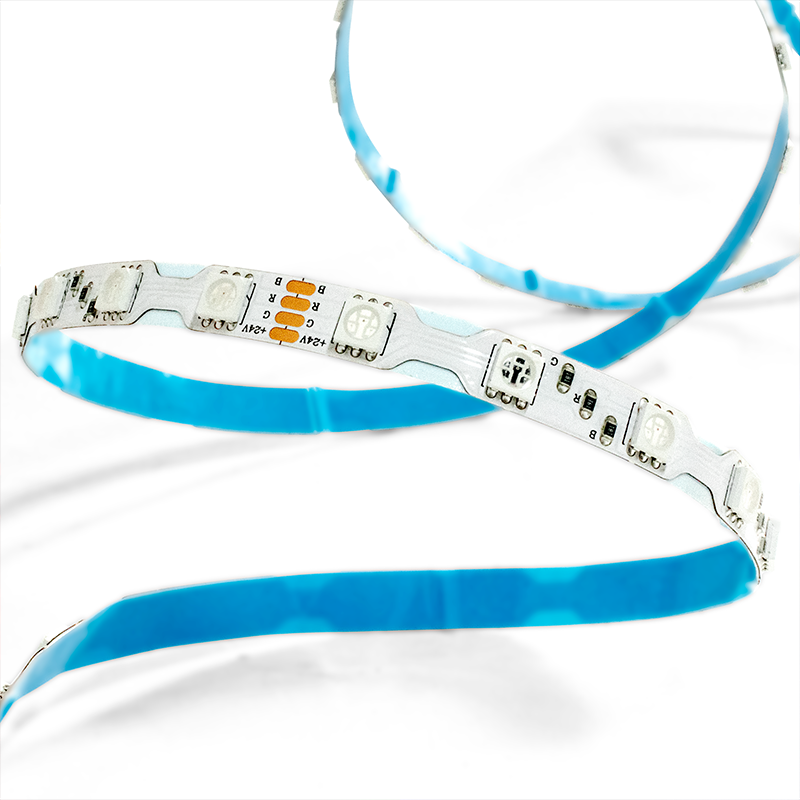

1. Unique S-Shape & Ultra-Flexible Design
Unlike standard straight strips, this tape features a pre-designed S-curve shape that bends smoothly in any direction. It easily wraps around corners, curves, and irregular surfaces, making it perfect for creative signage, artistic displays, and decorative accents without the need for extra connectors.

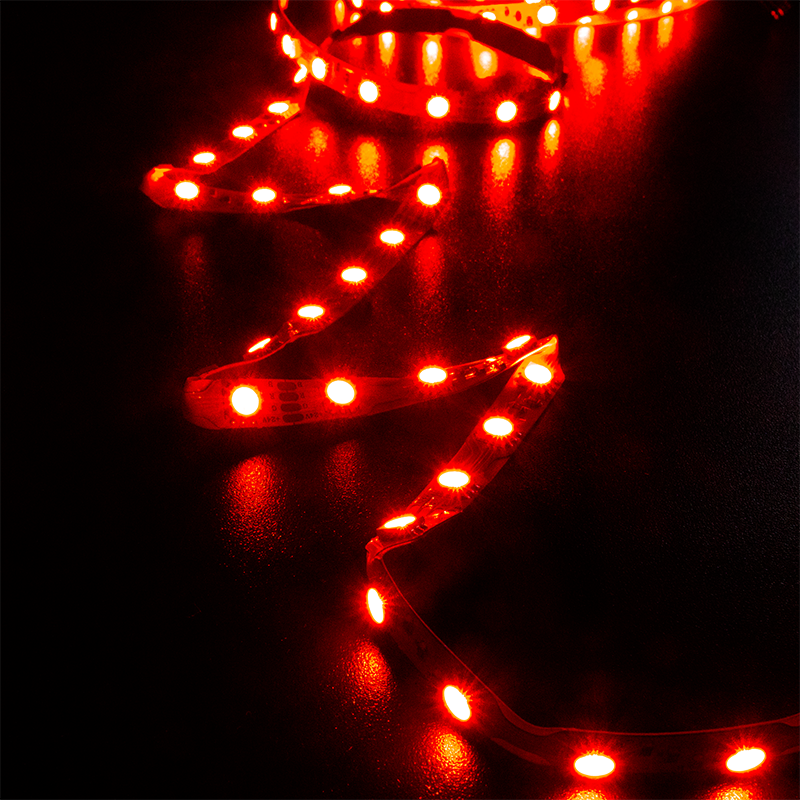

2. Premium 5050 RGB LEDs with High Density
Equipped with high-quality 5050 LED chips at a dense 60 LEDs per meter, this strip delivers bright, uniform, and vibrant illumination. The RGB full-color output ensures rich, true-to-life colors for any atmosphere or application.

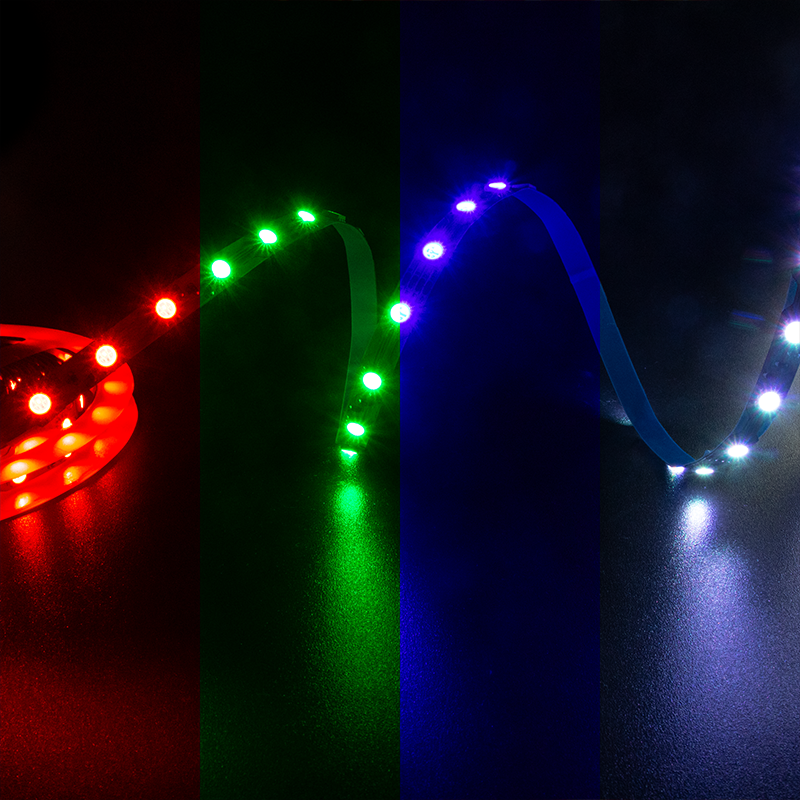

3. Dynamic 7-Color Group Control
Supports 7-color group control functionality, allowing you to switch between dynamic RGB modes and static colors effortlessly. Power consumption is efficient at R: 3.7W, G: 4.2W, B: 4.2W per meter—delivering stunning visuals without excessive energy use.
4. Safe & Stable DC 24V Operation
Powered by DC 24V for enhanced safety and stability. The 24V system minimizes voltage drop over longer runs, ensuring consistent brightness from end to end—ideal for both commercial installations and home projects.
5. Durable 8mm PCB with Easy Installation
Built on a sturdy 8mm wide PCB that balances flexibility with long-term durability. The strip is cuttable at marked intervals and can be installed quickly with adhesive backing or mounting brackets, saving time and labor costs.
Product Specification Sheet
Product Name: 24V S-Shaped Flexible RGB LED Strip Light
|
Item |
Specification |
|---|---|
|
LED Type |
5050 SMD |
|
LED Density |
60 LEDs/meter |
|
Color Mode |
RGB, 7-Color Group Control |
|
Input Voltage |
DC 24V |
|
Power Consumption |
R: 3.7W/m · G: 4.2W/m · B: 4.2W/m |
|
PCB Width |
8mm |
|
Shape Design |
S-Shaped, Flexible / Bendable |
|
Cuttable Unit |
Every 4 LEDs (approx. 67mm) |
|
Beam Angle |
120° |
|
IP Rating |
IP20 (Non-waterproof, Indoor use) |
|
Adhesive |
3M tape on back |
|
Operating Temp. |
-20°C to +50°C |
|
Lifespan |
≥30,000 hours |
Key Features:
S-curve design for easy bending around corners and curves
High-density 5050 chips for bright, uniform RGB output
7-color group control for dynamic lighting effects
24V low-voltage operation for safety and low heat
8mm PCB balances flexibility and durability
Typical Applications:
Decorative lighting, commercial signage, display cases, home accents, festive installations, architectural outlines.
