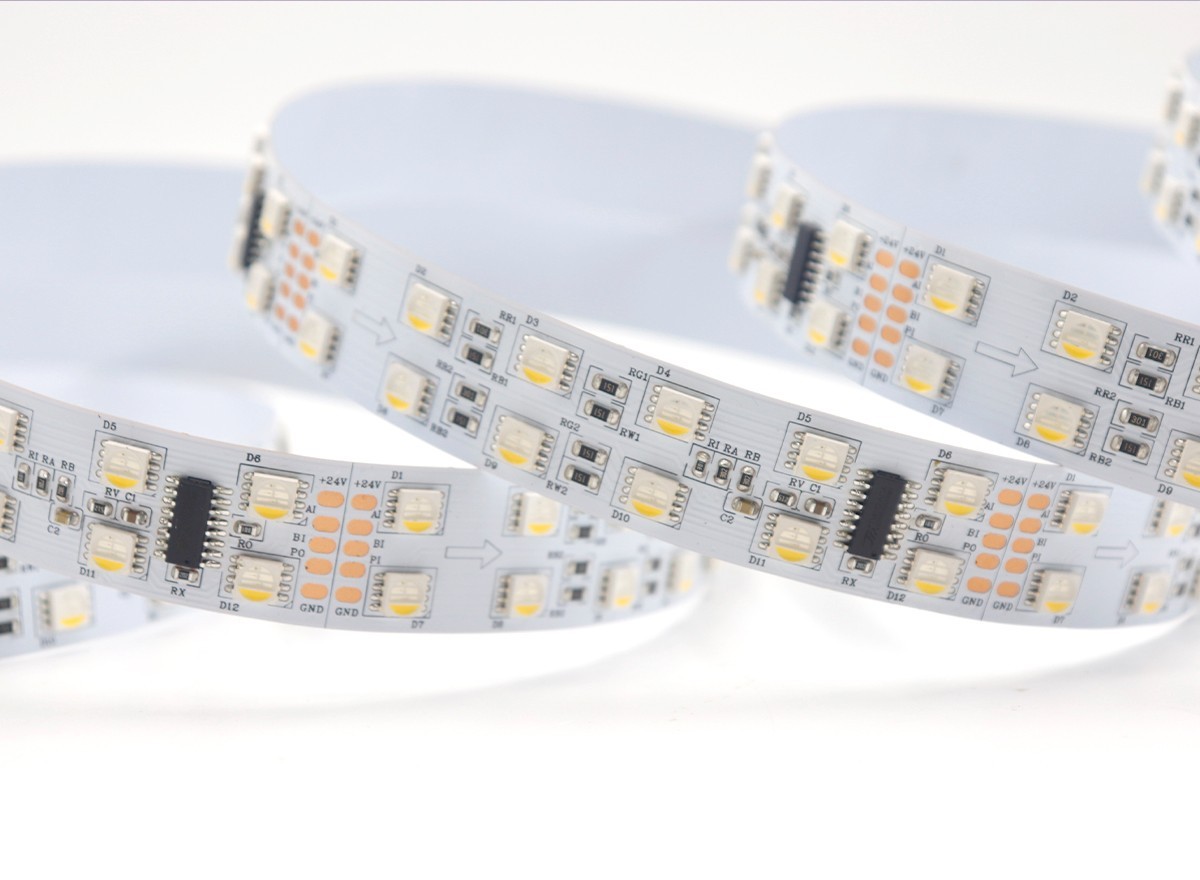

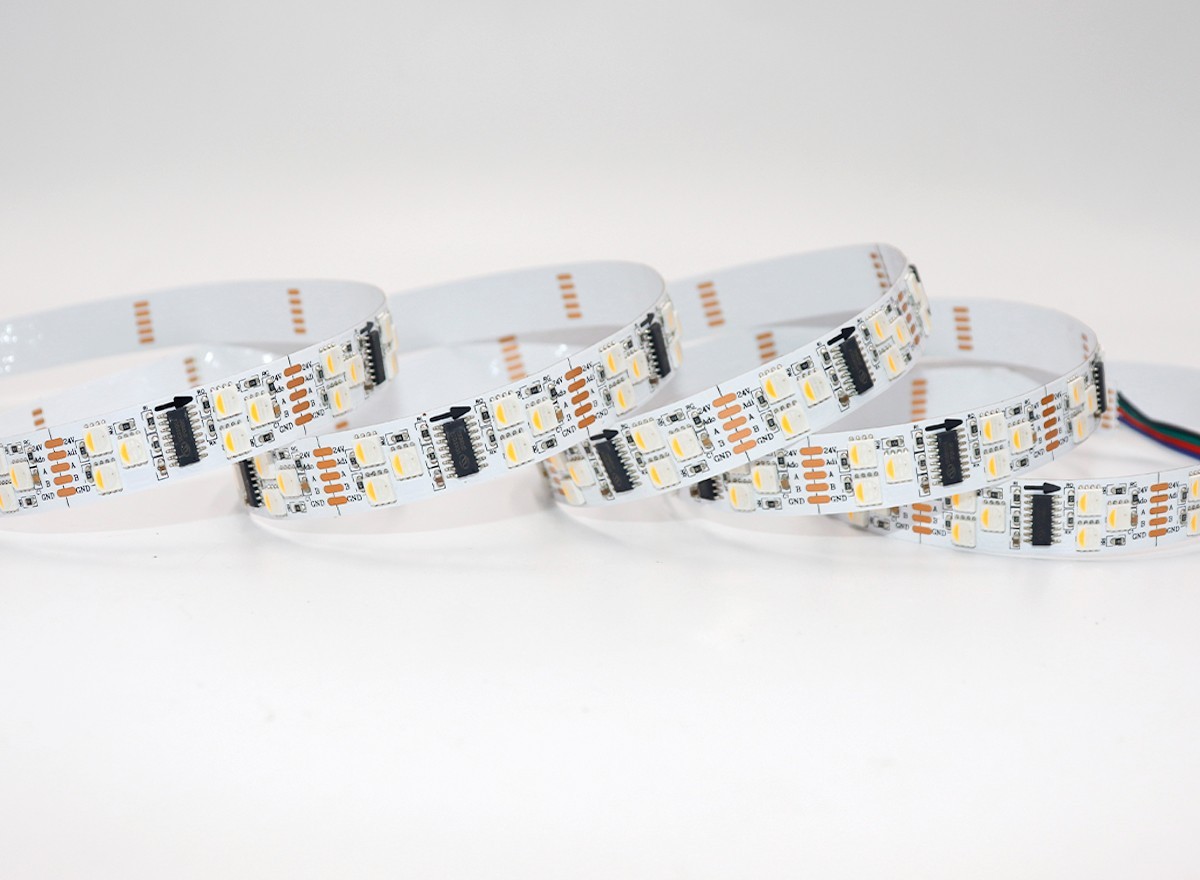

The UCS512C4 5050 RGBW LED Strip combines 120 high-output 5050 RGBW LEDs per meter with 20 DMX512-addressable pixels, running on DC12V for detailed pixel effects. Each UCS512C4 IC drives 6 LEDs, enabling vivid RGB color plus independent white rendering for cleaner pastels, higher brightness and pro-level chase/gradient/video effects. Parallel DMX signal means one IC fault does not break the whole run. Flexible 12mm FPC, cuttable every 50mm, ideal for stages, facades, bars, retail and signage under Art-Net / MADRIX / DMX512 consoles.
True RGBW Pixel Control: UCS512C4 gives 20 pixels/m with independent R/G/B/W channels for richer color and real white light.
High-Density 5050 RGBW: 120 LEDs/m delivers smooth, dot-free mixing and bright output for close-view installations.
12V Detailed Pixel System: 1 IC / 6 LEDs / 50mm cut unit—great for fine animation and short pixel pitch.
DMX512 Parallel Signal: A/B differential signal; breakpoint resume keeps remaining pixels working if one IC fails.
Pro Console Ready: Compatible with DMX512, Art-Net, MADRIX, GrandMA and other stage/architectural controllers.
|
Item |
Specification |
|---|---|
|
Model |
UCS512C4-5050RGBW-120D-12V |
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
LED Qty |
120 LEDs/m |
|
Pixel / IC |
20 pixels per meter, 1 UCS512C4 controls 6 LEDs |
|
IC Type |
UCS512C4, external IC, DMX512 protocol, 4-channel output |
|
Color |
RGB + 3000K / 4000K / 6000K white optional |
|
Input Voltage |
DC 12V |
|
Power |
~38.4 W/m (typical for 120 RGBW LEDs/m) |
|
Grayscale |
256 levels/channel (16-bit optional by controller) |
|
Cutting Unit |
50 mm / 6 LEDs |
|
PCB Width |
12 mm (10 / 15 mm optional) |
|
PCB |
2 oz copper, white / black optional |
|
Beam Angle |
120° |
|
Signal |
DMX A / B / GND + 12V / GND power |
|
Addressing |
DMX address writer / DMX controller required |
|
Refresh / PWM |
high PWM rate, camera-friendly, low flicker |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 optional |
|
Reel Length |
5 m |
|
Lifespan |
30,000–50,000 hrs |
|
Certificate |
CE, RoHS |
