Featuring a wide input range (110-265V AC), it adapts seamlessly to global voltage standards. The pure copper components and high-efficiency design guarantee silent operation and minimal heat generation, extending the lifespan of both the power supply and connected devices. With CE and RoHS certifications, you can trust its safety and environmental compliance. Whether for LED signage, industrial automation, or CCTV systems, the H-GK400-24 offers the perfect balance of durability, efficiency, and quiet performance. Choose reliability—choose H-GK400-24.
Rainproof & Semi-Potted Design: Features a semi-encapsulated (half-potted) construction that resists moisture, dust, and light rain, ideal for semi-outdoor and industrial environments.
Stable & Low-Ripple Output: Delivers a clean 24V DC output with ultra-low ripple, protecting sensitive LED loads and control systems from flicker or interference.
Wide Voltage Input & Global Compatibility: Supports 110-265V AC input at 50/60Hz, automatically adapting to different regional power grids without manual switching.
Silent & High-Efficiency Operation: Built with pure copper components and an optimized circuit design, it runs completely silent with minimal heat loss and high energy efficiency.
Robust & Certified Build: Constructed with 100% brand-new components, certified by CE and RoHS, ensuring long-term reliability, safety, and environmental compliance.
|
Category |
Specification |
|---|---|
|
Model Number |
H-GK400-24 |
|
Product Type |
Rainproof LED Switching Power Supply |
|
Input Voltage |
110-265V AC |
|
Input Frequency |
50 / 60Hz |
|
Output Voltage |
24V DC |
|
Output Current |
16.66A |
|
Rated Power |
400W |
|
Ripple & Noise |
Low Ripple (precise value varies by load) |
|
Efficiency |
High Efficiency (typically >85%) |
|
Cooling Method |
Silent operation (fanless or low-noise design) |
|
Protection Features |
Over-voltage, Over-current, Short-circuit (implied by design) |
|
Enclosure Type |
Semi-potted (half-filled with thermal conductive adhesive) |
|
Ingress Protection |
Rainproof / Moisture-resistant (suitable for sheltered outdoor use) |
|
Terminal Layout |

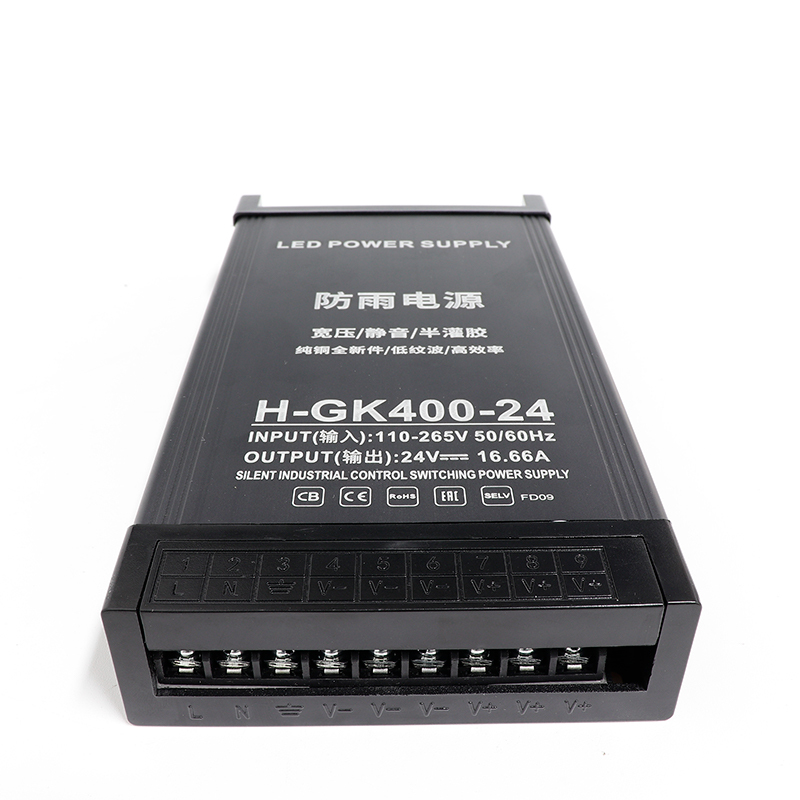

9-pin screw terminal block (L, N, Ground, V+, V-) |
|
Certifications |
CE, RoHS |
|
Applications |
LED lighting, Industrial control, CCTV, Signage, Automation |
Note: For detailed installation and safety instructions, please refer to the official datasheet. This power supply is rainproof but not fully waterproof—avoid direct water exposure or submersion.
