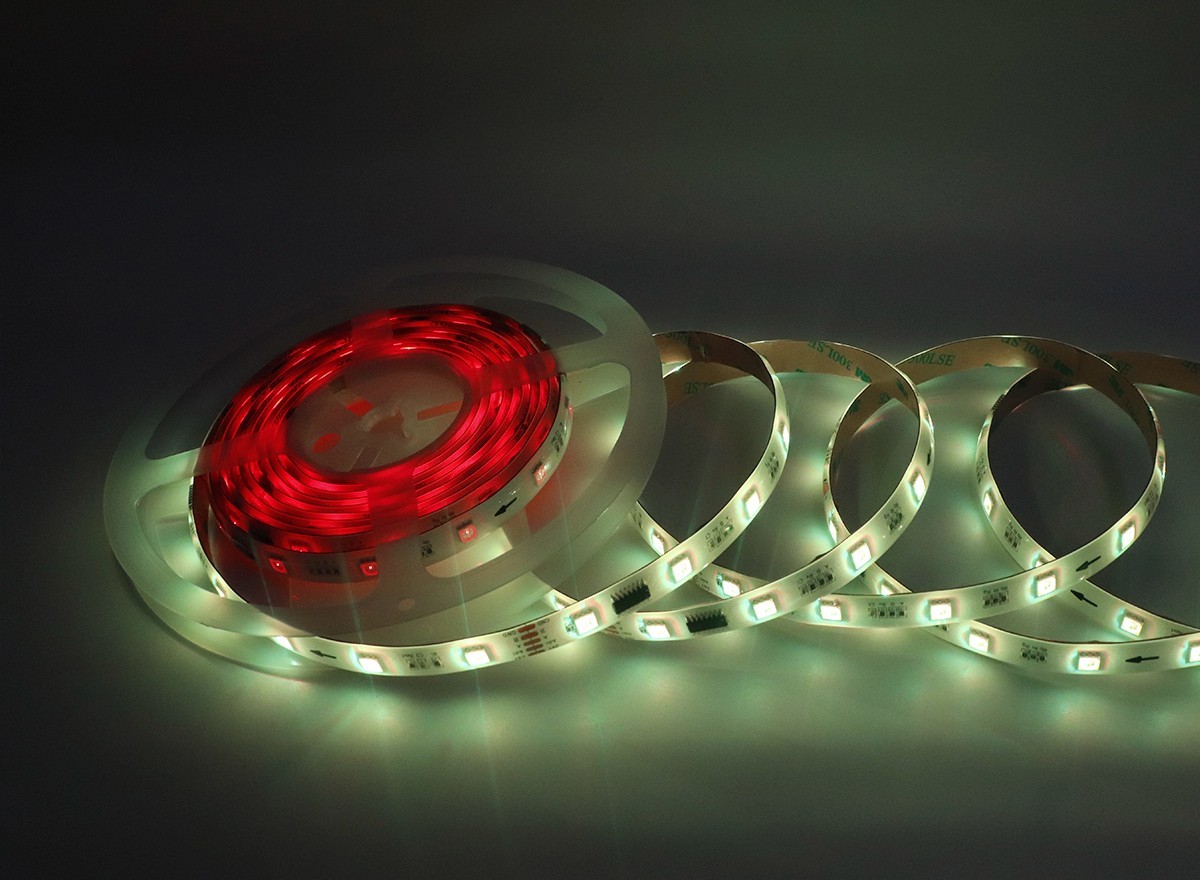

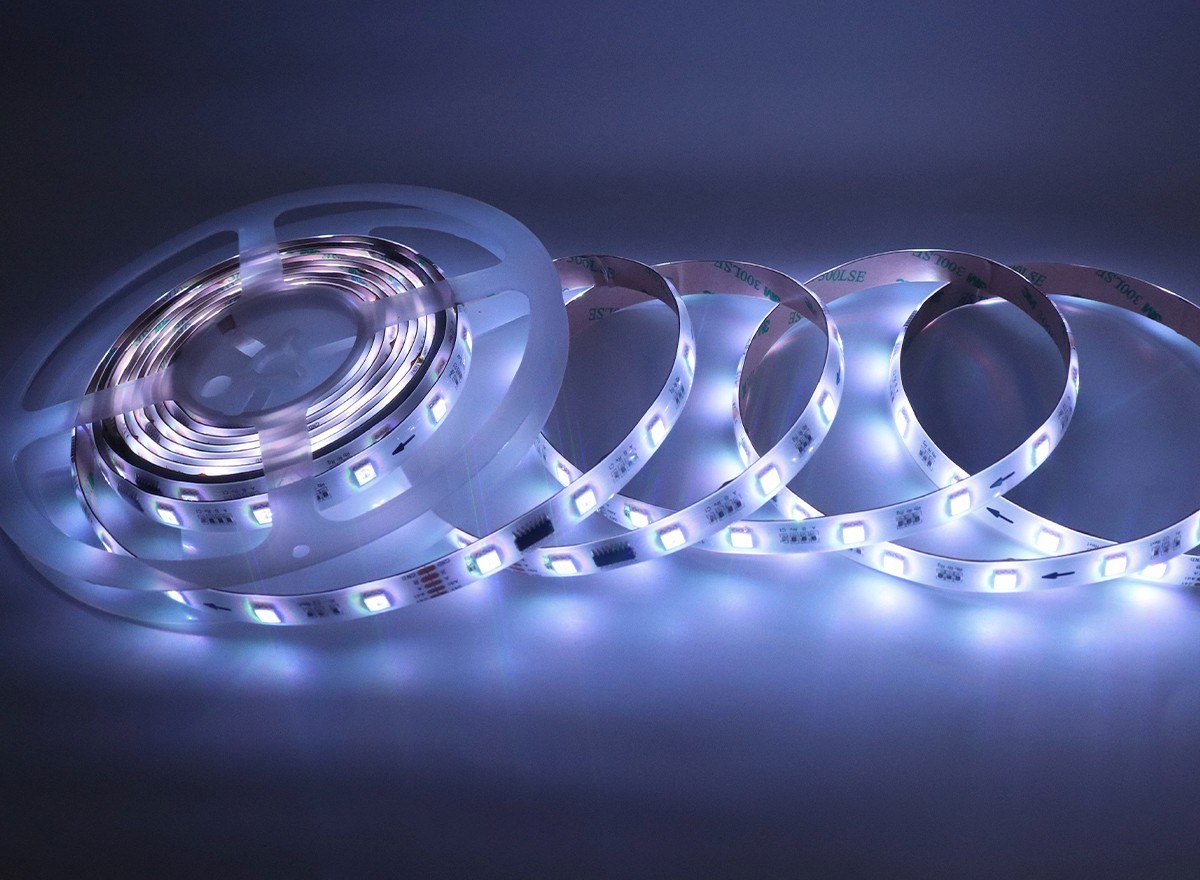

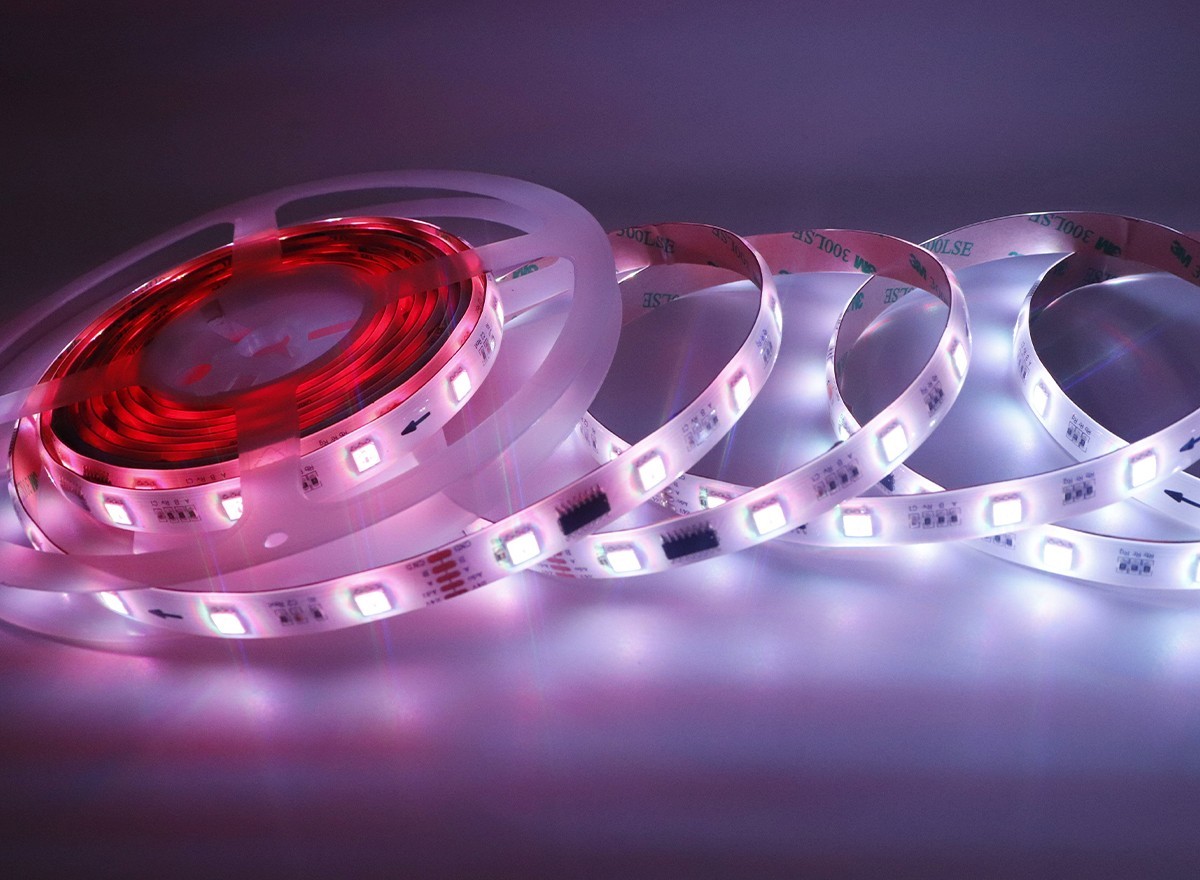

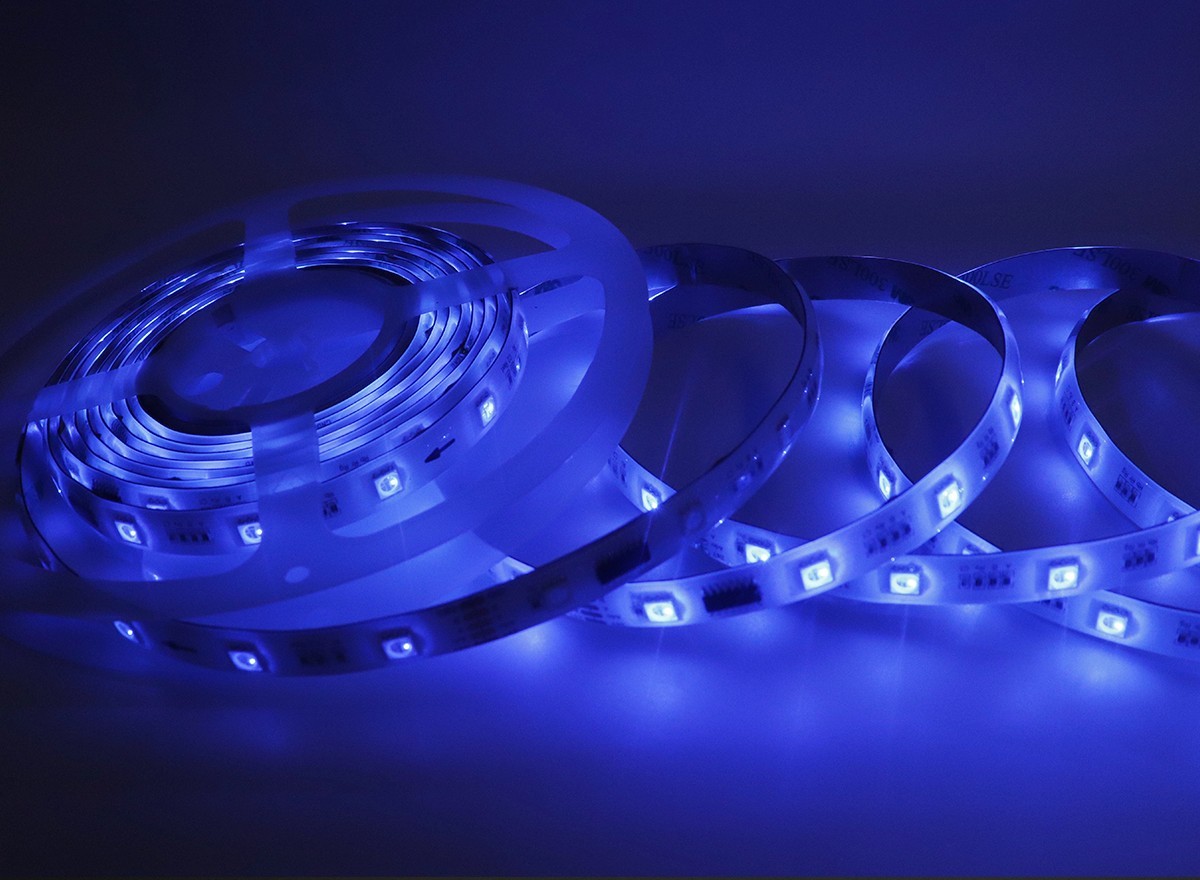

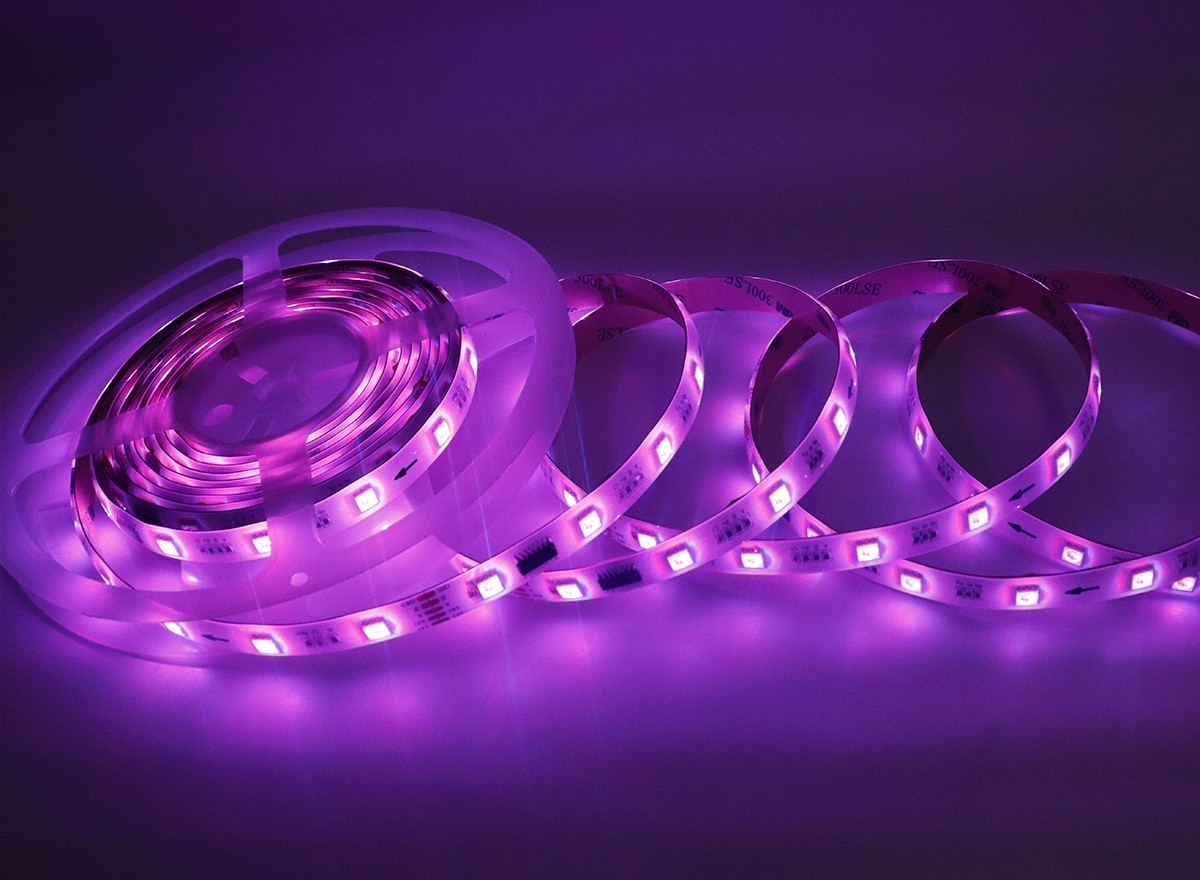

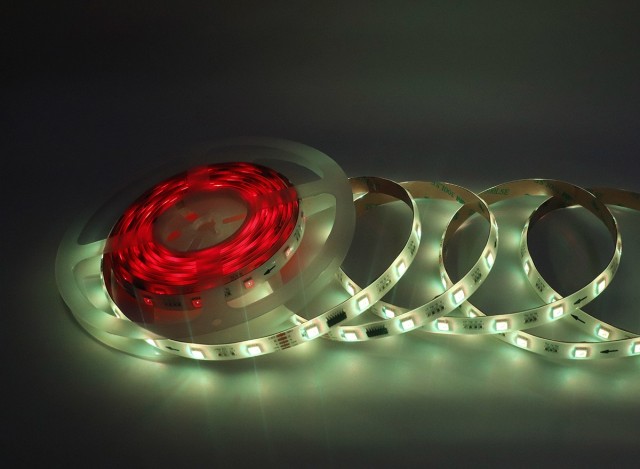

The UCS512C4 5050 RGB LED Strip delivers 60 high-brightness 5050 RGB LEDs per meter with 10 DMX512-addressable pixels, powered by safe DC24V. Each UCS512C4 IC drives 6 LEDs, enabling chase, flow, gradient, strobe and full dream-color effects through DMX / Art-Net / MADRIX systems. The flexible 12mm FPC is cuttable every 100mm, supports dual-signal transmission, and keeps working even if one IC fails. Ideal for stage shows, building outlines, bars, signage and high-end commercial lighting.
DMX512 Pixel Control: UCS512C4 IC gives 10 addressable pixels/m for professional chase/flow/dream-color effects.
Bright 5050 RGB: 60× 5050 tri-chip LEDs/m provide vivid red/green/blue mixing and high output.
Stable 24V System: DC24V reduces voltage drop, allows longer runs, and improves installation safety.
Cuttable Every 100mm: 1 pixel = 6 LEDs; easy cutting suits stages, facades, letters and custom fixtures.
Fault-Tolerant Signal: DMX differential parallel signal keeps remaining pixels working if a single IC fails.
|
Item |
Specification |
|---|---|
|
Model |
UCS512C4-5050RGB-60D-24V |
|
LED Type |
SMD 5050 RGB (3-in-1) |
|
LED Qty |
60 LEDs/m |
|
Pixel / Segment |
10 pixels per meter (1 IC controls 6 LEDs) |
|
IC Type |
UCS512C4, external IC, DMX512 protocol |
|
Color |
RGB full color |
|
Input Voltage |
DC 24V |
|
Power |
14.4 W/m |
|
Grayscale |
256 levels per channel |
|
Cutting Unit |
100 mm / 6 LEDs |
|
PCB Width |
12 mm (10 mm optional) |
|
PCB |
2 oz / 3 oz copper, white or black |
|
Beam Angle |
120° |
|
Signal Lines |
DMX A / B / GND (+ 24V+, GND) |
|
Address Setting |
DMX writer / controller required |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 optional |
|
Reel Length |
5 m |
|
Lifespan |
30,000–50,000 hrs |
|
Certificates |
CE, RoHS |
