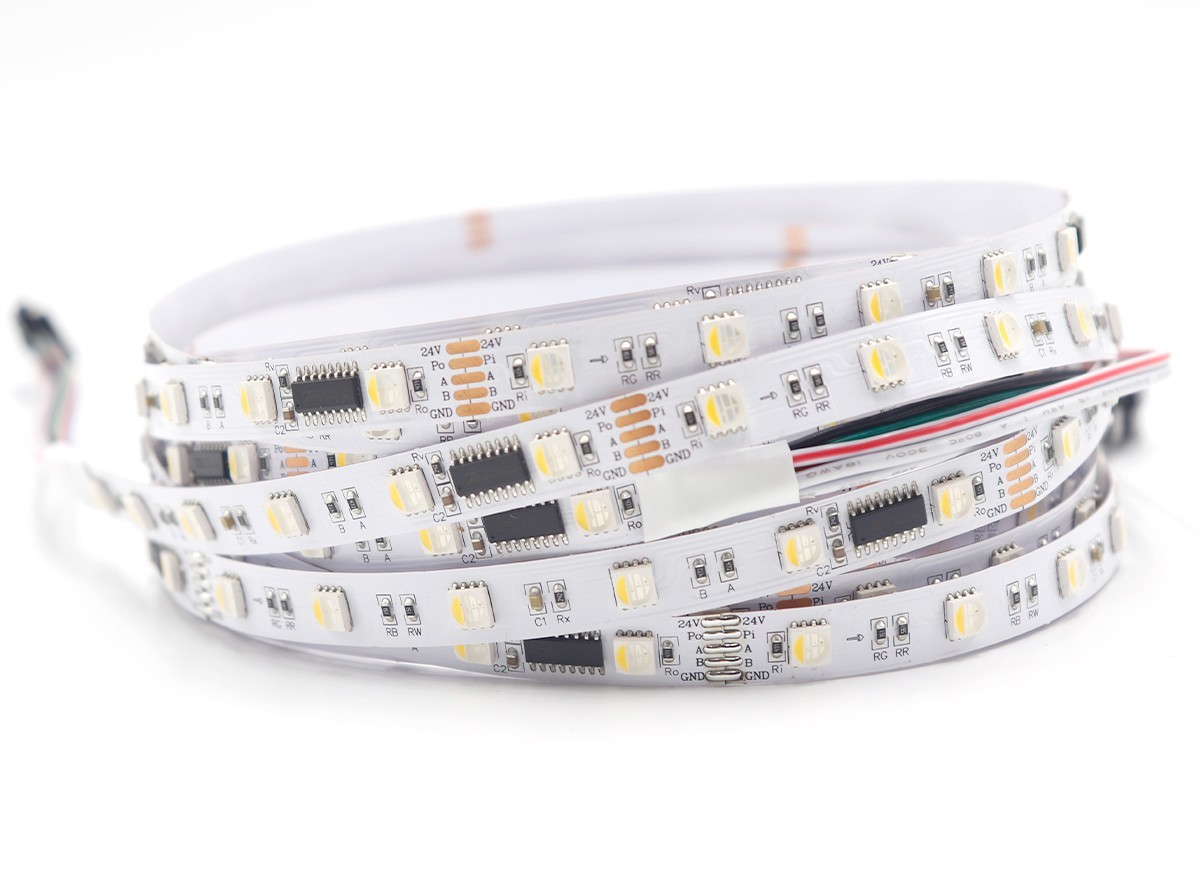

Upgrade your architectural and stage lighting with our 24V TM512AC 5050 RGBW Dream Color LED Strip. Featuring 48 LEDs/m and 8 individually addressable pixels, each 4-in-1 RGBW chip delivers vivid colors plus a pure white channel for superior color mixing and high-CRI output. Unlike standard serial protocols, TM512AC uses a differential parallel signal—if one pixel fails, the rest keep running flawlessly. Fully compatible with standard DMX512 consoles for professional control. Cut every 125mm, narrow 10/12mm PCB fits tight coves, outlines, and façade details. Ideal for stages, commercial interiors, and building exteriors demanding reliable, broadcast-grade dynamic lighting.

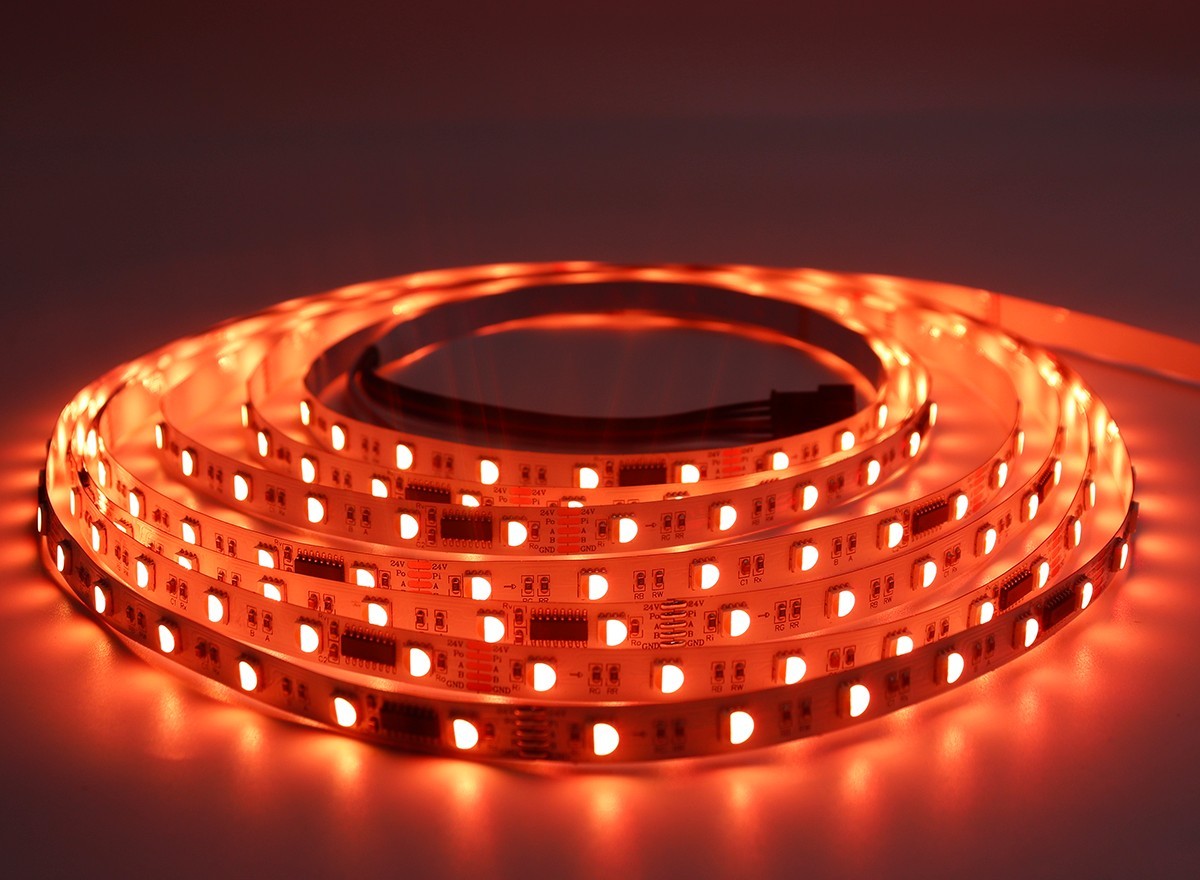

True RGBW 4-in-1 Chip with Independent White: Each 5050 SMD integrates red, green, blue, and a dedicated white die, producing clean pastels, accurate whites, and richer color mixing without the purple/magenta tint common in RGB-only strips.

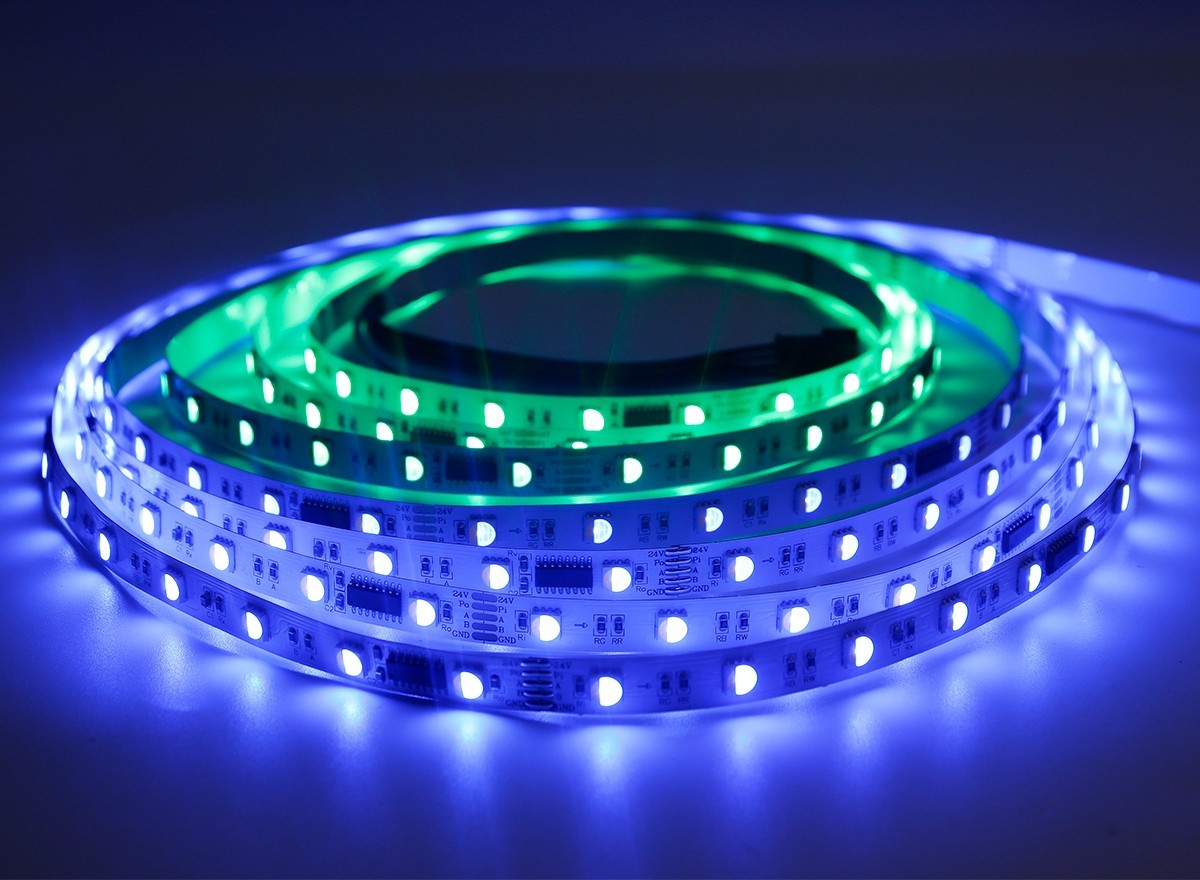

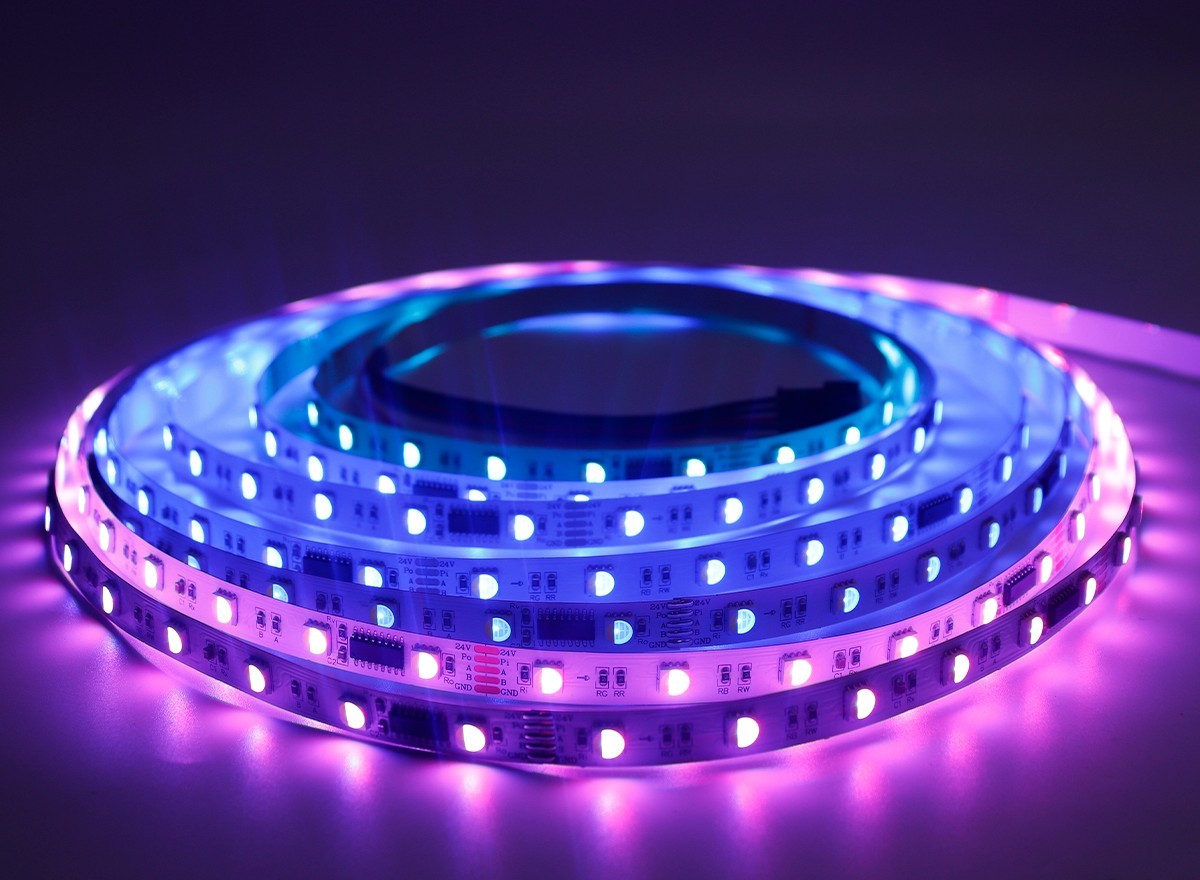

TM512AC Differential Parallel Protocol – Fail-Safe Design: Unlike WS2811/WS2815 serial strips, TM512AC uses differential parallel signaling; a single damaged pixel will NOT break the entire chain, ensuring uninterrupted operation critical for commercial and architectural installs.
Standard DMX512 Console Compatibility: Direct integration with industry-standard DMX512 controllers—no proprietary decoders required. Supports RDM, 8-bit/16-bit dimming, and pixel-mapping for stage, TV, and façade applications.

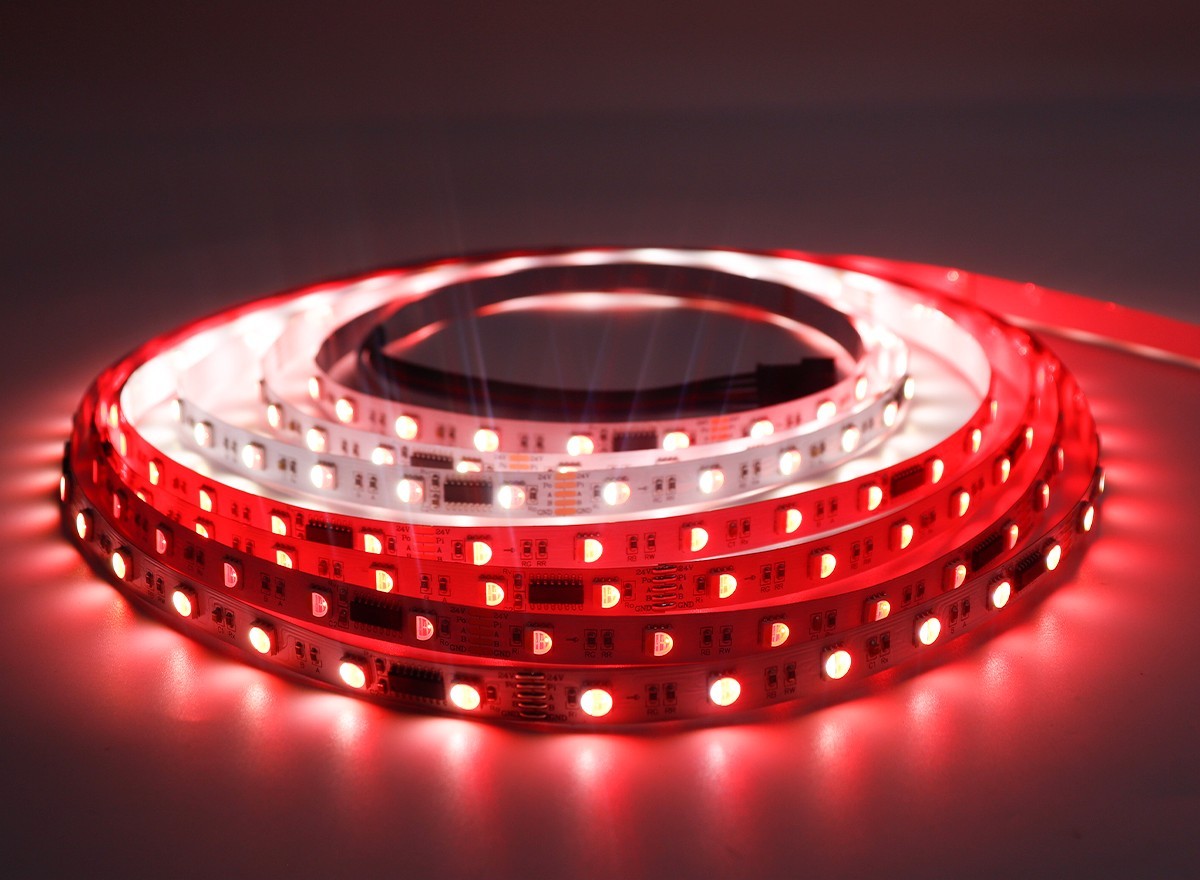

High-Density 48 LEDs/m & 8 Addressable Pixels/m: Double the pixel density of typical 5050 strips, enabling smoother chases, gradients, and text effects. 24V constant voltage ensures lower current draw and reduced voltage drop over long runs.
Flexible Installation & Narrow PCB: Cuttable every 125mm at marked terminals. 10mm or 12mm wide flexible PCB fits narrow coves, aluminum profiles, and tight architectural outlines. IP65/IP67 silicone coating options available for indoor/outdoor use.
|
Parameter |
Specification |
|---|---|
|
Product Model |
TM512AC-5050-RGBW-48D |
|
LED Type |
5050 RGBW 4-in-1 SMD (RGB + White) |
|
LED Density |
48 LEDs per meter |
|
Pixel Density |
8 addressable pixels per meter (6 LEDs per pixel) |
|
Operating Voltage |
DC 24V Constant Voltage |
|
Power Consumption |
~14.4W/m (0.3W/LED) |
|
Color Capability |
RGB full color + Independent White (2700K/4000K/6500K optional) |
|
Control Protocol |
TM512AC (differential parallel), backward compatible with DMX512 |
|
Signal Transmission |
Differential parallel (tolerant to single-pixel failure) |
|
DMX Channels per Pixel |
4 channels (R, G, B, W) |
|
Cutting Unit |
Every 125mm (6 LEDs / 1 pixel) |
|
PCB Width |
10mm or 12mm (optional) |
|
PCB Color |
White / Black |
|
IP Rating |
IP20 (bare), IP65 (silicone coated), IP67 (silicone tube) |
|
Beam Angle |
120° |
|
Operating Temp. |
-20°C to +50°C |
|
Lifespan |
50,000 hours (L70) |
|
Certifications |
CE, RoHS, REACH |
|
Warranty |
3 years |
|
Ideal Applications |
Cove lighting, building outlines, stage sets, commercial interiors, façade contour, signage |
Wiring Note: Connect V+ to 24V DC, V- to GND. DMX data links to TM512AC decoder or direct DMX interface. Parallel power injection recommended every 5m.
Controller Compatibility: Works with any standard DMX512 console via TM512AC decoder. Supports Art-Net, sACN, and Madrix pixel mapping.
