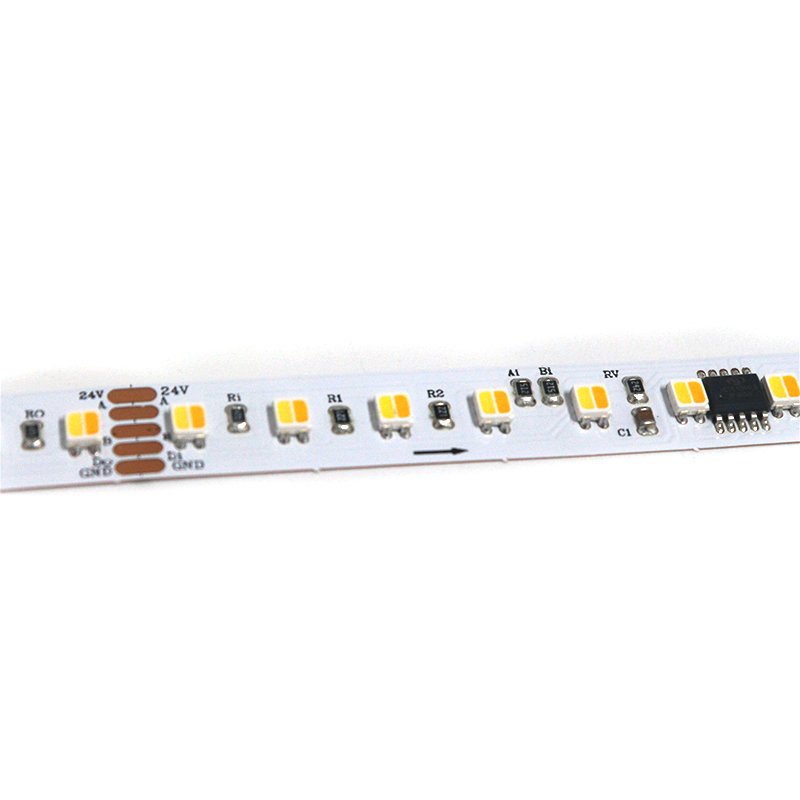

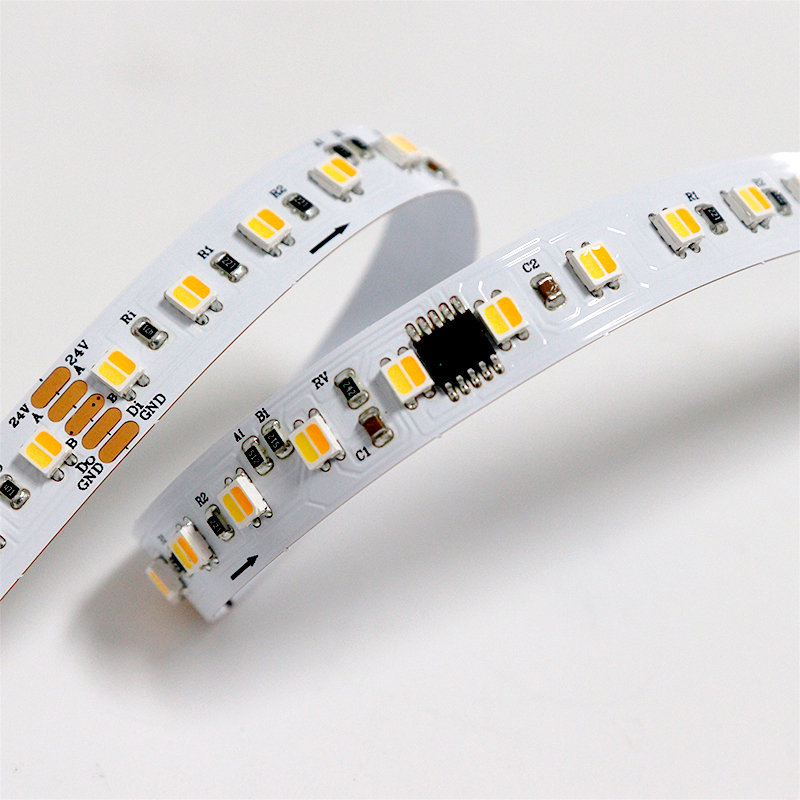

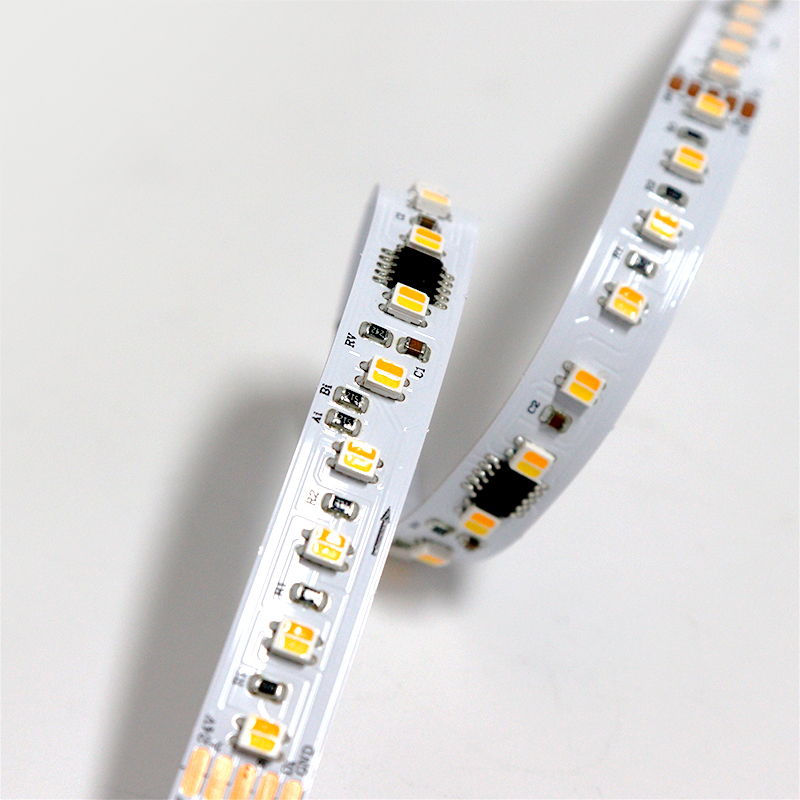

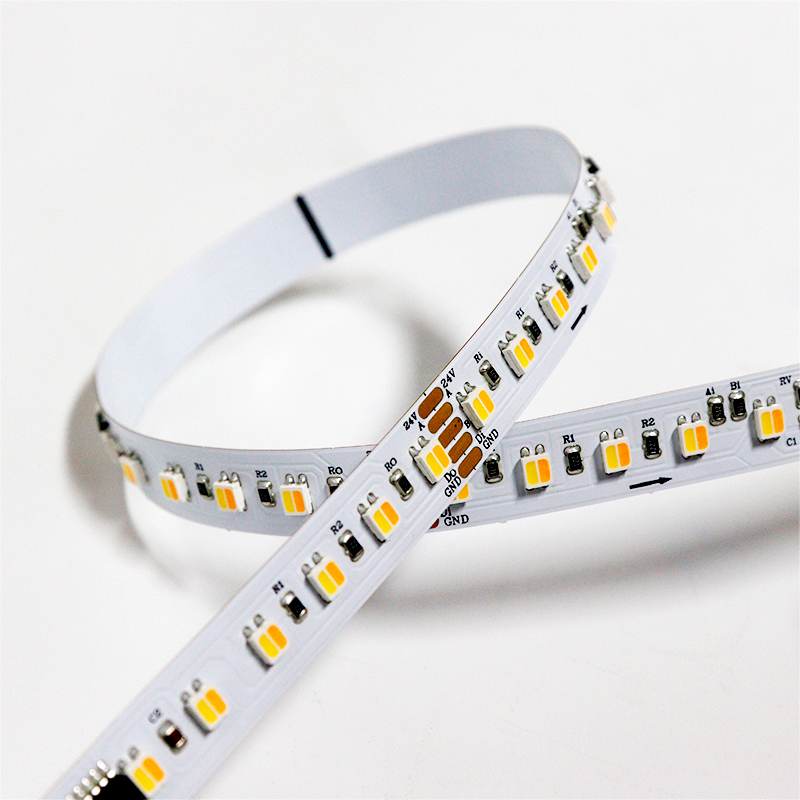

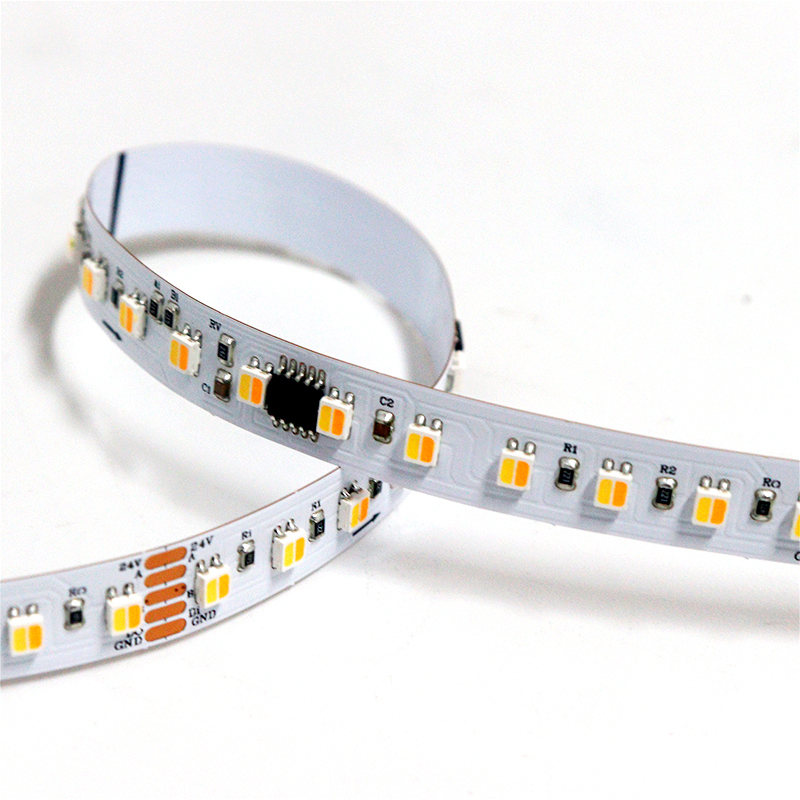

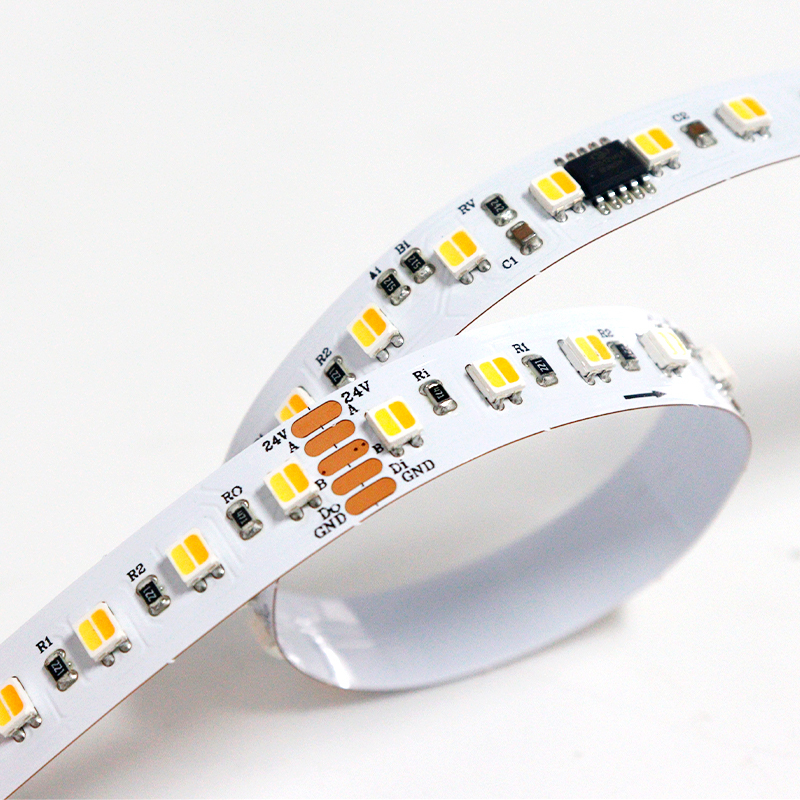

1. Premium 3527 Dual Color Temperature Chips
Features high-brightness 3527 LED chips with dual white tones (warm & cool), delivering uniform, dot-free illumination and excellent color mixing for versatile ambiance control.
2. Advanced UCS512B4L Programmable IC
Equipped with high-performance UCS512B4L addressable ICs, enabling smooth dimming, dynamic color temperature transitions, and independent pixel control for creative lighting effects.
3. High Density & Flexible Configuration
Boasts 120 LEDs per meter arranged in 10 independently addressable segments, providing exceptional light density and design flexibility for complex engineering layouts.
4. Stable 24V Power & Efficient Performance
Operates on a reliable 24V system with 10.7W/m power consumption, minimizing voltage drop and ensuring consistent brightness even in long-run installations.
5. Engineering-Grade 10mm FPC Design
Built with a durable 10mm flexible PCB for easy bending and installation in narrow spaces, making it ideal for architectural, commercial, and smart lighting applications.
|
Item |
Specification |
|---|---|
|
Product Name |
UCS512B4L 3527 Dual Color Temperature LED Strip |
|
LED Type |
3527 Dual White (Warm + Cool) |
|
LED Density |
120 LEDs/m |
|
Segment Configuration |
10 Segments/m, Individually Addressable |
|
Control IC |
UCS512B4L (Programmable, Individual Addressing) |
|
Operating Voltage |
DC 24V |
|
Power Consumption |
10.7W/m |
|
PCB Width |
10mm FPC (Flexible Printed Circuit) |
|
Color Temperature |
Adjustable Dual White (Warm 2700K–3000K / Cool 6000K–6500K typical) |
|
Dimming & Effects |
Smooth Dimming, Dynamic CCT Transitions, Pixel-Level Control |
|
Installation |
3M Adhesive Backing, Cuttable at Segment Marks |
|
IP Rating |
IP20 (Non-waterproof, custom IP options available) |
|
Application |
Architectural Lighting, Commercial Displays, Smart Home, Engineering Projects |
✅ High-density 120 LEDs/m for uniform, dot-free light output
✅ 10 programmable segments per meter with independent IC control
✅ Stable 24V operation minimizes voltage drop over long runs
✅ Flexible 10mm PCB fits narrow profiles and curves
✅ Compatible with mainstream SPI controllers (e.g., T-1000K, K-1000C, Arduino, Raspberry Pi)
Standard Reel Length: 5m/roll (custom lengths available)
MOQ: 1 roll (sample orders welcome)
Lead Time: 3–7 days for standard orders
CE, RoHS compliant
3-year limited warranty
100% full-strip tested before shipment
