Whether you’re building a TV backlight, gaming setup, or smart home ambiance, the SP805E delivers professional-grade performance with DIY flexibility. Experience stunning dynamic modes, presets, and playlists—all controlled via your smartphone.
🎵 Built-in Mic & Music Sync: Features an onboard high-sensitivity analog microphone for instant audio-reactive effects. Watch your LEDs pulse, flash, and change color in perfect sync with your music or games.
🔗 Dual SPI & 5-Ch PWM Outputs: Drive two independent addressable strips (up to 2048 LEDs per port) via SPI, while simultaneously controlling up to 5 channels of standard PWM RGB/CCT/WW light strips.

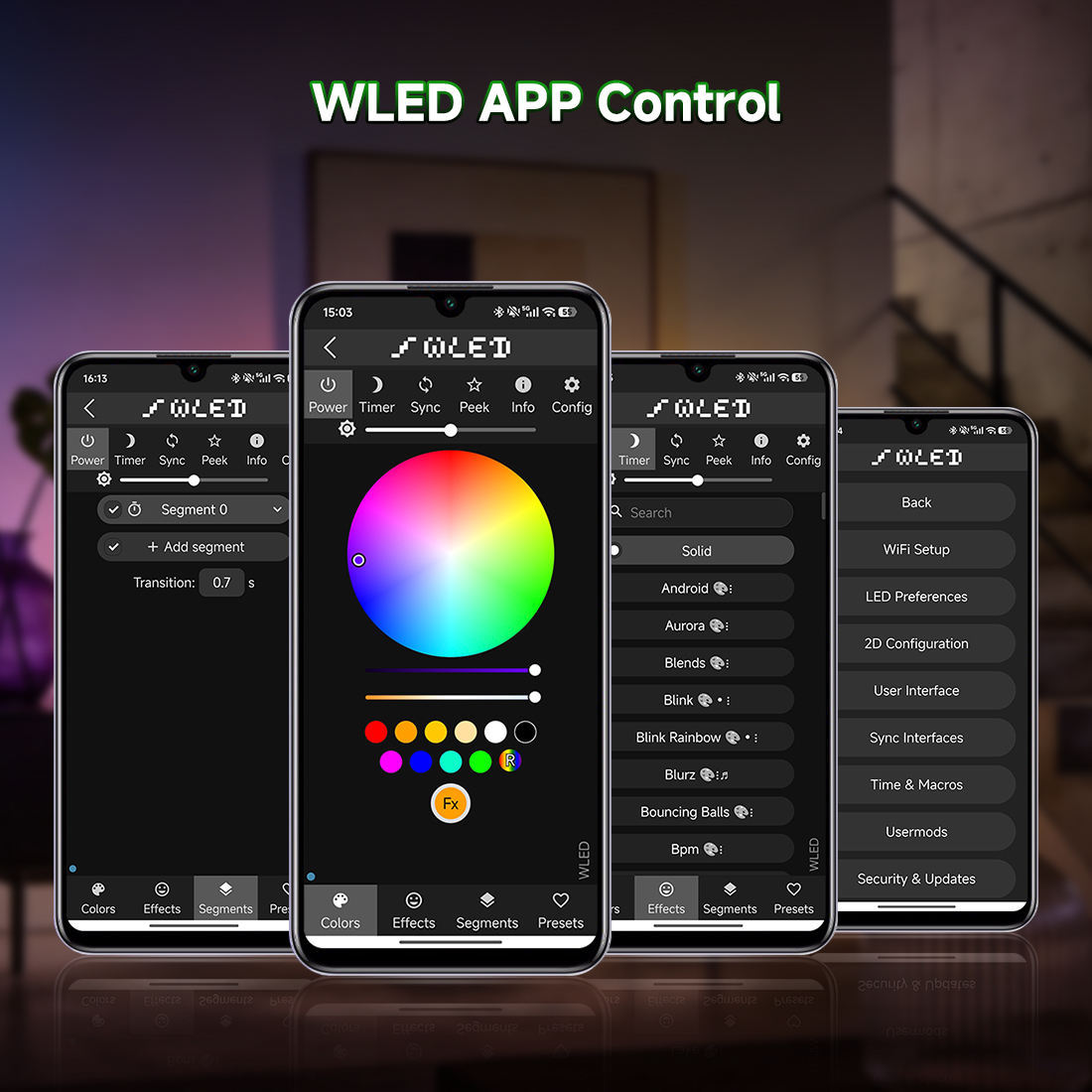

📲 Smart Home & App Control: Fully compatible with the WLED app (iOS/Android) and web interface. Integrates smoothly with Home Assistant, Alexa, and Google Home for voice control and automation.

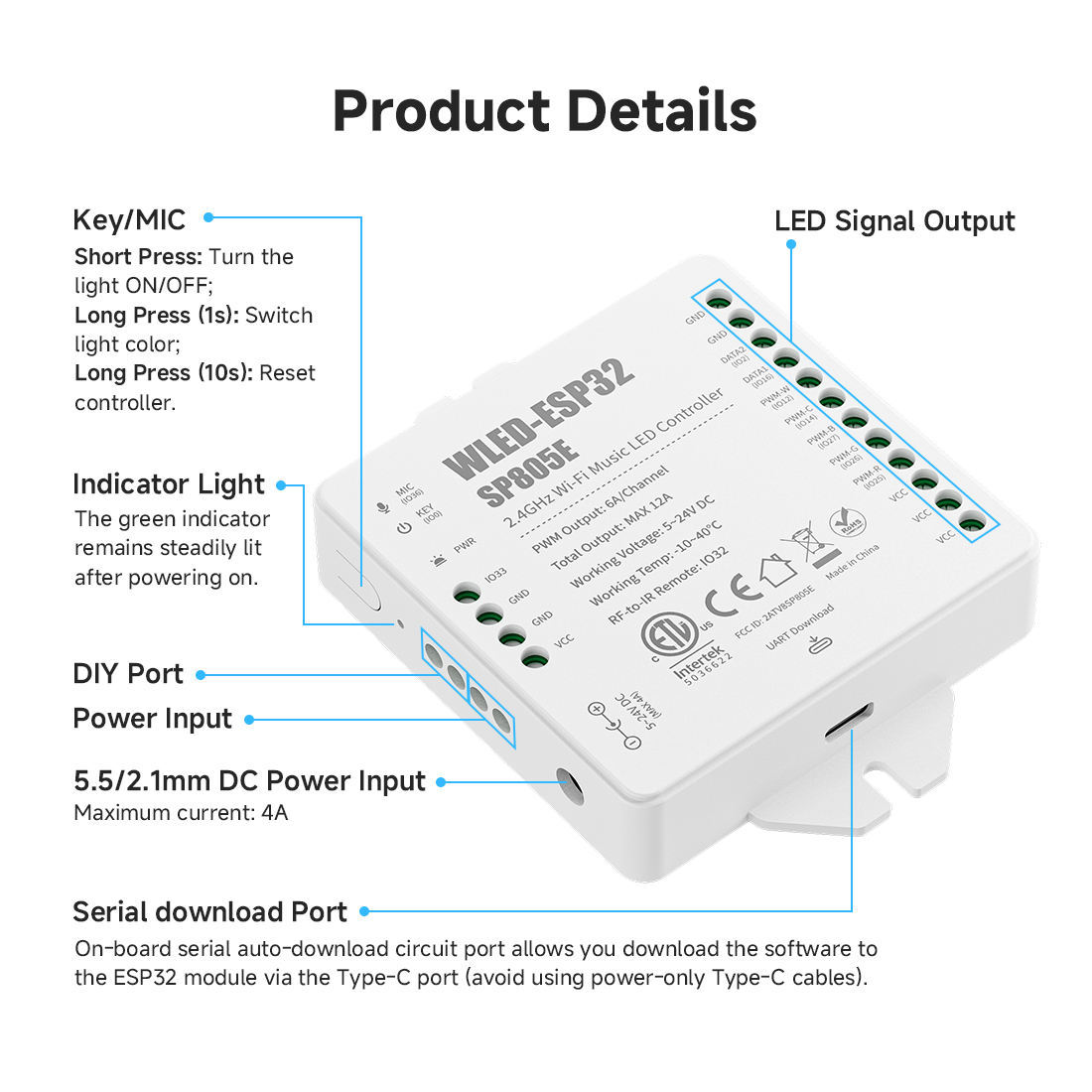

⚡ USB-C UART & Easy Flashing: Equipped with a modern USB Type-C port for straightforward firmware updates, debugging, and UART downloading without needing an external programmer.
🔧 Wide Compatibility & Voltage: Supports DC 5V/12V/24V input and works with popular IC chips like WS2812B, SK6812, WS2811, and WS2815. Perfect for DIY projects, TV backlights, and architectural lighting.
Model: SP805E
Main Chip: ESP32 (Dual-core, Wi-Fi 2.4G)
Firmware: WLED (Supports Audio Reactive versions)
Input Voltage: DC 5V / 12V / 24V

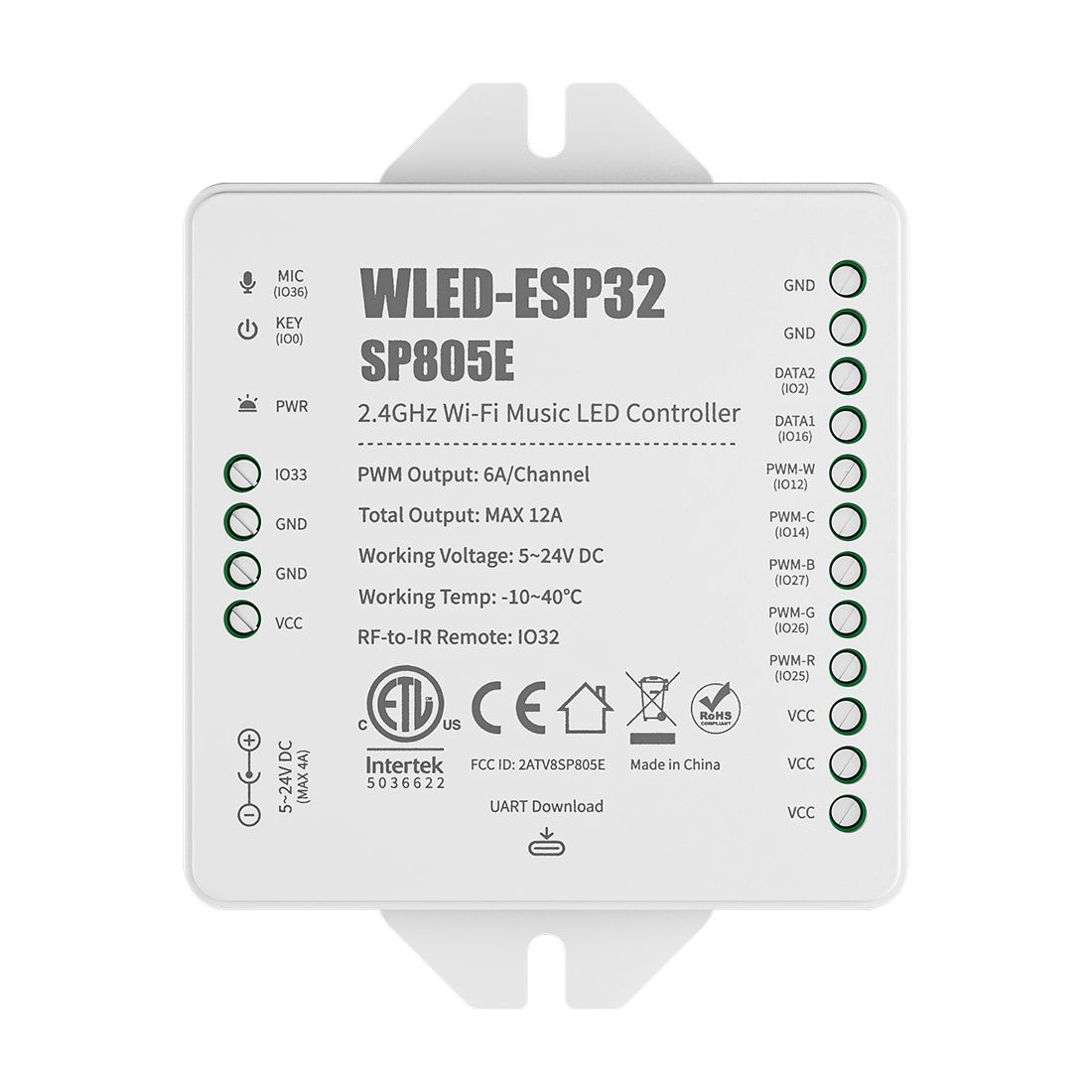

Output Interfaces:

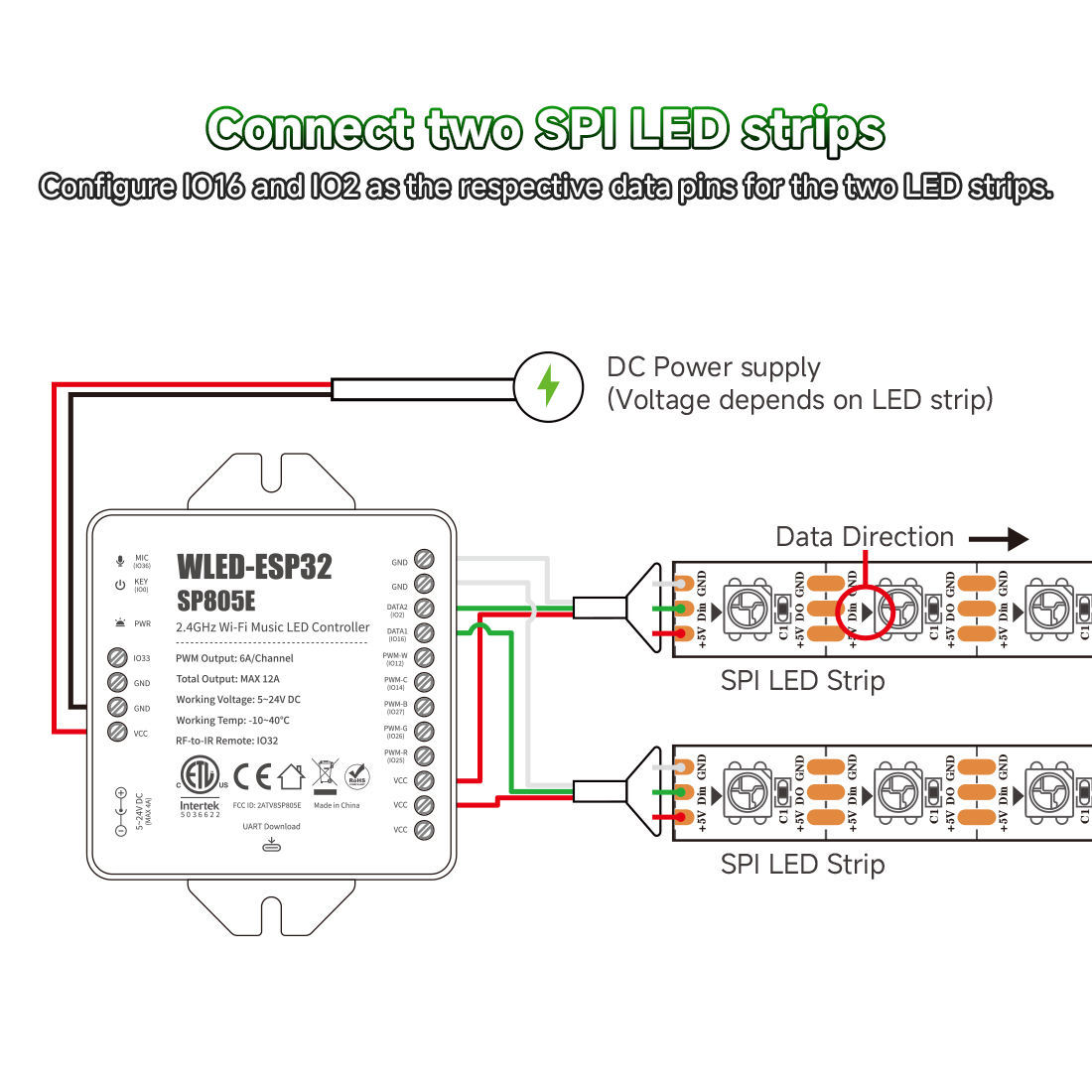

SPI (Addressable): 2 Channels (GPIO 16, GPIO 2) – Max 2048 LEDs per channel
PWM (Standard): 5 Channels (GPIO 25, 26, 27, 12, 14) – Max 6A per channel, 12A total
Audio: Built-in Analog Microphone (GPIO 36)
Connectivity: Wi-Fi 2.4GHz, USB Type-C (UART)
Control Methods: WLED App, Web Browser, 2.4G Remote, Home Assistant

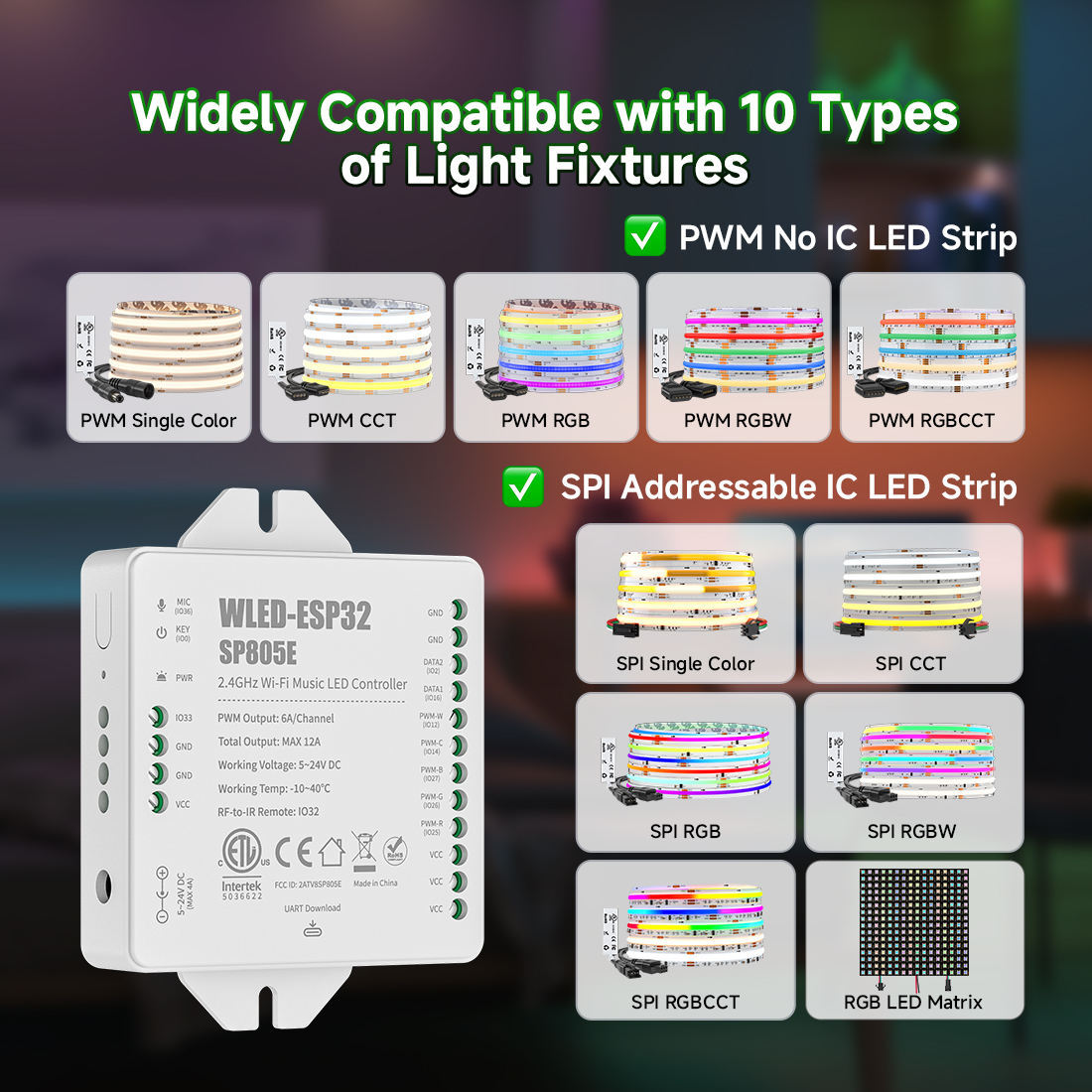

Compatible LED Types: WS2812B, SK6812, WS2811, WS2815, WS2814, RGB, RGBW, CCT

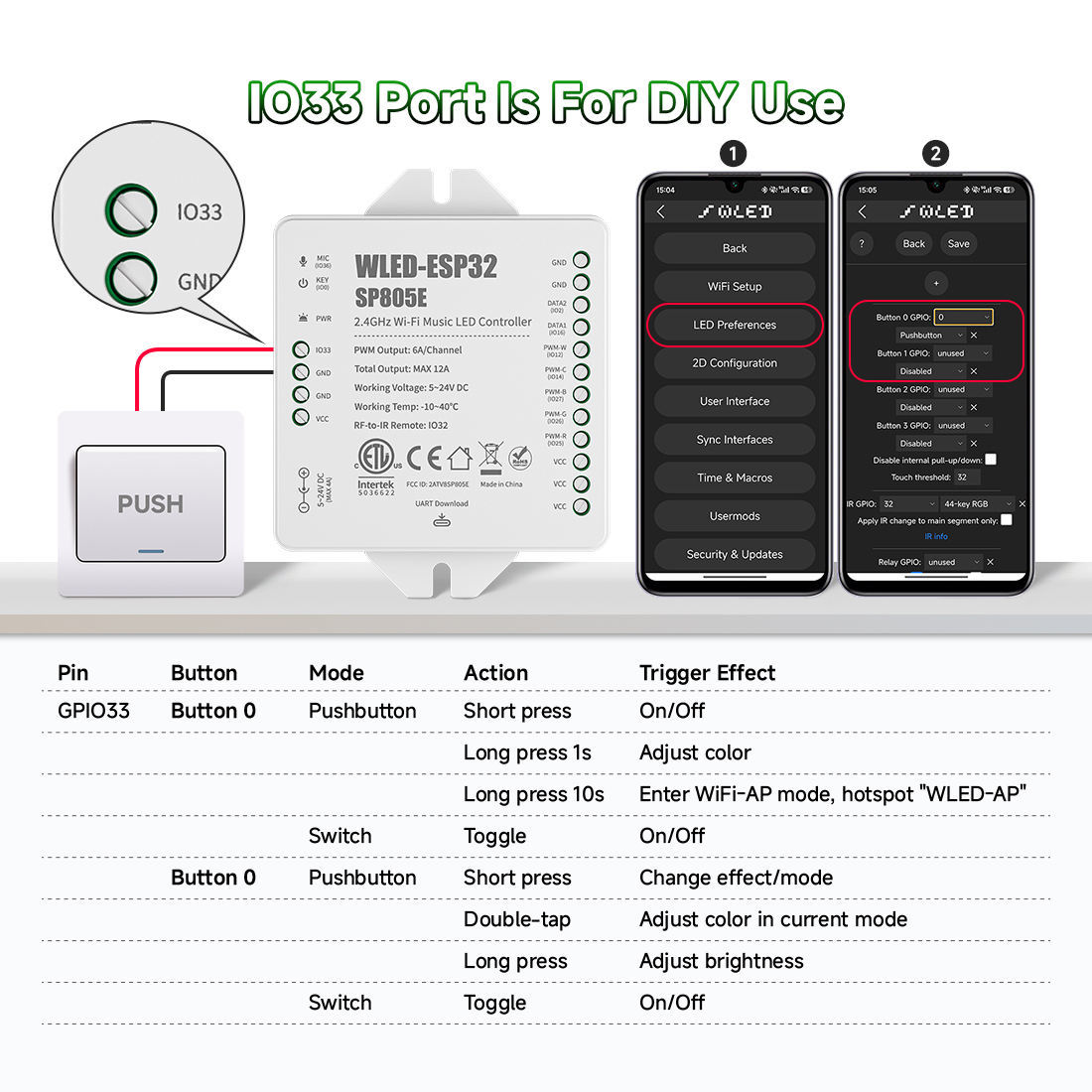

Button: 1x User Key (GPIO 0)
Dimensions: Compact PCB design for DIY enclosures
