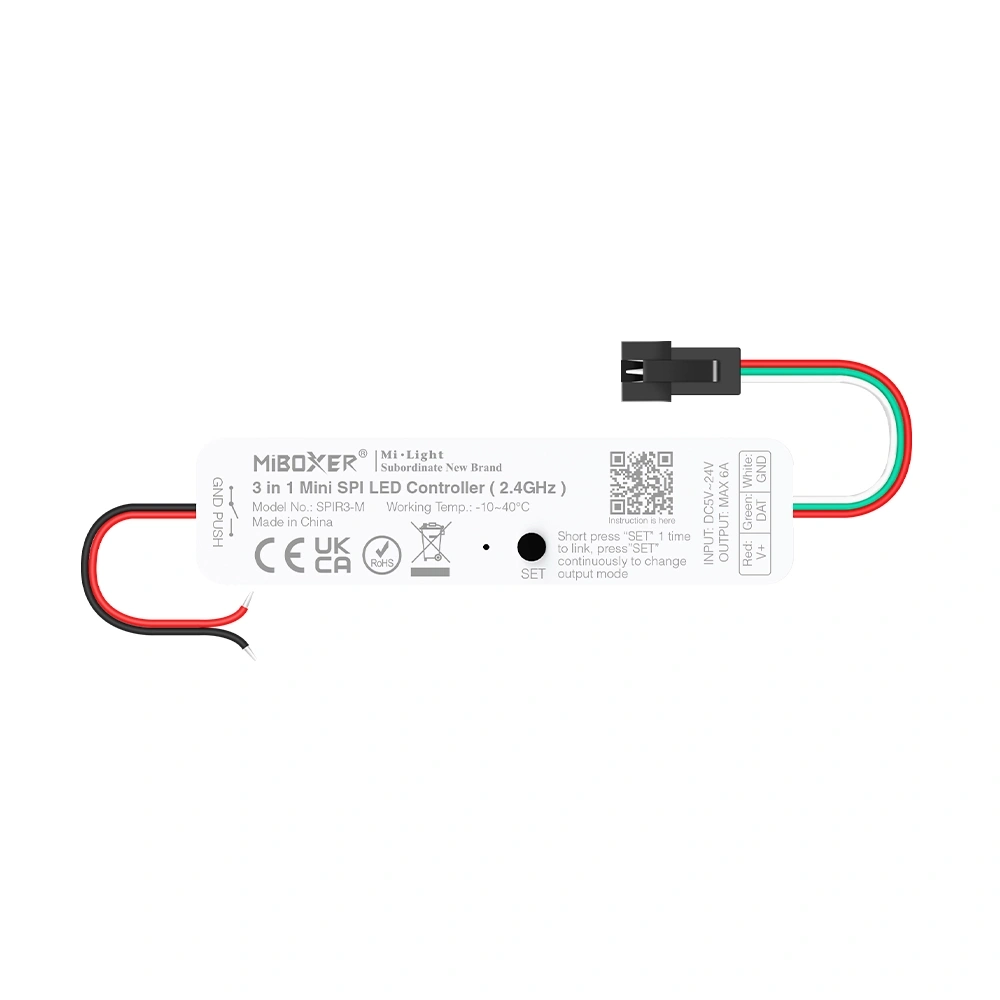

SPIR3-M 3 in 1 Mini SPI 2.4GHz LED Controller

Name: SPIR3-M 3 in 1 Mini SPI 2.4GHz LED Controller
Availability: InStock

SPIR3-M controller is designed for Pixel led strip with 2.4GHz wireless transmission technology, have high speed transmitting and strong ability for anti-interference, stable signal Working with C6 or B6 remote, adjust mode, color, brightness, ON/OFF time and editing dynamic lighting feature

3 in 1= Single color + RGB + RGBW SPI controller
• Pixel Dots: Single color (2048), RGB (1536), RGBW (1024)
• Output Signal: SPI (TTL) 800Kbps
• Setting ON/OFF time and color
• Total 20 dynamic modes and support editing color of them
• Have DND function, usually used for power failure area to save power.

1-9 pcs

$15.88

10-999 pcs

$14.88

>=1000 pcs

$12.88

GET A QUOTE

Download

View all downloads

Features

3 in 1= Single color + RGB + RGBW SPI controller
Pixel Dots: Single color (2048), RGB (1536), RGBW (1024)
Output Signal: SPI (TTL) 800Kbps
Setting color and length
Setting ON/OFF time and color
Selecting single color, RGB or RGBW output mode via “SET” button
Push ON/OFF and changing dynamic mode
Total 20 dynamic modes and support editing color of them
Support PUSH switching dynamic mode
Have DND function, usually used for power failure area to save power.

Compatible chips( controller don't need to set chip types)

TM1809, TM1804, TM1812, SK6813, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815，SK6812(RGBW), WS2813(RGBW), WS2814(RGBW)

Parameters

Product Name:	3 in 1 Mini SPI LED Controller (2.4GHz)
Model No.:	SPIR3-M
Input Voltage:	DC5V~24V
Output Current:	Max 6A
Output Power:	30-144W
Output Type:	Constant Voltage
Output signal:	SPI(TTL) 800Kbs
Pixel Dots:	Single color (2048), RGB (1536), RGBW (1024)
Control Signal:	2.4GHz RF
Control Distance:	30m

IP Rate:	IP20
Working Temperature:	-10~40°C
Dimming Grayscale:	4096 Levels
Dimming Range:	0.1%-100%
Dimming Curve:	Logarithmic
EMC Standard (EMC):	ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4
Safety Standard (LVD):	EN 62368-1; 2020+A11;2020
Radio Equipment (RED):	ETSI EN 300 440 V2.2.1
Certification:	CE, EMC, LVD, RED
Warranty:	5 Years
