Features
Compliant with DMX512/1990 and RDM/2009 international standard protocols
DMX address can be flexibly set via buttons
Equipped with a lamp color selection mechanism, capable of controlling fixtures with 1 to 4 basic colors
For convenient installation and use, the default address code is set to 1 upon factory shipment
Waterproof housing design with an IP65 rating
Widely applicable for buildings, hotels, KTVs, residential spaces, and other venues
Technical Parameters

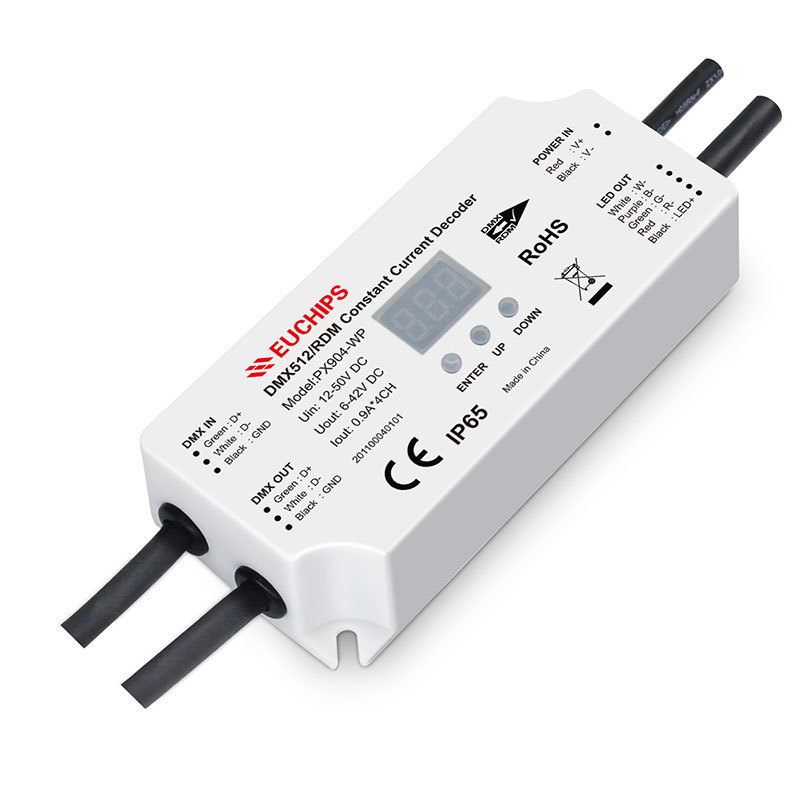

| Model | PX904-WP |
| Input Voltage | 12-50V DC |
| Standby Power | <0.5W(48V) |
| Input signal | DMX512/RDM |
| Output Voltage | 6-42V |
| Output Current | 900mA |
| Output Current Accuracy | ±5% |
| Short Circuit Protection | YES |
| Over Current | YES |
| Working temp. | -20℃~+50℃ |
| Relative humidity | -40℃~85℃, 20%-90%RH (No condensation) |
| Material | PC |
| IP rating | IP65 |
| Weight | 500g |
| Switch cycle | 50000h |
| Warranty Condition | 5 years |
| Dimension | 148mm*68mm*36mm (L*W*H) |
| Pack Information | N.W: — ±5%/PCS; — PCS/Carton; —kg(25.9 Ib)±5%/Carton; Carton Size: —x—x—mm(L*W*H) |
