It ensures stable data transmission for popular IC chips like WS2812B, WS2815, and APA102. Certified by CE and ROHS, it guarantees safety and environmental standards. The user-friendly terminal block design allows for quick and secure wiring without soldering, significantly simplifying installation. Whether you are upgrading home ambient lighting or managing commercial architectural displays, the SP901E Pro provides a reliable, professional-grade solution to maintain vibrant, synchronized colors across your entire LED system.

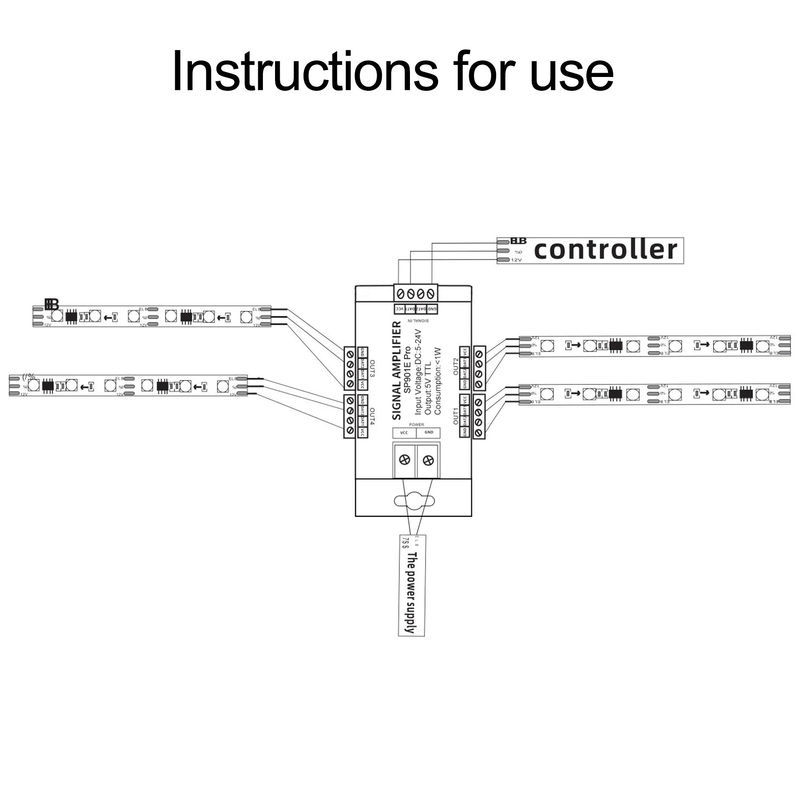

4-Channel Signal Distribution: Features 1 signal input and 4 synchronous outputs, allowing you to split one controller signal to four separate LED strip runs without data loss.
Wide Voltage Compatibility: Supports DC 5V to 24V input, perfectly matching the power requirements of various addressable LED strips (e.g., WS2812B at 5V, WS2815 at 12V).
Signal Regeneration & Amplification: Boosts weak TTL signals to ensure stable data transmission over long distances, effectively eliminating flickering and color desync.

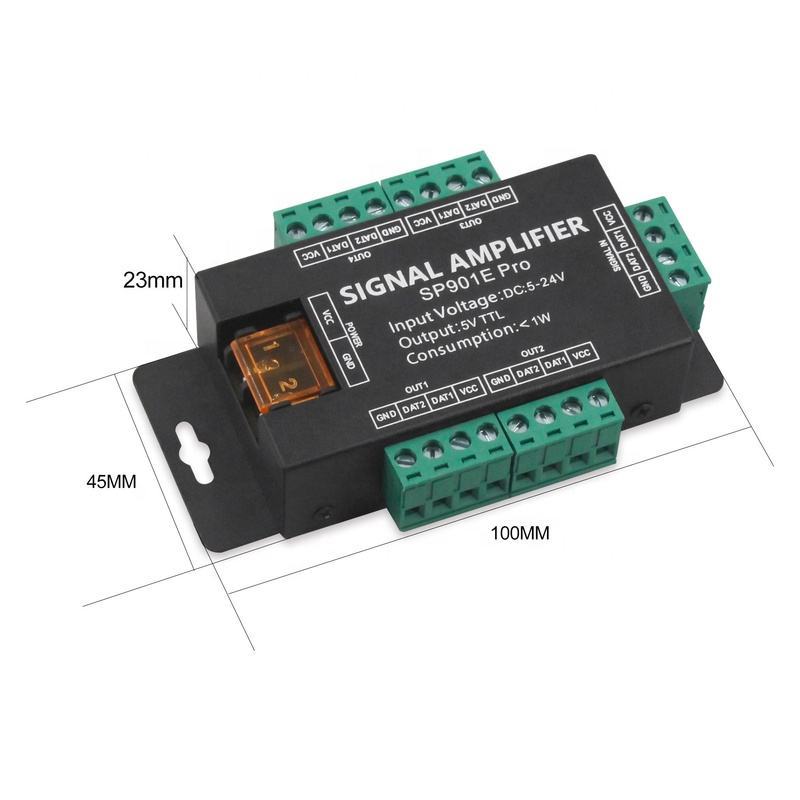

Durable Metal Enclosure: Constructed with a high-quality metal case for better heat dissipation and physical protection, suitable for long-term engineering use.
Tool-Free Easy Installation: Equipped with screw terminal blocks for straightforward wiring—no soldering required. Simply connect VCC, GND, and Data lines to get started.
|
Specification |
Details |
|---|---|
|
Model |
SP901E Pro |
|
Input Voltage |
DC 5V - 24V |
|
Output Signal |
5V TTL (SPI Compatible) |
|
Channels |
1 Input, 4 Outputs |
|
Power Consumption |
< 1W |
|
Compatible ICs |
WS2812B, WS2811, SK6812, WS2813, WS2815, APA102, SK9822, etc. |
|
Input Interface |

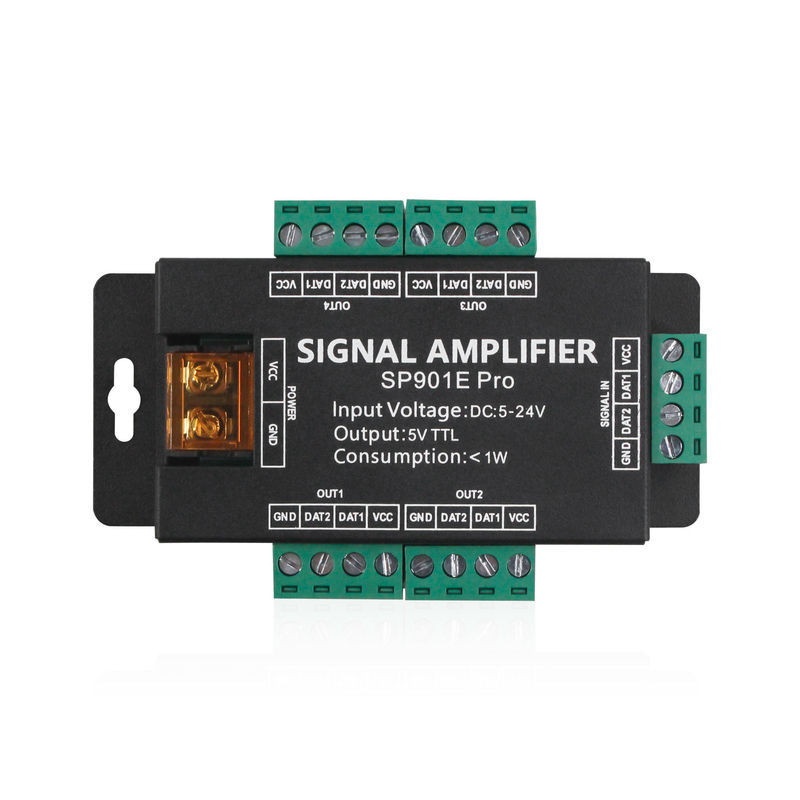

4-pin Terminal (VCC, GND, DAT1, DAT2) |
|
Output Interface |
4 x 4-pin Terminals (VCC, GND, DAT1, DAT2 per channel) |
|
Certification |
CE, ROHS |
|
Material |
Metal Case |
|
Installation |
Screw Terminal & Mounting Holes |
|
Application |
LED strip signal amplification, long-distance transmission, multi-strip sync |
