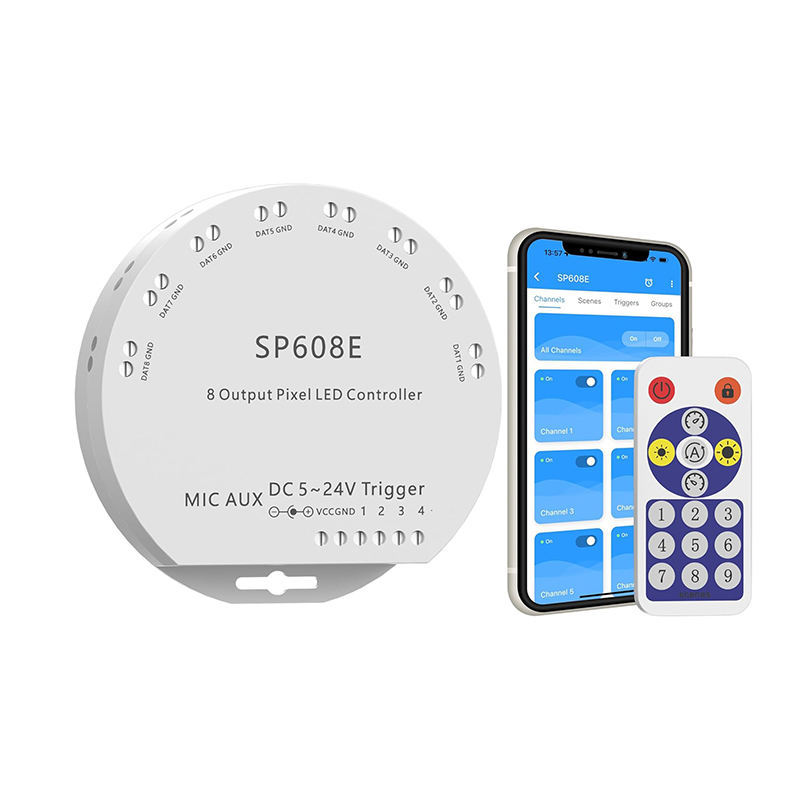

Control your setup effortlessly via the intuitive smartphone App or the included RF remote. With 8 independent signal outputs, you can manage up to 4,800 pixels simultaneously without lag. Supporting a wide voltage range of 5V to 24V and various IC chips (WS2811, WS2812B, SK6812, etc.), it is the professional choice for reliable, high-density pixel control. (148 words)
🎵 Music Sync & AUX Input: Features a built-in high-sensitivity microphone and a 3.5mm AUX port to capture ambient sound or direct audio, creating dynamic, real-time lighting effects that pulse to the beat.

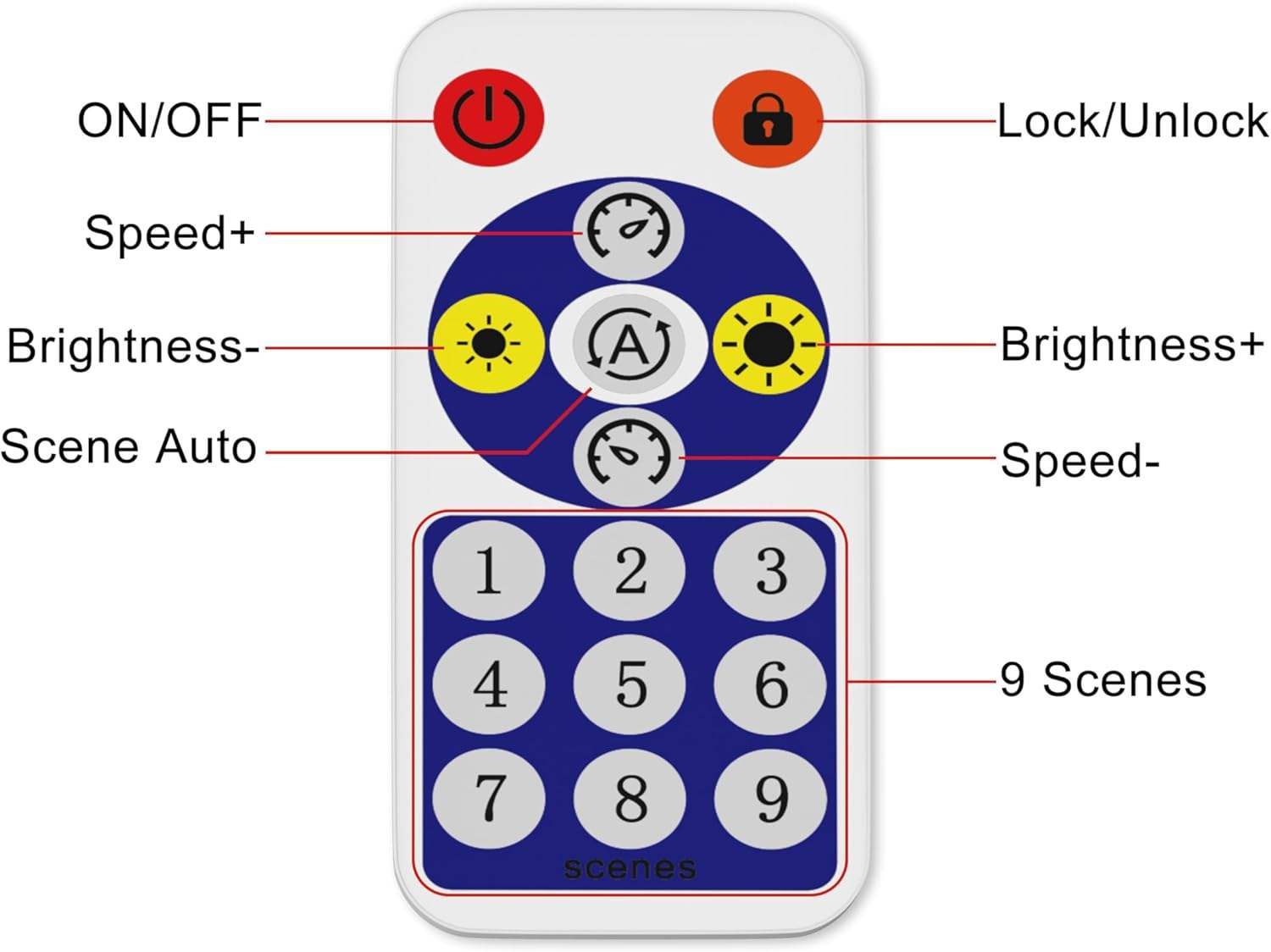

📱 Smart App & RF Remote Control: Enjoy seamless configuration via Bluetooth App (BanlanX/SceneX) or the included 16-key RF remote. Adjust colors, brightness, and modes without needing a line of sight.

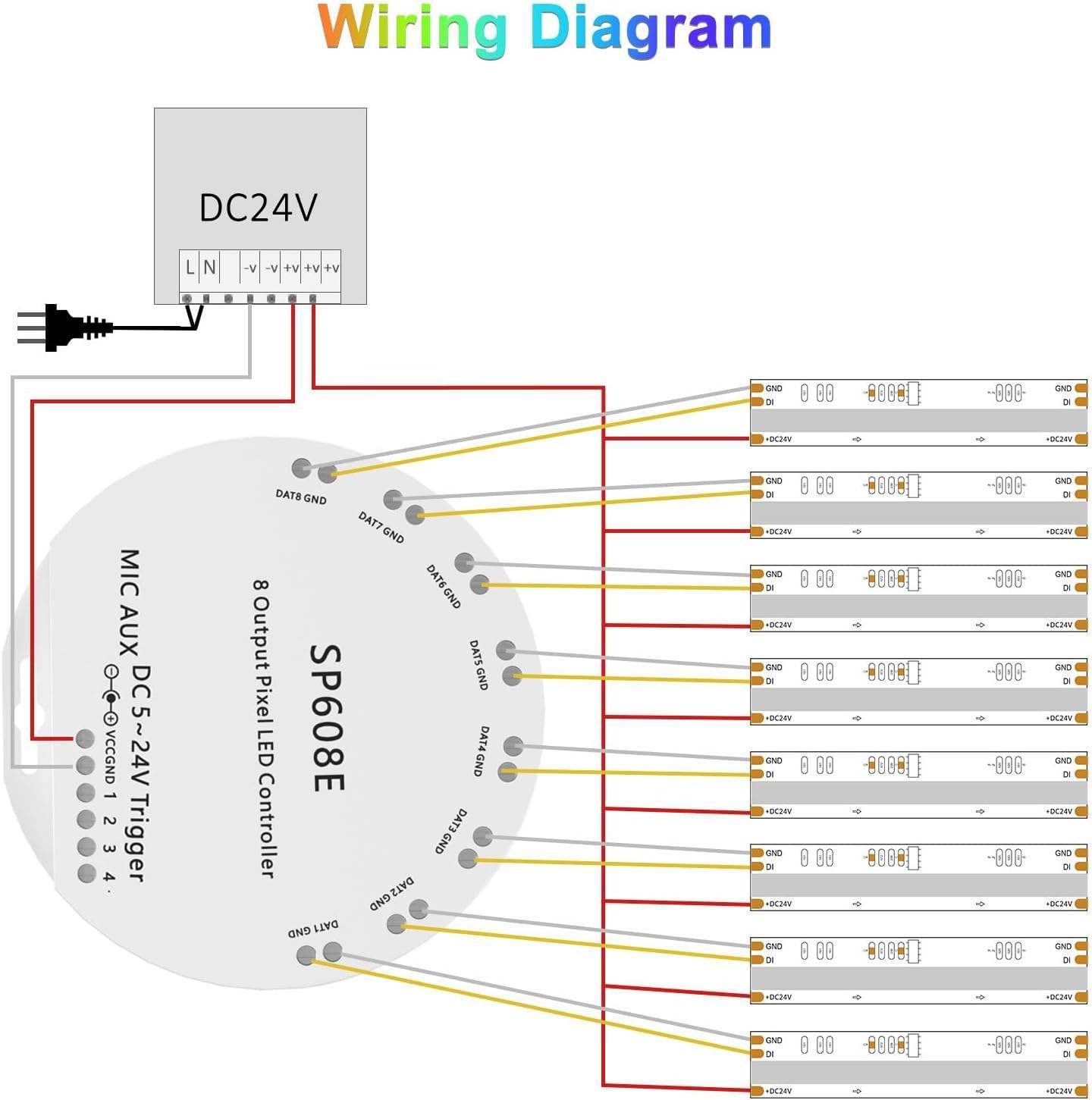

🔌 8 Independent Output Ports: Drive up to 8 separate LED strips simultaneously or in sync. Each port supports up to 600 pixels, handling a massive total of 4,800 pixels for complex installations.
🔧 Wide Compatibility & Voltage: Supports DC 5V-24V systems and is compatible with most popular IC chips including WS2811, WS2812B, WS2813, WS2815, SK6812, and UCS1903.
🚗 Versatile Trigger Functions: Equipped with 4 trigger inputs (Brake, Reverse, Left/Right Turn), making it ideal for automotive underglow, DIY signs, and interactive art installations.
|
Specification |
Details |
|---|---|
|
Model |
SP608E |
|
Input Voltage |
DC 5V - 24V (Must match LED strip voltage) |
|
Control Method |
Bluetooth 4.0 (App), 433MHz RF Remote |
|
Audio Input |
Built-in Microphone & 3.5mm AUX Port |
|
Signal Outputs |
8 Independent SPI/TTL Channels |
|
Max Pixels per Port |
600 Pixels |
|
Total Max Pixels |
4,800 Pixels |
|
Compatible IC Chips |
WS2811, WS2812B, WS2813, WS2815, SK6812, UCS1903, etc. |
|
Trigger Inputs |
4 Channels (Brake, Reverse, Left, Right) |
|
Color Modes |
1600万 Colors (16 Million), 24 Dynamic Modes, 12 Music Modes |
|
Dimensions |
Approx. 80 x 45 x 20 mm (Controller Body) |
|
Safety Note |
Controller outputs DATA signal only; external power supply required for high-current LED loads. |
