With 60 LEDs/m and 100mm cuttable segments, it offers easy customization and smooth color mixing. The naked PCB (IP20) version is lightweight and DIY-friendly; IP65/IP67 versions are available for humid or outdoor use. A 4-channel RGBW controller and 24V driver are required. Perfect for bars, retail displays, signage, and architectural accent lighting.

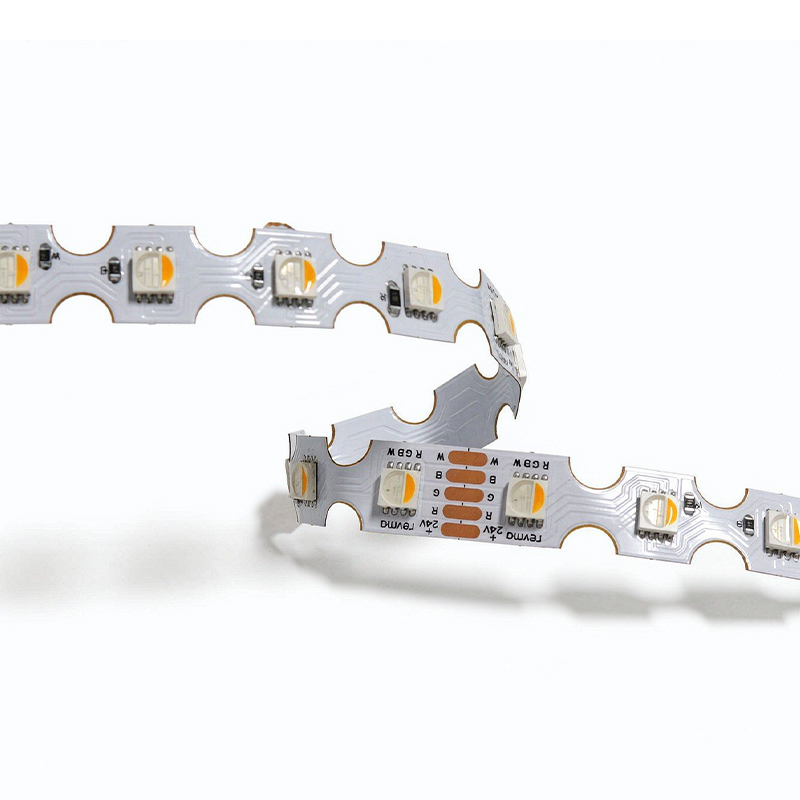

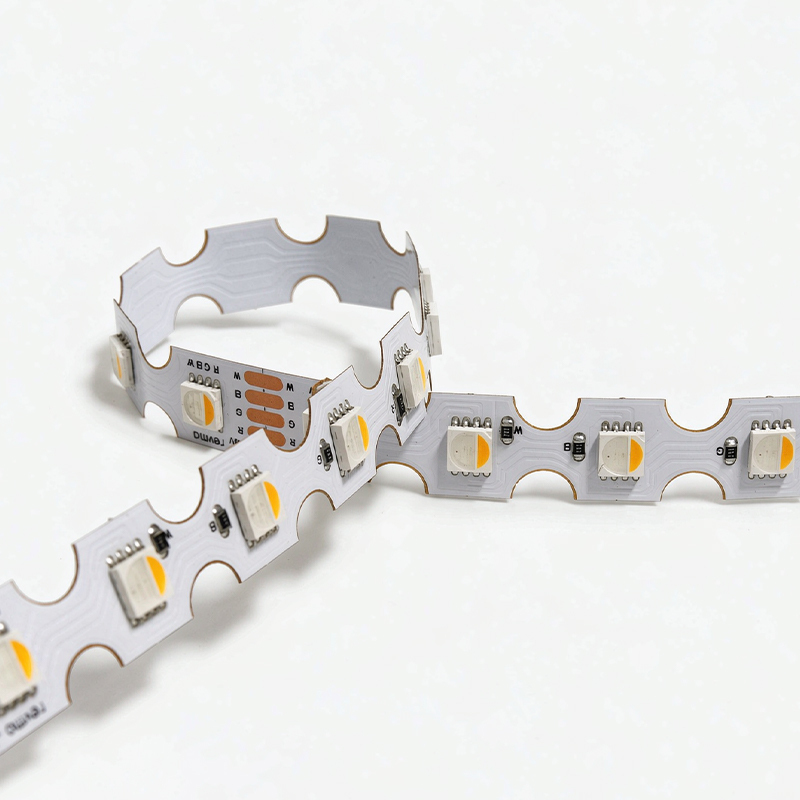

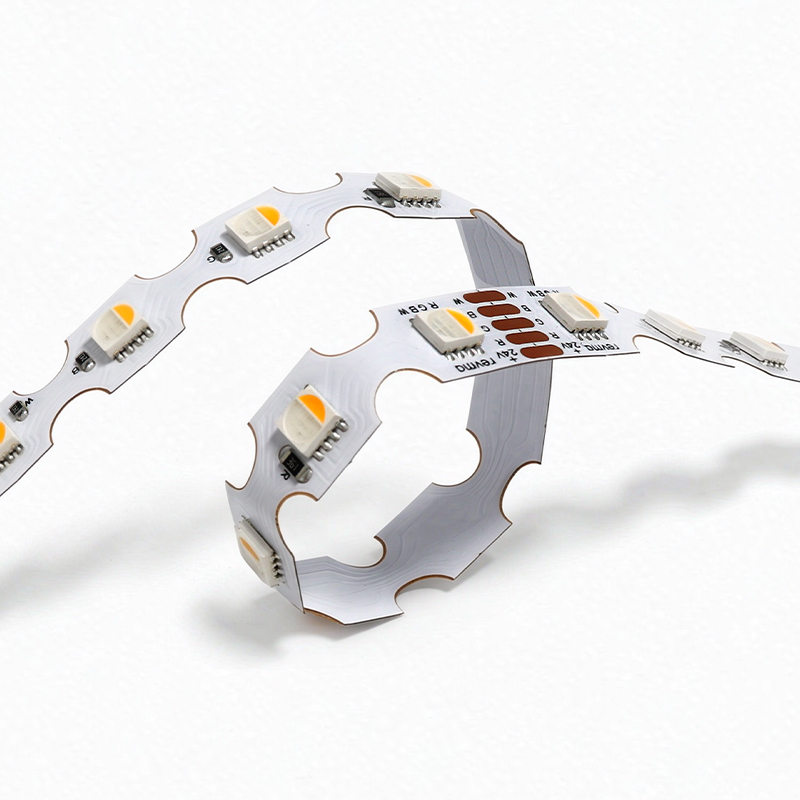

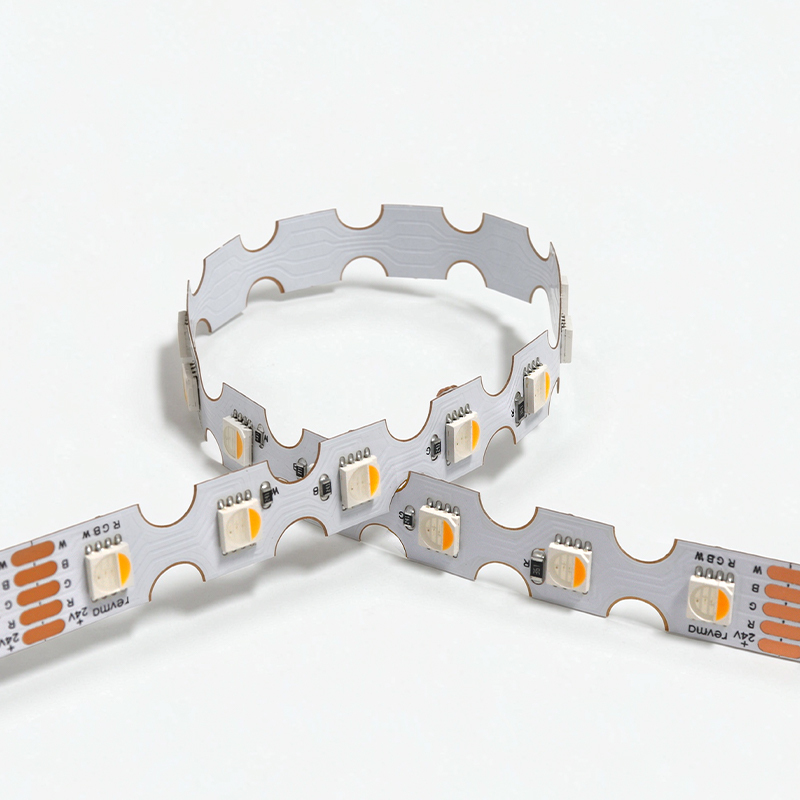

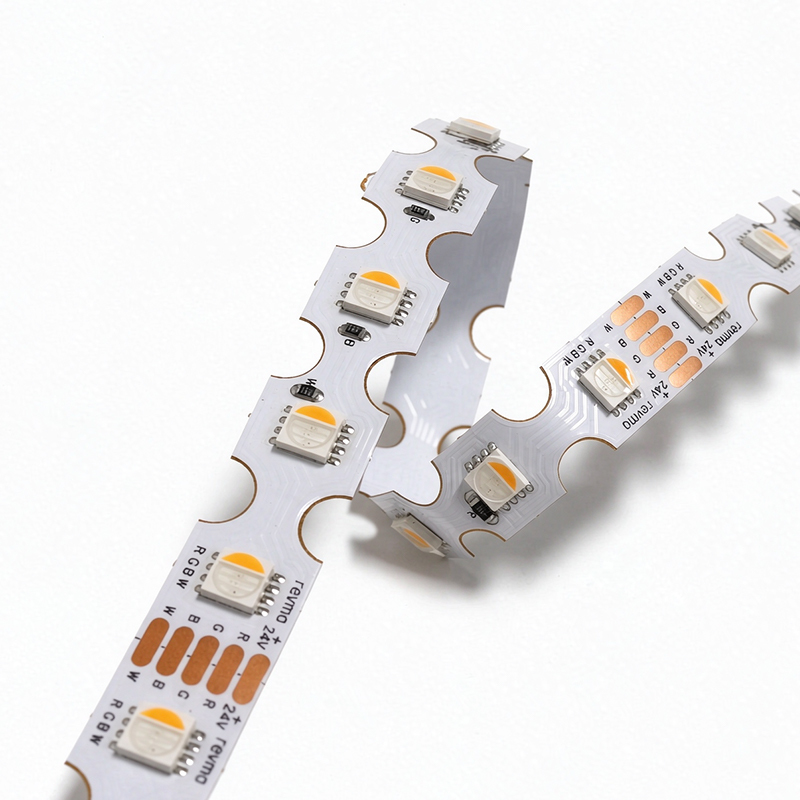

S-Shape Flexible PCB: Zigzag design bends horizontally/vertically around curves, corners, and 3D signage without breaking the light line.
True RGBW 4-in-1: SMD5050 chip integrates Red/Green/Blue + dedicated White—no purple-white fake white, better color mixing and real ambient white.
24V Low Voltage, Stable: DC24V reduces voltage drop, supports longer runs than 12V, safer for commercial and residential installs.

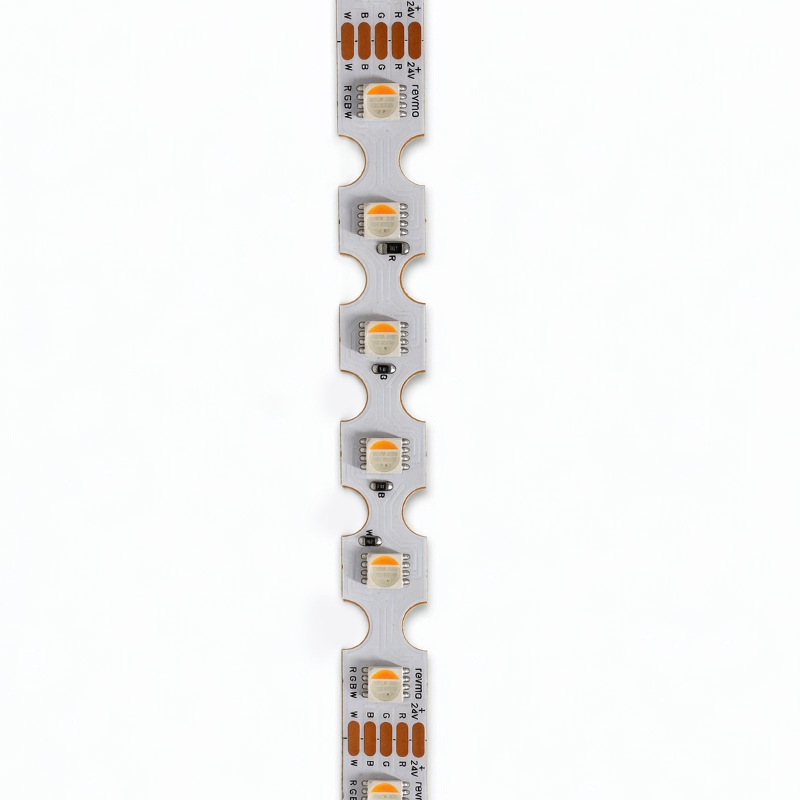

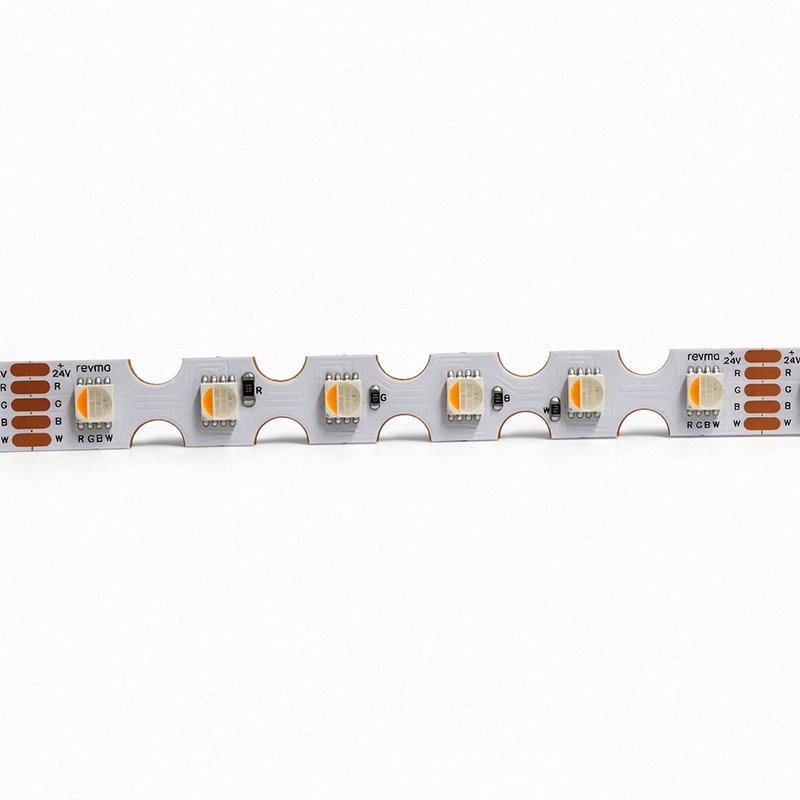

60 LEDs/m, Cut Every 100mm: High enough density for smooth output; 6-LED segments make custom lengths accurate and installer-friendly.
Naked PCB / Weatherproof Options: IP20 bare board for indoor DIY; optional IP65/IP67 for bars, facades, and outdoor signage.
|
Item |
Specification |
|---|---|
|
Product |
S-Shape RGBW LED Strip Light |
|
LED Type |
SMD 5050 RGBW 4-in-1 |
|
LED Density |
60 LEDs/m |
|
Voltage |
DC 24V |
|
Power |
18W/m (typ. 17–18.5W/m) |
|
Current |
~0.75A/m |
|
PCB Width |
12mm |
|
PCB Type |
S-shape / zigzag flexible FPC, naked board |
|
White Options |
3000K / 4000K / 6000K |
|
Cutting Unit |
100mm / 6 LEDs |
|
Beam Angle |
120° |
|
IP Rating |
IP20 (naked), IP65/IP67 optional |
|
Control |
4-channel RGBW PWM controller (not included) |
|
Wire / Channels |
+24V, R, G, B, W |
|
Roll Length |
5m standard |
|
CRI |
Ra80 / Ra90 optional |
|
Lifespan |
30,000–50,000h |
|
Application |
Signage, channel letters, cove, bar, retail, architecture |
