Its 800 Kbps high-speed data transmission and >80µs reset time ensure flicker-free, real-time visual effects, making it ideal for high-density pixel displays, smart wearables, automotive ambient lighting, and architectural outlines. Compared to traditional 5050 LED modules, the EC3725 offers superior heat dissipation, a thinner profile, and easier SMT assembly. Whether you're building a dynamic LED matrix or a precision indicator, the SK6840-EC3725 provides unmatched reliability and design flexibility for next-generation lighting applications.

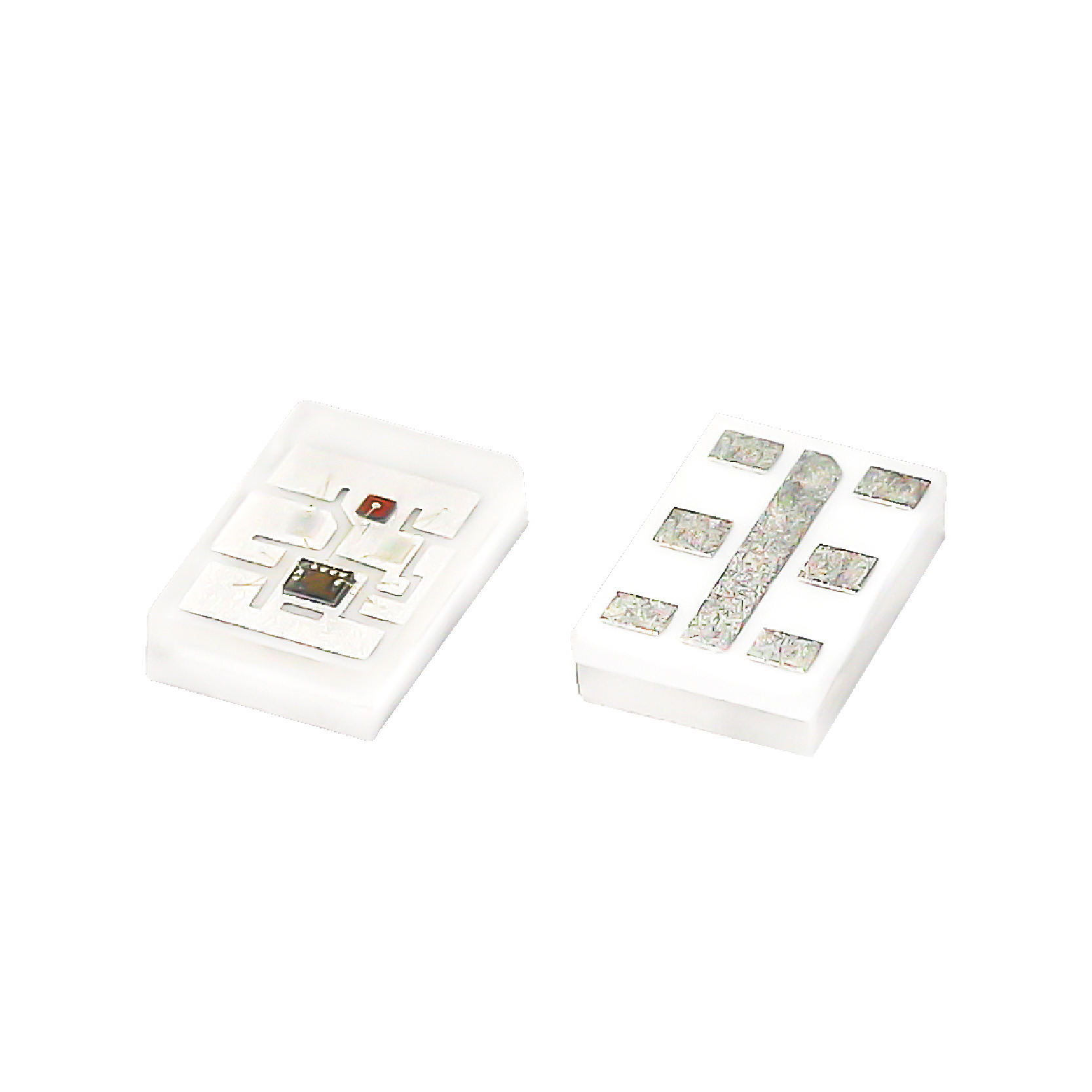

Ultra-Compact EC Package: Measures only 3.7×2.5mm, perfect for space-constrained and high-resolution LED designs.
Integrated Smart IC: Built-in 256-level grayscale constant-current driver eliminates the need for external controllers, reducing BOM cost and PCB size.
Single-Wire Control & Cascading: Supports single-line zero-code transmission and infinite cascading, simplifying wiring and MCU pin usage.
True 24-bit Color Depth: Delivers 16.7 million vibrant colors with excellent chromatic consistency across batches.
Wide Voltage & High Reliability: Operates at 3.5–7.5V with robust ESD protection, suitable for consumer electronics, automotive, and industrial lighting.
|
Item |
Specification |
|---|---|
|
Manufacturer |
OPSCO Optoelectronics |
|
Model |
SK6840-EC3725 (EC3725 Series) |
|
Package Type |
EC (Embedded Chip) SMD, 3.7 × 2.5 mm |
|
LED Color |
RGB Full Color (Red / Green / Blue) |
|
Control Type |
Built-in IC, Single-wire data, cascade |
|
Gray Level |
256 levels per channel (24-bit color) |
|
Data Transfer Rate |
800 Kbps |
|
Operating Voltage (VDD) |
3.5V – 7.5V (typical 5V) |
|
Drive Current |
12 mA (typical) |
|
Data Input Voltage (VIH) |
> 0.7 × VDD |
|
Data Output Voltage (VOL) |
< 0.3 × VDD |
|
Reset Time |
> 80 µs |
|
Data Order |
G7…G0 → R7…R0 → B7…B0 |
|
ESD Protection |
> 2 kV (HBM) |
|
Viewing Angle |
120° (typical) |
|
Operating Temp. |
-40°C to +85°C |
|
Storage Temp. |
-50°C to +125°C |
|
Applications |
LED pixel screens, smart wearables, automotive ambient light, advertising signs, IoT devices |
