Direct DMX512 Control: Each of the 10 segments has a built-in DMX decoder, enabling plug-and-play connection to any standard DMX console without extra hardware.
True RGBW Output: 4040 RGBW LEDs add a dedicated white chip for pure whites, warm ambiance, and pastel shades beyond standard RGB.
High-Voltage Efficiency: 48V operation reduces current and voltage drop, allowing longer runs with fewer power injection points compared to low-voltage strips.
10-Segment Programmability: 100 LEDs grouped into 10 addressable segments support chase, flow, strobe, and gradient effects for dynamic visual impact.
Professional Applications: Perfect for architectural facades, stage lighting, retail displays, and signage where reliable, centralized DMX control is required.

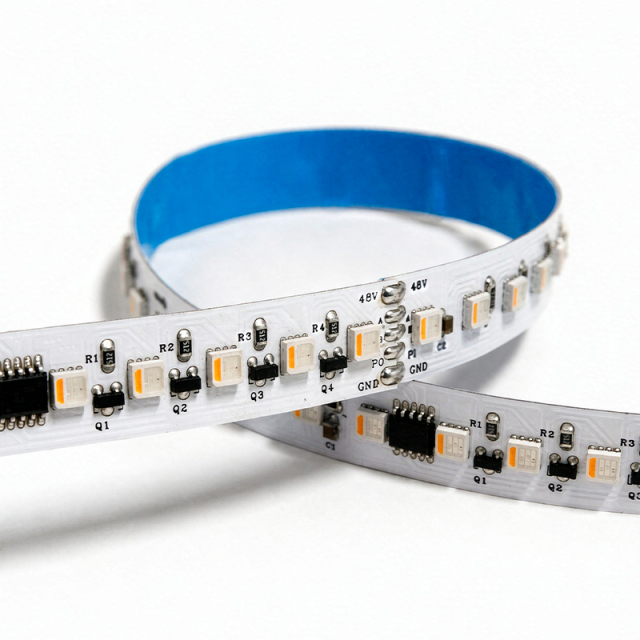

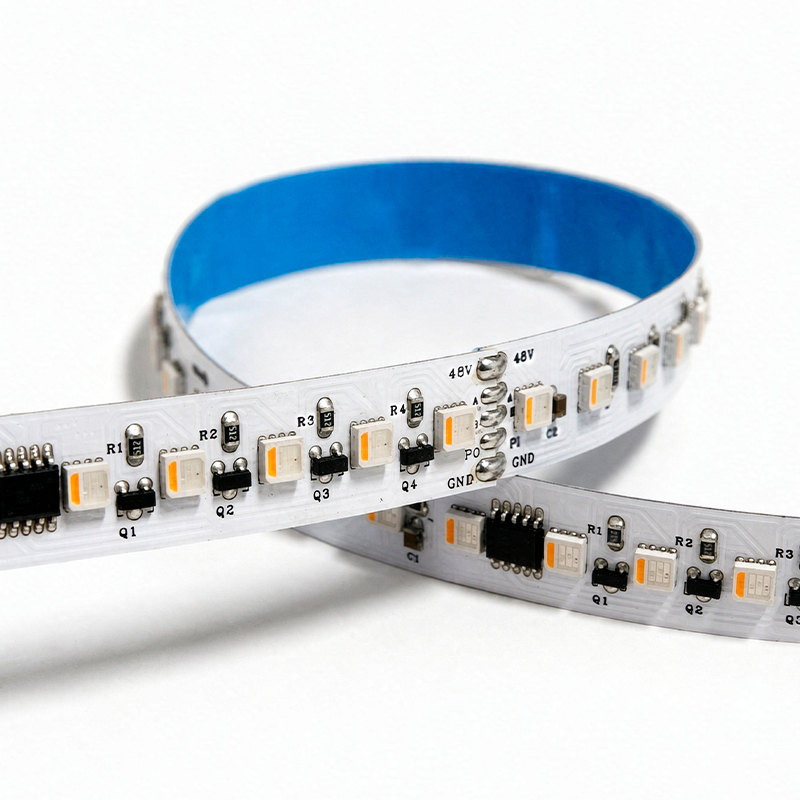

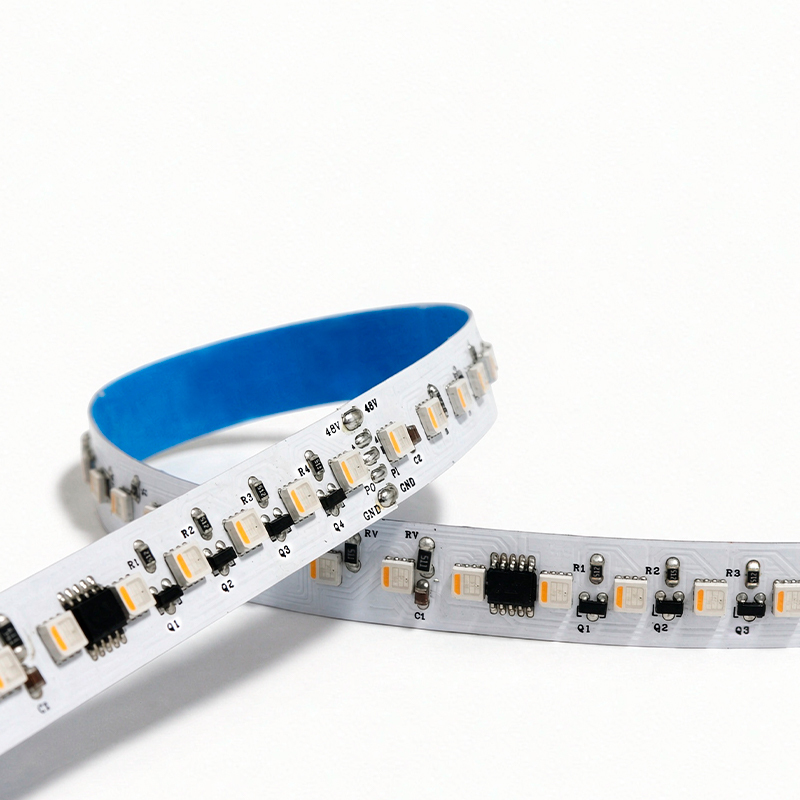

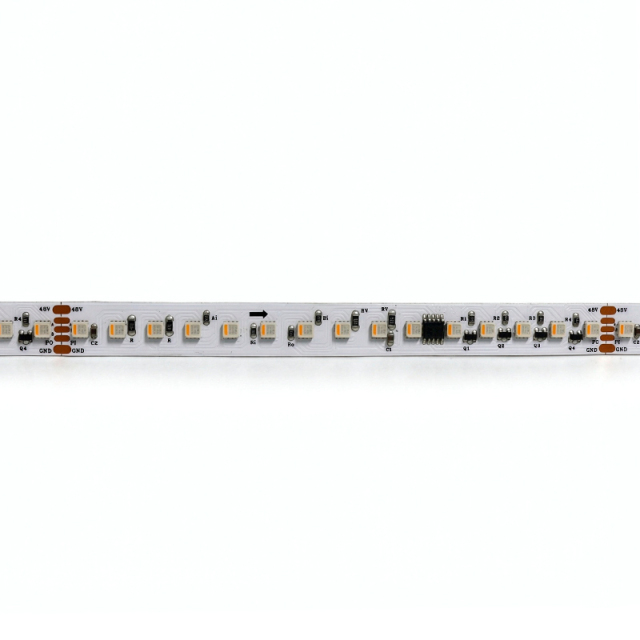

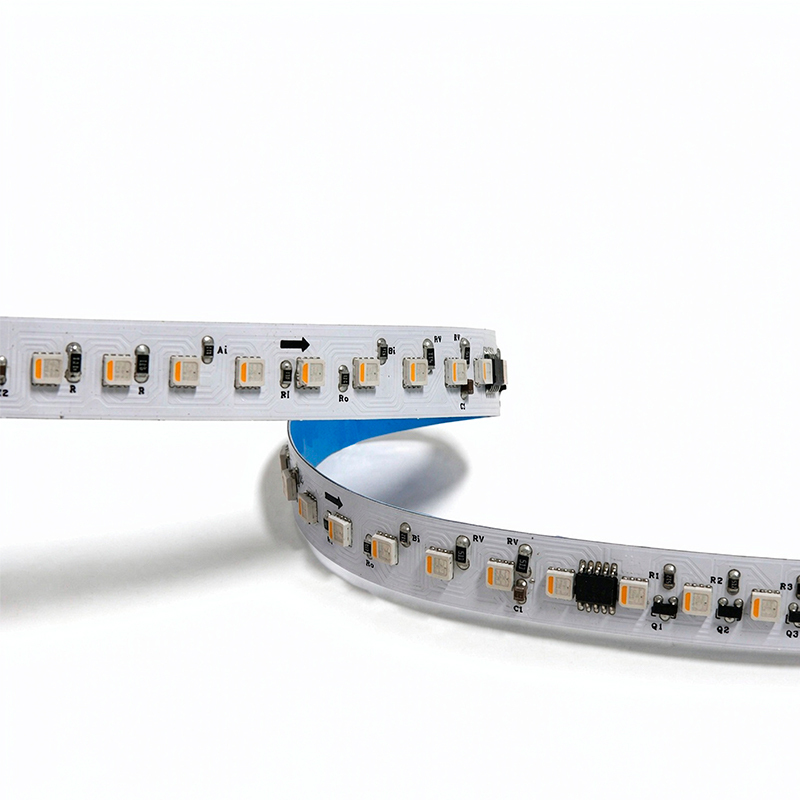

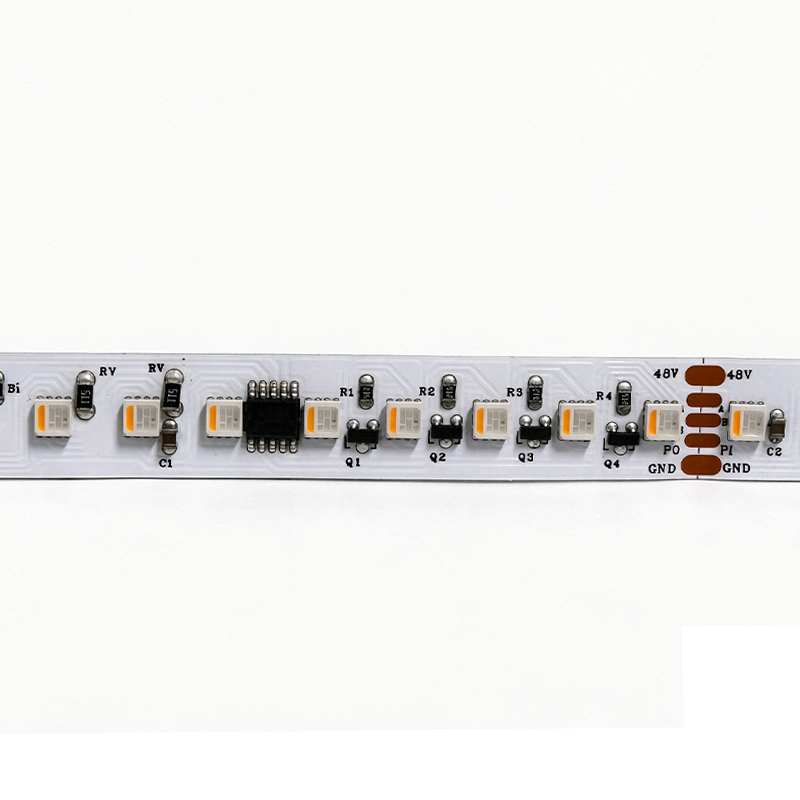

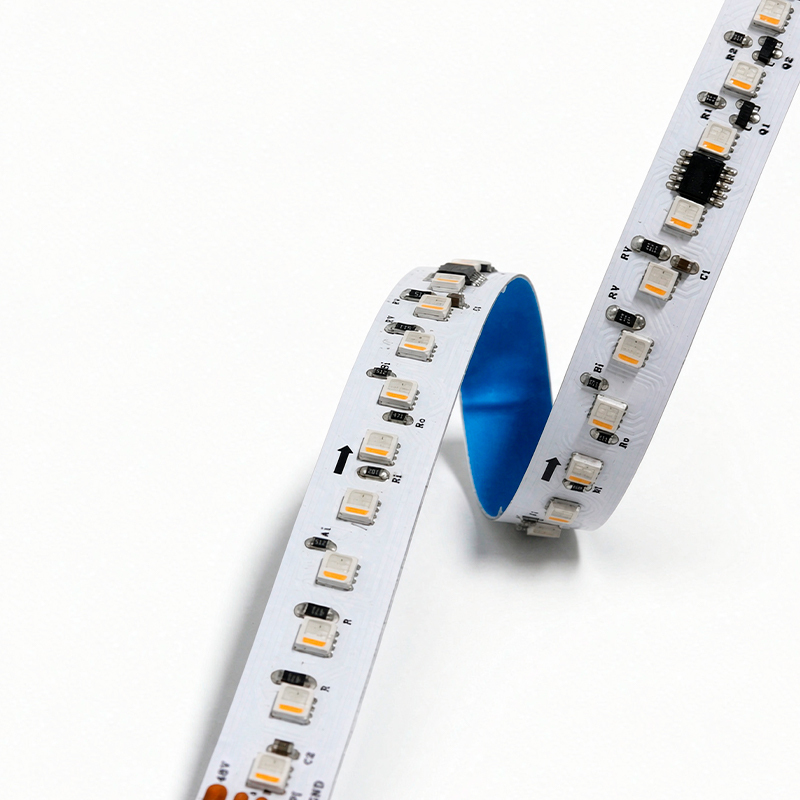

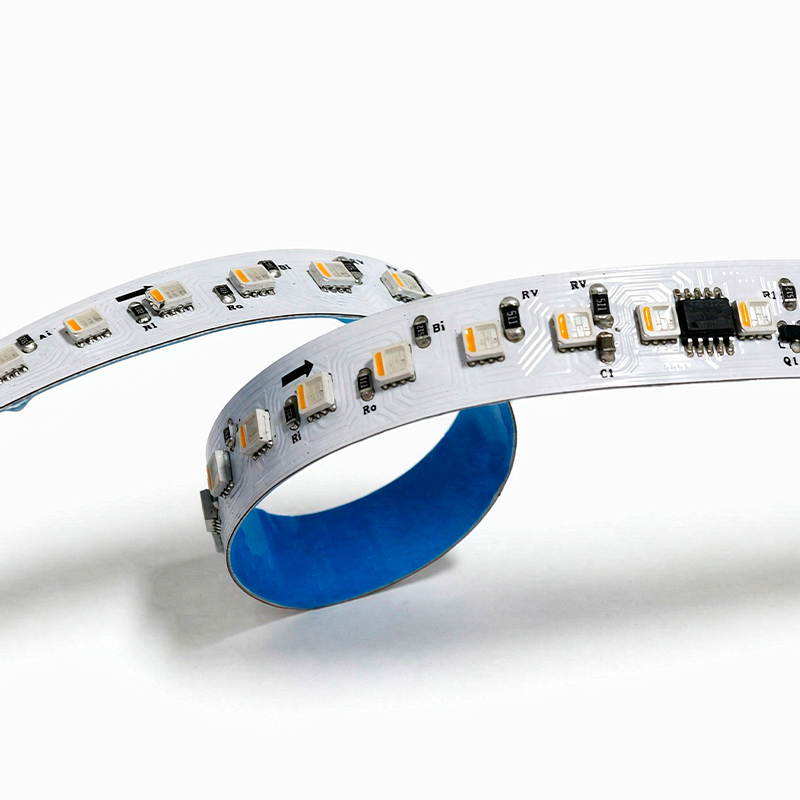

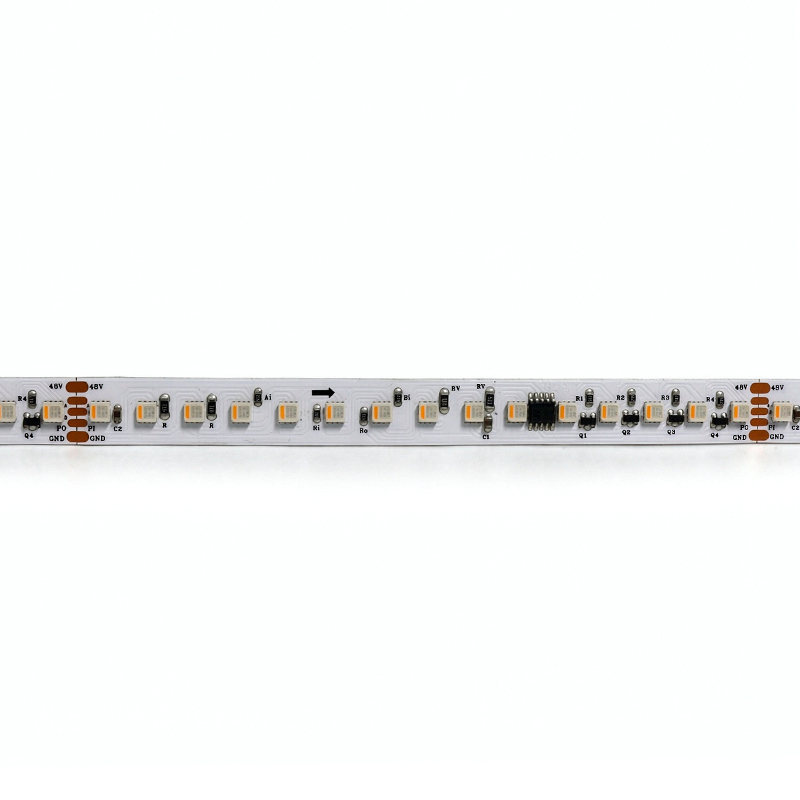

48V DMX512 RGBW 4040 Addressable LED Strip
|
Category |
Specification |
|---|---|
|
Model |
— (to be assigned) |
|
Input Voltage |
DC 48V |
|
LED Type |
SMD 4040 RGBW |
|
LED Count |
100 LEDs total |
|
Segment Count |
10 segments (10 LEDs per segment) |
|
Control Protocol |
DMX512 (built-in decoder per segment) |
|
DMX Channels |
40 channels (10 segments × 4 ch RGBW) |
|
Power Consumption |
~TBDW/m (confirm per manufacturer) |
|
Beam Angle |
120° |
|
Pixel Addressing |
10 addressable segments, each independently controlled |
|
Color Range |
Full RGBW, 8-bit per channel |
|
Cut Unit |
1 segment (10 LEDs) |
|
Protection Rating |
IP20 (bare board, non-waterproof) |
|
Installation |
3M adhesive backing / mounting clips |
|
Compatible Systems |
DMX512 console, RDM controller, Art-Net/sACN gateway |
|
Applications |
Architectural outline, stage set, commercial signage, decorative lighting |
