With 256-level grayscale and a robust cascading capability of over 1024 pixels, the SK6112MINI allows for complex, synchronized animations across vast installations. Its low voltage operation (3.5-5.5V) and 120° wide viewing angle make it ideal for high-density pixel screens, architectural lighting, and creative signage. Choose the SK6112MINI for uncompromised color accuracy, reliability, and design flexibility in your next illumination project.

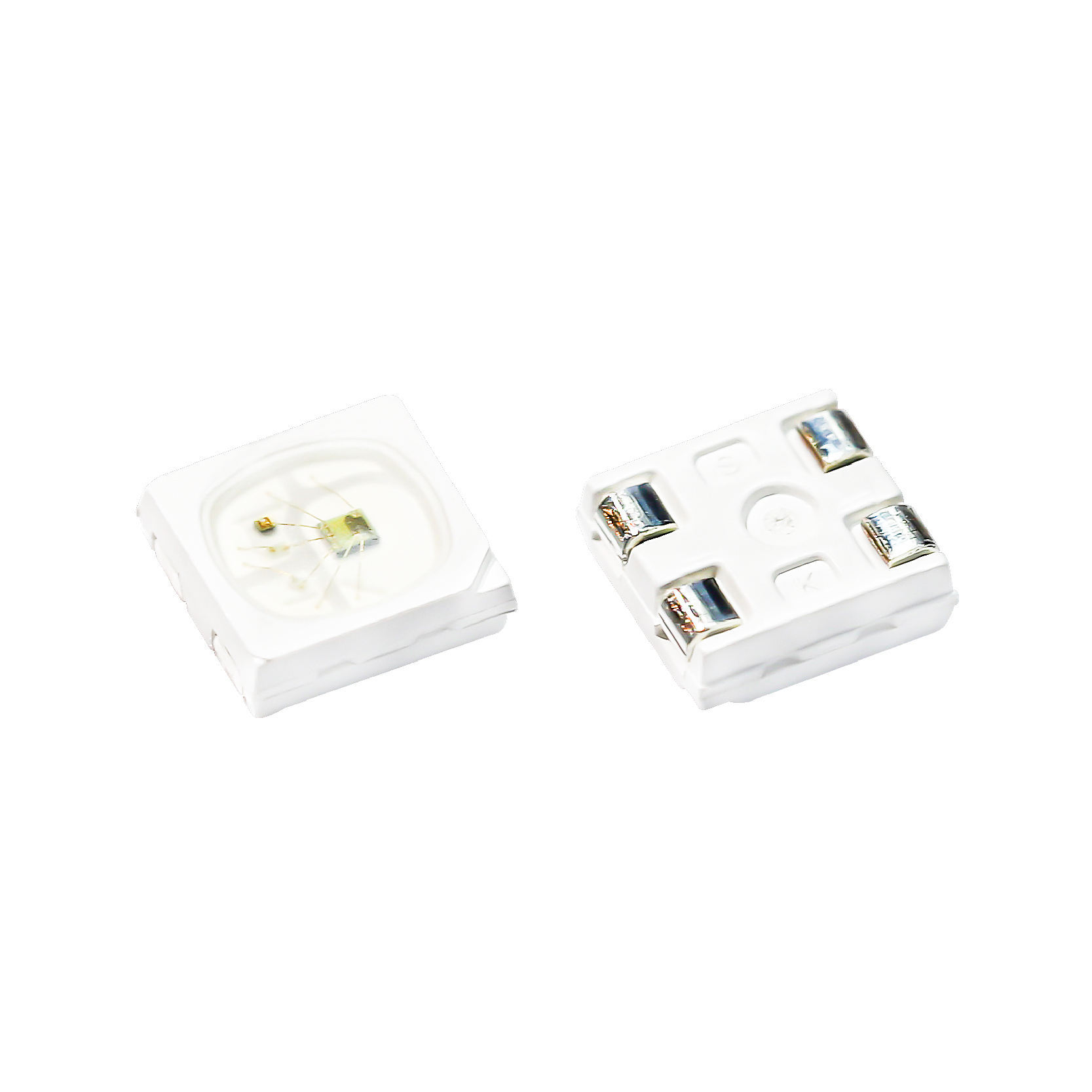

All-in-One Integration: Combines RGB LED chips with a built-in IC driver in a compact 3535 package, simplifying circuit design and reducing BOM costs.
High-Speed Data Transmission: Features a single-line control protocol with an 800Kbps data rate, supporting cascading of 1024+ pixels at 30fps for large-scale displays.
Superior Visual Performance: Offers 256-level grayscale and a 20kHz refresh rate to eliminate screen flicker and water ripple effects, ideal for camera recording.
Enhanced Drive Capability: Supports multi-channel parallel connection (up to 15 channels), allowing for complex matrix layouts and high-brightness output.
Wide Compatibility & Stability: Operates on 3.5-5.5V with a 120° beam angle, ensuring stable performance in various ambient conditions and easy integration with MCU systems.
|
Parameter |
Specification |
|---|---|
|
Part Number |
OPSCO SK6112MINI-RG |
|
Package Type |
SMD 3535 (3.7 x 3.5 mm) |
|
LED Color |
Full Color RGB (Red, Green, Blue) |
|
Control Type |
Built-in IC (Single-line Data) |
|
Input Voltage |
DC 3.5V - 5.5V |
|
Data Transfer Rate |
800 Kbps |
|
Grayscale Levels |
256 levels per color |
|
Refresh Frequency |
Up to 20 kHz |
|
Cascading Capacity |
≥ 1024 pixels (at 30 fps) |
|
Viewing Angle |
120° |
|
Wavelength (Typ) |
R: 620nm / G: 525nm / B: 470nm |
|
Special Features |
Data reshaping, Signal retiming, Multi-channel parallel support |
|
Operating Temp |
-40°C to +85°C |
|
Applications |
Pixel Screens, LED Strips, Channel Letters, Architectural Lighting |
