RDM support enables remote fixture management. Mountable via screw, DIN-rail, or standard 19" rack, it fits any installation. Powered by 5V USB or terminal, it drives all DMX fixtures—RGBWY LEDs, wash, laser, gobo, fountains—from a single, scalable unit.

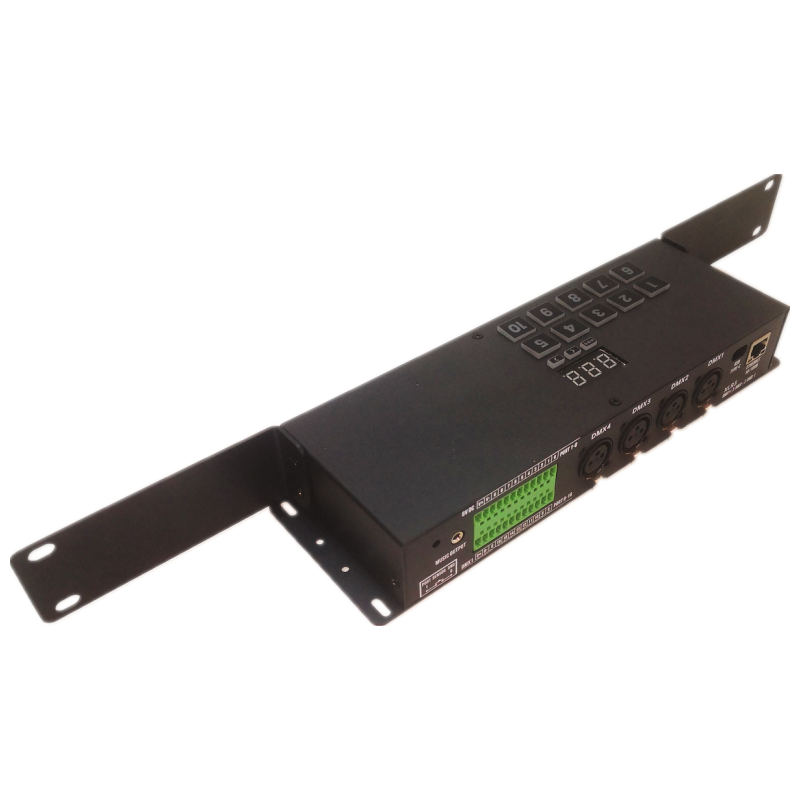

Rack/DIN/Screw Mounting: Flexible installation options—19" rack, 35mm DIN rail, or screw-mount—adapts to server rooms, electrical cabinets, and on-site enclosures.

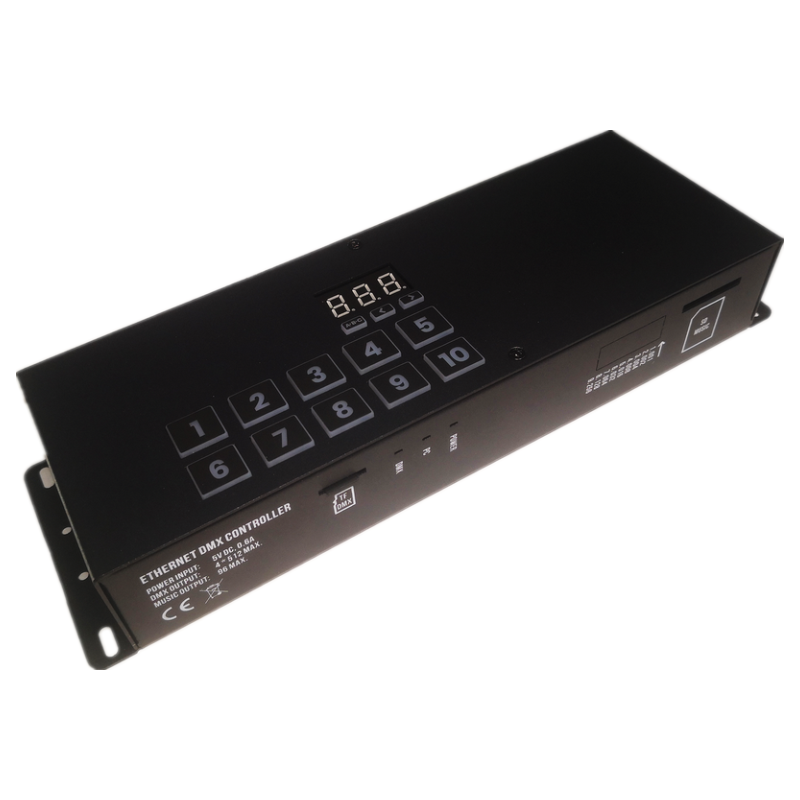

10-Key Hardware Control: 10 backlit scene buttons with page navigation for instant, tactile scene recall without needing a tablet or PC.
16 Dry Contacts & Logic: 16-channel dry-contact input with programmable logic—link switches, sensors, and triggers for complex interactive lighting sequences.
Scalable DMX Output: 2×512 channels standard, upgradeable to 4×512—handles small displays to large multi-zone architectural projects.

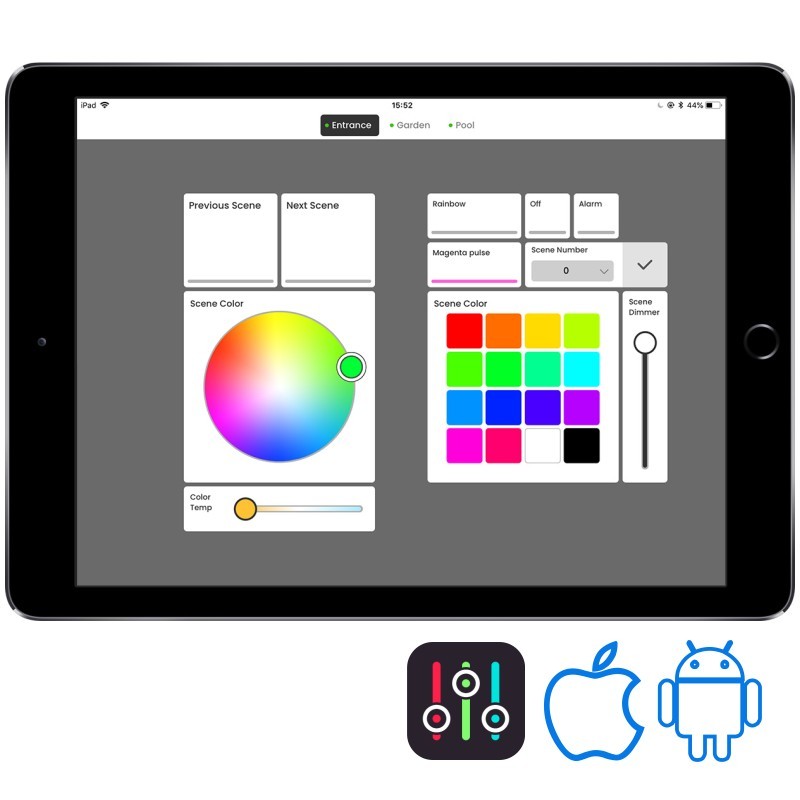

Universal Connectivity: UDP central control, WiFi APP (iOS/Android), RF remote, time scheduling, sensors, and master-slave cascade for unlimited expansion.

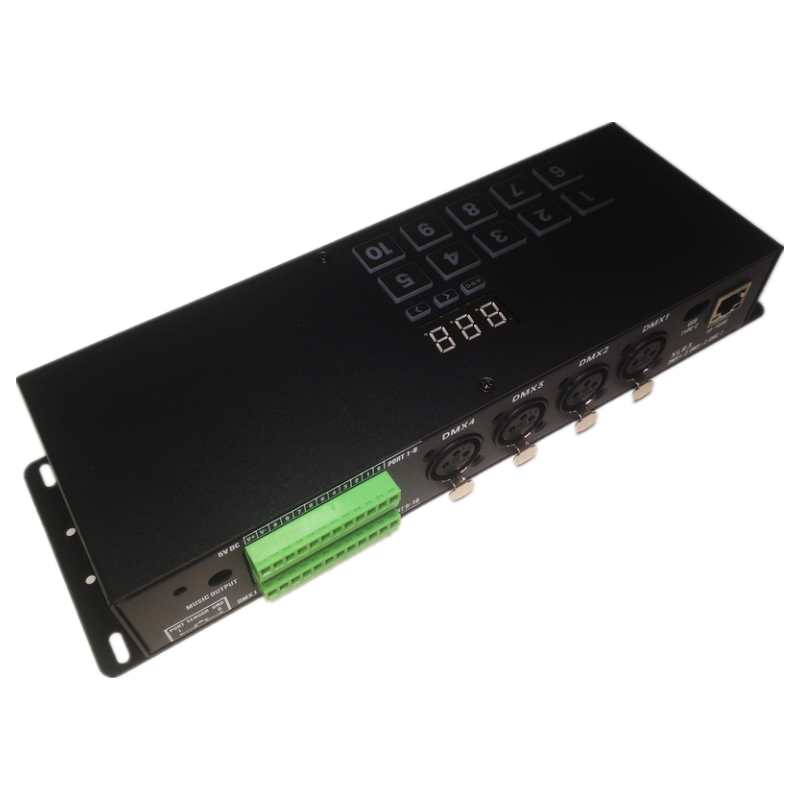

CQ-CE42 Rack-Mount Network DMX Controller
|
Category |
Specification |
|---|---|
|
Model |
CQ-CE42 |
|
DMX Output |
2 × 512 channels (upgradeable to 4 × 512) |
|
Zones / Scenes |
5 Independent Zones, 99 Scenes |
|
Hardware Keys |
10 backlit scene buttons, page navigation |
|
Trigger Inputs |
16 Dry Contacts, UDP, WiFi APP, RF Remote, Sensors, Schedule |
|
Programming |

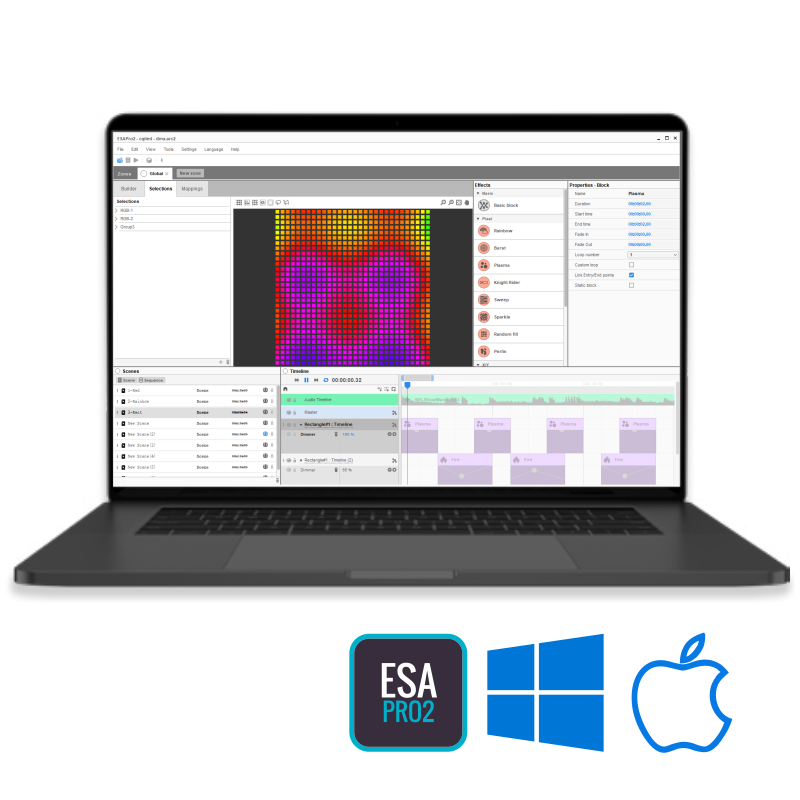

ESA Pro 2 (Win/Mac), Real-time Preview |
|
Storage |
TF Card (show storage, auto-run) |
|
Auto-Run |
One-click Download, Auto-Start on Power-Up |
|
Remote Control |
iPad / Android APP |
|
Topology |
One-Master-Multiple-Slave, Multi-Unit Cascade |
|
DMX Management |
RDM (Remote Device Management) |
|
Fixture Support |
Single Color, CCT, RGB, RGBW, RGBWY LEDs; Wash, Laser, Gobo, Fountain |
|
Power Supply |
5V DC (USB Type-C), 8–15V DC (Terminal) |
|
Mounting |
Screw-mount / DIN Rail / 19" Rack |
|
Network |
Ethernet (UDP), WiFi router connectable |
