Tiny shell, subtle brilliance, no longer limited by space. Our single-color Mini LED controller uses 2.4G RF wireless transmission technology and supports remote control. One remote can control countless controllers at the same time.
● The product is equipped with DC male and female connectors, making the connection more flexible and convenient.
● 4096 levels smooth dimming, Min brightness 0.1%.
● Dimming Range 0.1%-100%.
● One controller can be paired with 12 remote (Control distance 30m).
● Auto-forwarding: Automatically forward the remote control signal to another controller, making the remote control distance infinite.
● Support do not disturb mode setting, Suitable for areas with frequent power outages to save electricity.
● Supports “Tuya Smart” app control (2.4GHz gateway is needed).
● Support Alexa, Google Assistant, Yandex Alice (2.4GHz gateway is needed).

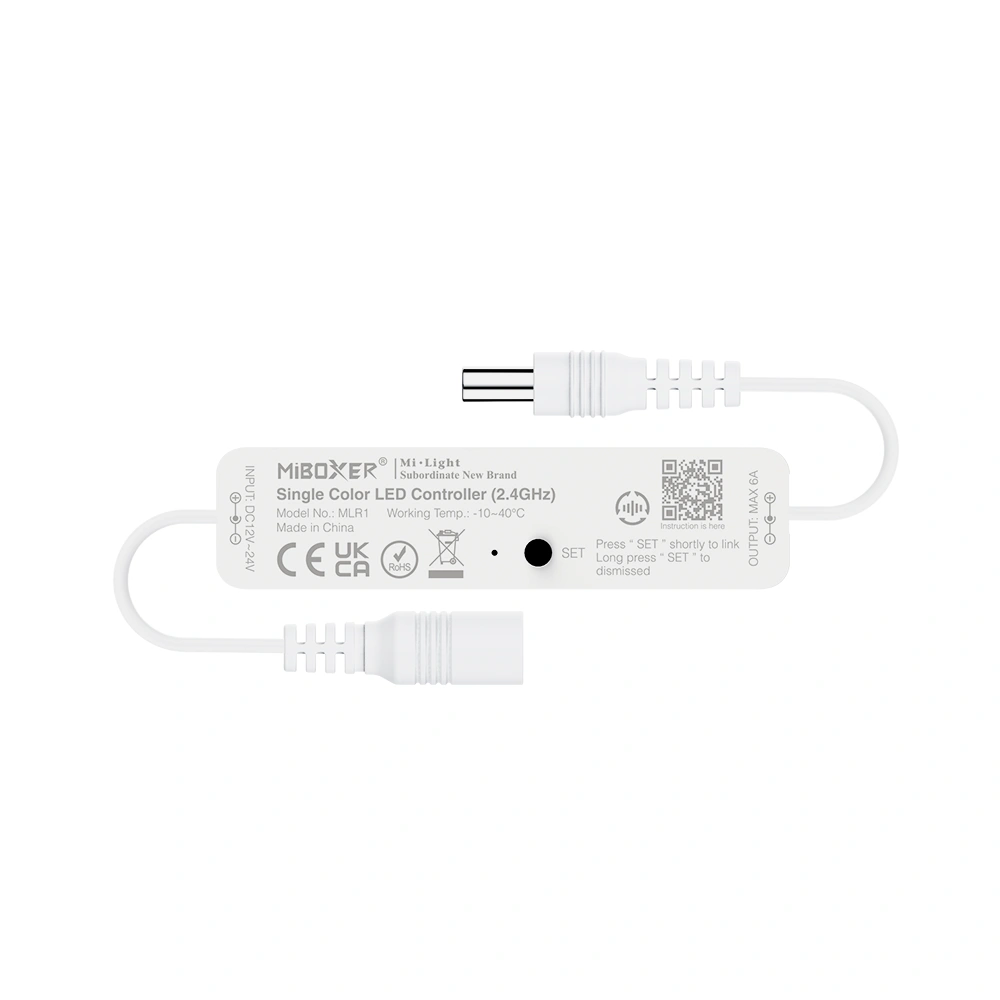

| Product Name: | Mini Single Color LED Controller (2.4GHz) |
|---|---|
| Model No.: | MLR1 |
| Input Voltage: | DC12V-24V |
| Output Current: | Max 6A |
| Output Power: | 144W |
| Output Type: | Constant Voltage |
| Control Signal: | 2.4GHz RF |
| Control Distance: | 30m |
| IP Rate: | IP20 |
| Working Temperature: | -10~40°C |
| Dimming Grayscale: | 4096 Levels |
|---|---|
| Dimming Range: | 0.1%-100% |
| Dimming Curve: | Logarithmic |
| EMC Standard (EMC): | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-3 V2.1.1 |
| Safety Standard (LVD): | EN 61347-1：2015+A1: 2021 EN 61347-2-11: 2001+A1:2019 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, RED |
| Warranty: | 5 Years |
