Dual Mode Operation: Works as a DMX512 decoder or standalone controller with 99 built-in dynamic effects—no console needed for standalone use.
Wide IC Compatibility: Supports popular addressable LEDs including WS2811, WS2812B, SK6812, APA102, UCS1903, and more via easy button selection.
High Pixel Capacity: Controls up to 1024 pixels per unit, suitable for complex pixel mapping and large-scale LED installations.
Professional DMX Integration: Standard DMX512 input with cascade output, compatible with art-net nodes, consoles, and RDM systems.
Safe & User-Friendly: Features reverse polarity protection, hot-swap support, digital display, and simple push-button configuration for IC type and speed.

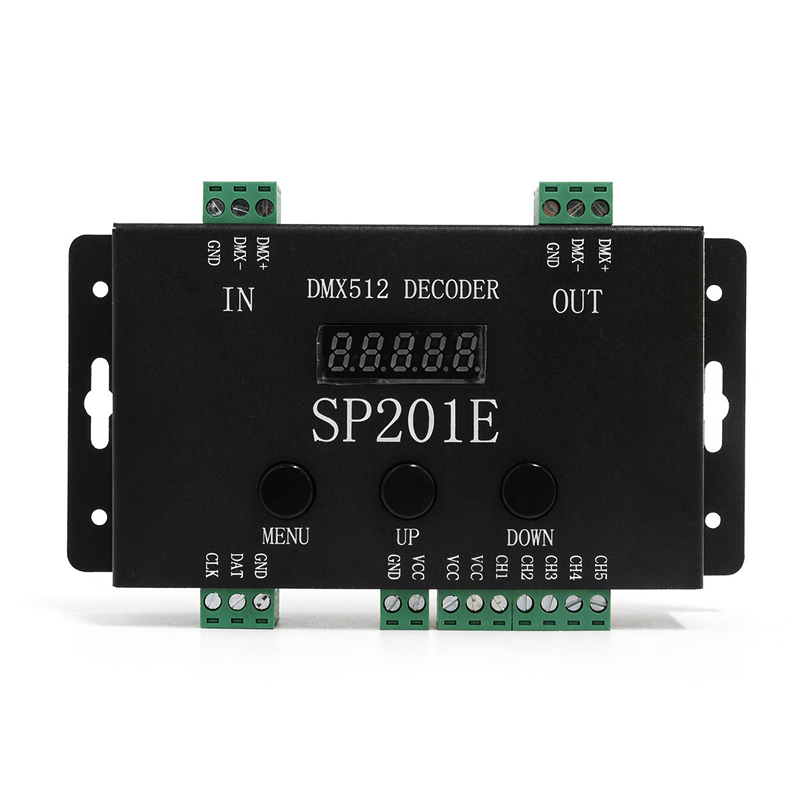

"The SP201E is a versatile DMX512-to-SPI decoder and standalone controller designed for addressable LED strips like WS2812B, SK6812, and APA102. It supports up to 1024 pixels with individual control, making it perfect for pixel mapping and dynamic lighting displays. In standalone mode, it offers 99 built-in effects including chasing, breathing, and color cycling—no DMX console required. With wide 5-24VDC input, hot-swap protection, and easy IC selection via buttons, it’s ideal for stage shows, architectural outlines, and commercial signage. Compact, reliable, and installer-friendly, the SP201E bridges professional DMX systems with creative pixel LED art seamlessly."
|
Parameter |
Specification |
|---|---|
|
Model |
SP201E |
|
Input Voltage |
DC 5–24V (some versions 5–40V) |
|
Working Current |
24–110 mA |
|
Max Pixels |
1024 pixels (per unit) |
|
Max DMX Channels |
2000+ channels |
|
Control Protocol |
DMX512 (1990) |
|
Output Signal |
SPI (DATA + CLK) |
|
Built-in Effects |
99 modes |
|
Supported IC Types |
WS2811, WS2812B, WS2813, SK6812, SK6812-RGBW, WS2801, LPD6803, LPD8806, APA102, TM1913, UCS1903, SM16703, etc. |
|
Display |
Digital LED display |
|
Protection |
Reverse polarity, hot-swap, over-temperature |
|
Cascade |
DMX IN/OUT, multi-unit sync |
|
Dimensions |
150 × 95 × 23 mm |
|
Operating Temp. |
-25°C to 85°C |
|
Application |
Stage pixel mapping, architectural outlines, LED matrix, signage |
