Cooling is by a built-in DC fan with speed control, allowing operation up to +70°C with derating. Advanced functions include programmable output voltage (70–100% of nominal), remote ON/OFF, remote sense (compensates up to 0.3V line drop), 12V/0.1A auxiliary power, Power-OK signal, and active current sharing up to 6000W in a 3+1 configuration. Protection covers short circuit, overload (105–135% → constant-current limit, shutdown after 5s, re-power to recover), over voltage (27.6–32.4V), and over temperature. With optional conformal coating, UL/IEC/EN 62368-1approvals, 278×127×83.5mm chassis, and a 5-year warranty, RSP-1500-24 sits between LRS-1200 and RSP-3000 as Mean Well’s flexible mid-heavy 24V industrial platform.
1512W / 24V 63A: Strong 24V current for automation, laser, burn-in, broadcasting, RF, and large control cabinets.
Universal Input + Active PFC: 90–264V AC / 127–370V DC, PF 0.98 @115V / 0.95 @230V, 90% efficiency.
Programmable & Controllable: Vout trim 70–100%, remote ON/OFF, remote sense ≤0.3V, 12V/0.1A aux, Power-OK.
Parallel-Ready: Active current sharing up to 6000W (3+1 units)—scalable for bigger racks/systems.
Industrial Reliability: SCP / OLP / OVP / OTP, -20°C ~ +70°C, built-in DC fan, optional conformal coating, 5-year warranty.

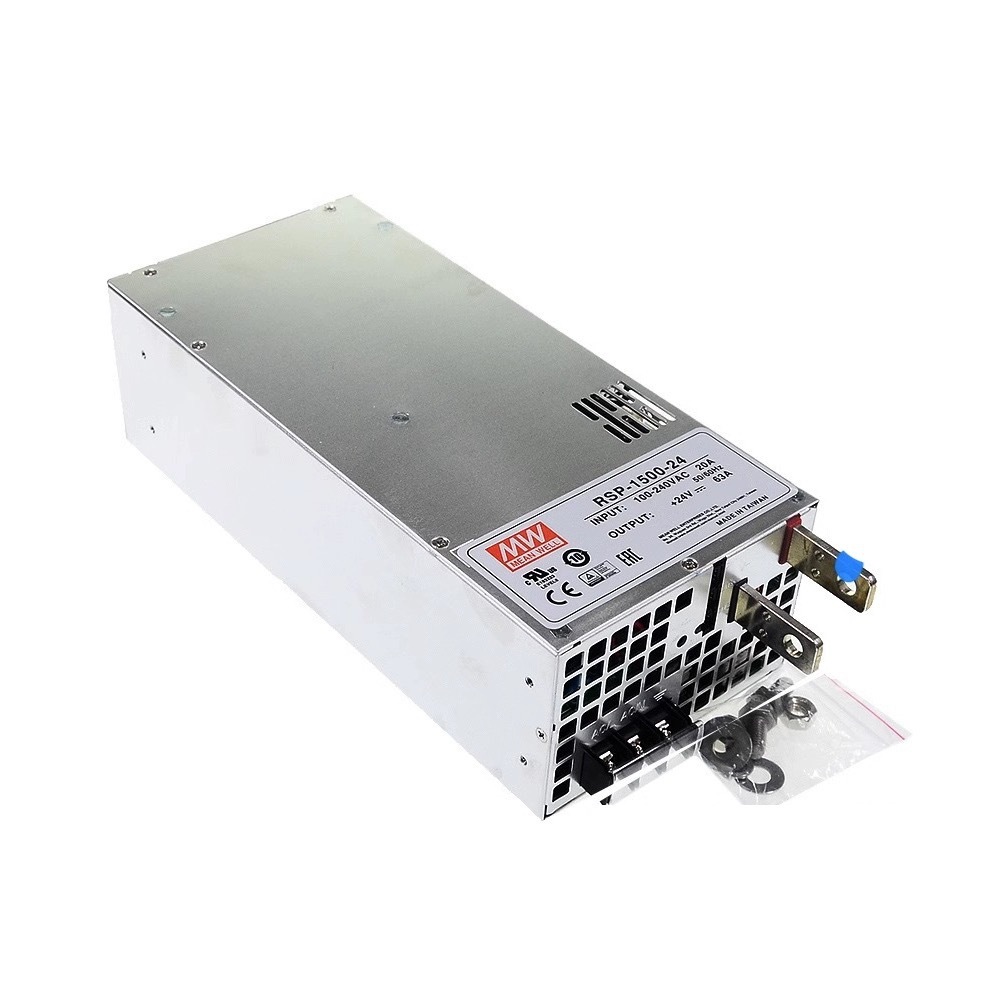

MODEL: RSP-1500-24
BRAND: Mean Well
TYPE: 1500W-Class Enclosed AC/DC Single-Output PFC Power Supply (24V)
|
Category |
Specification |
|---|---|
|
DC Output Voltage |
24V |
|
Rated Current |
63A |
|
Current Range |
0 – 63A |
|
Rated Power |
1512W |
|
Voltage Adjust Range |
20 – 26.4V |
|
Output Programmable (PV) |
70 – 100% of nominal (external resistor / control signal) |
|
Ripple & Noise (max.) |
150mVp-p |
|
Voltage Tolerance |
±1.0% |
|
Line / Load Regulation |
±0.5% / ±0.5% |
|
Setup / Rise Time |
1500ms / 100ms (full load) |
|
Hold-up Time (Typ.) |
14ms @ full load |
|
Input Voltage Range |
90–264V AC / 127–370V DC |
|
Frequency |
47–63Hz |
|
Power Factor (Typ.) |
0.98 @115V AC, 0.95 @230V AC (full load) |
|
Efficiency (Typ.) |
90% |
|
AC Current (Typ.) |
17A @115V AC, 8A @230V AC |
|
Inrush Current (Typ.) |
30A @115V AC, 60A @230V AC |
|
Leakage Current |
<2.0mA @240V AC |
|
Overload Protection |
105–135% rated power → constant-current limit, shutdown after 5s, re-power to recover |
|
Over Voltage Protection |
27.6–32.4V → shutdown output, re-power to recover |
|
Over Temperature Protection |
Shutdown output, auto-recover after cooldown |
|
Short Circuit Protection |
Constant-current / shutdown per overload logic |
|
Cooling |
Built-in DC fan, speed-controlled |
|
Remote Functions |
Remote ON/OFF, Remote Sense (≤0.3V), 12V/0.1A AUX, Power-OK, alarm signal |
|
Current Sharing |
Up to 6000W (3+1 units) |
|
Operating Temp. |
-20°C ~ +70°C (derate above 50°C for 24V model) |
|
Operating Humidity |
20–90% RH, non-condensing |
|
Vibration |
10–500Hz, 2G |
|
Isolation |
I/P-O/P: 3kV AC; I/P-FG: 2kV AC; O/P-FG: 0.5kV AC |
|
Dimensions (L×W×H) |
278 × 127 × 83.5 mm |
|
Weight |
Approx. 3.0 kg |
|
Options |
Optional conformal coating |
|
Certifications |
UL 62368-1, CAN/CSA C22.2 No.62368-1, TÜV EN 62368-1, BSMI CNS15598-1, AS/NZS 62368.1, EAC TP TC 004 |
|
Warranty |
5 years |
