A built-in long-life DC fan with temperature on/off control (≥50°C on, ≤40°C off) supports full load from -25°C to +70°C; efficiency is up to 88–89% with <0.75W no-load consumption. Protections cover short circuit, overload (hiccup auto-recovery), over voltage and over temperature. It powers multiple 5m rolls of 14.4W/m 24V tape, ~10m of 18W/m RGBW, or 8–10m of 30W/m COB with injection. Ideal for commercial LED installs, DMX/PWM controllers, CCTV, PLCs and industrial automation. For 24/7 use de-rate to 85% load (≈298W / 12.4A). Not waterproof—mount indoors or in a ventilated enclosure.

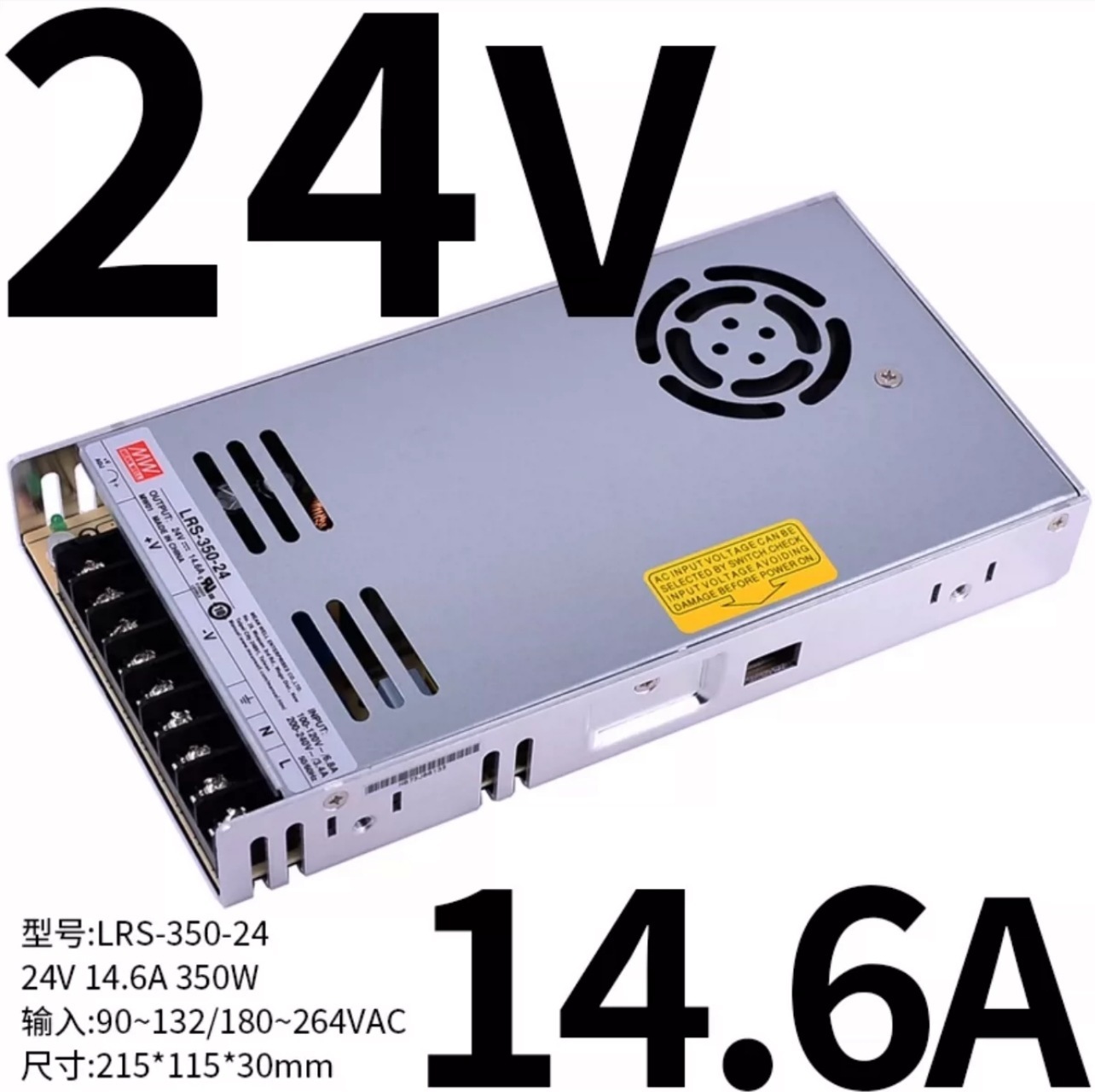

350W 24V Heavy-Duty: 24V DC, 14.6A, 350.4W; output trims 21.6–28.8V to compensate cable drop on long 24V runs.
Switchable AC Input: 90–132VAC / 180–264VAC physical selector; 240–370VDC; withstands 300VAC surge for 5s.
1U Case + Smart Fan: 215×115×30mm, built-in DC fan with thermal on/off control, up to 89% efficiency, power-on LED, 5G vibration resistant, 3-year warranty.
Full Protection Suite: Short circuit (auto recovery), overload 110–140% (hiccup), over voltage 28.8–33.6V (hiccup), over temp (hiccup/recovery); UL/IEC/EN 62368-1, EN60335-1, EN61558-1/-2-16, CCC/CE/CB.
Multi-Roll LED Ready: Several 5m 14.4W/m rolls, ~10m 18W/m RGBW, 8–10m 30W/m COB (with injection); controllers, CCTV, PLCs, signage, sensors on one supply.
|
Item |
Specification |
|---|---|
|
Model |
LRS-350-24 |
|
Manufacturer |
MEAN WELL |
|
Series |
LRS-350 (Enclosed, single output) |
|
Output Voltage |
24V DC |
|
Voltage Adjust Range |
21.6–28.8V |
|
Rated Current |
14.6A |
|
Rated Power |
350.4W |
|
Input Voltage |
90–132VAC / 180–264VAC（physical switch）, 240–370VDC |
|
Frequency |
47–63Hz |
|
Efficiency |
88% typ @ 230VAC（series up to 89%） |
|
Ripple & Noise |
150mVp-p max |
|
Inrush Current |
Cold start 60A @ 115/230VAC |
|
No-Load Power |
<0.75W |
|
Protections |
Short circuit (hiccup/auto recovery), Overload 110–140% (hiccup), Over voltage 28.8–33.6V (hiccup), Over temp (hiccup/auto recovery) |
|
Cooling |
Built-in DC fan, temp-controlled（≥50°C ON, ≤40°C OFF） |
|
Operating Temp |
-25°C ~ +70°C（derating above 50°C） |
|
Safety |
IEC/UL 62368-1, EN60335-1, EN61558-1/-2-16, GB4943, CCC, CE, CB, EAC, RoHS |
|
EMC |
EN55032/EN55022 Class B, EN61000-3-2/-3, EN61000-4-x |
|
Terminals |
Screw terminal block（AC L/N/FG, DC +/-） |
|
Housing / IP |
Metal mesh case, IP20 indoor |
|
Dimensions |
215 × 115 × 30 mm (L×W×H) |
|
Weight |
~0.76 kg |
|
Continuous Load Rule |
De-rate to 85% → ≈298W / 12.4A for 24/7 |
|
Typical Use |
Multiple 24V LED rolls, RGBW/CCT/COB strips, DMX/PWM controllers, signage, CCTV, PLC, industrial automation |
|
Not For |
Outdoor exposed use, 12V strips, non-dimmable AC lamps, very long 40W/m COB without injection/amplifier |
|
Warranty |
3 years |
