Fanless natural convection cooling reaches 89.5% typical efficiency with <0.75W no-load consumption. Protections cover short circuit, overload (hiccup auto-recovery), over voltage and over temperature; operating range is -25°C to +70°C with derating above 50°C. It powers several 5m rolls of 14.4W/m 24V tape, ~7m of 18W/m RGBW, or 5–7m of 30W/m COB with injection. Ideal for commercial LED strips, controllers, CCTV, PLCs and industrial automation. For 24/7 use de-rate to 85% load (≈179W / 7.5A). Not waterproof—mount indoors or in a ventilated enclosure.

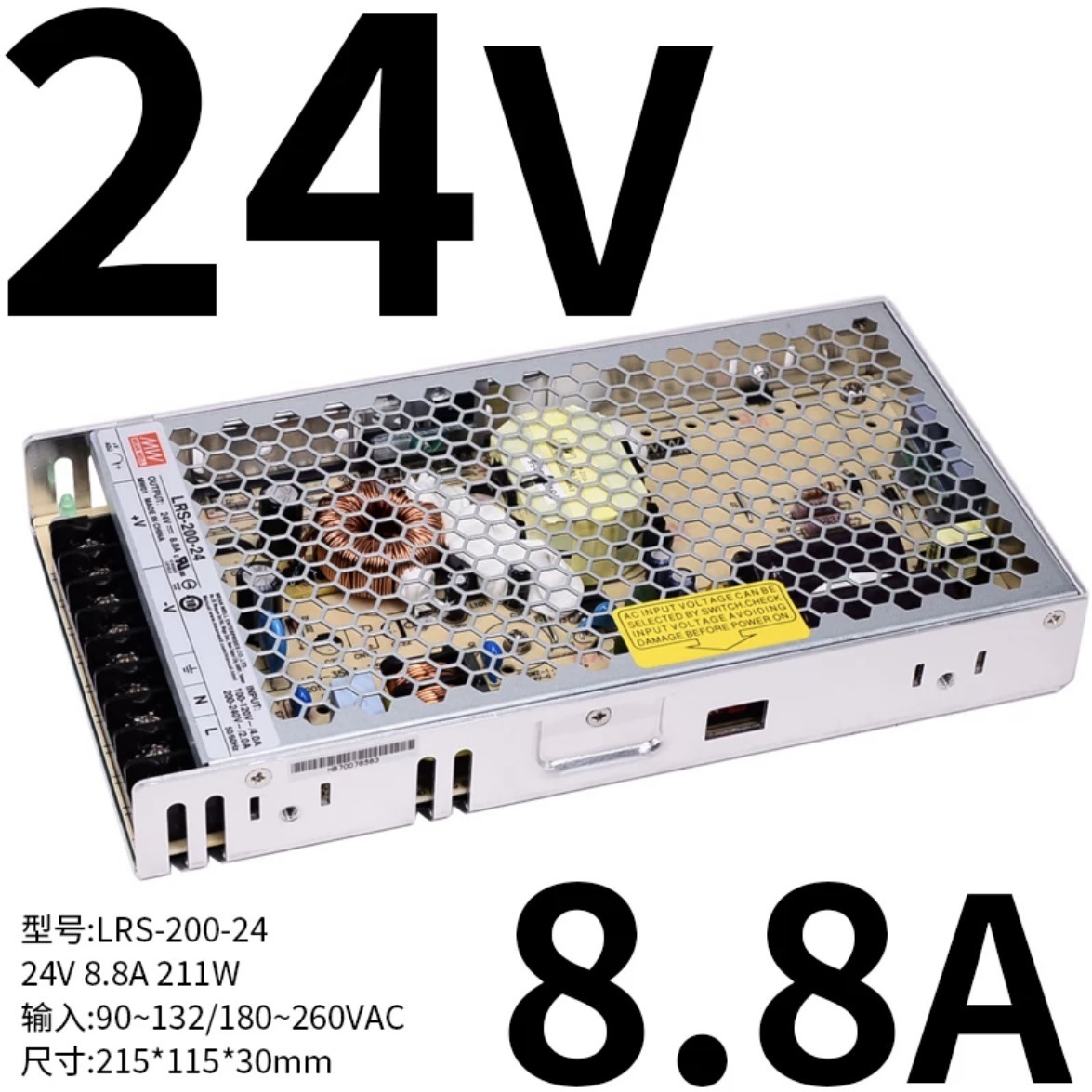

200W-Class 24V Supply: 24V DC, 8.8A, 211.2W rated; output trims 21.6–28.8V to compensate cable drop on long 24V runs.
Switchable Global AC Input: 90–132VAC / 180–264VAC physical selector; 240–370VDC; withstands 300VAC surge for 5s.
Fanless 1U Profile: 215×115×30mm, free-air convection, 89.5% efficiency, power-on LED, 5G vibration resistant, 3-year warranty.
Full Protection Suite: Short circuit (auto recovery), overload 110–140% (hiccup), over voltage 28.8–33.6V (shut down + restart), over temp (auto recovery); UL/TÜV/IEC 62368-1/EN60335/EN61558/CCC/CE.
Long-Strip Ready: Several 5m 14.4W/m rolls, ~7m 18W/m RGBW, 5–7m 30W/m COB (with injection); controllers, CCTV, PLCs, signage, sensors on one supply.
|
Item |
Specification |
|---|---|
|
Model |
LRS-200-24 |
|
Manufacturer |
MEAN WELL |
|
Series |
LRS-200 (Enclosed, single output) |
|
Output Voltage |
24V DC |
|
Voltage Adjust Range |
21.6–28.8V |
|
Rated Current |
8.8A |
|
Rated Power |
211.2W（200W-class） |
|
Input Voltage |
90–132VAC / 180–264VAC（physical switch）, 240–370VDC |
|
Frequency |
47–63Hz |
|
Efficiency |
89.5% typ @ 230VAC |
|
Ripple & Noise |
150mVp-p max |
|
Inrush Current |
Cold start 60A @ 115/230VAC |
|
No-Load Power |
<0.75W |
|
Protections |
Short circuit (auto recovery), Overload 110–140% (hiccup), Over voltage 28.8–33.6V (shut down + re-power), Over temp (auto recovery) |
|
Cooling |
Free air convection, no fan |
|
Operating Temp |
-25°C ~ +70°C（derating above 50°C） |
|
Safety |
IEC/UL 62368-1, EN60335-1, EN61558-1/-2-16, GB4943.1, KC, BIS, AS/NZS 62368.1, CE, CB, RoHS |
|
EMC |
EN55032 Class B, EN61000-3-2/-3, EN61000-4-x |
|
Terminals |
Screw terminal block（AC L/N/FG, DC +/-） |
|
Housing / IP |
Metal mesh case, IP20 indoor |
|
Dimensions |
215 × 115 × 30 mm (L×W×H) |
|
Weight |
~0.66 kg |
|
Continuous Load Rule |
De-rate to 85% → ≈179W / 7.5A for 24/7 |
|
Typical Use |
Long 24V LED strips, RGBW/CCT COB, signage, CCTV, PLC, access control, industrial automation, 3D printer/CNC |
|
Not For |
Outdoor exposed use, 12V strips, non-dimmable AC lamps, 40W/m COB very long runs without injection/amplifier |
|
Warranty |
3 years |
