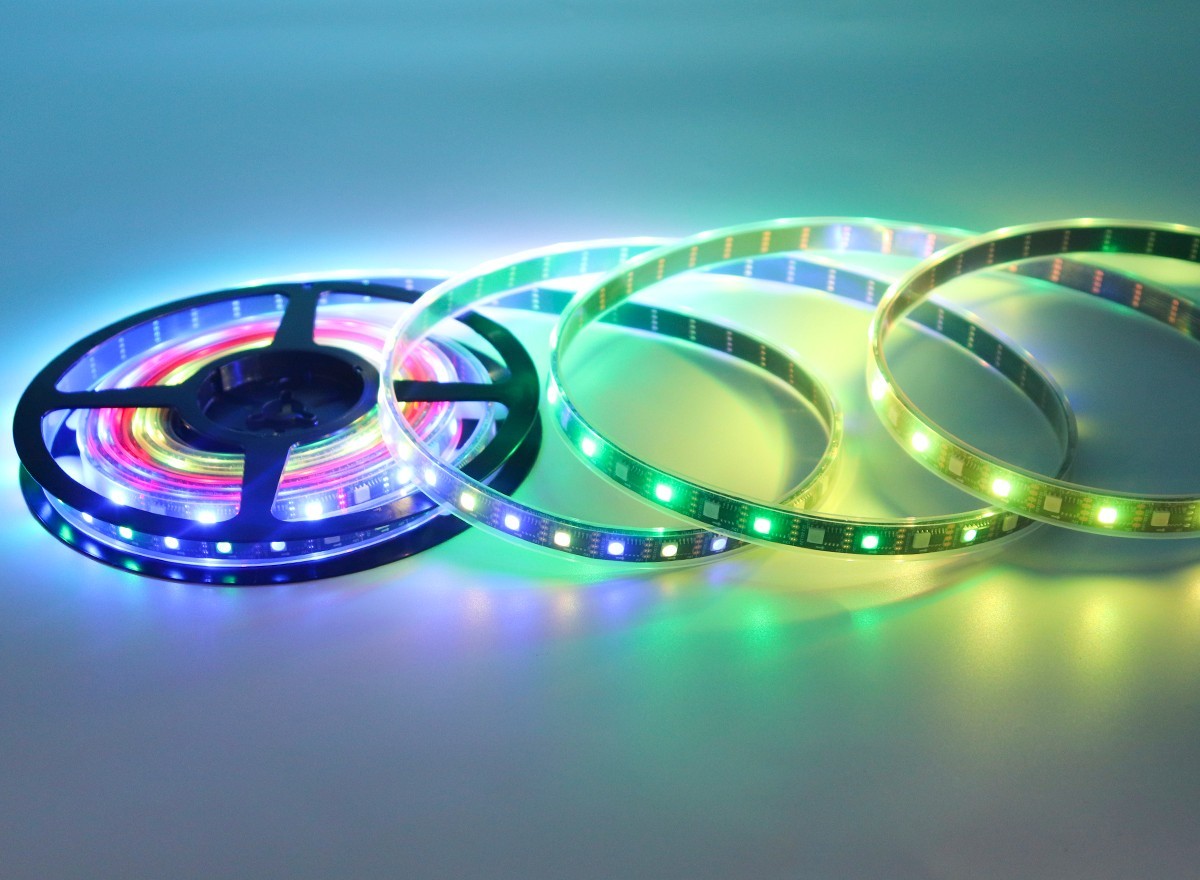

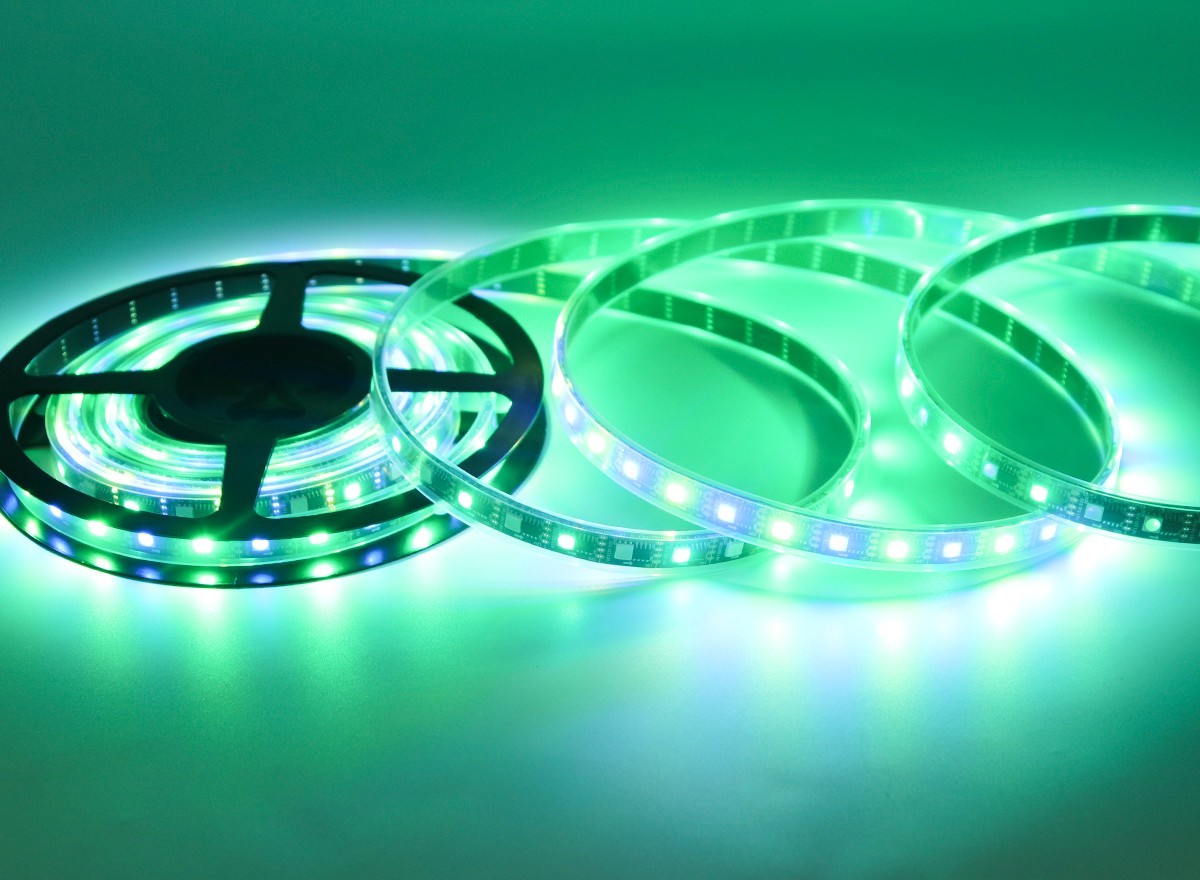

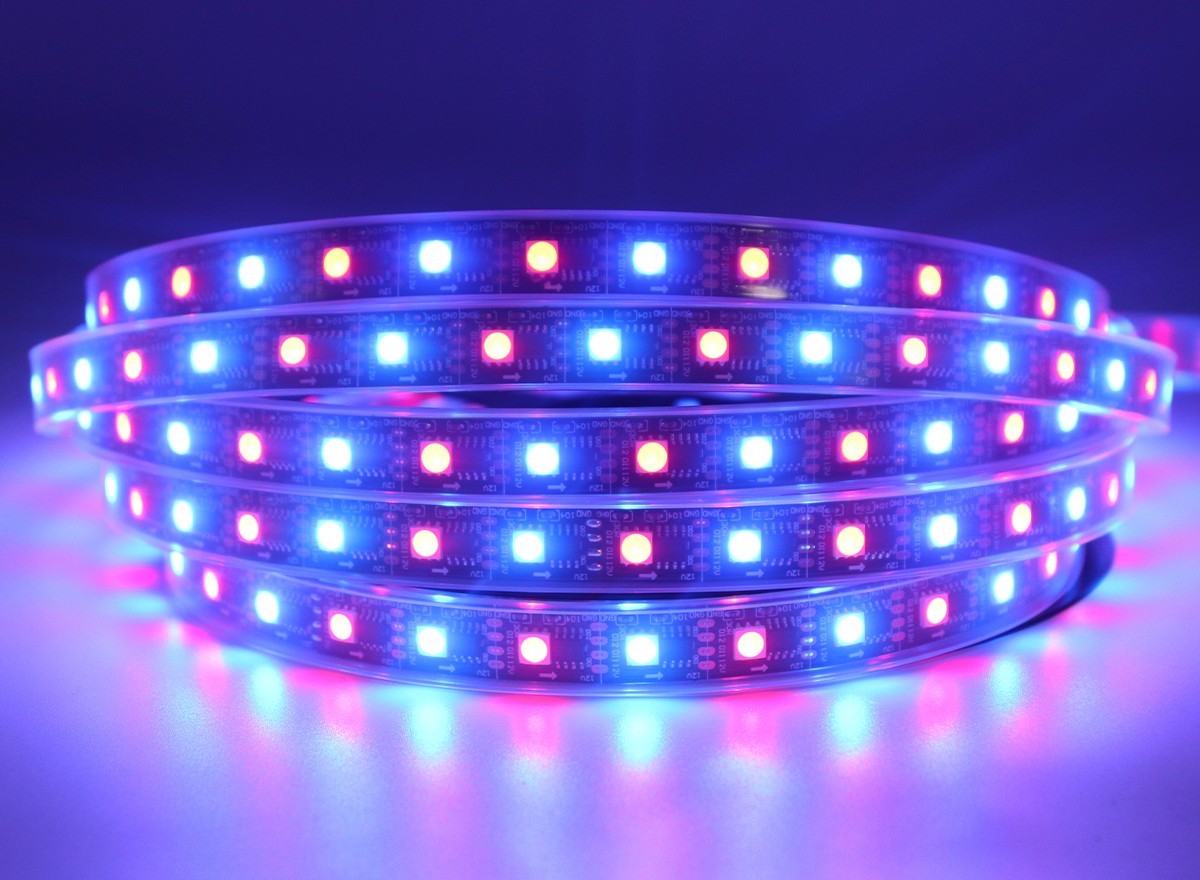

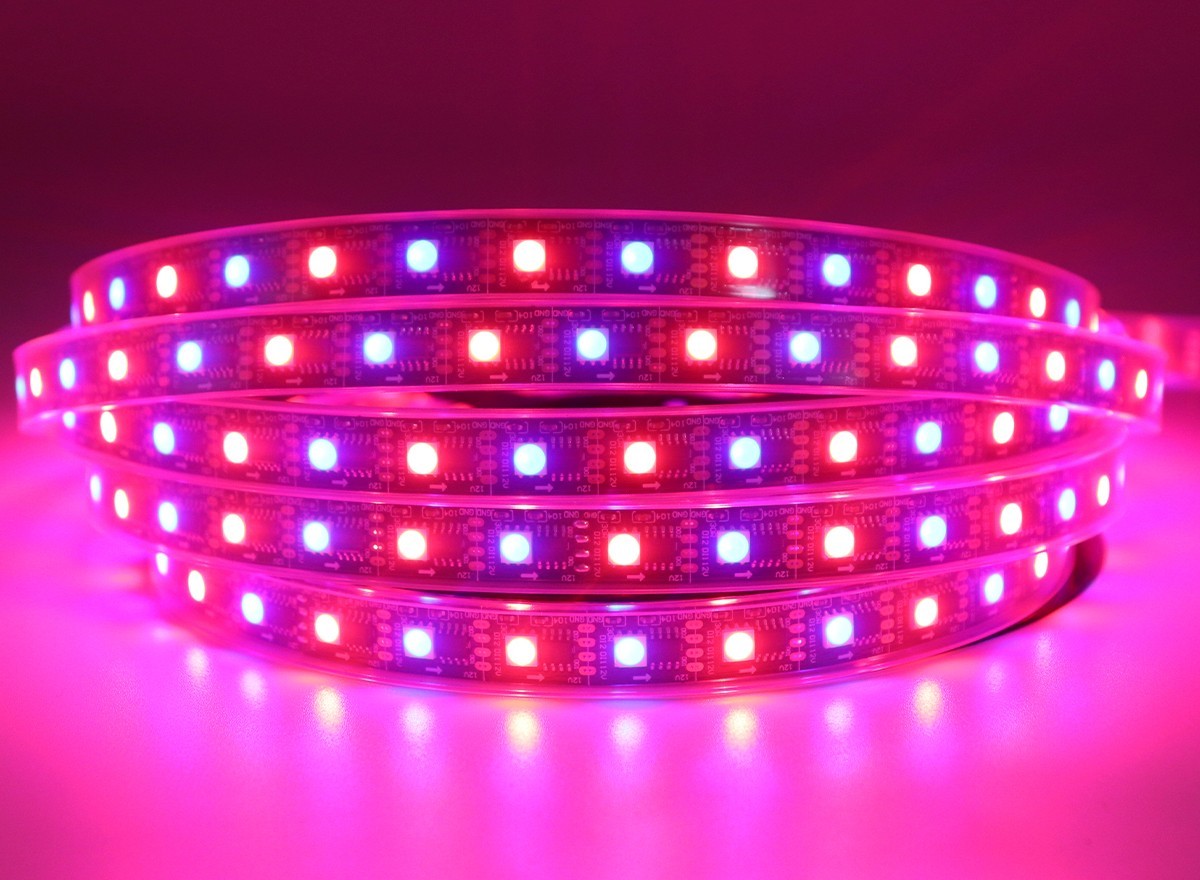

60 pixels/m, 1 external GS8208 IC per LED. The 5050 RGB chip delivers saturated colors, 256-level grayscale and smooth animation for pixel screens, media facades, logo walls and stage backdrops. 10mm flexible FPC fits slim profiles; cut and reconnect every 16.6mm. Single-line data, built-in signal reshaping, long-distance cascade stable with SPI/Arduino/K-1000C/Madrix systems.

True Single-Pixel Control: 1 GS8208 IC drives 1 × 5050 RGB LED → 60 independent pixels per meter, ideal for video/pixel mapping.

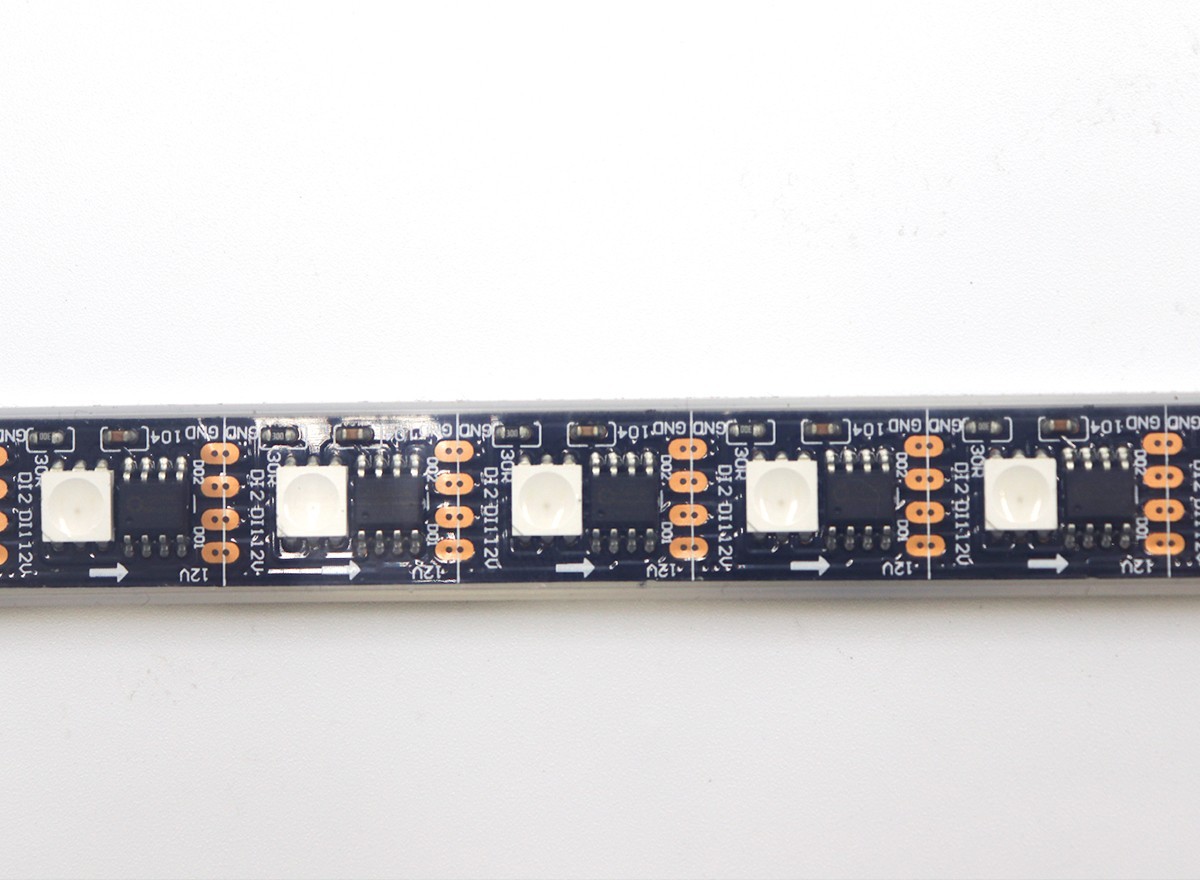

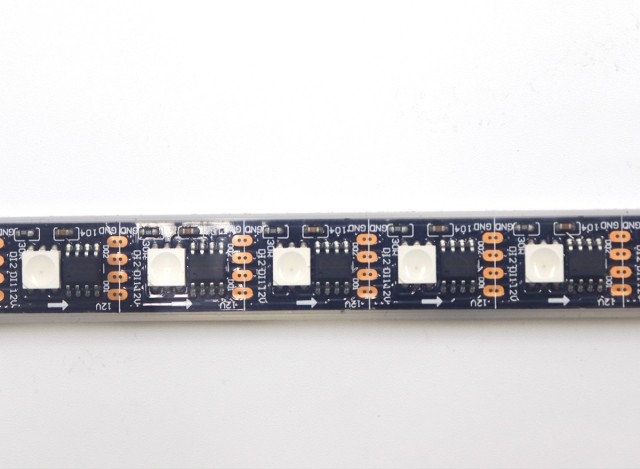

External GS8208 IC: Better heat dissipation and stability than embedded-IC strips; 12V operation with reshaped signal output.
12V + 10mm Slim PCB: Easier power distribution than 5V pixel strips; narrow board fits aluminum profiles, letters, shelves, facades.
High Refresh & Smooth Color: 256 gray scale × RGB, high PWM refresh, no obvious stepping in fades/chases; good for camera/film use.
Cut Every 1 LED: Fine customization at ~16.7mm steps; IP20/IP65/IP67 available; CE/RoHS, 30k–50k hrs lifespan.

1-9 meters

$9.99

10-999 meters

$8.88

>=1000 meters

$7.99

GET A QUOTE

Download

View all downloads

Parameter	Specification
Model	GS8208-5050RGB-60D-12V-10mm
LED Type	SMD 5050 RGB (3-in-1)
IC Type	GS8208 (external IC)
Voltage	DC 12V
LEDs/m	60 LEDs/m
Pixels/m	60 pixels/m (1 IC / 1 LED)
Control	Single-point single-control
Cutting Unit	Every 1 LED ≈ 16.7 mm
Power	~14.4 W/m typical (up to 18 W/m)
Channels	R / G / B
Grayscale	256 levels/channel
Data Interface	Single-line data (DAT / GND / VCC)
Signal	Built-in reshaping / retiming
PWM Refresh	High refresh, ~kHz level (factory-dependent)
PCB Width	10 mm
PCB Color	White / Black
Roll Length	5 m/reel
Beam Angle	120°
CRI	Ra ≥ 80 (RGB decorative grade)
IP Rating	IP20 / IP65 / IP67 / IP68
Life	30,000–50,000 h
Cert.	CE / RoHS
