Ideal for soft-film ceilings, light boxes, stone backlighting, bars, and architectural feature walls where you want “show light” and “ambient white light” from the same tile.

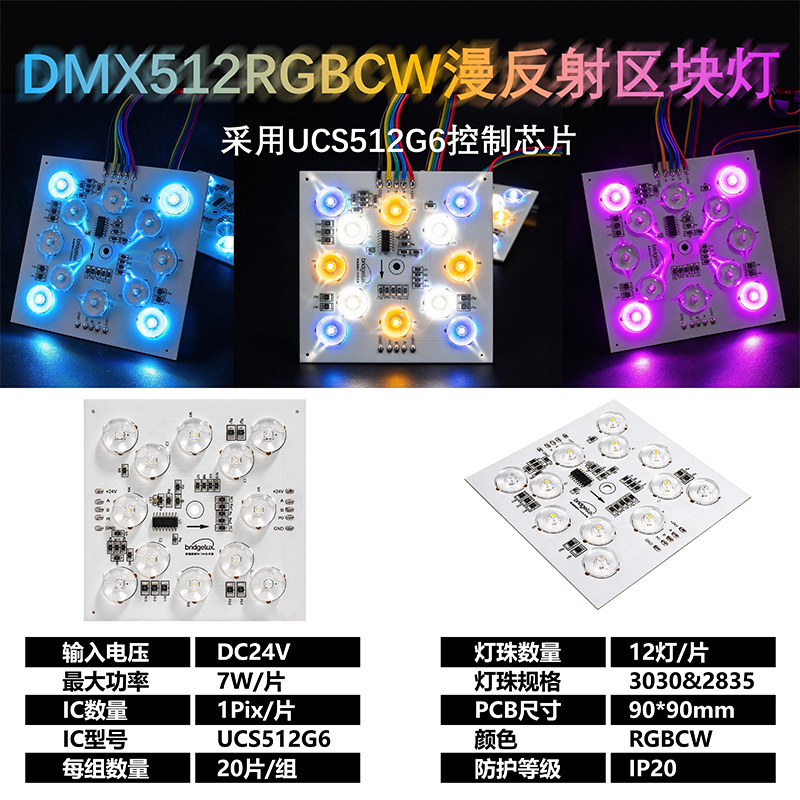

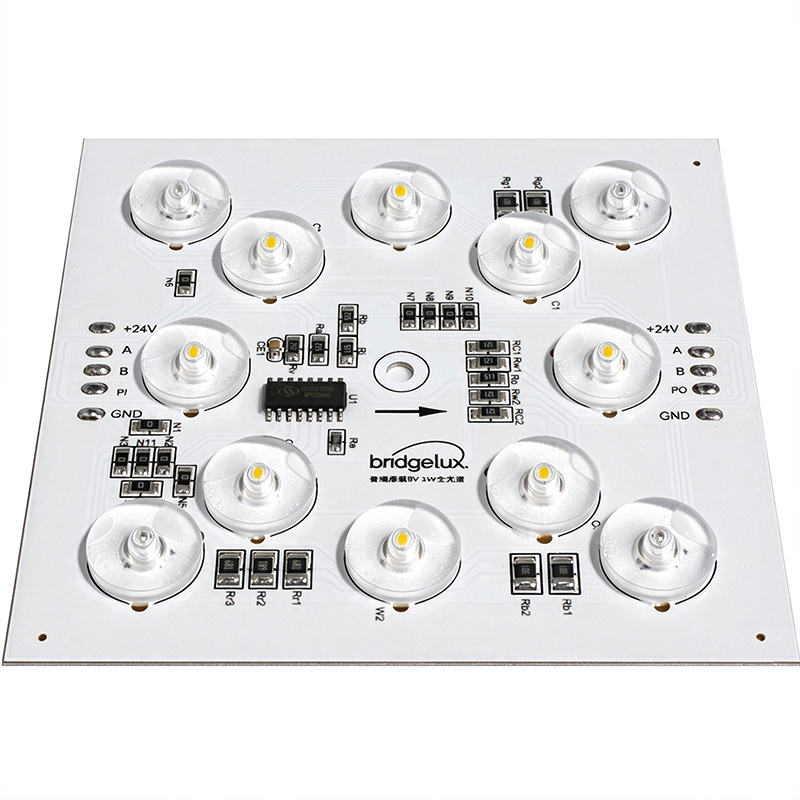

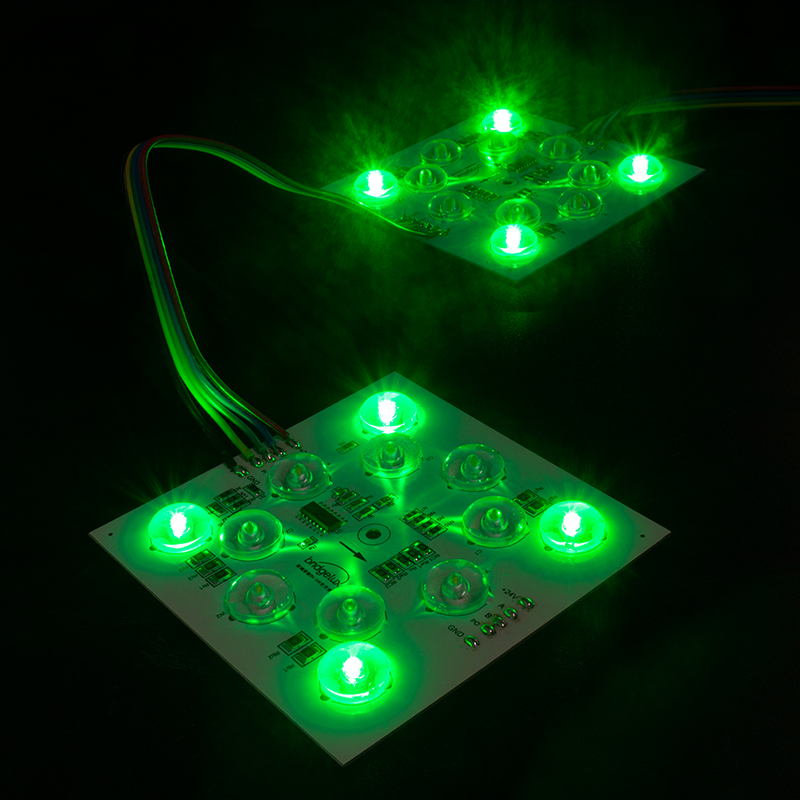

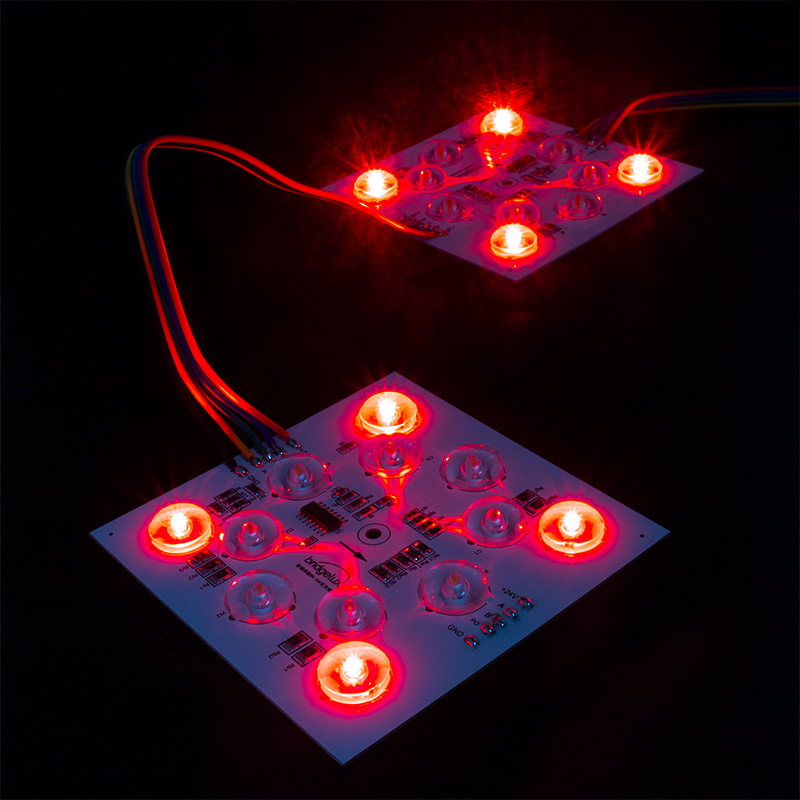

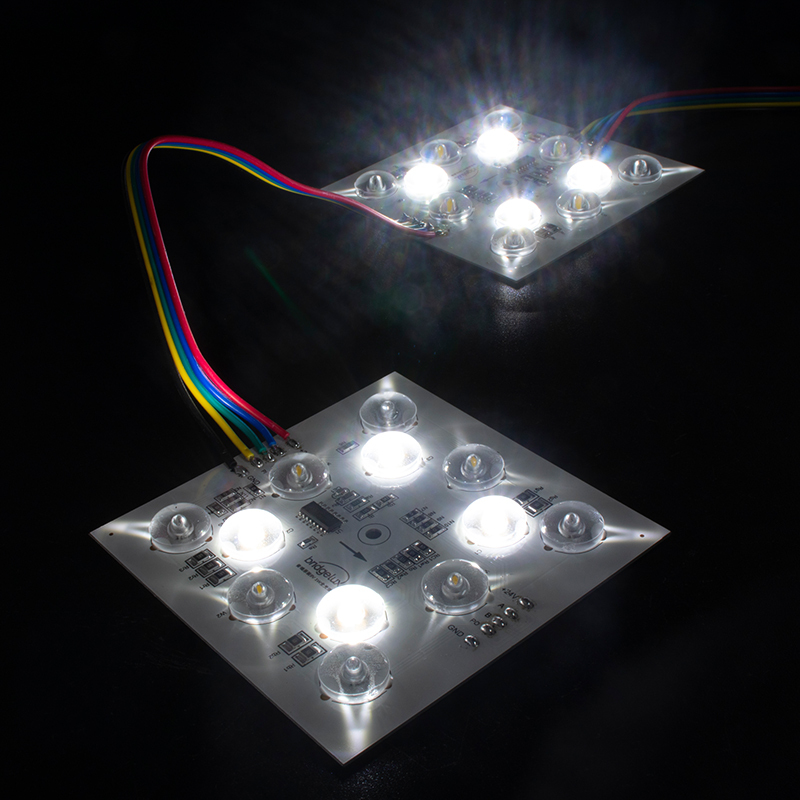

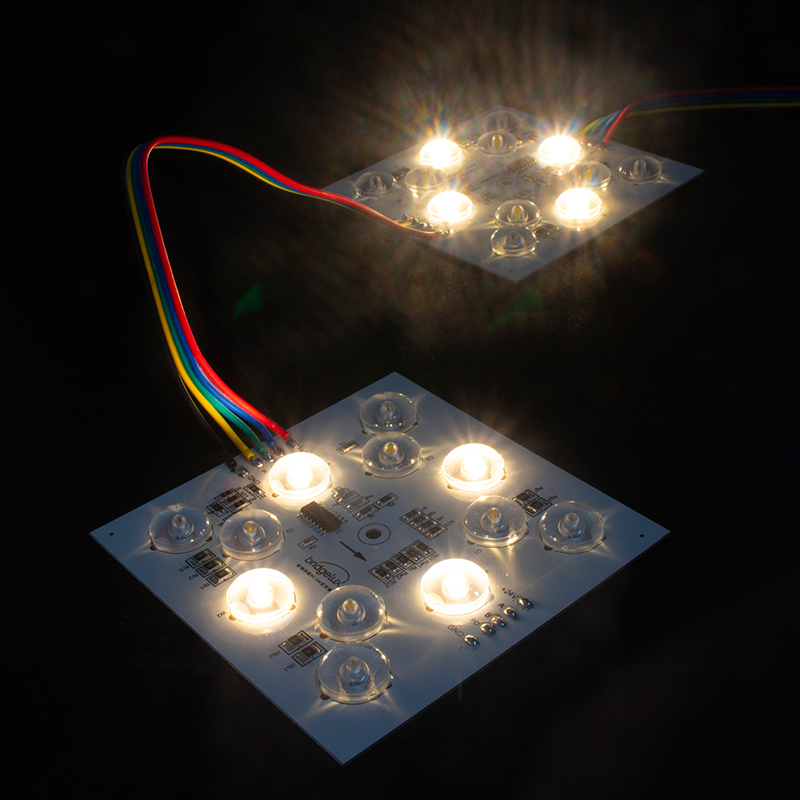

RGBCW 5-in-1: 4 RGB + 4×2700K + 4×6500K in one 90×90 tile—full color plus warm/cool white from a single addressable block.
UCS512G6 DMX512: Standard A/B DMX512, parallel signal, breakpoint-resume; one bad pixel does not kill the run like WS281x SPI strings.
24V Pixel Block: Lower current and longer runs than 5V/12V pixel modules; better for ceilings, signage chains, and large tile arrays.
Diffuse, Dot-Free Output: Soft-film / diffuse reflector hides LED points; even surface light for backlight, stone slab, light box, and cove.
Show + Ambient in One: Run Madrix-style pixel animation at night, then switch to 2700K lounge white or 6500K retail white by day—no separate white fixture needed.
|
Category |
Specification |
|---|---|
|
Model |
PX-BLK90-RGBCW-UCS512G6 |
|
Module Size |
90 × 90 mm |
|
Input Voltage |
DC 24V constant voltage |
|
LED Layout |

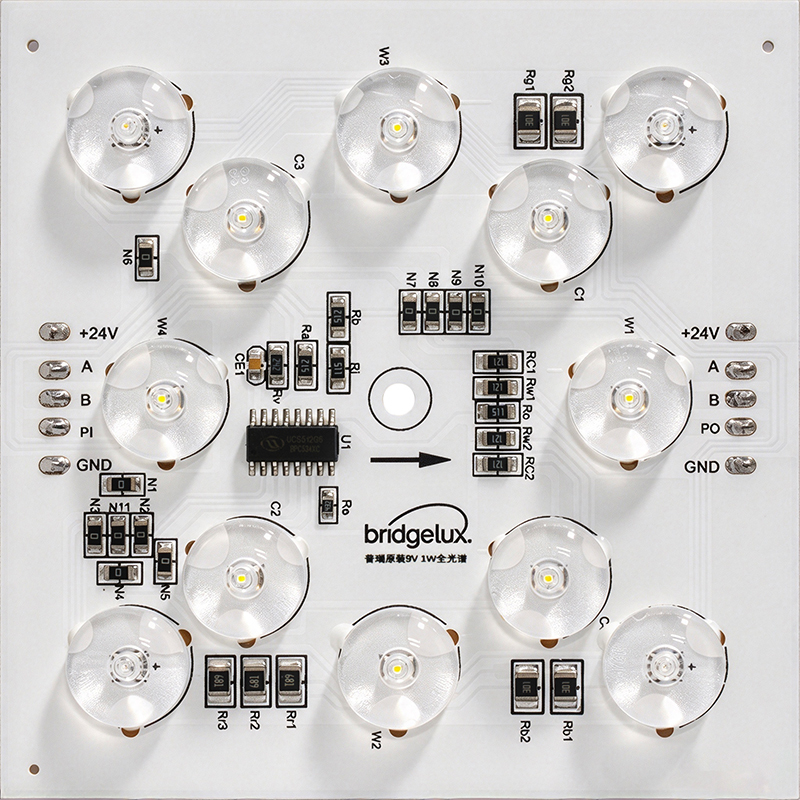

4 × RGB + 4 × 2700K WW + 4 × 6500K CW（12 LEDs/module） |
|
IC |
UCS512G6（DMX512 differential/parallel pixel IC） |
|
Protocol |
Standard DMX512（A/B differential data + 24V/GND） |
|
DMX Channels |
5 channels/module：R, G, B, Warm White, Cool White |
|
Pixel Mapping |
1 module = 1 RGBCW pixel |
|
CRI |
Ra ≥ 90 typical for white LEDs（confirm per LED bin） |
|
Optics |
Diffuse / soft-film block, wide beam（≈120°–175° per diffuser） |
|
Grayscale |
256-step standard / 16-bit 65536 with UCS512G6 config |
|
Power |
Confirm per build；industry 90mm RGBCW 12-LED module often ~8–11W |
|
String Config |
Per harness design；DMX address writer / controller required |
|

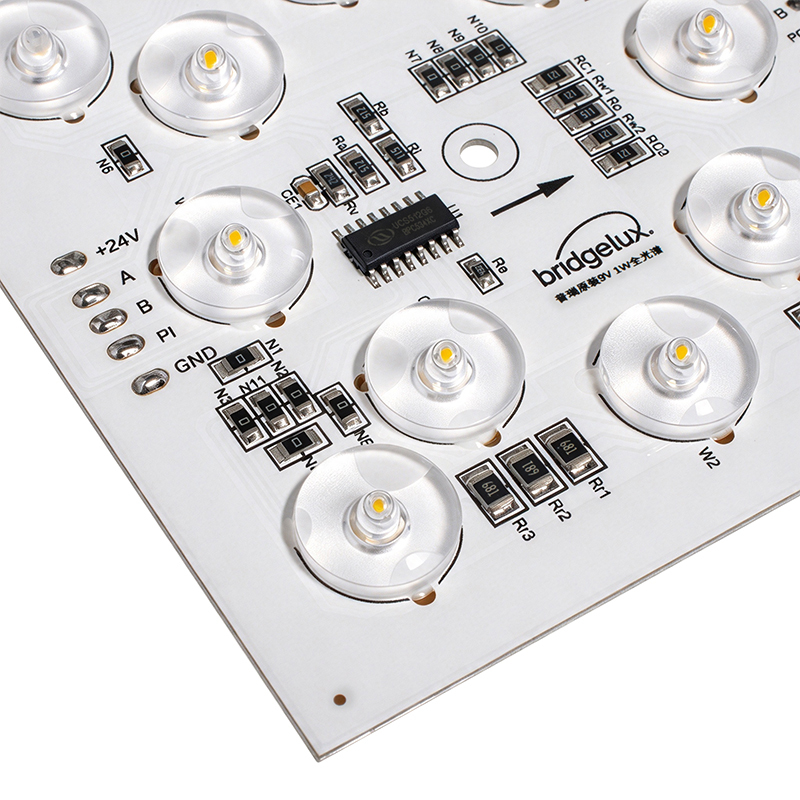

Connector |
5-line DMX harness（A/B/GND/V+/Data class）or JST/XLR per BOM |
|
Base |

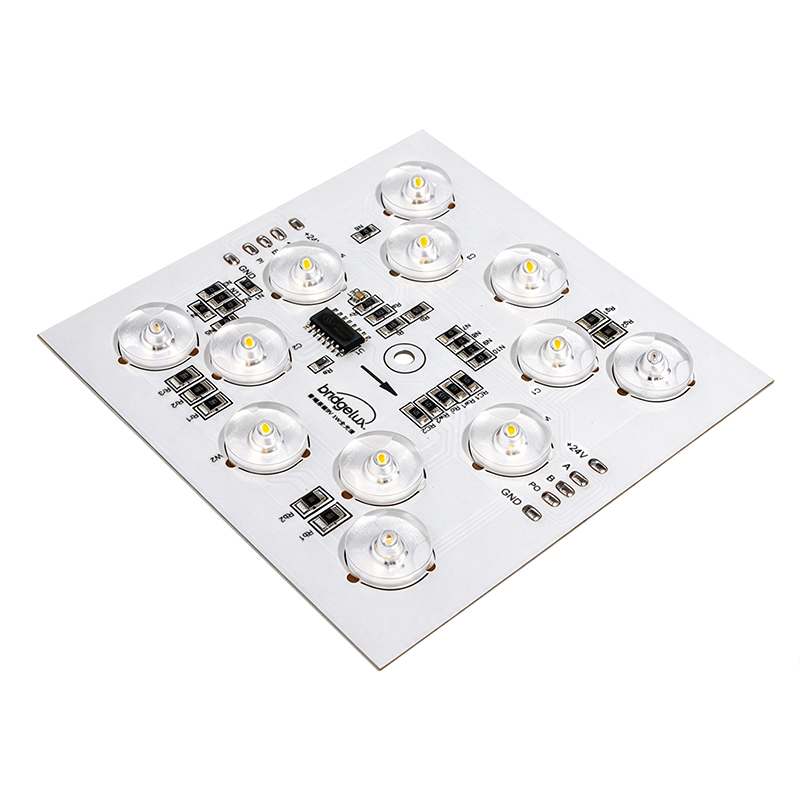

Aluminum PCB / rigid FR4 + diffuser |
|
IP Rating |
IP20 indoor standard；IP65/IP67 optional |
|
Application |
Soft-film ceiling, light box, stone backlight, retail display, bar ceiling, hotel lobby, architectural pixel wall |
