🎵 Built-in High-Sensitivity Mic: Features real-time music synchronization and sound-reactive effects, allowing your LED strips to dance to the beat of your favorite songs.
📱 Seamless App & Web Control: Easily manage your lights via the user-friendly WLED app (iOS/Android) or any web browser, with no subscription or hub required.
⚡ Powerful ESP32 Performance: Equipped with a high-speed ESP32 chip, ensuring smooth animations, stable 2.4G WiFi connectivity, and support for hundreds of addressable LEDs.
🔧 Wide Compatibility: Perfectly drives 5V addressable LED chipsets including WS2811, WS2812B, SK6812, and SM16703, making it ideal for PC builds, TV backlights, and DIY decor.
🛠️ Easy Setup & Compact Design: Plug-and-play installation with a minimalist footprint. Connects to your home WiFi in minutes and supports OTA updates for future features.
|
Feature |
Details |
|---|---|
|
Brand / Model |

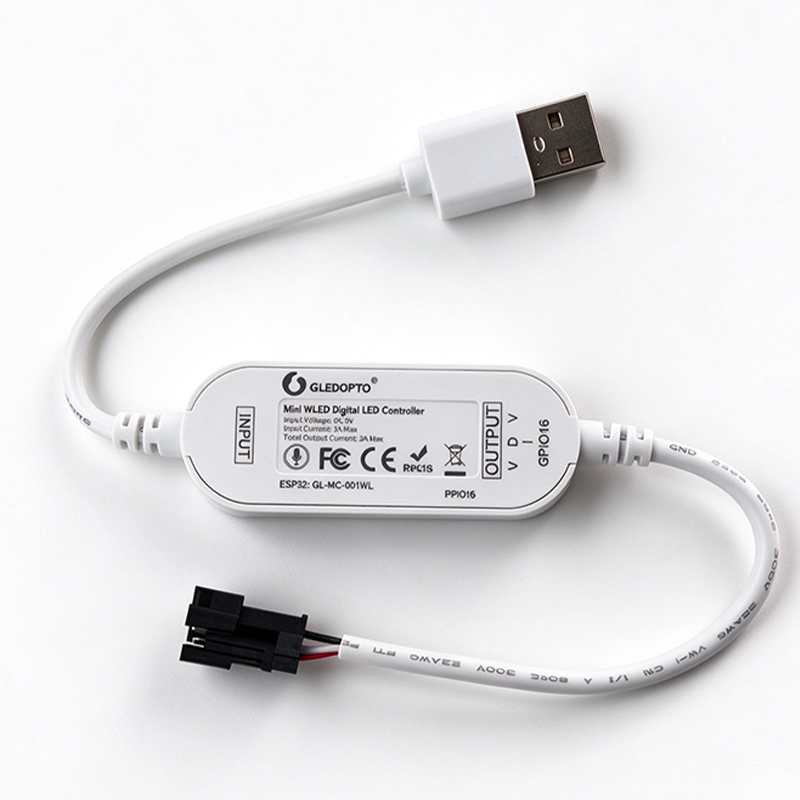

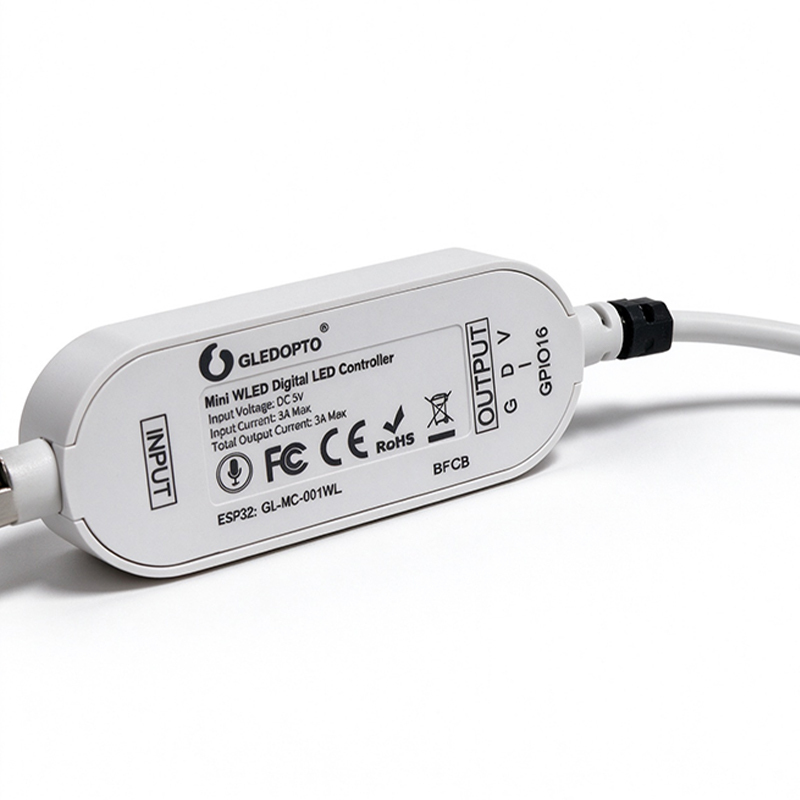

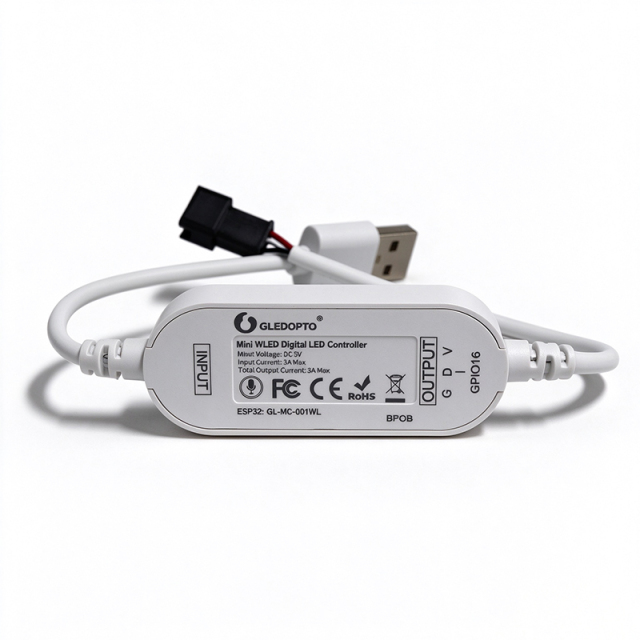

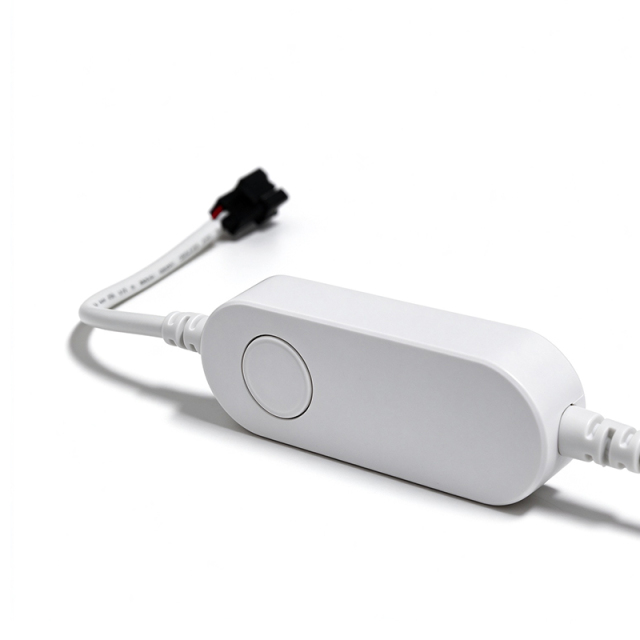

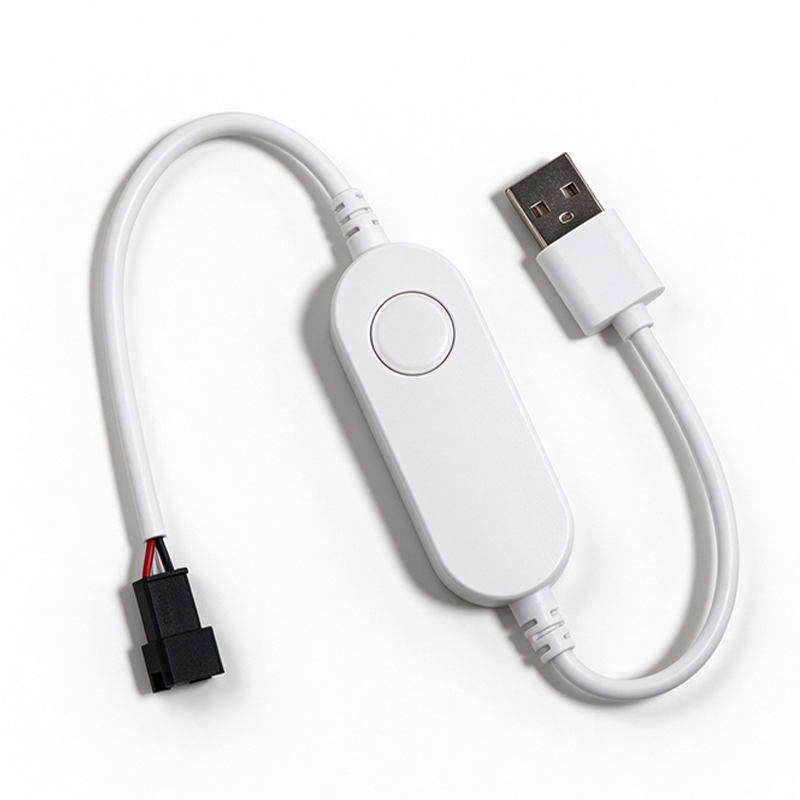

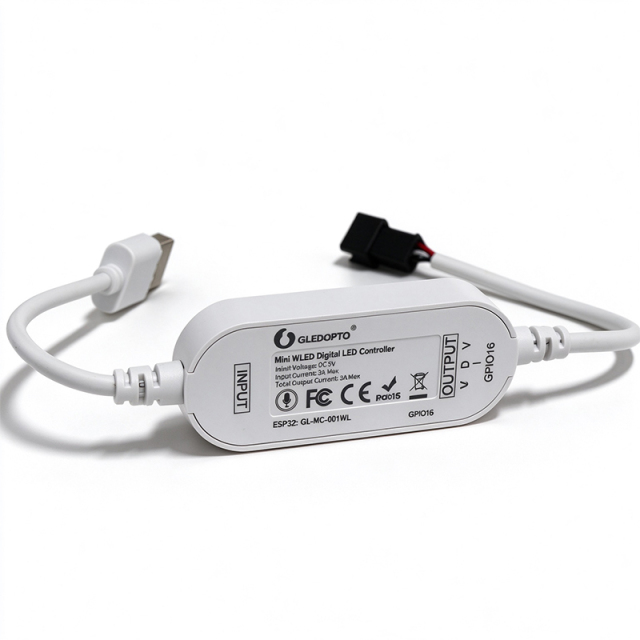

GLEDOPTO / GL-MC-001WL |
|
Input Voltage |
DC 5V |
|
Max Output Current |
3A |
|
Main Control Chip |
ESP32 |
|
Wireless Standard |
2.4GHz Wi-Fi |
|
Firmware |
WLED (Open Source) |
|
Compatible LED Types |
WS2811, WS2812, WS2812B, SK6812, SM16703 |
|
Output Interface |
V (5V), D- (GND), G (Data), GPIO 16 |
|
Special Features |
Built-in Mic, Music Sync, 100+ Effects |
|
App Support |
WLED App / WLED Native |
|
Dimensions |
Ultra-compact Mini Size |
