Supporting 5V, 12V, and 24V systems with up to 800 ICs per channel, it works seamlessly with WS2812B, SK6812, WS2815, TM1814, and more. Built-in audio-reactive microphone enables music-synced effects, while DIY GPIO pins allow motion sensors or external switches. Perfect for cove lighting, gaming setups, retail displays, and smart home integration. Safe, professional, and endlessly customizable.
Dual Independent Channels: Control two addressable LED strips separately from one compact controller—ideal for creating distinct lighting zones or synchronized whole-room effects.
Relay & Fuse Protection: Each output has a relay for complete power disconnect (no more ghost glow) and a replaceable fuse to safeguard against short circuits and overcurrent.
WLED + RF + Smart Home: Native WLED firmware offers a powerful web UI and app; includes 2.4G RF remote support and integrates with Home Assistant, Alexa, and MQTT.
Wide Compatibility & Voltage: Works with WS2811, WS2812B, WS2813, WS2815, SK6812, TM1814, and similar SPI chips across 5V, 12V, and 24V systems (max 20A total).
Audio Reactive & DIY Ready: Onboard microphone for music-responsive animations; extra GPIO pins (IO5/IO18/IO33) support buttons, PIR sensors, or external relays for advanced automation.
|
Item |
Specification |
|---|---|
|
Brand / Model |
GLEDOPTO AeX2gis / GL-C-116WL-RF |
|
Product Type |
Dual-Channel WLED Addressable LED Controller |
|
MCU / Firmware |
ESP32 / Native WLED |
|
Input Voltage |
DC 5V / 12V / 24V |
|
Max Output Current |
10A per channel, 20A total |
|
Max Output Power |
100W (5V) / 240W (12V) / 480W (24V) |
|
Output Channels |
2 independent data channels (IO2, IO16) |
|
Control Methods |
WiFi (WLED App/Web), 2.4G RF Remote, MQTT, Home Assistant |
|
Compatible LED ICs |
WS2811, WS2812B, WS2813, WS2815, SK6812, SM16703P, TM1814, etc. |
|
Max Pixels per Ch. |
800 ICs (recommended) |
|
Relay Protection |
Yes, 2x relays (GPIO21, GPIO19) for true power cutoff |
|
Fuse Protection |
Yes, user-replaceable blade fuses per channel |
|
Audio Input |
Built-in PDM/I2S microphone (GPIO32, GPIO15) for music sync |
|
DIY GPIO |
IO5, IO18, IO33 (for button, PIR, door sensor, external relay) |
|
Data Signal Level |
3.3V logic (do not connect 5V signals to GPIO) |
|

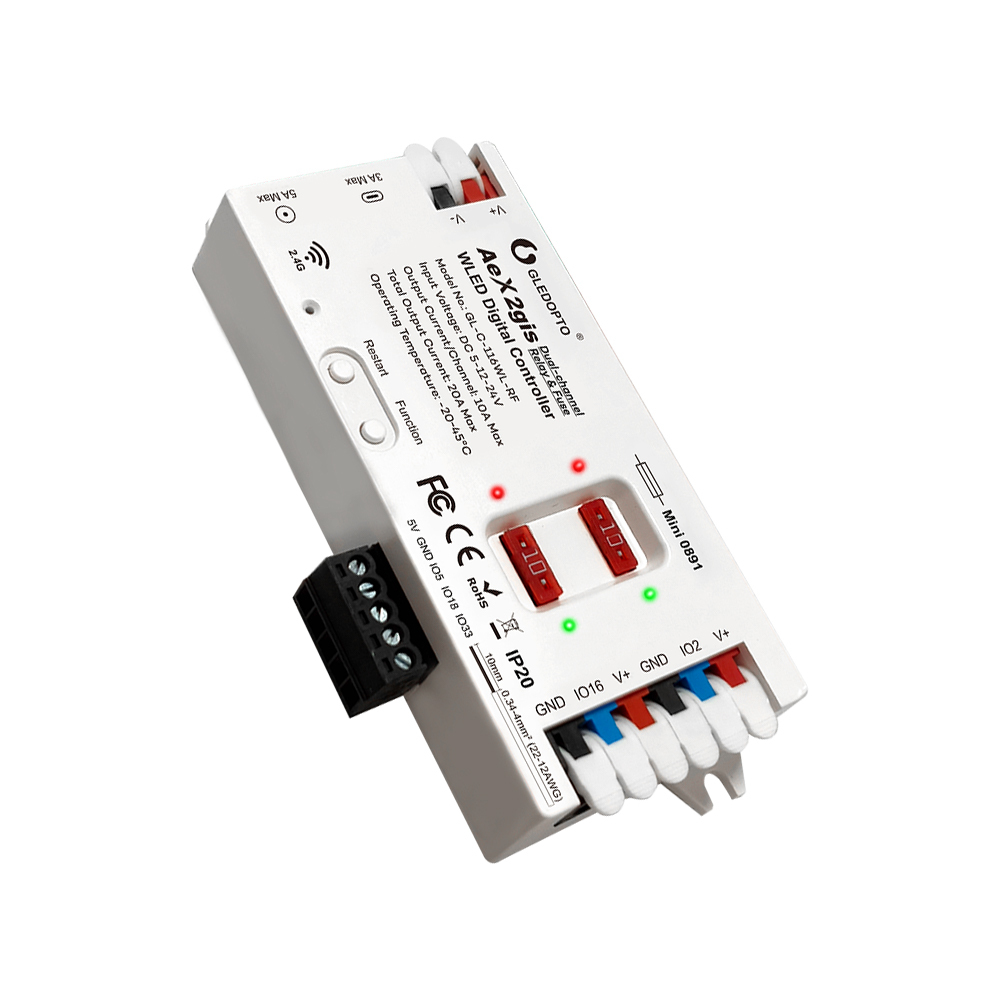

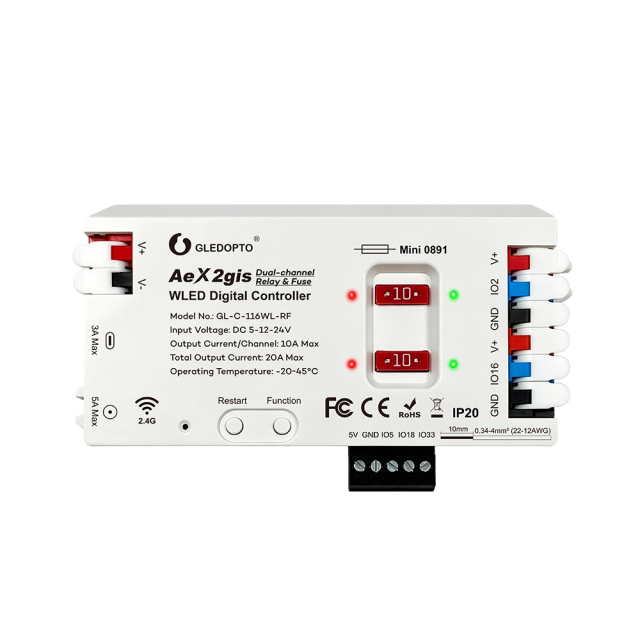

Wiring Terminals |
Screw terminals: V+, GND, Data per channel; DC jack 5.5×2.1mm; USB-C (debug/5V) |
|
RF Remote Support |
2.4GHz (compatible with GL-RC-009S / GL-RC-208, not included) |
|
IP Rating |
IP20 (indoor use) |
|
Operating Temp. |
-10°C to +50°C |
|
Certification |
CE / RoHS / FCC (typical) |
|
Warranty |
2 Years |
