The DC24V platform supports standard 5m runs with minimal voltage drop, and the 33.3mm cut interval allows precise customization. With power draw this low, heat generation is negligible—compatible with adhesive-only mounting in many scenarios. Built on a slim 8–10mm PCB with 2OZ copper, it's a set-and-forget solution for coves, shelving, stair lighting, and off-grid solar projects. Maximum brightness, minimum watts.
210LM/W Industry-Leading Efficacy: The highest efficiency in our lineup—1,806LM/M at only 8.6W/M, cutting energy costs by up to 80% vs. conventional LED strips.
180LEDs/m Smooth Output: High density eliminates visible hotspots for clean linear light, even at close viewing distances or without a diffuser.
Ultra-Low Heat, Minimal Profile: At 8.6W/M, thermal load is negligible—ideal for heat-sensitive installations, narrow profiles, and battery/solar-powered systems.
Precision 33.3mm Cut Points: Short 8-LED cutting intervals enable exact fit for compact fixtures, signage, and tight architectural details.
Stable 24V Constant Voltage: Standard DC24V compatibility with existing drivers, dimmers, and smart controls; minimal voltage drop over 5m runs.
|
Item |
Specification |
|---|---|
|
Product Name |

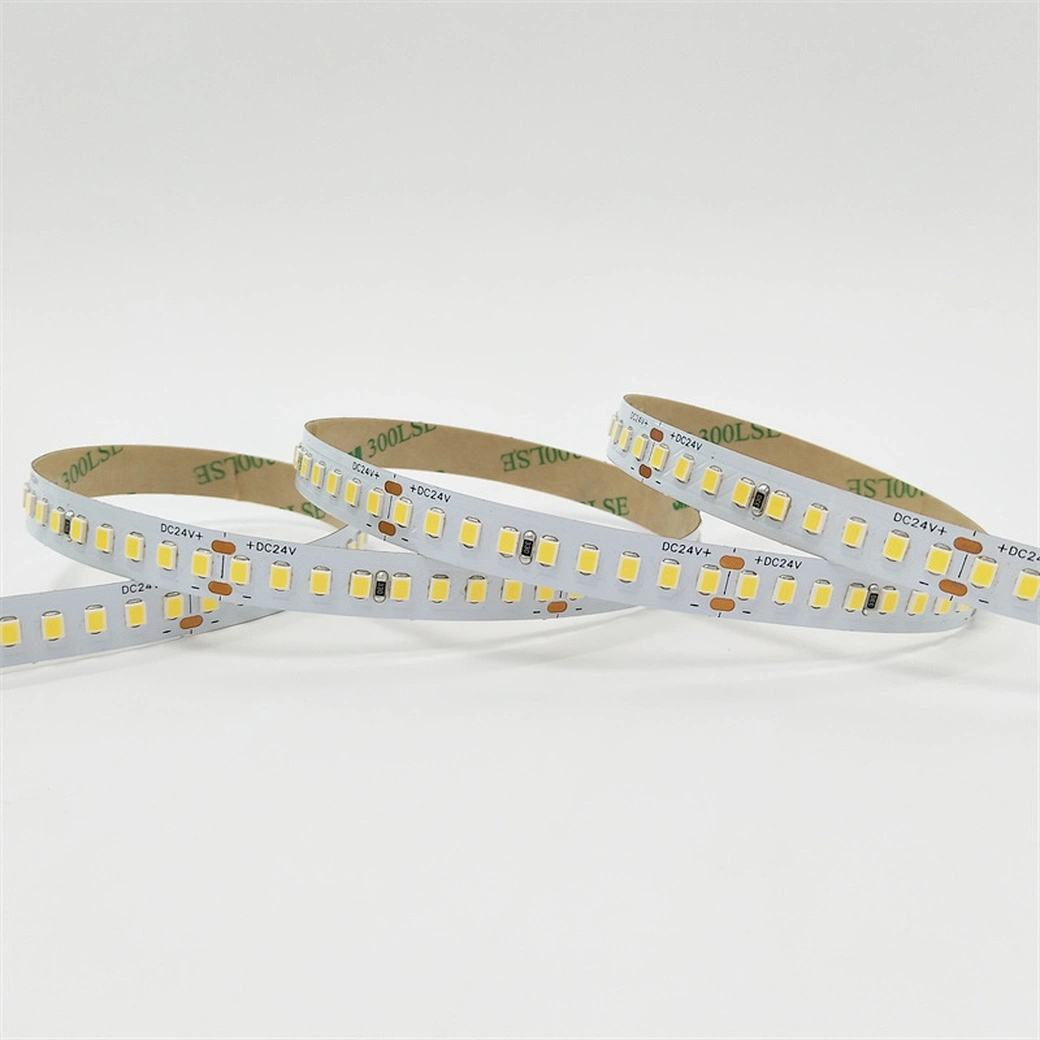

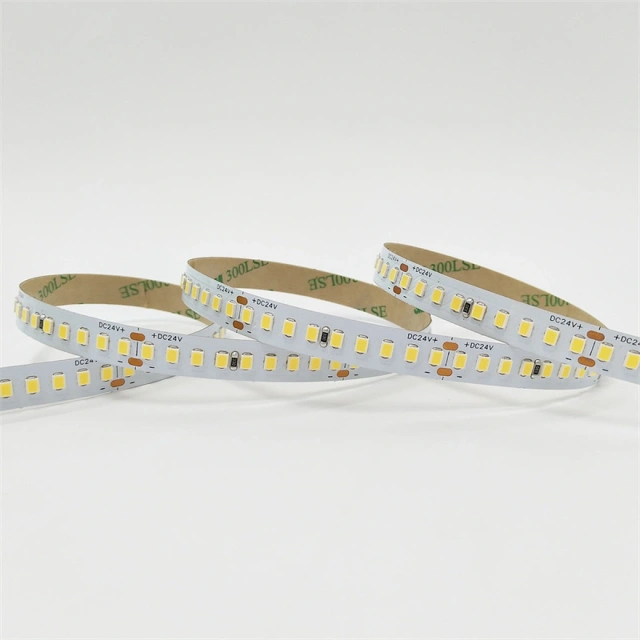

Ultra-High Efficiency 180LEDs/m LED Strip Light |
|
LED Type |
SMD 2835 |
|
LED Density |
180 LEDs/meter |
|
Drive Type |
Constant Voltage |
|
Working Voltage |
DC 24V |
|
Power Consumption |
8.6W/Meter |
|
Luminous Flux |
1,806 LM/Meter (4000K, Ra80) |
|
Luminous Efficacy |
210 LM/W |
|
Color Rendering Index (CRI) |
Ra80 |
|
Color Temperature (CCT) |
2700K / 3000K / 3500K / 4000K / 5000K / 6500K |
|
Beam Angle |
120° |
|
Cutting Unit |
33.3 mm (8 LEDs per cut) |
|
PCB Width |
8 mm / 10 mm |
|
PCB Copper Thickness |
2 OZ |
|
IP Rating |
IP20 (Non-waterproof) / IP65 Optional |
|
Max Recommended Run |
5m per feed (parallel for longer) |
|
Lifespan |
50,000 Hours |
|
Certification |
CE, RoHS, ERP Compliant |
|
Warranty |
3 Years |
