1, Supports 100M/1000M networks, adaptable to different usage scenarios. In 1000M mode, the system
can support over 300,000 pixels.

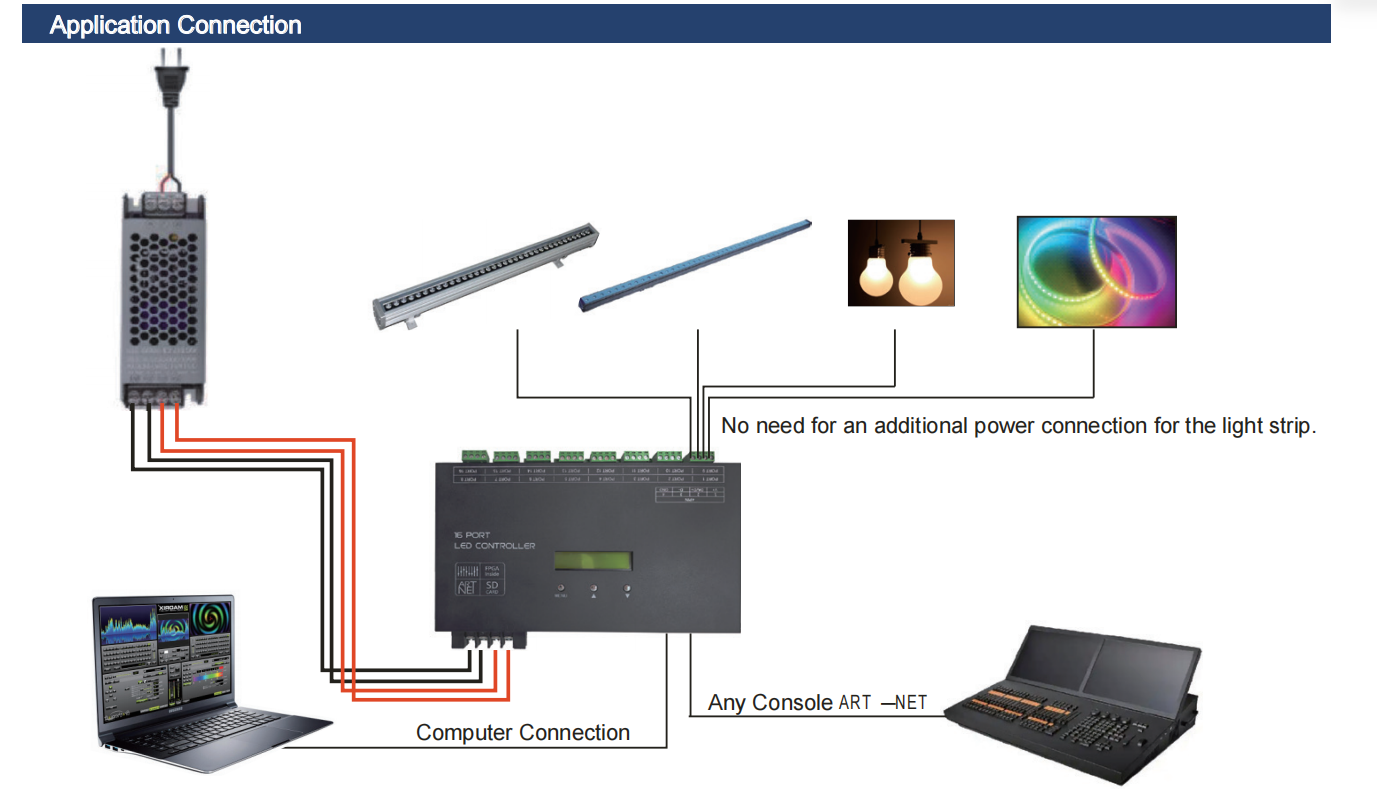

2, Two network ports enable daisy-chain serial network setup.
3, Compatible with the Art-Net protocol, supports playback without ArtSync, supports complex mapping, a
nd allows different universe lengths. Works with software compatible with the Art-Net standard.
4, Provides two sets of power inputs, with a maximum output current of 4A per port. At 12V, each port can
support up to 48W; at 24V, each port can support up to 96W.
5, Output ports have self-recovering overcurrent protection, and power input has reverse polarity protection.
6, Supports automatic IP address and universe address modification for single or multiple units.
7, The controller comes with an SD card interface, supports offline local playback, and supports up to 62
playback files.
8, Provides a DMX512 input interface, allowing the system host to control content playback, speed,
brightness, color, strobe effects, mask effects, etc., in real-time.
9, Multiple controllers can be set in master-slave mode to achieve synchronized SD card playback.
10, Supports modifying the current gain of driver ICs (such as SM18604, GS83XX, SK9814, SK9818,
SK9816, SM1680X, UCS5603, TM1814, etc.).
11, Supports adjusting the baud rate of driver ICs to improve signal transmission stability in complex
electrical environments.
