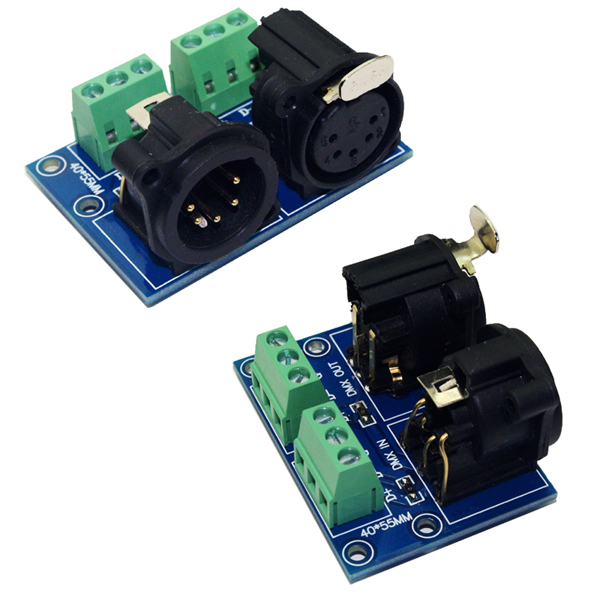

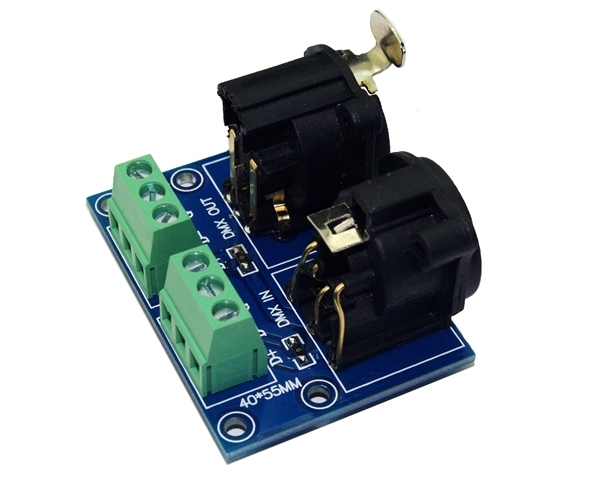

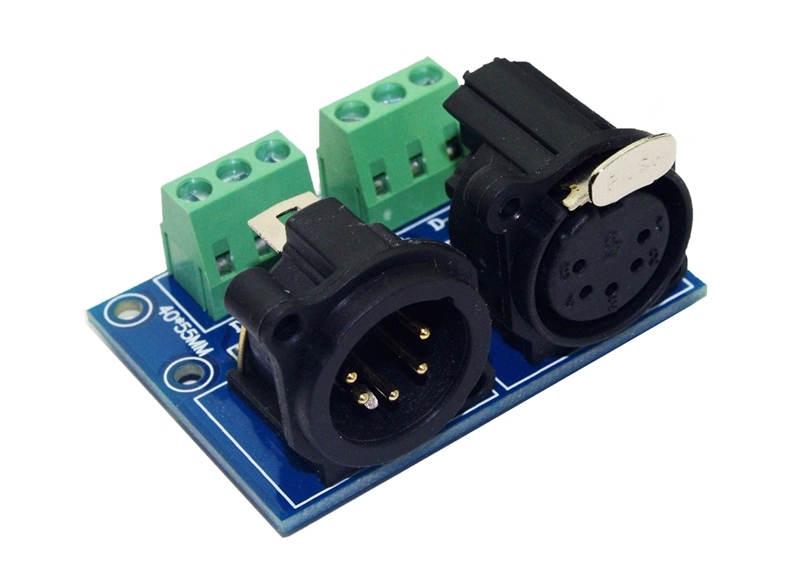

This XLR5-3P breakout module converts 5-pin XLR IN/OUT to screw terminals with Pin1 GND, Pin2 D-, Pin3 D+ mapping, while Pin4/Pin5 are NOP. It is designed for DMX512, RDM, RS485 and related lighting-control signal wiring. The board features compact 40×55×35mm size and 40g weight, with IN/OUT XLR5 for daisy-chain or signal pass-through. Installers can connect field cables without complex soldering, enabling fast setup for stage lighting, LED fixtures, lighting consoles and broadcast/AV control systems. It offers a stable, practical interface for professional signal distribution.
5-Pin XLR Breakout: Converts XLR5 IN/OUT to screw-terminal connections for easy field install.
Clear Pin Mapping: Pin1 GND, Pin2 D-, Pin3 D+; Pin4/Pin5 NOP per manual definition.
IN/OUT Pass-Through: Supports daisy-chain wiring for DMX/RDM/RS485 control networks.
Compact Size: 40×55×35mm, 40g, suitable for panels, cases and on-site enclosures.
Pro AV/Lighting Use: Ideal for stage lights, DMX consoles, LED fixtures, broadcast and control systems
|
Parameter |
Specification |
|---|---|
|
Product Model |
XLR5-3P |
|
Interface |
XLR 5-Pin (IN / OUT) |
|
Pin Definition |
Pin1 = GND; Pin2 = D-; Pin3 = D+; Pin4 = NOP; Pin5 = NOP |
|
Terminal Type |
Screw Terminal Block |
|
Signal Type |
DMX512 / RDM / RS485 differential signal (per pinned mapping) |
|
Dimension |
40 × 55 × 35 mm |
|
Weight |
40 g |
|
Mounting |

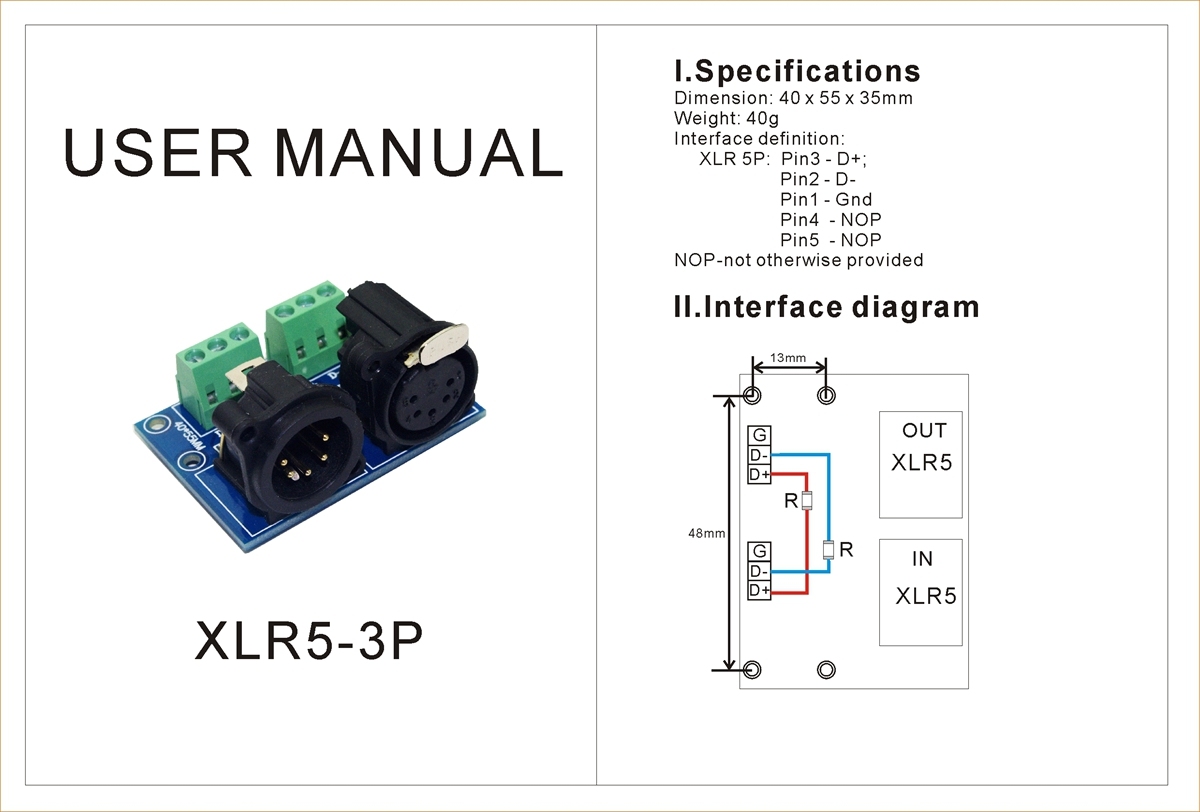

PCB/panel mount holes (see interface diagram) |
|
Wiring |
Screw-fix / no-solder field wiring |
|
Notes |
Pin4/Pin5 not otherwise provided; confirm termination/resistor version if used on DMX bus |
