160lm/W High Efficacy: Delivers solid brightness at only 8W/m, minimizing energy costs and heat generation for passive-cooling-friendly installations.
Selectable CRI (Ra80/90/95): One SKU covers all quality tiers—standard Ra80 for utility, Ra90 for retail, Ra95 for design-critical spaces.
Ultra-Low 8W/m Power: Runs cool enough for many applications without aluminum profiles, enabling thinner, lighter, and more cost-effective installations.
Stable DC24V Constant Voltage: Low voltage drop ensures consistent brightness over long runs; safe low-voltage operation for residential and commercial projects.
Flexible & Easy to Install: Cut every 100mm (8 LEDs) for quick customization; compatible with PWM, 0-10V, and DALI dimming systems.
|
Item |
Specification |
|---|---|
|
Product Name |

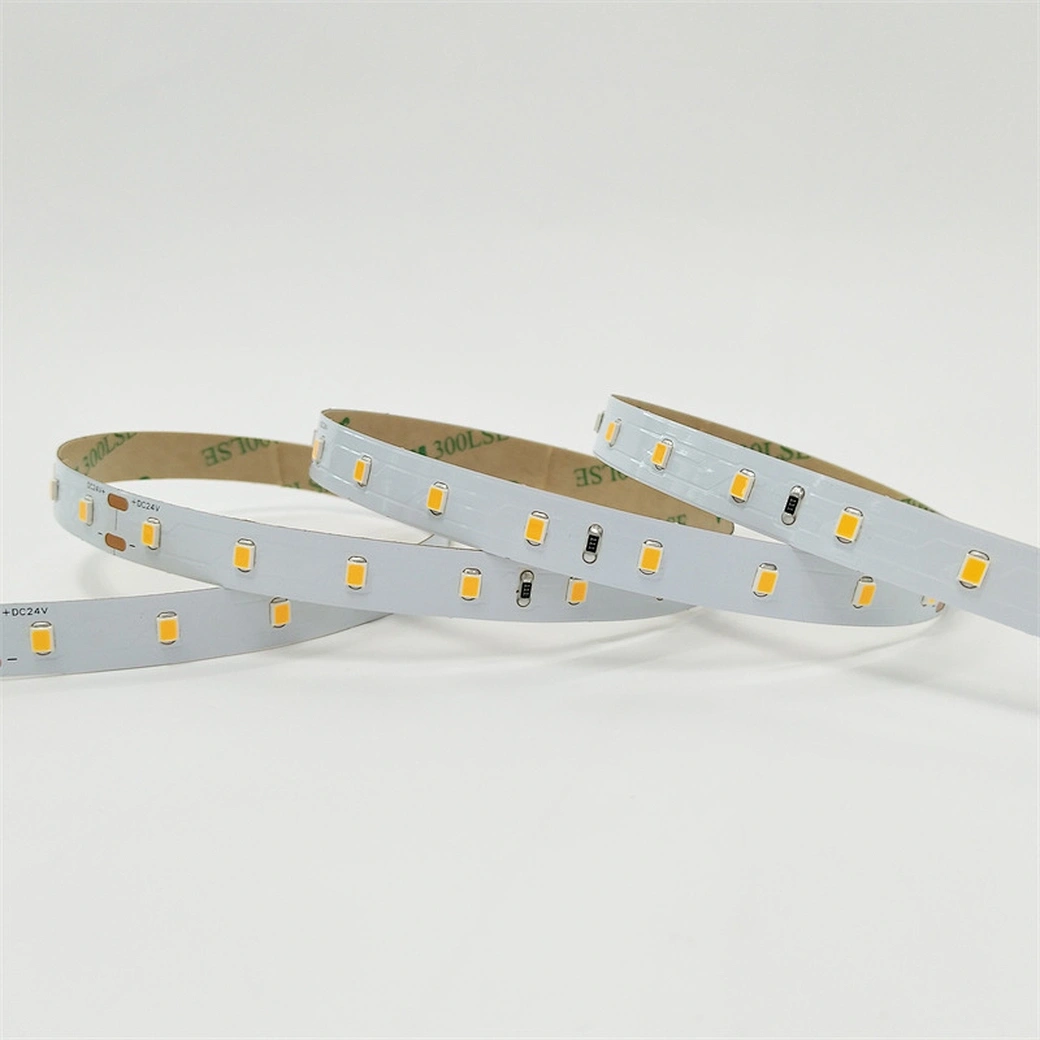

Eco-Efficient 2835 LED Strip Light |
|
LED Type |
SMD 2835 |
|
LED Density |
64 LEDs/meter |
|
Working Voltage |
DC 24V Constant Voltage |
|
Power Consumption |
8W/meter (max. rated) |
|
Luminous Efficacy |
160 lm/W (LED/module level) |
|
Luminous Flux |
Approx. 1280 lm/m (theoretical max.) |
|
Color Rendering Index |
Ra80 / Ra90 / Ra95 (selectable) |
|
Color Temperature |
2700K / 3000K / 4000K / 5700K / 6500K (optional) |
|
Cutting Unit |
Every 100mm (8 LEDs) |
|
PCB Width |
8mm / 10mm (optional) |
|
Roll Length |
5 meters/reel |
|
IP Rating |
IP20 / IP65 / IP66 / IP68 (optional) |
|
Dimming |
PWM / 0-10V / DALI compatible |
|
Recommended Driver |
24V CV LED power supply (20–30% power margin) |
|
Heat Dissipation |
Minimal required; aluminum profile optional |
|
Applications |
Ambient cove, residential accent, stair & step, bookshelf, hotel corridor, eco-building projects |
|
Warranty |
3–5 years (varies by supplier) |
