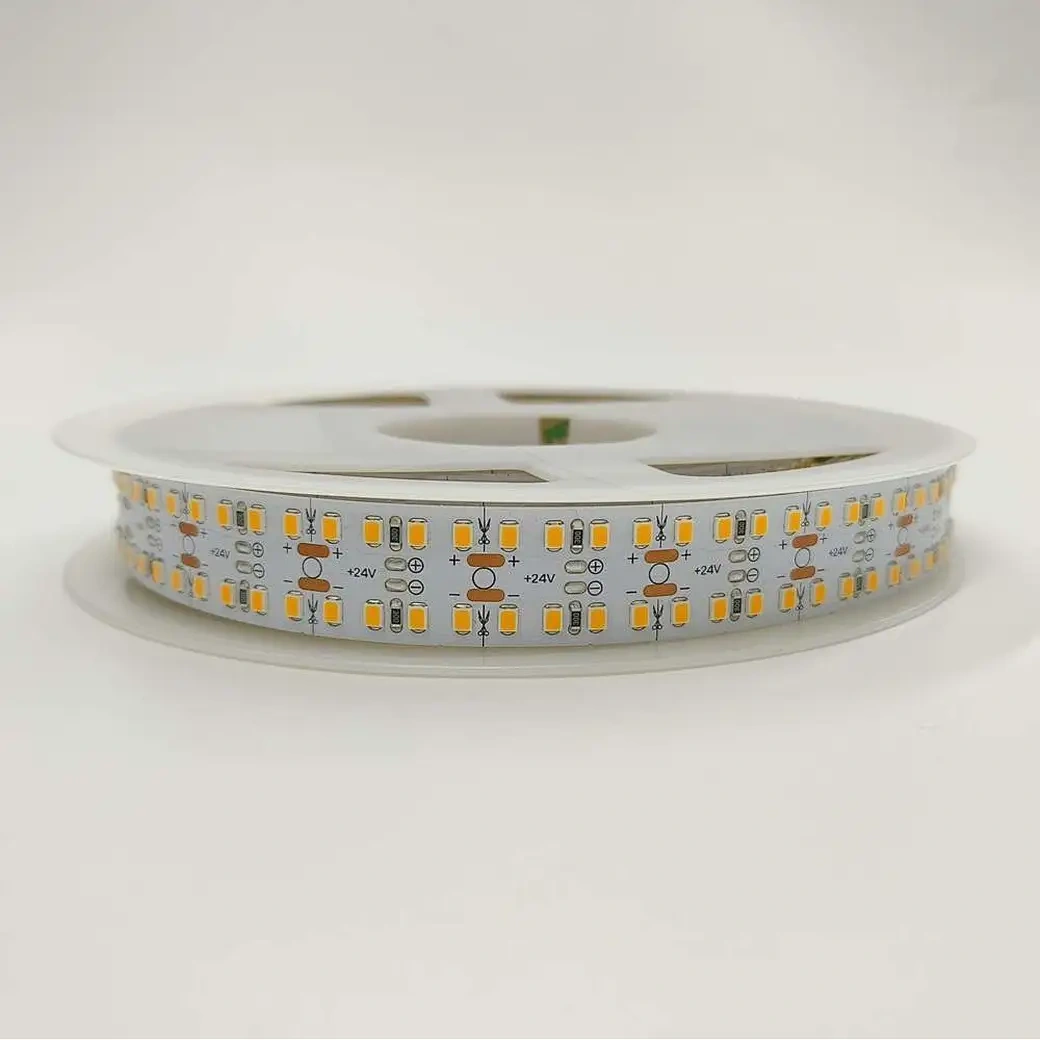

High 320 LEDs/m Density: 33% denser than 240/m models—produces exceptionally smooth, near dot-free light even in shallow profiles and close-view applications.
5940 lm/m Strong Output: Substantial brightness for large-scale coves, retail displays, and architectural accents without jumping to 45W+ super-density class.
180lm/W Solid Efficacy: High luminous efficiency at 33W/m keeps energy costs and heat generation manageable for such dense, high-output performance.
Selectable CRI (Ra80/90/95): One platform scales from cost-effective commercial (Ra80) to museum-grade color rendering (Ra95) for design-critical spaces.
Precision 37.5mm Cut & Fully Dimmable: Cut every 37.5mm (16 LEDs) for exact length control; compatible with PWM, 0-10V, and DALI systems.
|
Item |
Specification |
|---|---|
|
Product Name |
High-Density 2835 LED Strip Light |
|
LED Type |
SMD 2835 |
|
LED Density |
320 LEDs/meter |
|
Working Voltage |
DC 24V Constant Voltage |
|
Power Consumption |
33W/meter (max. rated) |
|
Luminous Efficacy |
180 lm/W (LED/module level) |
|
Luminous Flux |
5940 lm/m (rated output) |
|
Color Rendering Index |
Ra80 / Ra90 / Ra95 (selectable) |
|
Color Temperature |
2700K / 3000K / 4000K / 5000K / 5700K / 6500K (optional) |
|
Cutting Unit |
Every 37.5mm (16 LEDs) |
|
PCB Width |
12mm / 15mm (3oz copper recommended) |
|
Roll Length |
5 meters/reel (max. 2m continuous recommended per feed) |
|
IP Rating |
IP20 / IP65 / IP66 / IP68 (optional) |
|
Dimming |
PWM / 0-10V / DALI compatible |
|
Recommended Driver |
24V CV high-capacity power supply (30% power margin minimum) |
|
Heat Dissipation |
Required — heavy-duty aluminum profile with thermal transfer tape |
|
Wiring |
18AWG minimum; parallel feed recommended every 2m |
|
Applications |
Premium retail, museum & gallery, high-end cove, hotel lobby, architectural flood, studio |
|
Warranty |
3–5 years (varies by supplier) |
