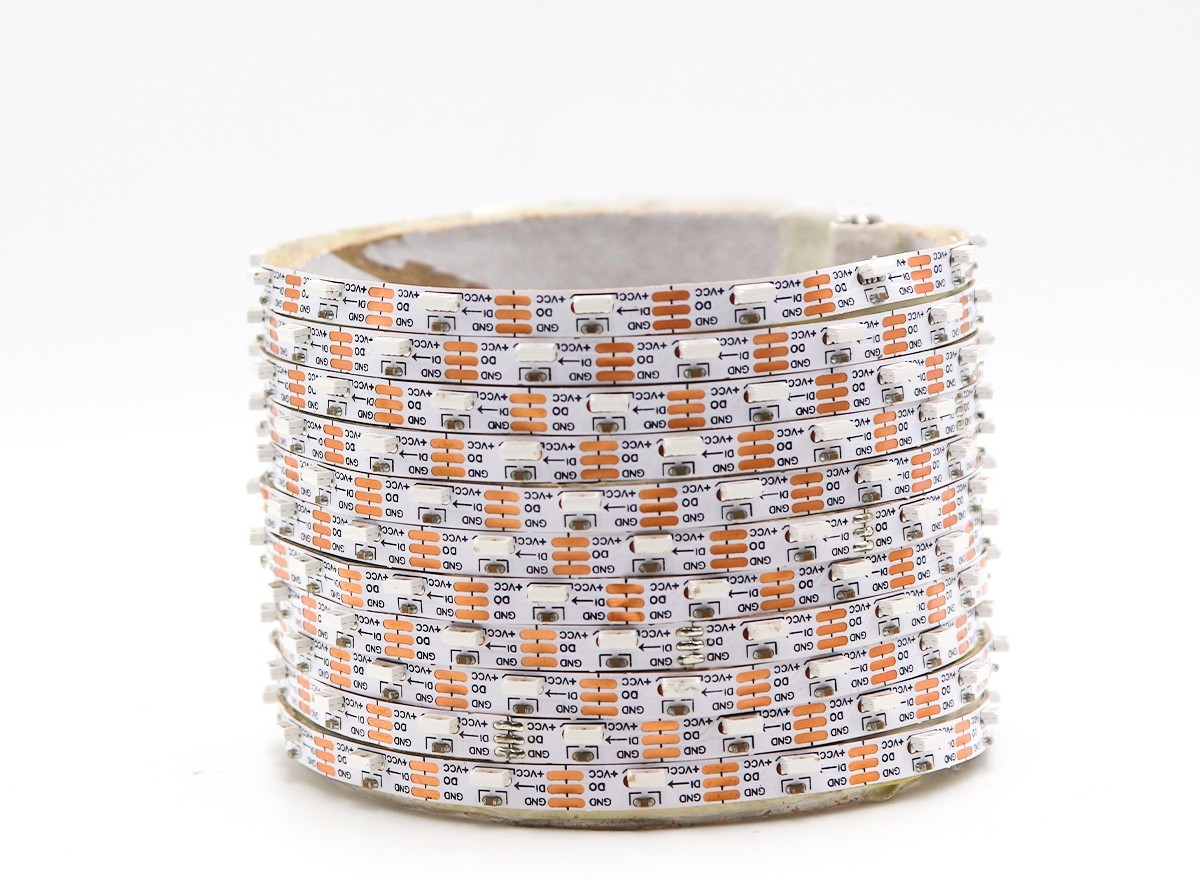

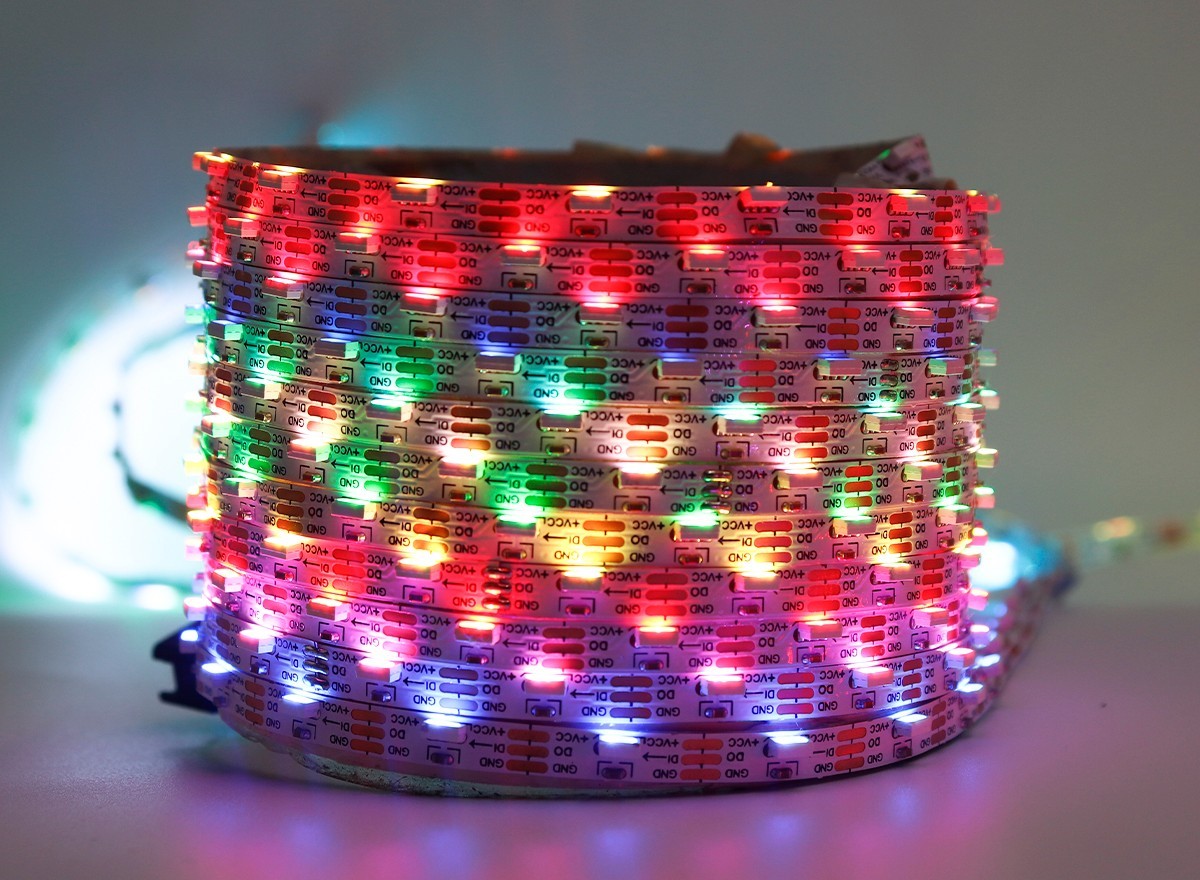

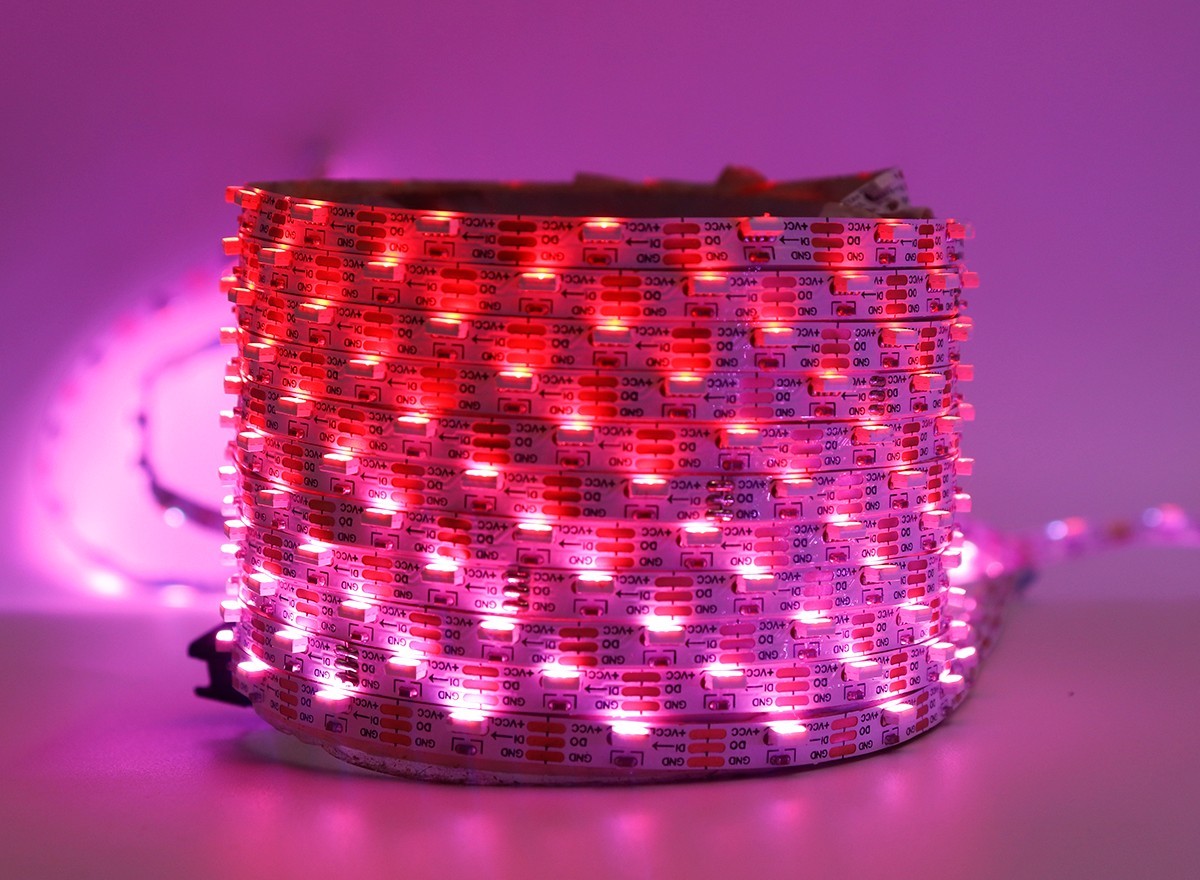

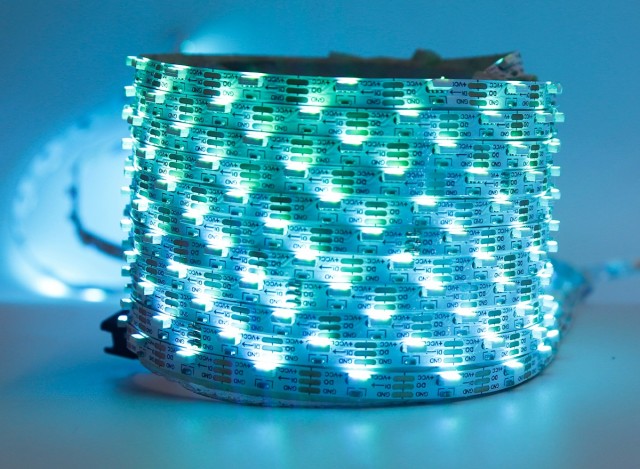

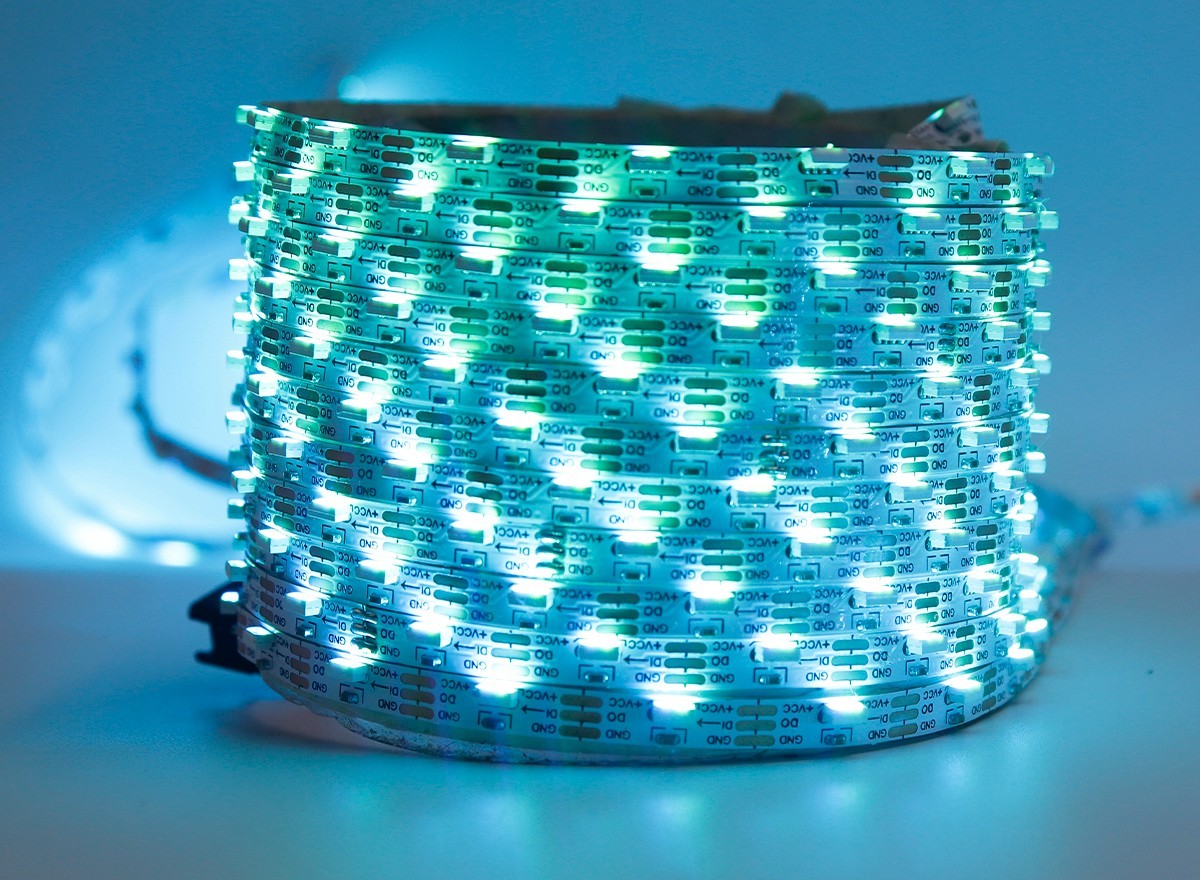

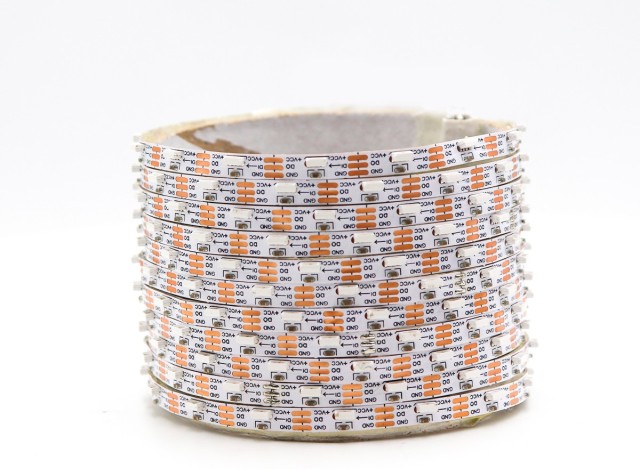

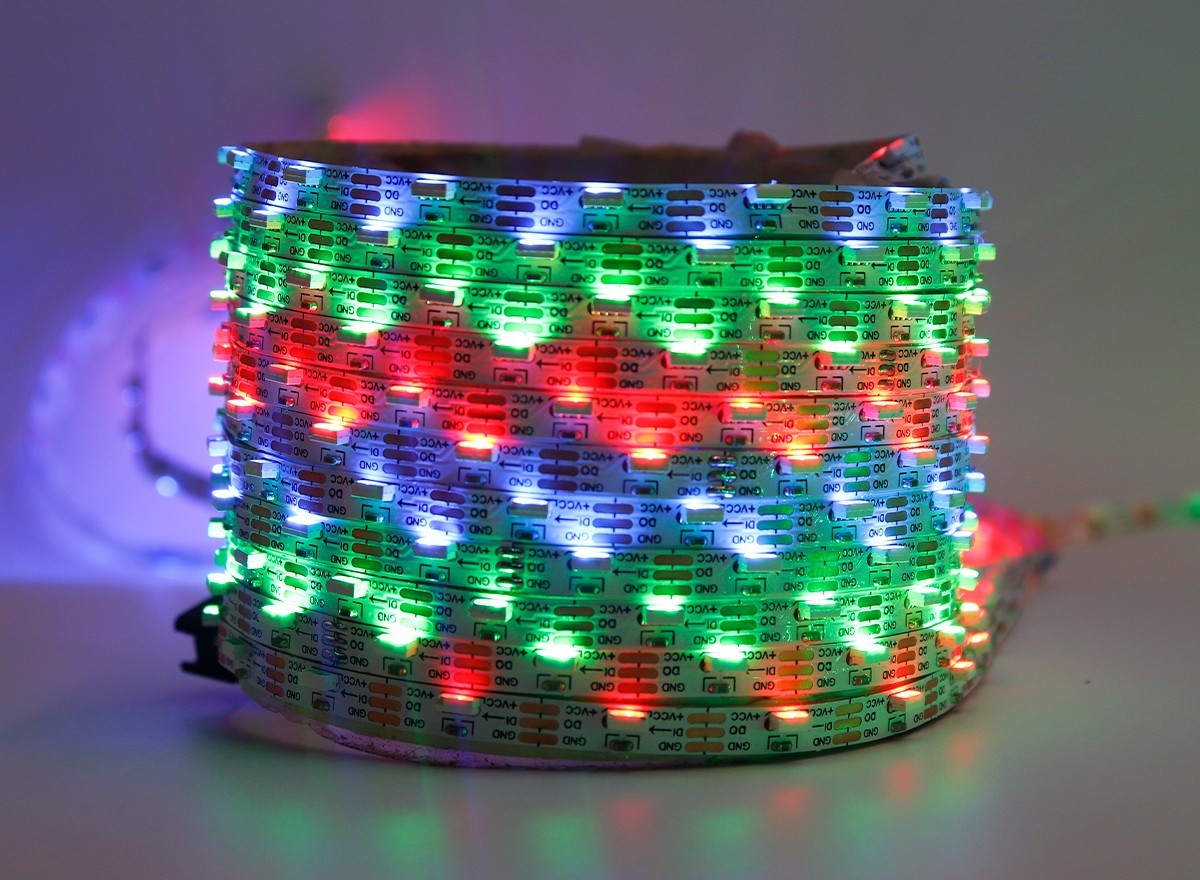

Tiny, side-emitting, and fully addressable. This DC5V SK6812 4020 RGB strip puts 60 miniature side-view LEDs per meter on a 5mm-wide FPC—each SMD4020 RGB LED has a built-in SK6812 IC, so every pixel is individually controllable. Light exits the thin edge at 90°, making it perfect for hidden coves, speaker enclosures, channel letters, shelf edges, and DIY pixel art where a 10mm/12mm 5050 strip is too bulky. Single-data-line SPI (5V / DATA / GND) works with Arduino, ESP32/WLED, K-1000C, T-1000C, Raspberry Pi, and DMX/SPI decoders. 5V means vivid color but needs power injection on long runs—ideal for 0.5–2m accent sections, not 10m façade runs.
SMD4020 Side View – 90° edge light; hidden source, glowing line effect for narrow profiles.
5mm Ultra-Narrow FPC – Fits speaker boxes, acrylic letters, glass edges, aluminum mini channels.
SK6812 Built-In IC – 1 LED = 1 pixel, 256 gray/chan, 24-bit RGB, WS2812B-compatible protocol.
60 Pixels/m, Cut Per LED – Pixel pitch 16.67mm; solder/cut at every LED pad.
DIY-Friendly 5V – Arduino / WLED / K-1000C / SPI/DMX decoder; IP20/IP65/IP67 optional.
|
Parameter |
Specification |
|---|---|
|
Product Type |
Side-view addressable RGB LED strip |
|
LED Type |
SMD4020 RGB with built-in SK6812 |
|
Voltage |
DC 5V (do NOT use 12V/24V) |
|
LED Density |
60 LEDs/m |
|
Pixel Density |
60 pixels/m (1 IC = 1 LED) |
|
Data |
Single line: 5V / GND / DIN |
|
Power |
9–18 W/m (full white ~14.4W/m common) |
|
PCB Width |
5 mm |
|
Pixel Pitch |
16.67 mm |
|
Cut Unit |
1 LED (16.67 mm) |
|
Gray Scale |
256 / channel, 24-bit color |
|
Data Rate |
800 kbps NRZ |
|
Beam |
Side-emit, ~120° effective |
|
Roll |
5 m/reel (some makers 2.5m) |
|
Controllers |
Arduino, ESP32/WLED, K-1000C, T-1000C, Raspberry Pi, DMX SPI decoder |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Life |
30,000–50,000 hrs |
