IP20 indoor tape with 3M backing—built for channel letters, light boxes, shop logos, home décor, and DIY signage, not for long DMX pixel runs.

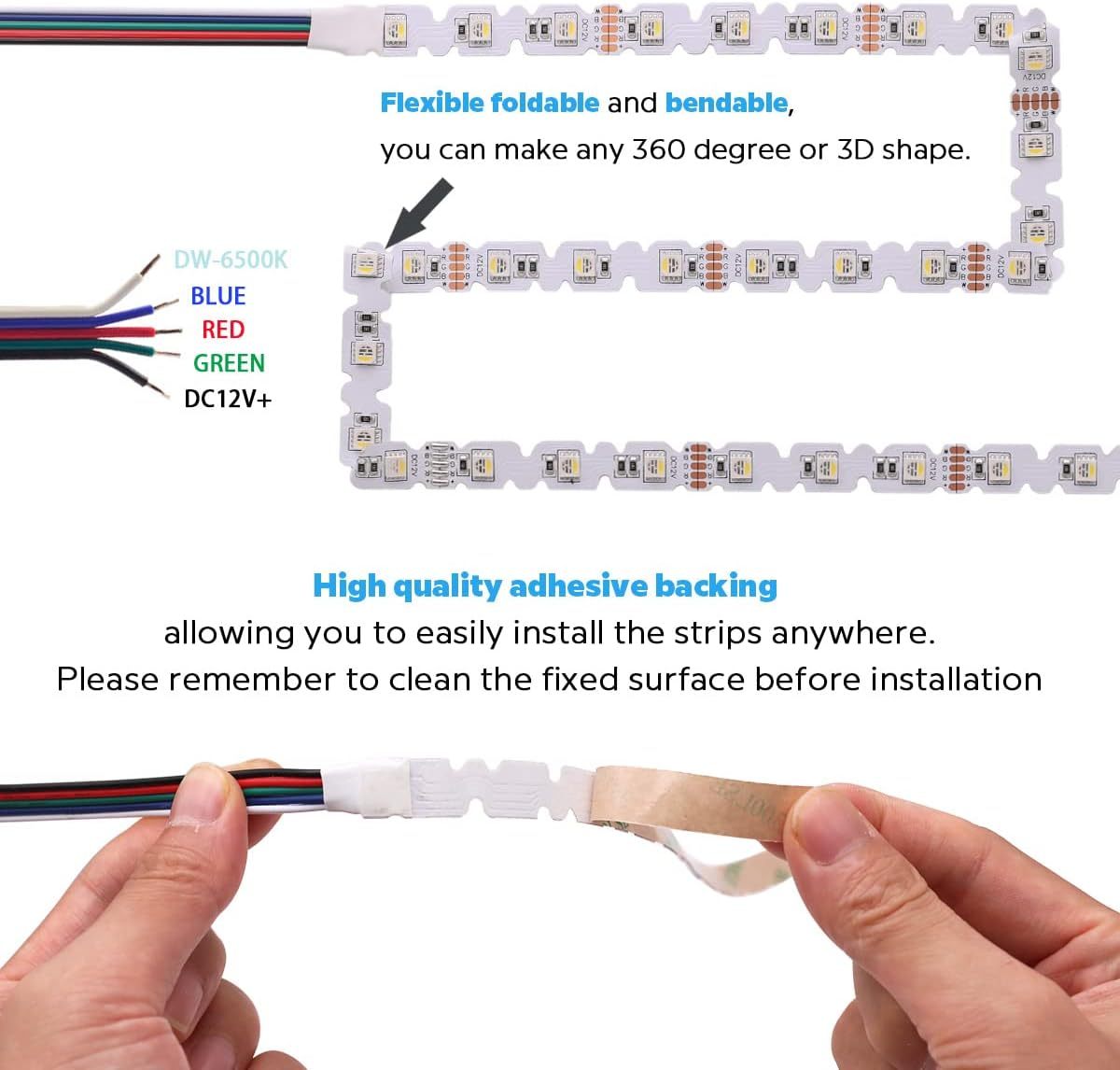

S-Shape 360° Bend: Zig-zag FPCB turns sharp corners and curves; great for DIY letters, logos, hearts, arrows, and irregular profiles where straight tape needs connectors.

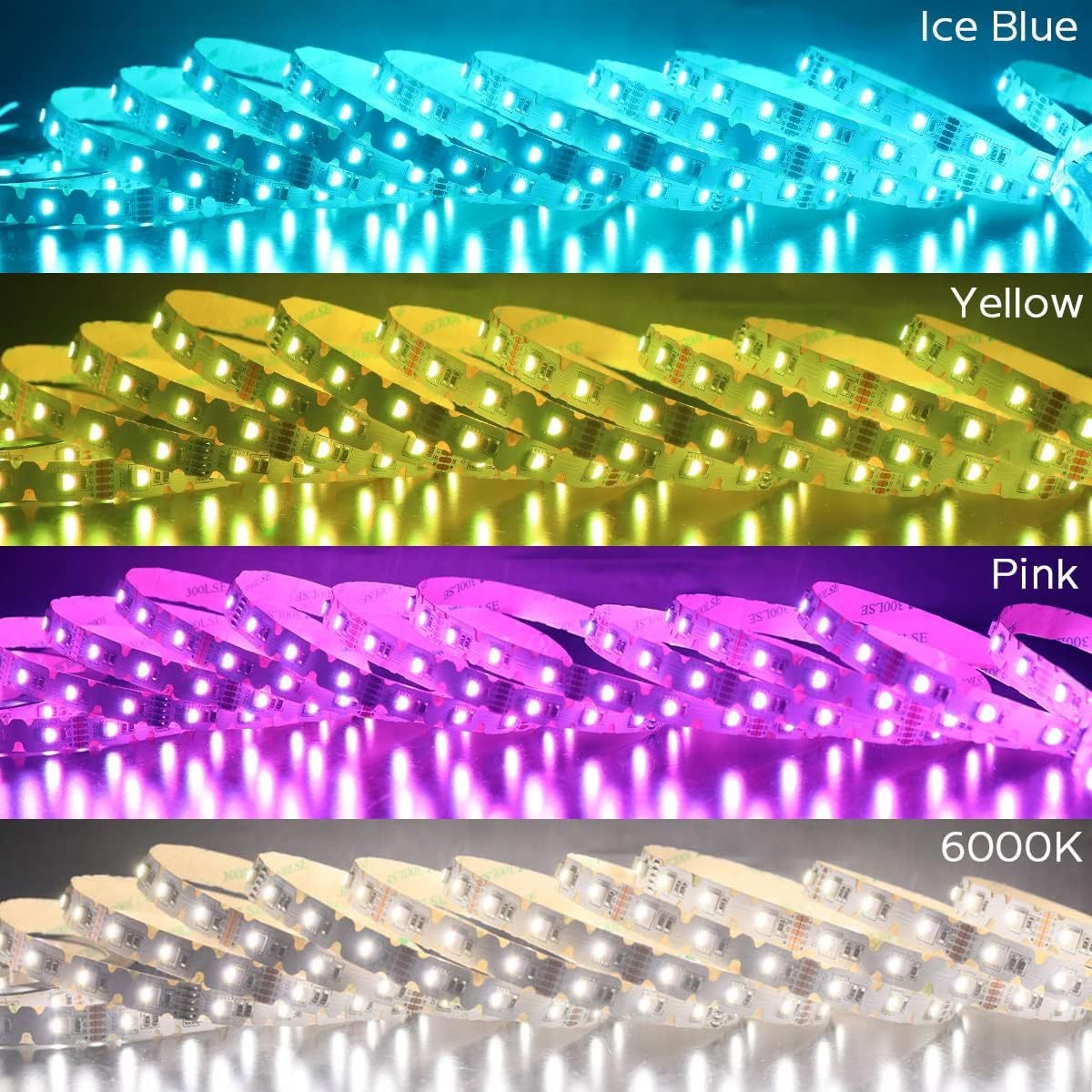

5050 4-in-1 RGBW: R+G+B+6000K pure white in one 5050; millions of colors plus clean daylight white, better than RGB-only white.

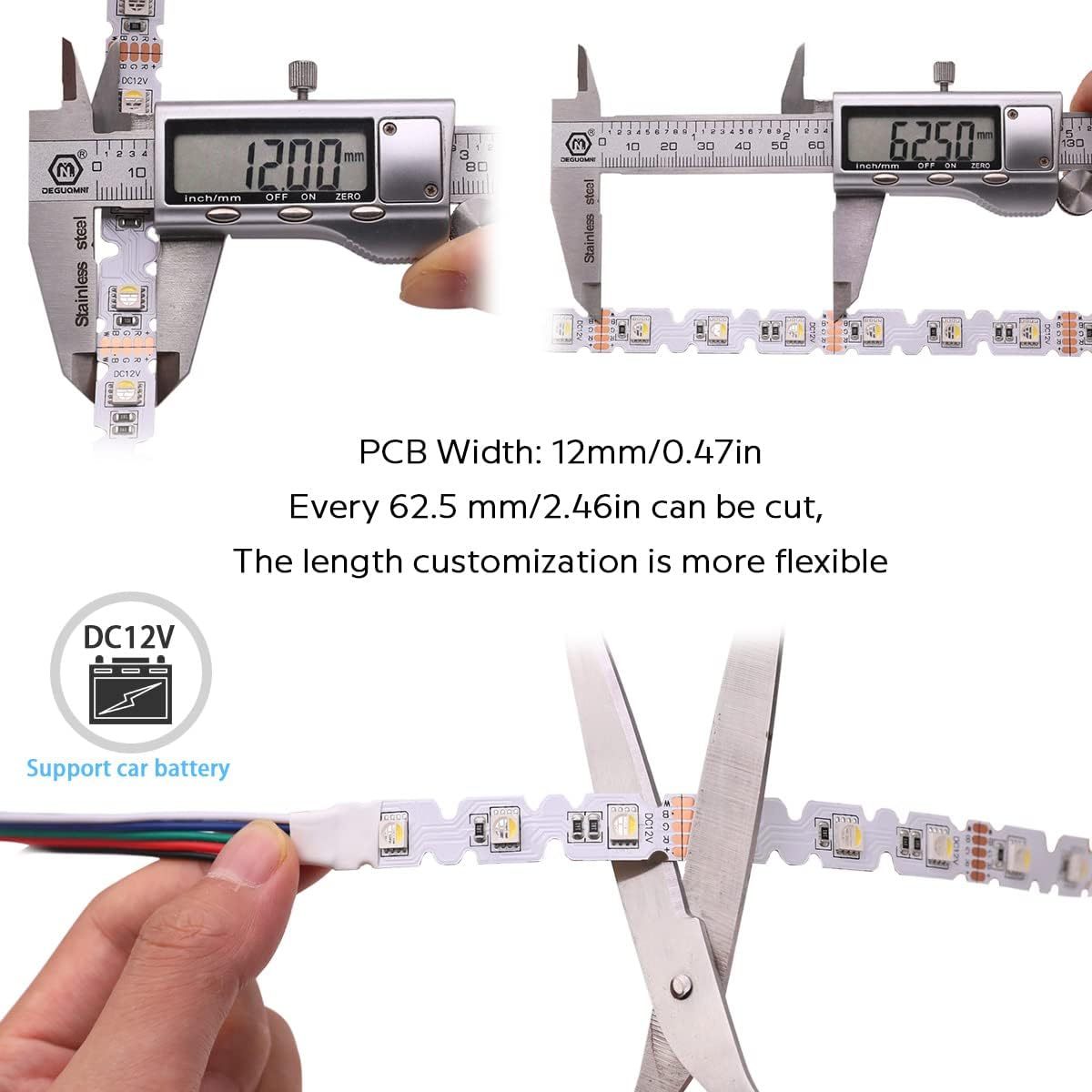

48 LED/m, Cut Every 62.5mm: 3 LEDs per cut unit (2.46in); easy length control for sign channels and small creative jobs.
12V Low-Voltage Analog: RGBW controller, not DMX IC; whole strip color/brightness controlled together—simple, cheap, installer-friendly.
Indoor Signage Grade: IP20, 3M adhesive, CRI 85+ (some SKU 90/95), 12mm PCB; 5m roll ~60W, 75W 12V PSU recommended.

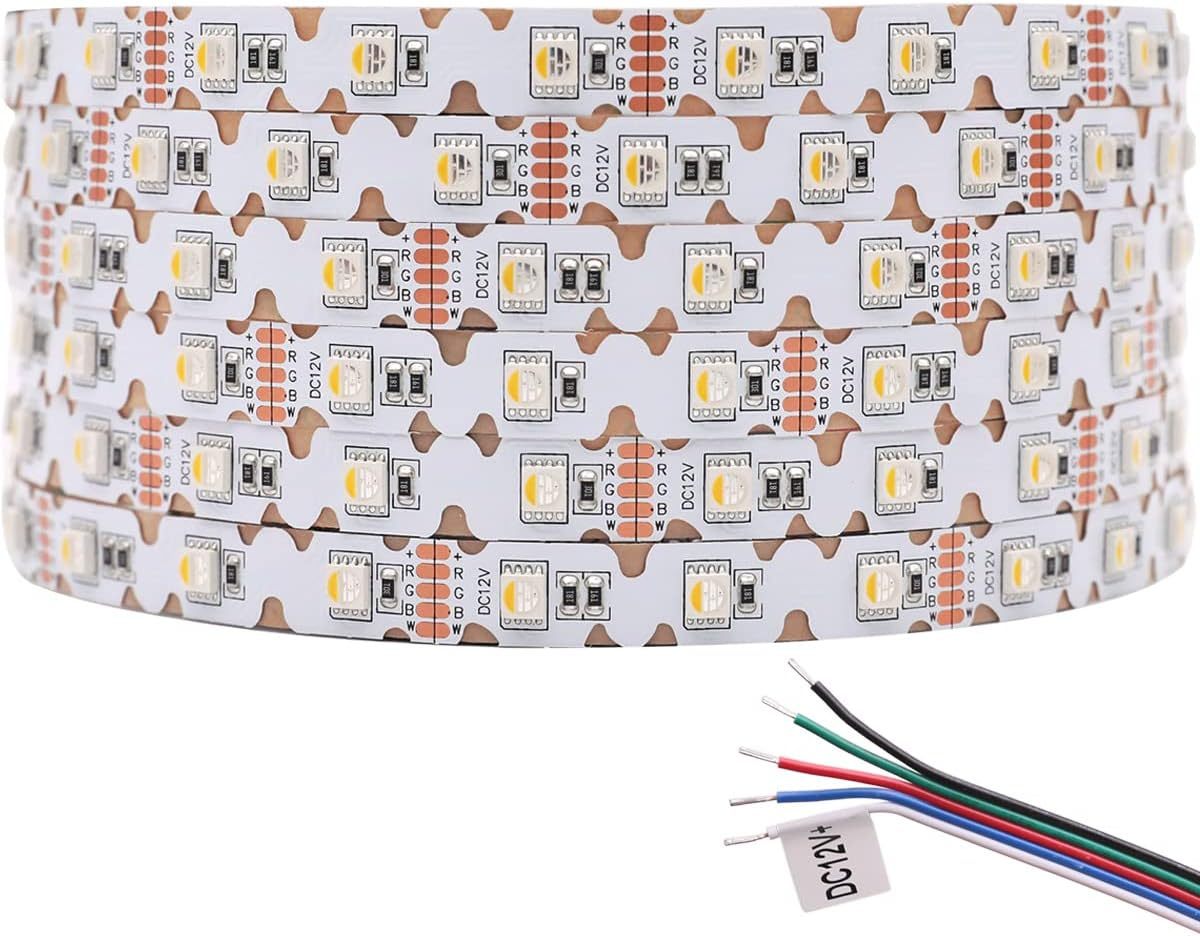

12V S-Shape RGBW Flex Strip — 5050 4-in-1, RGB + 6000K, 240LED/5m
|
Category |
Specification |
|---|---|
|
Model |
FSLRGBWS-5050X240（厂牌 SuperLightingLED 类同款，可改） |
|
LED Type |
SMD 5050 4-in-1 RGBW（R / G / B / 6000K White） |
|
LED Density |
48 LEDs/m，240 LEDs / 5m roll |
|
Control Type |
Analog RGBW（12V RGBW controller / RF / app bridge）— NOT DMX pixel |
|
Voltage |
DC 12V |
|
Power |
12 W/m；60 W/5m（max 75W/5m on some SKUs） → 用 12V 75W+ 电源 |
|
PCB |
12mm width，S-shape / zig-zag FPCB |
|
Cut Unit |
62.5 mm（3 LEDs） |
|
White CCT |
6000K daylight（3000K / 4000K optional on same platform） |
|
CRI |
Ra 85+（高配 Ra 90 / 95） |
|
Beam |
120°（部分资料写 180° 视角） |
|
Lumen |
~4800 lm / 5m roll |
|
IP Rating |
IP20 indoor（non-waterproof） |
|
Mounting |
3M adhesive backing |
|
Life |
50,000 h |
|
Application |
Channel letters, light boxes, logo outlines, DIY signs, retail display, bedroom/cabinet accent, art installation |
