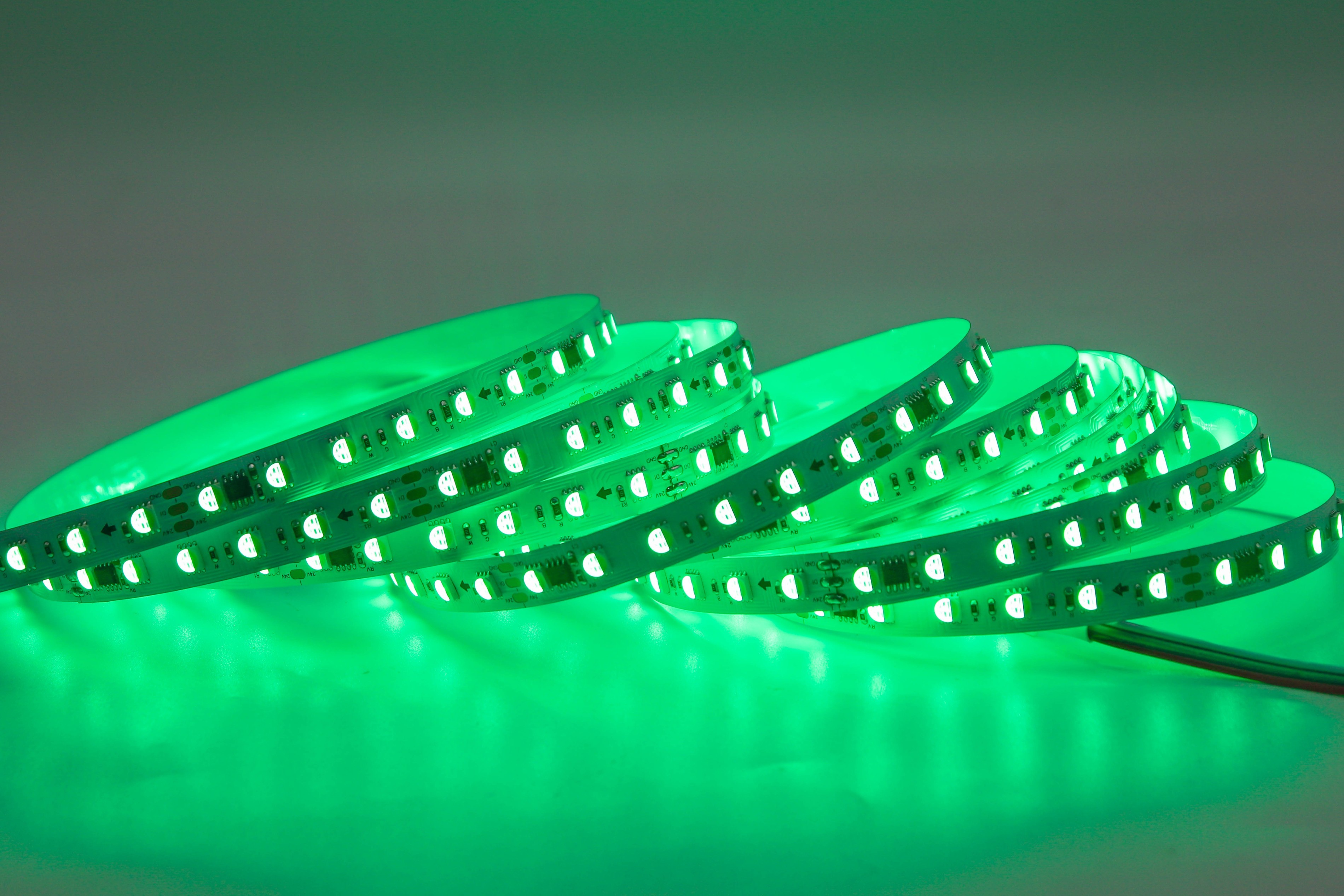

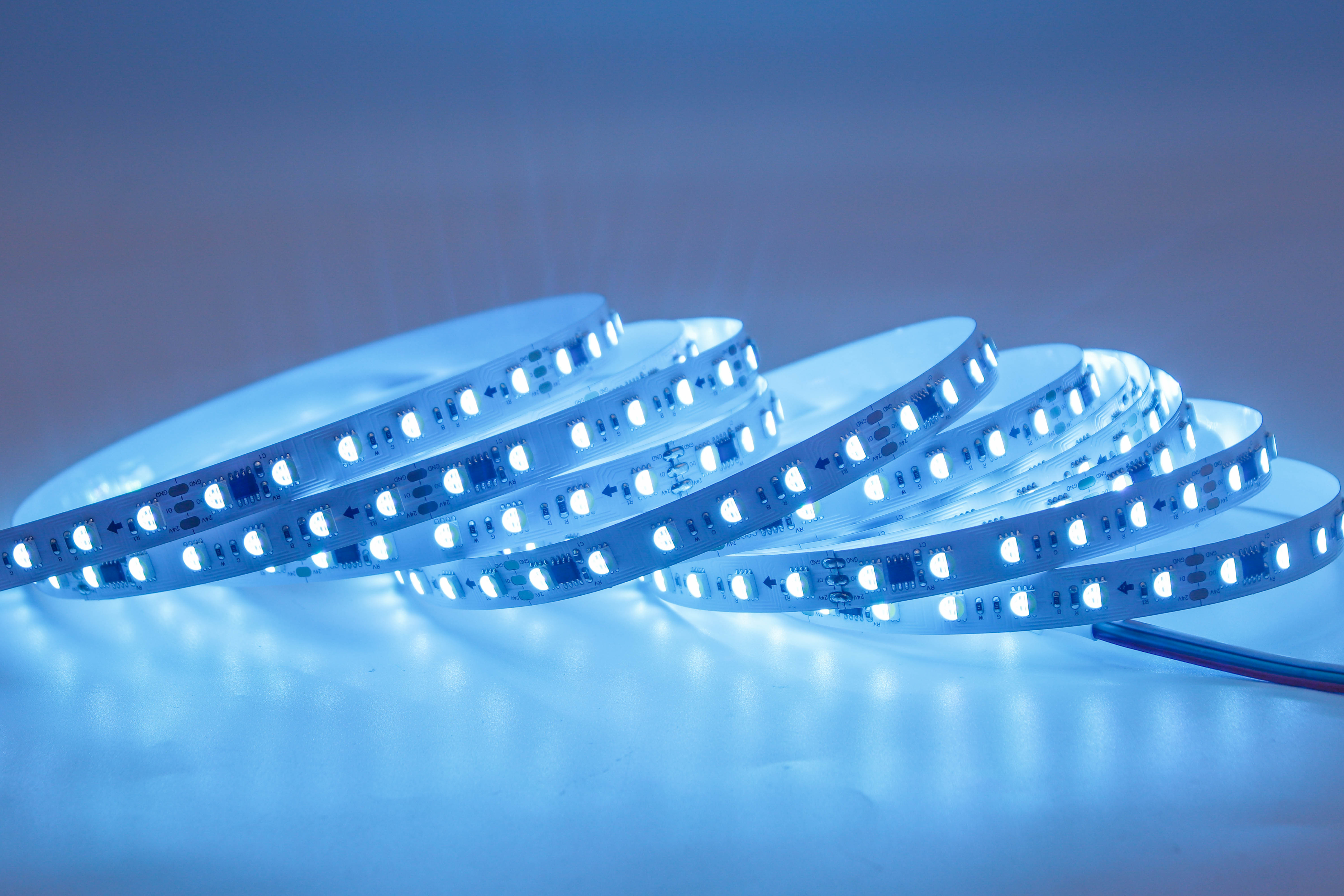

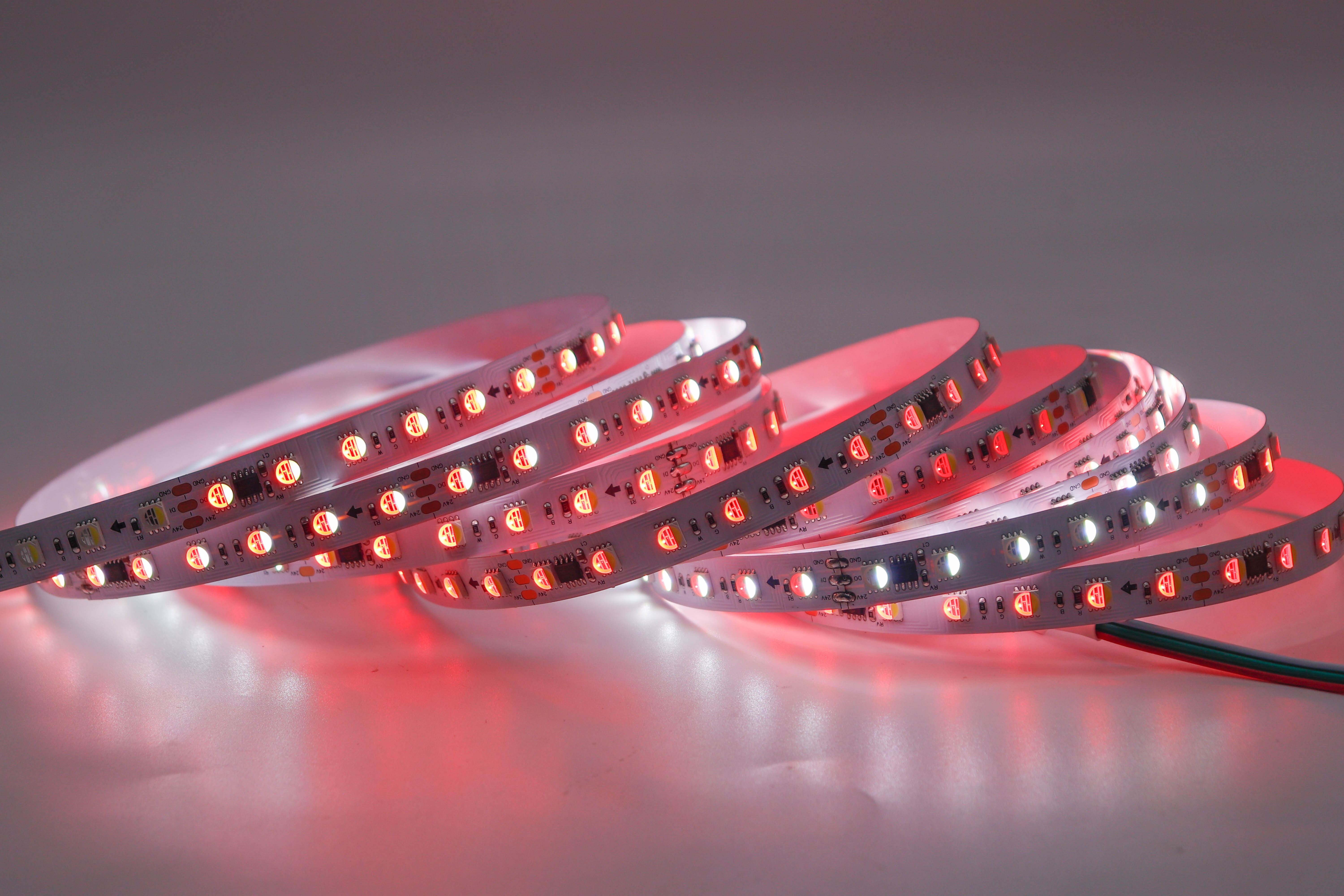

Ideal for bars, hotels, building facades, LED walls, stage sets, and signage. Cut every 83.3mm, inject power on long runs, and program any dynamic look.

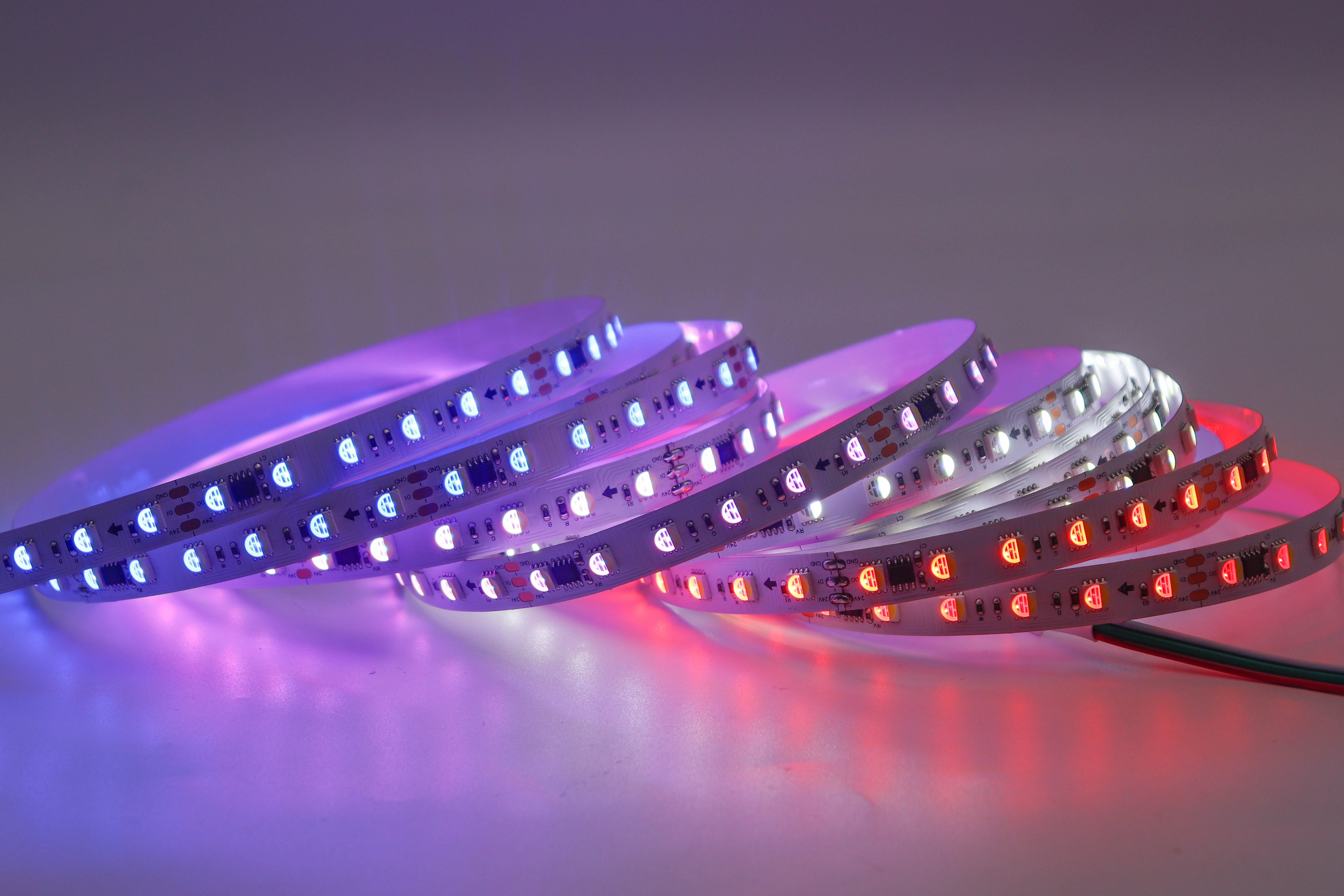

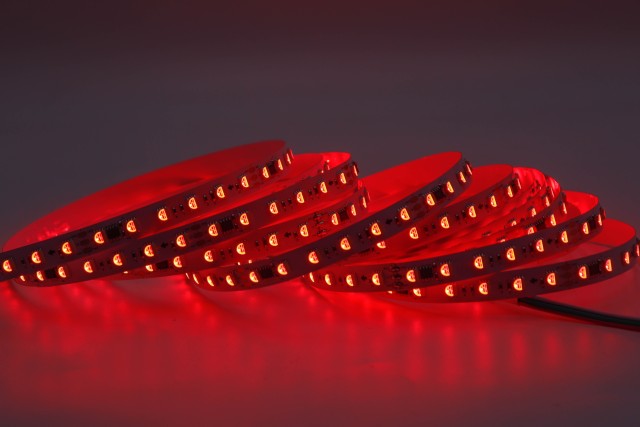

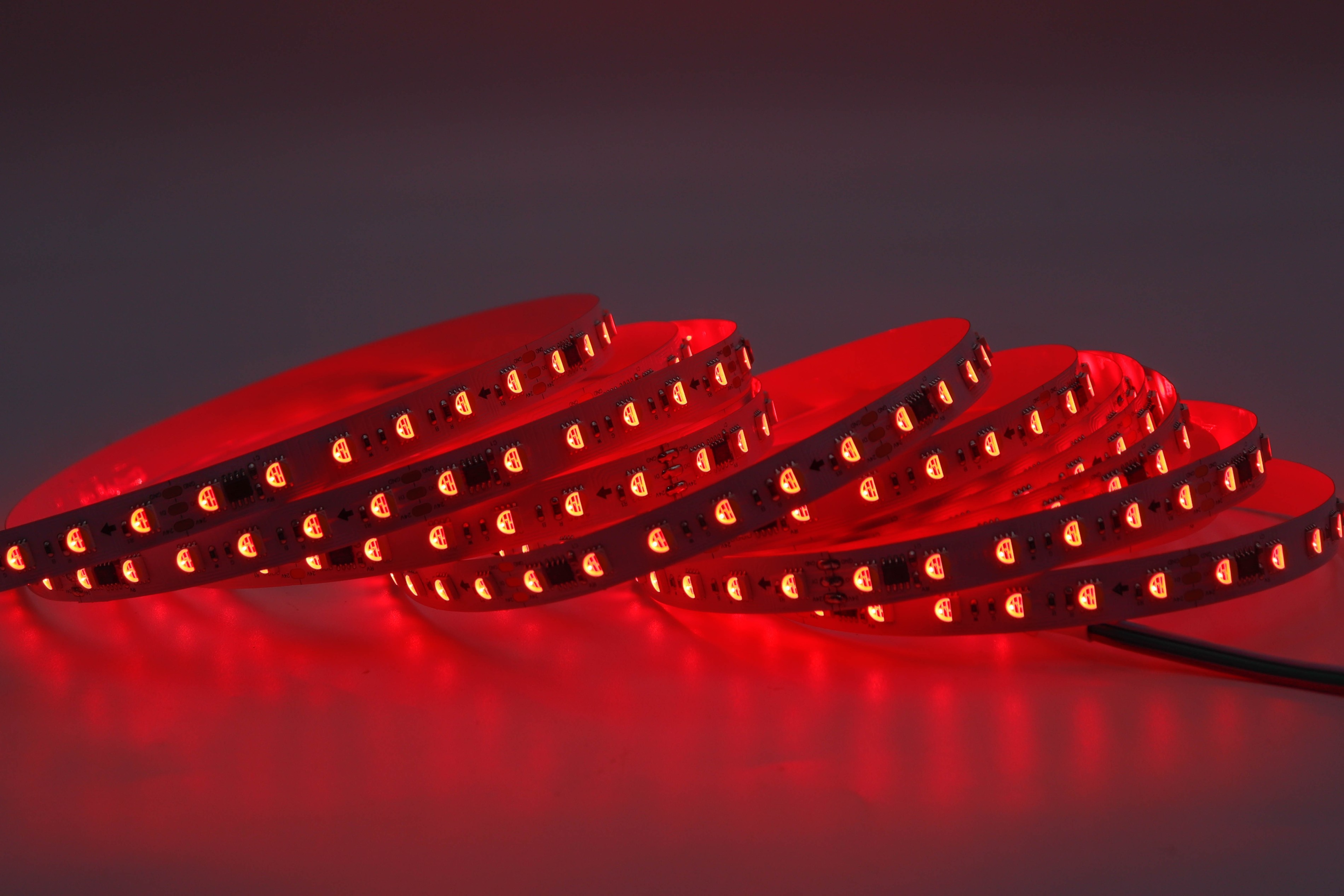

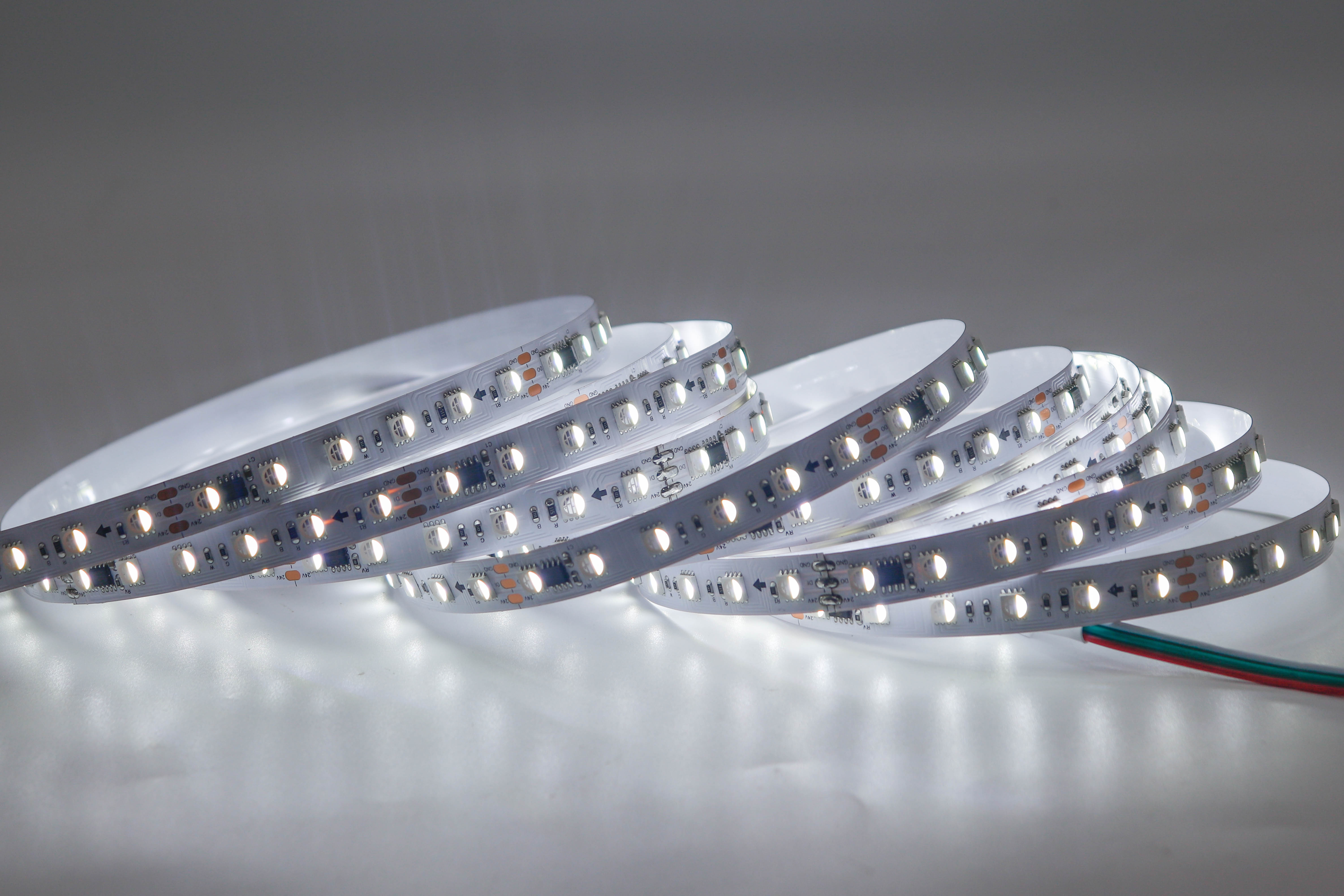

True RGBW Output: 5050 4-in-1 package with separate white LED for pure 3000K/4000K/6000K white plus vivid RGB effects.

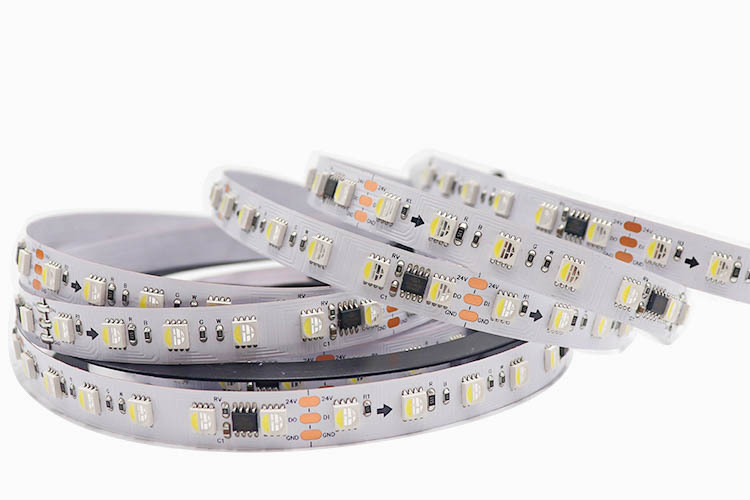

24V Pixel Architecture: 6 LEDs + 1 UCS2904 IC per pixel; lower current, reduced voltage drop, longer runs than 5V/12V pixel tape.

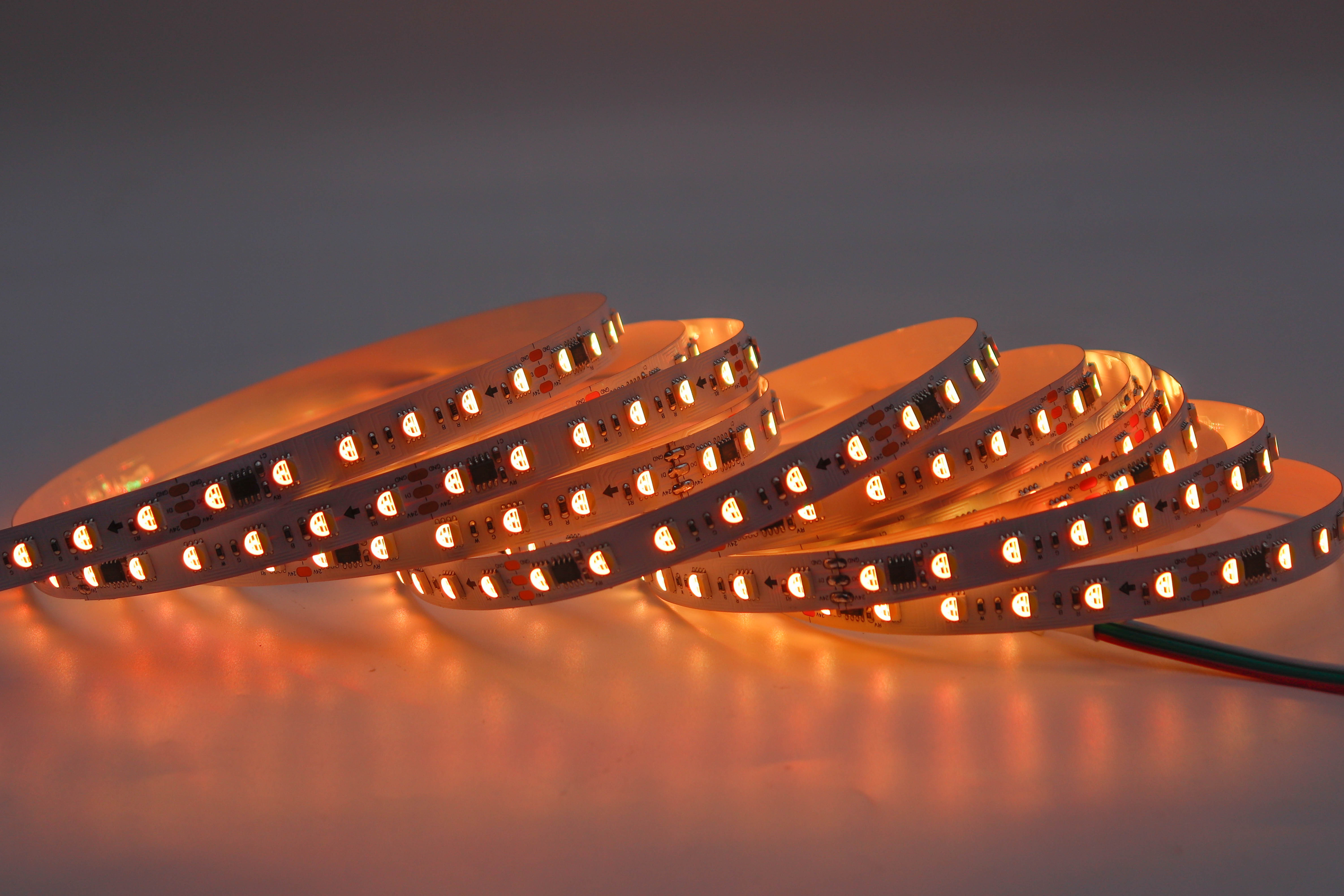

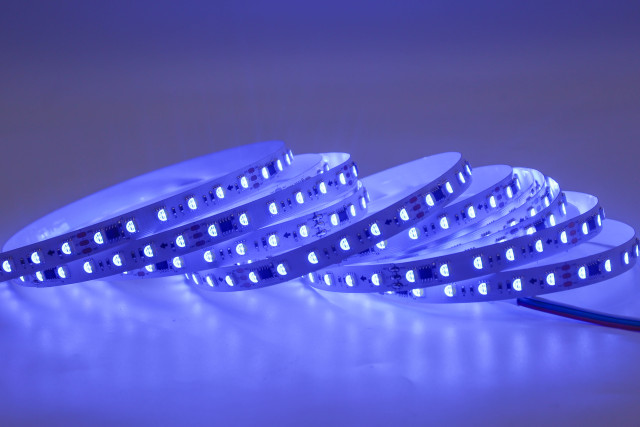

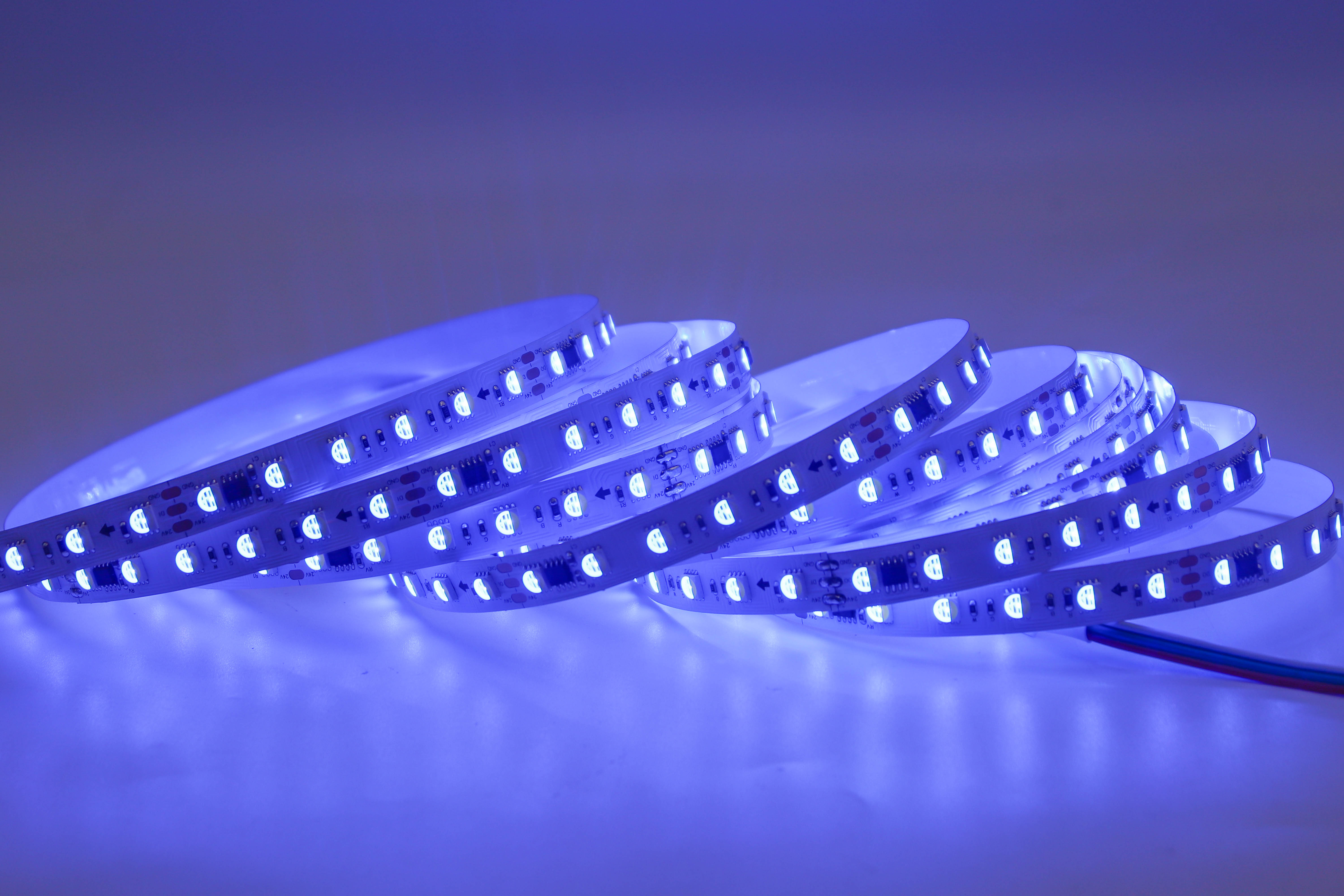

12 Pixels per Meter: 72 LEDs/m enables refined animations while keeping cost lower than 60–144 pixel/m tapes.
Single-Line SPI Control: 3-pin V+/GND/DATA; compatible with UCS2904/TM1814-class RGBW controllers, SD/DMX/Artnet systems.

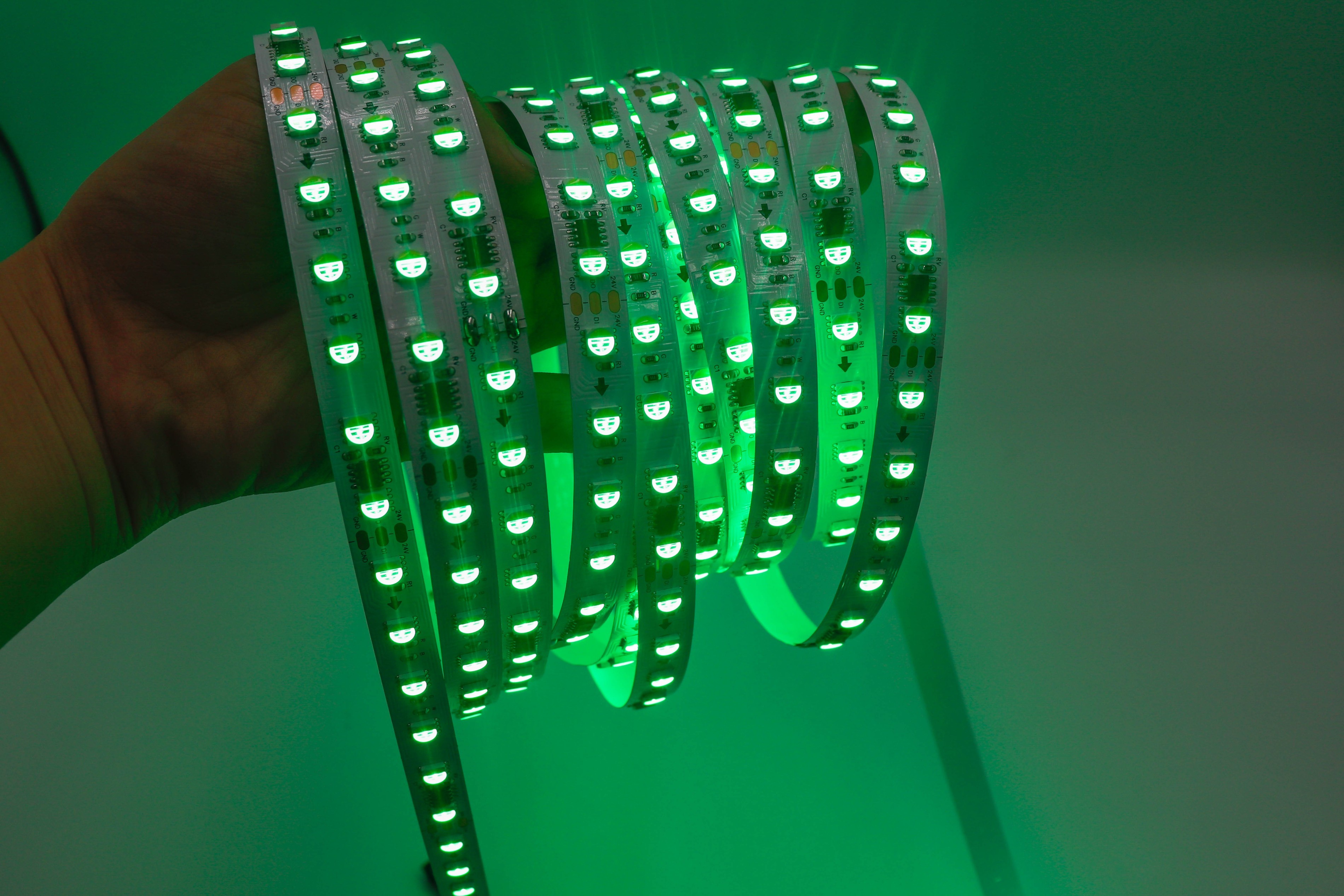

Robust 12mm Strip: Thicker FPC option, 120° beam, cut every 83.3mm, IP20–IP68 available for indoor/outdoor pixel projects.
|
Item |
Specification |
|---|---|
|
Model |
UCS2904-5050-RGBW-72D-12P-24V-12mm |
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
LED Density |
72 LEDs/m |
|
Pixel Count |
12 pixels/m (6 LEDs + 1 UCS2904 IC per segment) |
|
IC Type |
UCS2904 (external, single-line SPI, RGBW 4-channel) |
|
Input Voltage |
DC 24V |
|
Power Consumption |
~23 W/m (RGBW 100% on) |
|
Cut Unit |
83.33 mm / segment |
|
PCB Width |
12 mm |
|
White Options |
3000K / 4000K / 6000K |
|
Grayscale |
8-bit (256) typical; UCS2904 supports smoother PWM/refresh than basic 8-bit ICs |
|
Beam Angle |
120° |
|
Signal |
DATA (single wire), 800 kbps class |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Lifespan |
30,000–50,000 hrs |
|
Controller |
UCS2904 / TM1814-compatible RGBW SPI, K-1000C, Artnet/DMX |
|
Wiring |
24V+ / GND / DATA |
|
Application |
Facade, stage, cove, LED matrix, bar, hotel, signage |
