Dual-Protocol Conversion (Ethernet to SPI/DMX)
Supports ArtNet/sACN to SPI and DMX512 output simultaneously, enabling seamless integration with professional lighting software like Madrix, Resolume, or Sunlite.

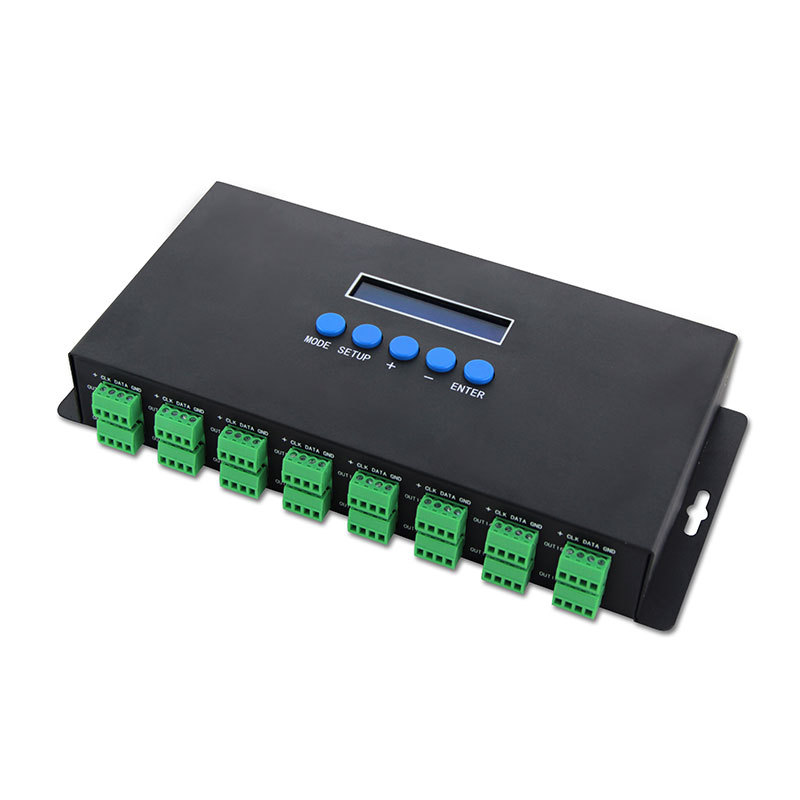

Intuitive LCD Interface & Physical Controls
Equipped with a clear LCD display and 5 dedicated buttons (MODE, SETUP, +/-, ENTER) for quick IP configuration, protocol switching, and standalone testing—no PC required on-site.

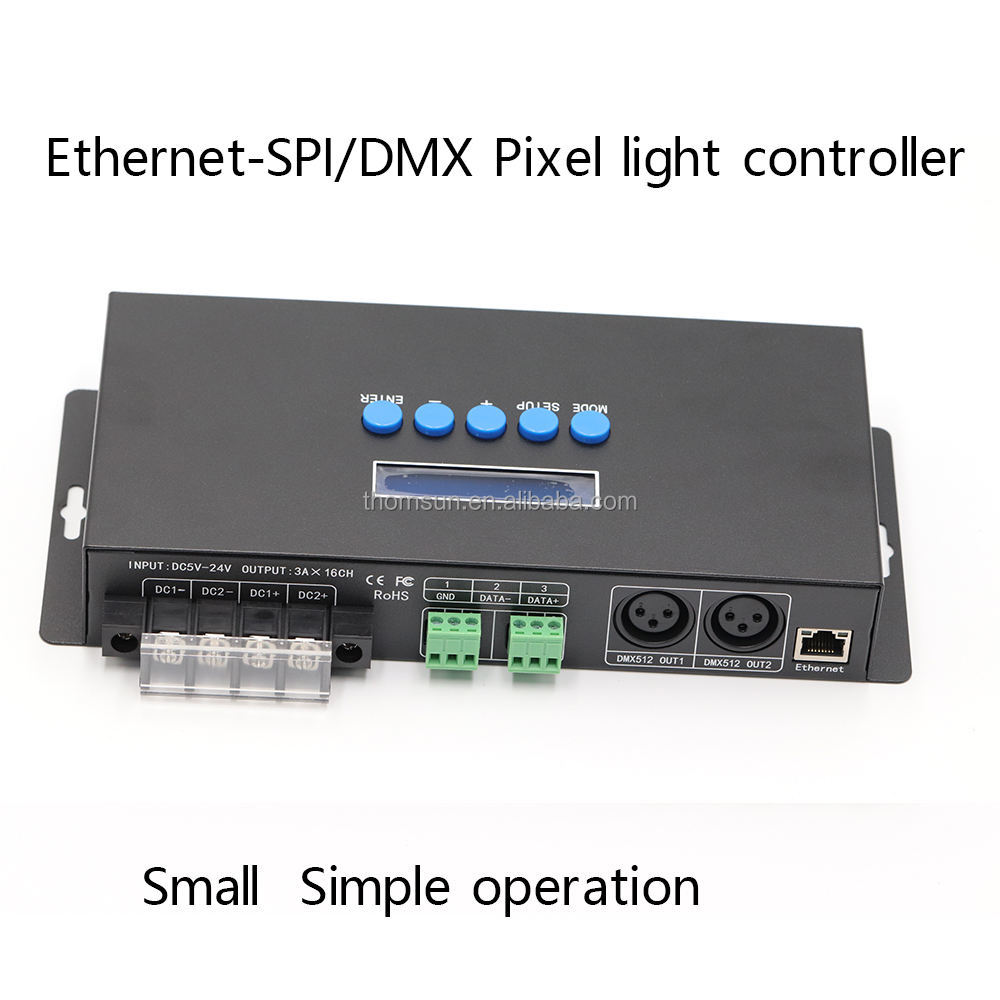

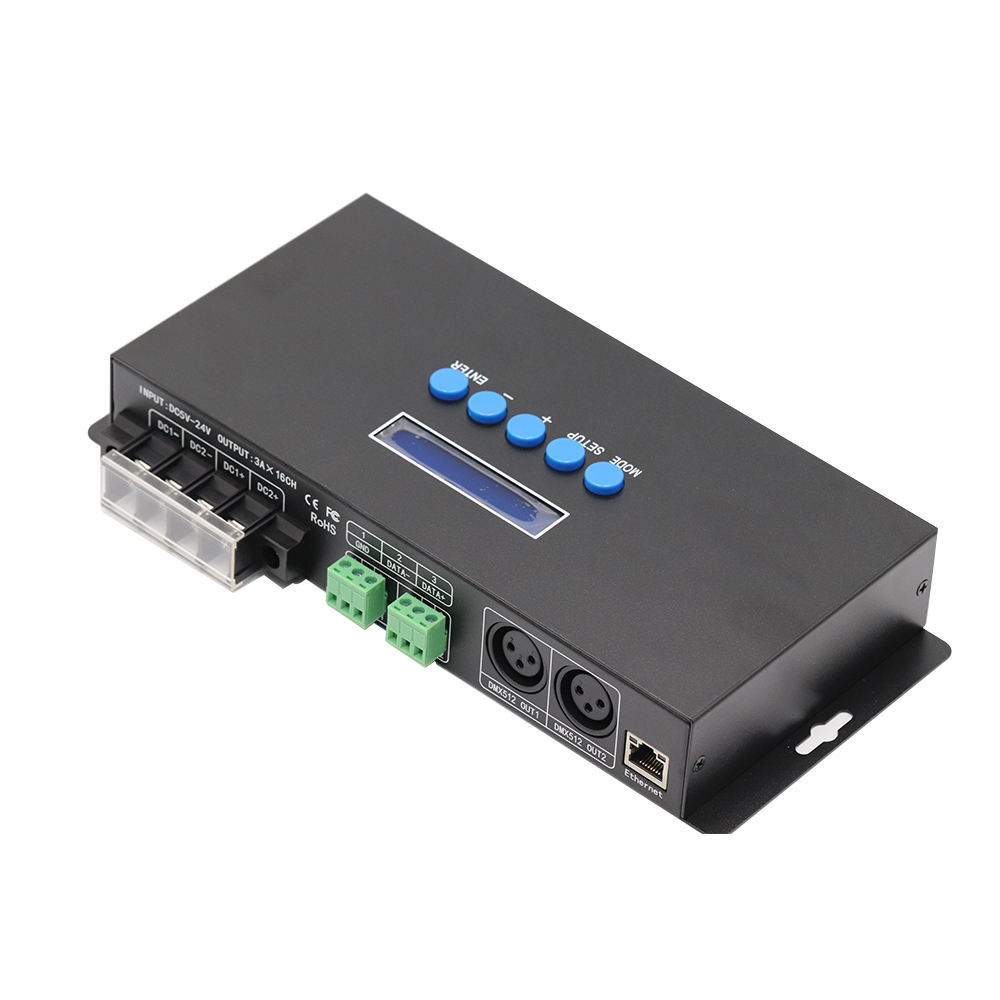

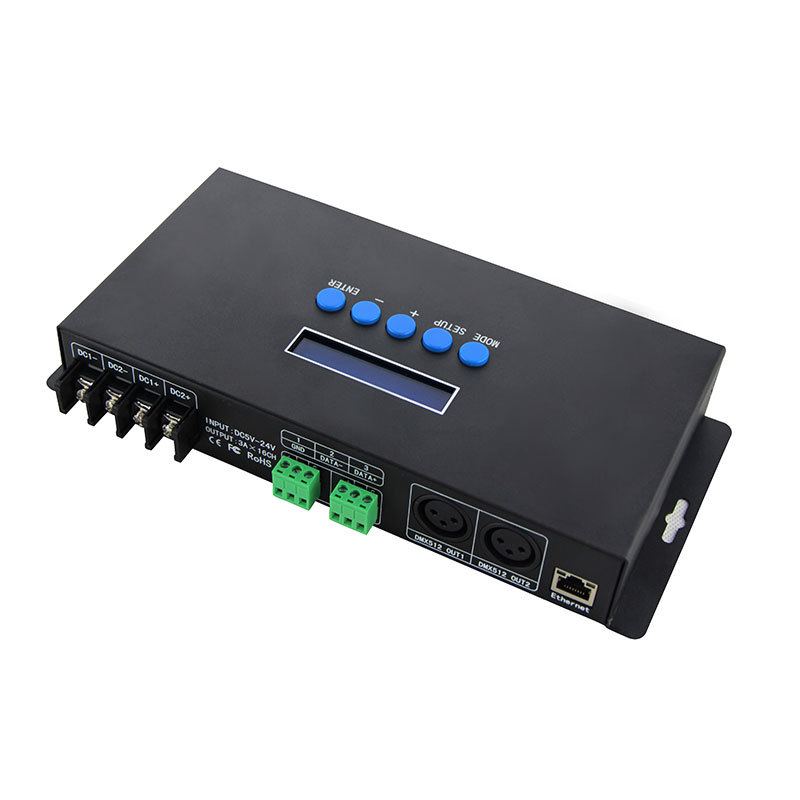

Versatile Connectivity & Wide Voltage Range
Features RJ45 Ethernet, XLR 3-pin/5-pin DMX ports, and screw terminal blocks. Supports DC 5V–24V input, compatible with most pixel LED strips, bars, and modules.
High-Density Pixel Capacity
Capable of driving thousands of pixels per port with fast refresh rates, making it ideal for large-scale architectural facades, LED matrices, and stage video walls.

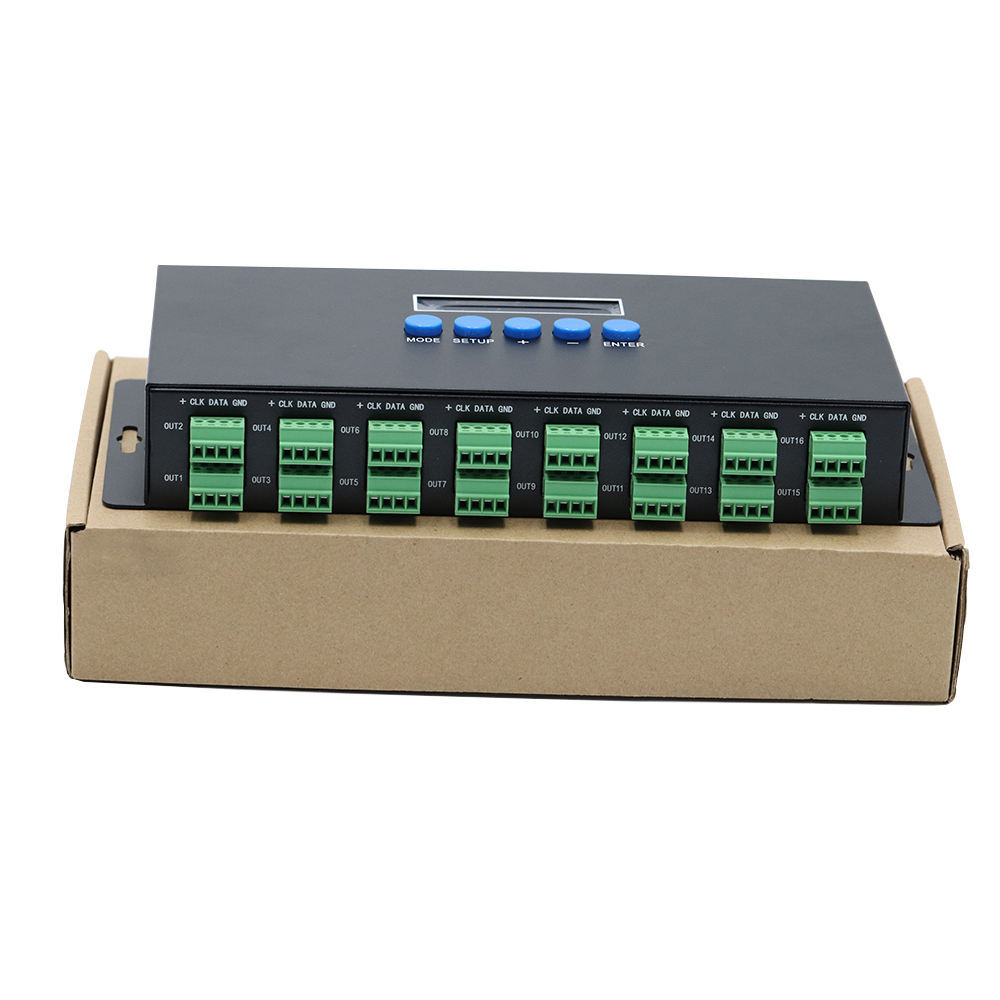

Rugged & Installation-Friendly Design
Industrial-grade housing with mounting tabs for easy fixation in cabinets or on trusses. Stable signal output ensures reliable long-distance transmission for outdoor and commercial projects.
BC-216 Ethernet-SPI/DMX Pixel Light Controller — Technical Specifications
|
Item |
Description |
|---|---|
|
Model |
BC-216 |
|
Input Voltage |
DC 5V – 24V |
|
Input Signal |
ArtNet / sACN (E1.31) over Ethernet |
|
Output Signal |
SPI (TTL) & DMX512 |
|
SPI Pixel Capacity |
Up to 8,192 pixels (total across ports, varies by chipset) |
|
DMX Output |
2 × XLR (3-pin / 5-pin), max 2 × 512 channels |
|
Ethernet Port |
1 × RJ45, 10/100Mbps |
|
Display |
LCD screen with 5-button navigation (MODE, SETUP, +, −, ENTER) |
|
Supported IC Chips |
WS2811, WS2812B, SK6812, TM1814, UCS1903, LPD6803, APA102, SM16703, etc. |
|
Refresh Rate |
≥200 Hz (SPI), DMX: 30 fps |
|
Operating Temp. |
−20°C to +60°C |
|
Dimensions |
165 × 105 × 40 mm (approx.) |
|
Mounting |
Wall-mount / cabinet-mount via side brackets |
|
Protection |
Reverse polarity protection, signal isolation |
Key Features Summary:
Converts ArtNet/sACN to SPI and DMX512 simultaneously
Supports thousands of addressable pixels per output
Onboard LCD for standalone configuration and testing
Wide voltage range compatible with most pixel fixtures
Rugged housing for architectural, stage, and outdoor use
