Feature
1. Three channel constant voltage, 24VDC output
2. Support DMX512 dimming signal
3. Dimming range from 0-100%, LED start at 1% possible
4. Wide range voltage Input 100-240VAC
5. High efficiency: up to 90%
6. High PF:>0.95(115VAC)
7. Dimming effect smooth, no flicker
8. Output short circuit protection , over current protection, over voltage protection
Technical Parameter

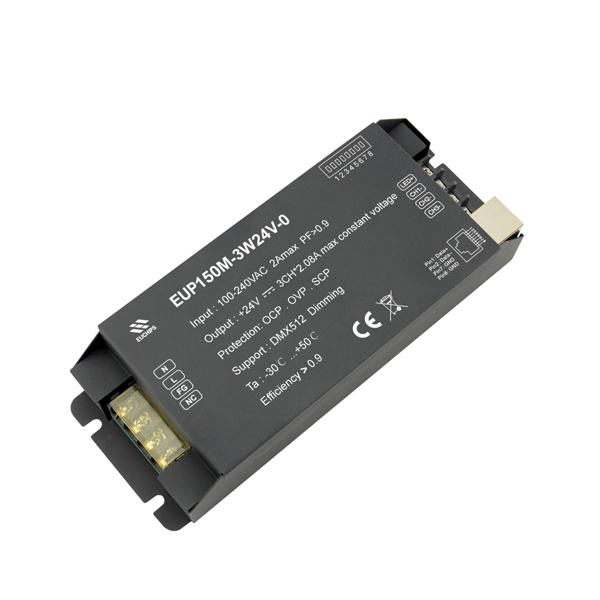

| Product Name | 150W 24V DMX512 RGB Constant Voltage LED Driver | |
| Model | EUP150M-3W24V-0 | |
| Output | Voltage | 24VDC |
| Current | 3*2.08A | |
| Rated power | 150W | |
| Input | Voltage Range | 100VAC – 240VAC |
| Frequency Range | 50– 60Hz | |
| Efficiency(Typ) | ≧90% | |
| Power Factor(Typ) | ≧0.9 | |
| Channel | 3 | |
| Function | Dimming | Support DMX 512 dimming signal |
| Protection | Short Circuit | Recovers automatically after removed |
| Over Voltage | Recovers automatically after removed | |
| Over Current | Recovers automatically after removed | |
| Others | Dimension | 196(L) *75(W)*40 (H)mm |
| N.W | 610g | |
| Packing | 288(L)*206(W)*250(H) mm；18Pcs/12.5kg/Carton | |
| Working temp. | -30℃ — 50℃ | |
