Cut every 3 LEDs, cascade DIN→DOUT, mount with 3M tape or aluminum profile. Perfect for bars, signage, shelf edges, stage trims, and DIY smart lighting.
WS2811 Ecosystem: massive controller support—Arduino, WLED, SP, Madrix-class SPI systems.
5050 RGB High Bright: 60 LEDs/m, vivid full-color output for visible-distance decoration.
10mm Robust FPC: better heat dissipation and solder pad strength than 8mm narrow tape.
DC12V Installer-Friendly: safer than 5V, less current than high-density 24V pixel tapes.
Cut & Cascade: cut every 3 LEDs (50mm), VCC/GND/DIN wiring, IP20/IP65/IP67 optional.

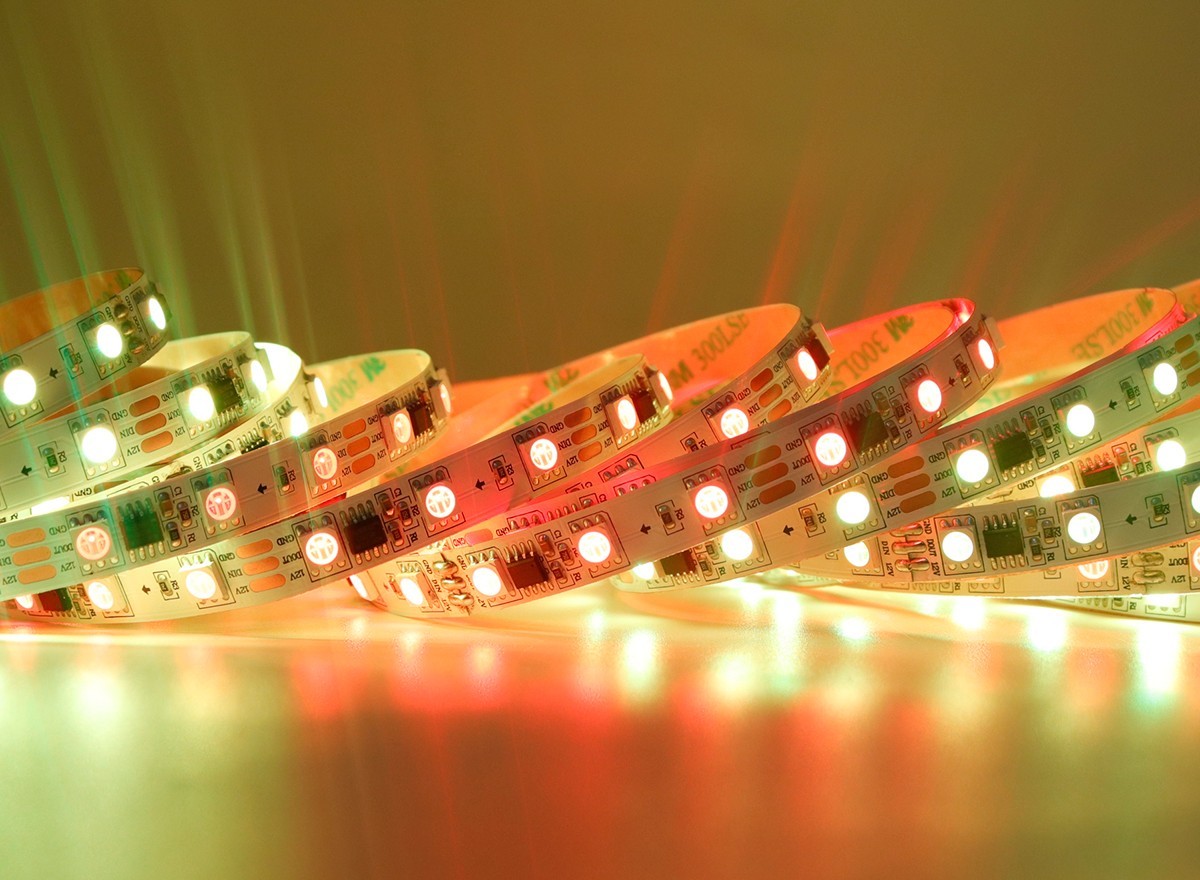

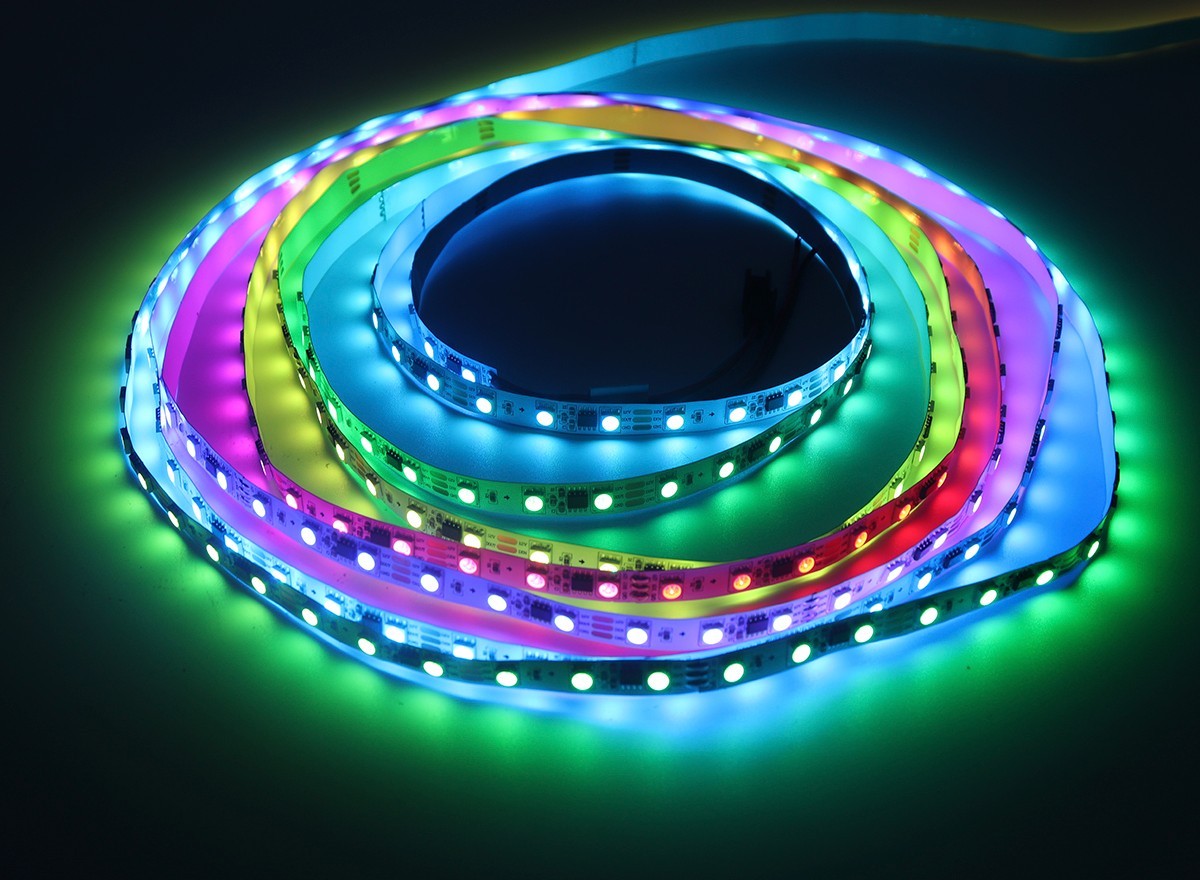

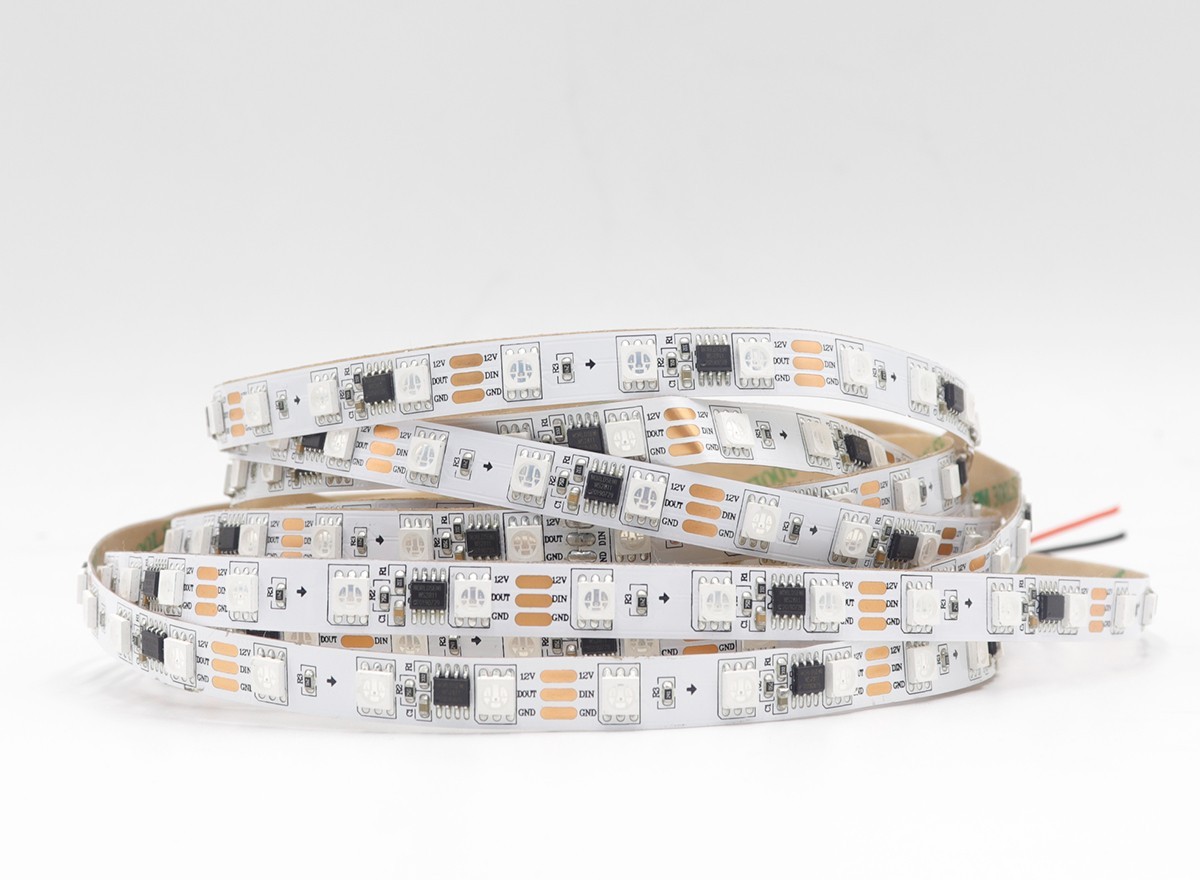

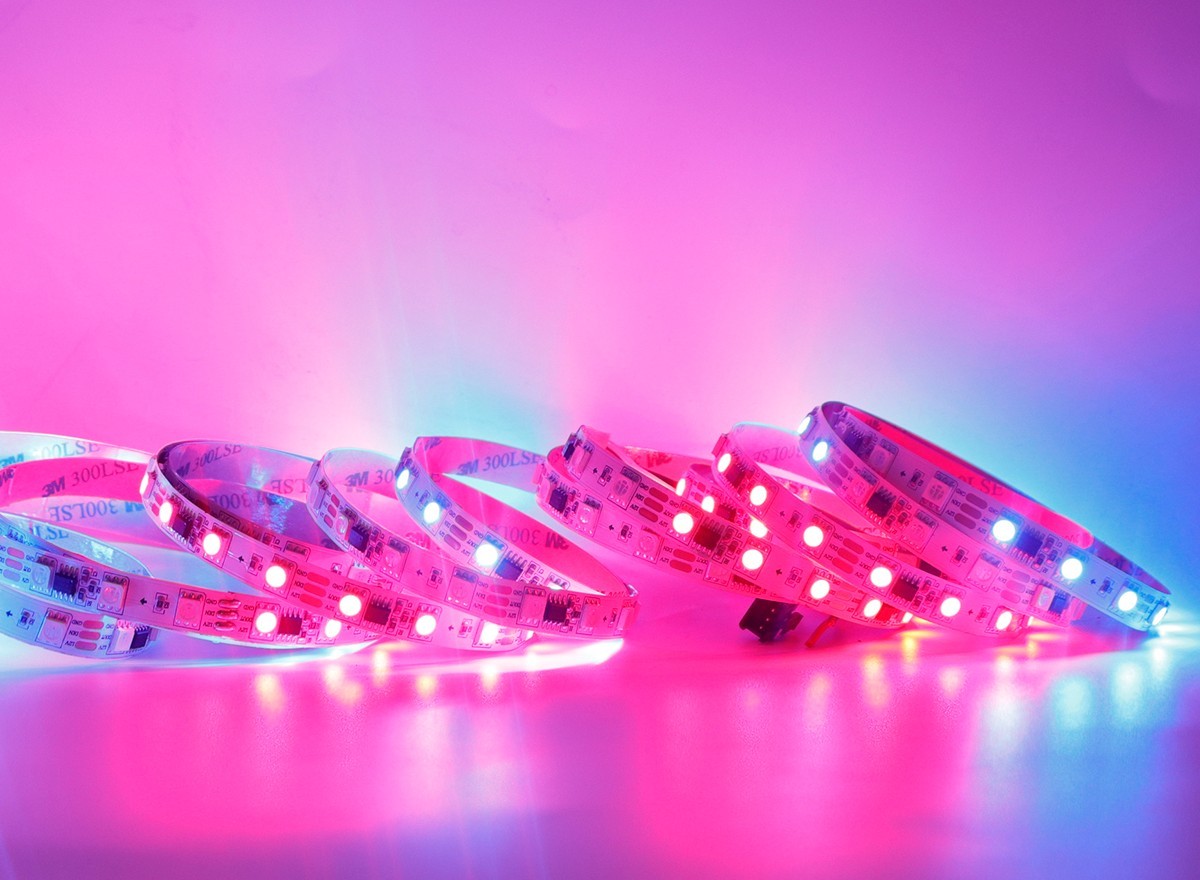

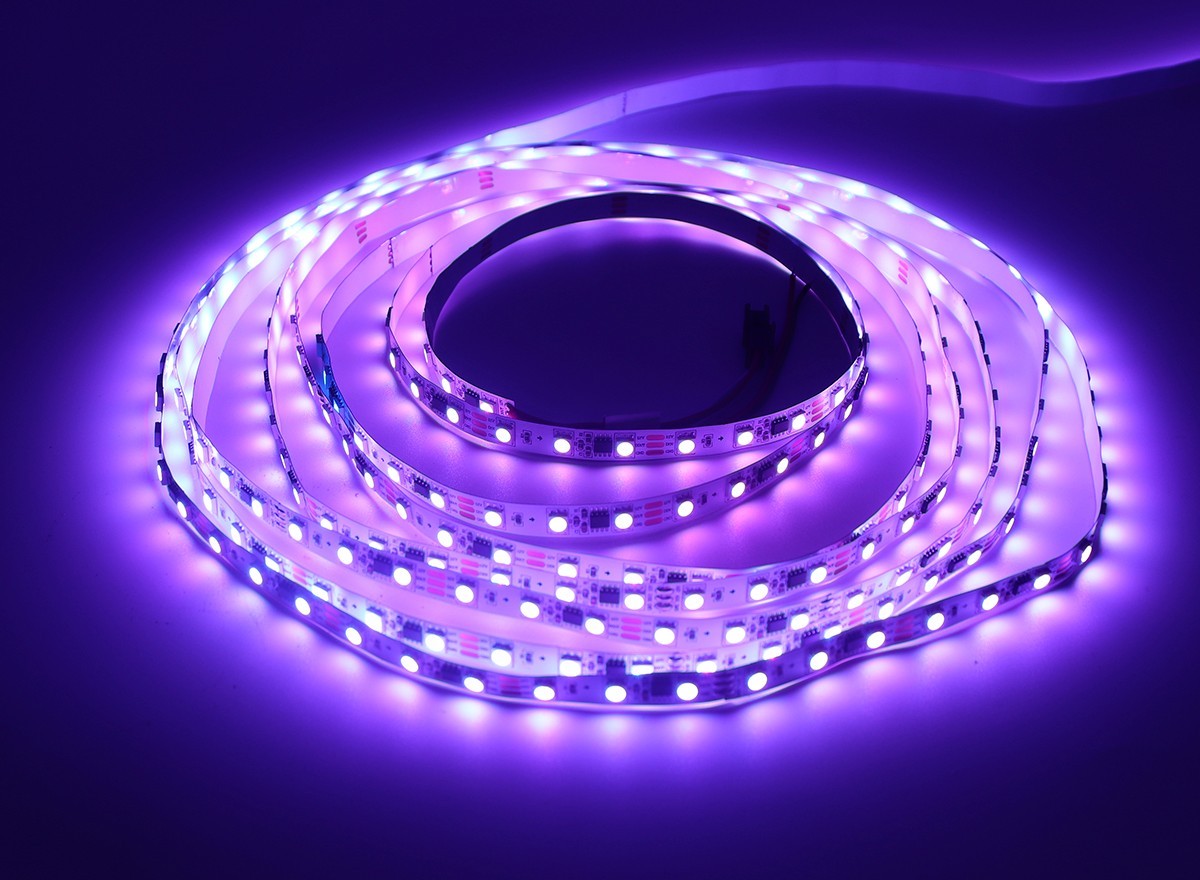

Product Specification: WS2811 5050 RGB 12V 10mm Addressable LED Strip
|
Item |
Specification |
|---|---|
|
Model |
WS2811-5050RGB-60D-12V-10mm |
|
LED Type |
SMD 5050 RGB |
|
IC Type |
WS2811, external IC |
|
Input Voltage |
DC 12V |
|
LED Density |
60 LEDs/m |
|
Pixel Density |
20 pixels/m (3 LEDs / pixel) |
|
Cutting Unit |
3 LEDs ≈ 50 mm |
|
PCB Width |
10 mm FPC (2oz copper optional) |
|
Power |
≈ 14.4 W/m (typ. 13–15 W/m) |
|
Current |
≈ 1.2 A/m @ 12V |
|
Gray Scale |
8-bit × 3CH (256/CH) |
|
Refresh |
High refresh, no visible flicker |
|
Signal Interface |
3-pin: VCC / GND / DIN (DOUT cascade) |
|
Controller |
WS2811 / NeoPixel-class SPI controller |
|
Beam Angle |
120° |
|
PCB Color |
White / Black |
|
IP Rating |
IP20 bare board (IP65 drip glue / IP67 tube / IP68 potting optional) |
|
Length |
5 m/reel |
|
Life Span |
30,000 h+ |
|
Application |
Bar, KTV, signage, retail shelf, stage trim, gaming room, architecture outline |
