With configurable baud rates and power-on modes, it adapts to any smart home or industrial environment. Compact and DIN-rail mountable, it is the professional choice for efficient energy management and centralized lighting control.
Intelligent Control: Supports standard Modbus-RTU protocol via RS485 for easy integration into existing smart building systems.
High Capacity: 8 independent channels, each supporting up to 16A (20A max) for heavy-duty lighting loads.
Safety & Emergency: Features dedicated fire linkage terminals for forced ON/OFF operations during emergencies.
Flexible Operation: Offers local manual control, digital display for addressing, and configurable delay/power-on modes.
Easy Installation: Standard 35mm DIN rail mount design with a compact footprint (162 * 104 * 66mm) saves panel space.

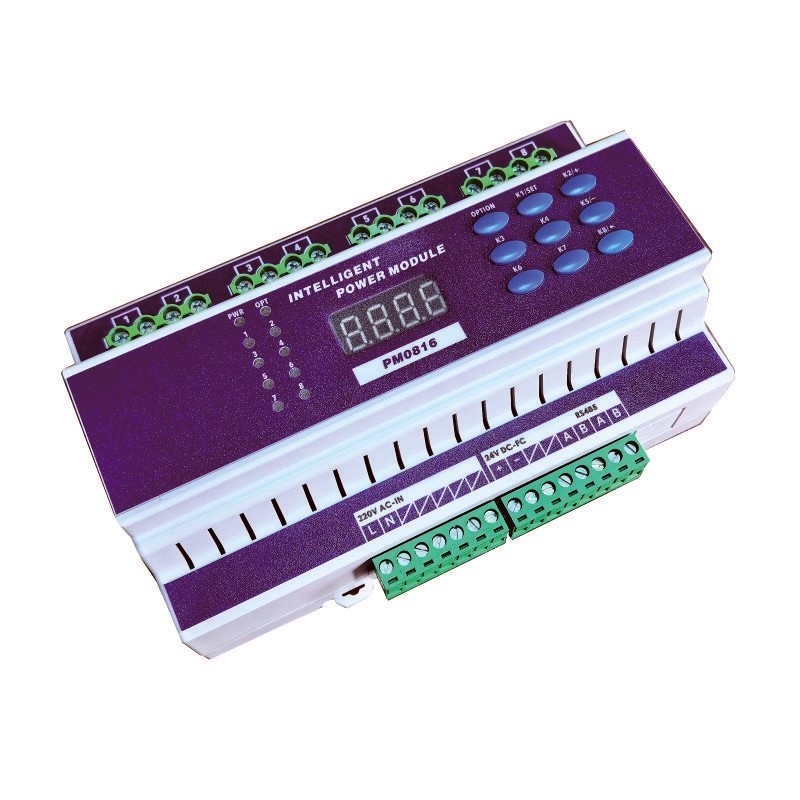

PM0816 8-Zone Intelligent Lighting Module
|
Category |
Specification |
|---|---|
|
Model |
PM0816 |
|
Input Voltage |
220V AC (Module Power Supply) |
|
Output Specs |
8 Channels, 20A / 250V AC Max (Rated 16A) |
|
Communication |
RS485, Modbus-RTU Protocol |
|
Control Mode |
Remote (Modbus), Local Keys, Fire Linkage |
|
Display |
Digital Tube (Address & Status) |
|
Functions |
Delay Switch, Power-on Default, All ON/OFF |
|
Baud Rate |
Configurable (Default: 9600bps) |
|
Safety Feature |
Fire Alarm Linkage (Forced ON/OFF) |
|
Installation |
35mm Standard DIN Rail |
|
Dimensions |
162 × 104 × 66 mm (L × W × H) |
|
Protection |
Over-current protection (Circuit Breaker required) |
