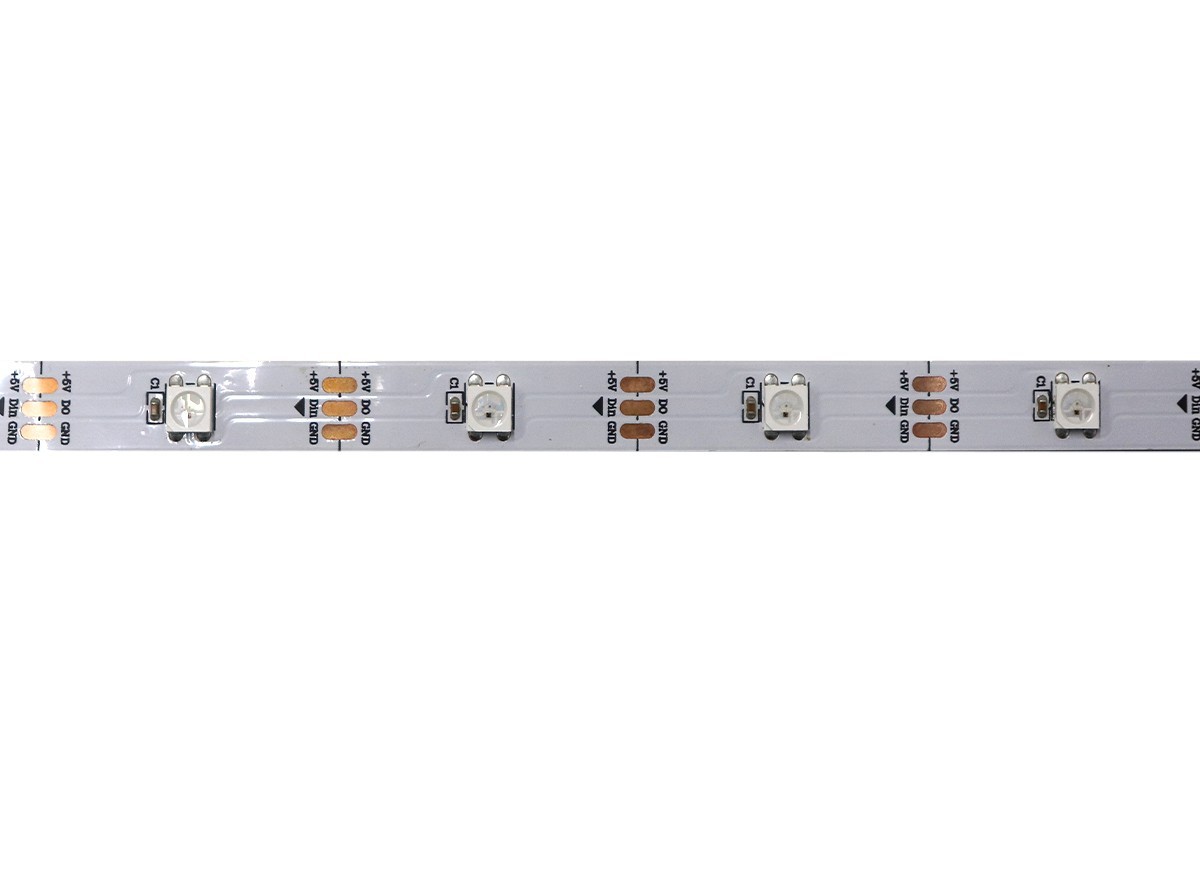

This DC5V WS2812 5050 RGB strip runs 30 addressable pixels per meter—lower density than 60/m, so each LED is spaced 33.3mm apart and draws less current, making it the easiest WS2812 build for beginners. Every 5050 LED has a built-in IC with 24-bit color and 256-level grayscale; chase, fade, rainbow and text effects work straight from Arduino, ESP32/WLED, Adafruit NeoPixel lib, K-1000C or Madrix. 5V ecosystem, cut every 33.3mm, 10mm PCB, 3-pin 5V/DATA/GND. Great for photo frames, mirrors, PC trim, craft signs, retail accents and soft ambient walls where you don’t want dots too tight. Just inject 5V on long runs to avoid tail-end dimming.
Classic WS2812/NeoPixel: Single-wire NZR protocol, 800kbps, works with Arduino/FastLED/Adafruit/WLED/Madrix out of the box.
30 Pixels/m Low Density: 33.3mm pixel pitch, softer spacing, lower current, beginner-friendly and great for frames/crafts/accents.
Individually Addressable: 1 IC = 1 RGB LED, 16.7M colors, 256 gray/channel, smooth animation.
5V Maker Standard: USB/ESP32/Arduino ready; less heat than high-density 144/m tapes.
Easy Cut & Stick: Cut every 1 LED (33.3mm), 10mm FPC, 3M adhesive, IP20/IP65/IP67 options.
|
Item |
Specification |
|---|---|
|
LED Type |
SMD 5050 RGB |
|
IC |
WS2812 / WS2812B (built-in) |
|
Density |
30 LEDs/m = 30 pixels/m |
|
Pixel Pitch |
33.3 mm |
|
Voltage |
DC 5V (max ~5.5V) |
|
Power |
~7.2 W/m max, ~4–5 W/m typical mixed color |
|
Current |
~1.44 A/m full white |
|
Cut Unit |
Every 1 LED / 33.33 mm |
|
PCB Width |
10 mm (white/black optional) |
|
Color |
RGB, 256 gray/channel, 24-bit, 16.7M colors |
|
Signal |
Single-wire NZR, 800 kbps |
|
Wiring |
5V / DIN / GND |
|
Refresh |
~400 Hz (WS2812) / ~2 kHz (WS2812B) |
|
Beam Angle |
120° |
|
IP Rating |
IP20 / IP65 / IP67 optional |
|
Controller |
Arduino, ESP32 WLED, Adafruit NeoPixel, K-1000C, T-1000S, Madrix |
|
Lifespan |
30,000–50,000 hrs |
|
Note |
Addressable; no breakpoint resume; 5V needs power injection on long runs |
