Compatible with DINA, SLESA, and STICK controllers, it is the perfect wall-mounted command center for hotels, stages, and architectural lighting installations.
Nicolaudie Native Integration: Seamlessly pairs with DINA, SLESA, and STICK controllers; fully configured via ESA Pro 2.5 software.
Immersive 8" IPS Display: 1280×800 HD resolution with IPS wide viewing angles—ideal for detailed scene previews and intuitive touch control.
Flexible Power Options: PoE (IEEE 802.3af/at) or 12V DC input adapts to rack rooms, remote locations, or retrofits without PoE switches.
Fully Customizable Interface: Design bespoke buttons, scenes, and color layouts in ESA Pro 2.5; Arcolis Touch and Arcolis Remote preinstalled for instant operation.
Slim & Standard Fit: Ultra-thin 11mm depth, mounts on standard 86-type back box—discreet yet powerful in any interior design.

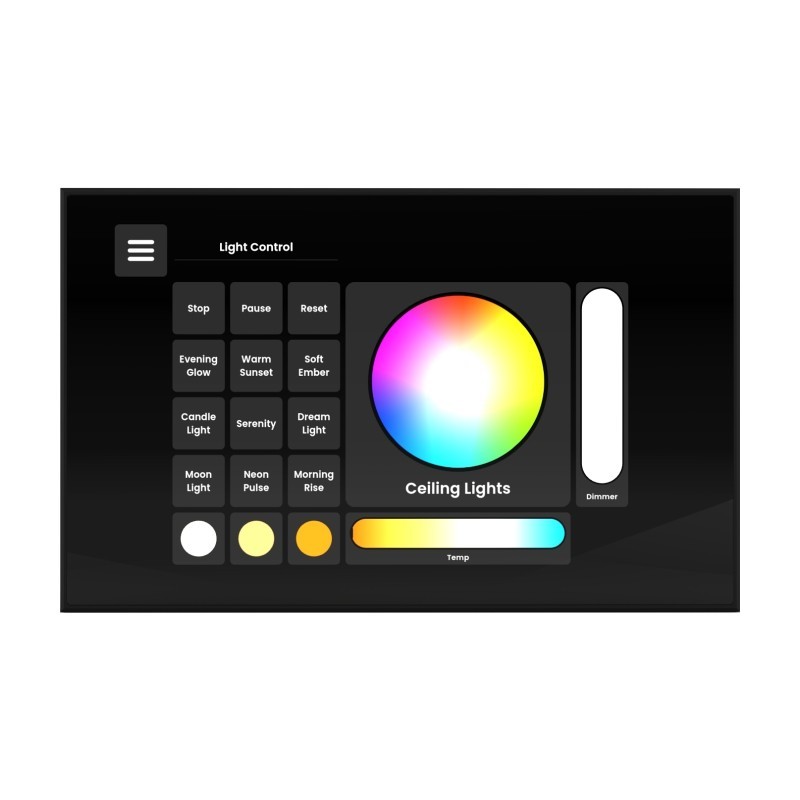

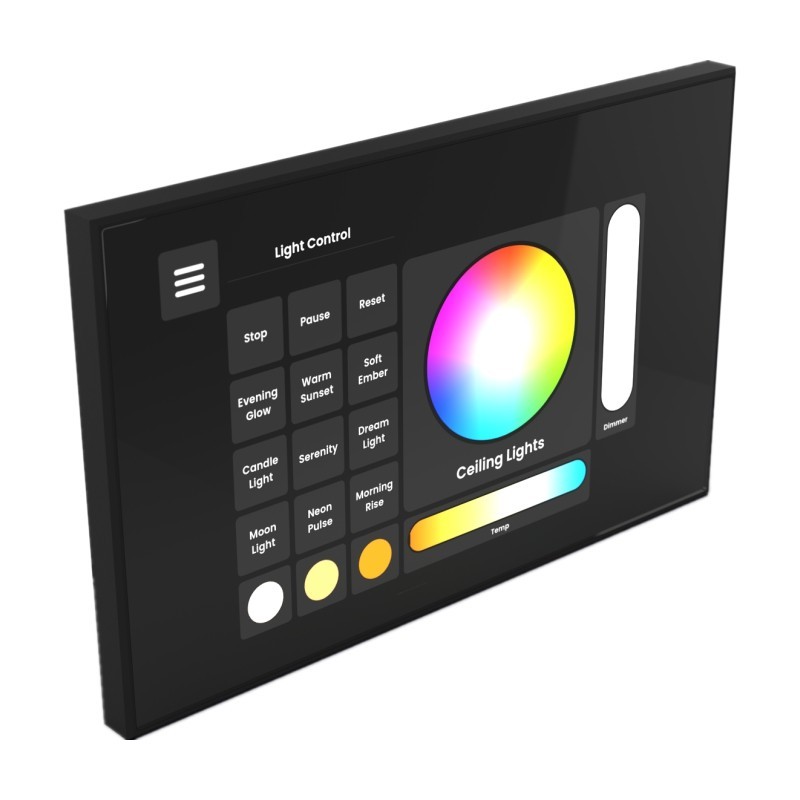

NATOUCH-8 8" Smart Scene Panel
|
Category |
Specification |
|---|---|
|
Model |
NATOUCH-8 |
|
Display |
8" IPS Touchscreen, 1280 × 800 pixels |
|
Dimensions |
201 × 125 × 11 mm (W × H × D) |
|
Installation |
86-type back box (flush mount) |
|
Power Supply |
PoE (IEEE 802.3af/at) or 12V DC |
|
Main Functions |
Scene Trigger, Dimming & Color Tuning (RGBW/CCT) |
|
UI Customization |
Custom buttons, layouts, colors via ESA Pro 2.5 |
|
Preinstalled Software |
Arcolis Touch, Arcolis Remote |
|
Configuration |
ESA Pro 2.5 Software |
|
Compatible Controllers |
DINA, SLESA, STICK (Nicolaudie range) |
|
Network |
Ethernet (PoE data + power) |
|
Language |
Multi-language UI (configurable) |
