The black bare board reduces reflected glare and makes each pixel pop, while the non-waterproof IP20 construction keeps it flexible and easy to cut, solder, and prototype. Compatible with Arduino, Raspberry Pi, ESP32, SP-series controllers, Art-Net/sACN pixel gateways, and most single-data-line DMX decoders. At ~19.2W/m typical and up to ~28.8W/m full white, it is dense enough for smooth animation yet still manageable with proper 5V power injection.
Individually Addressable: 96 pixels per meter, 1 LED = 1 pixel; full chase, gradient, rain-drop, and video-style effects.
WS2812B / SK6812 Compatible: Same single-line protocol; works with Arduino, FastLED, NeoPixel, Raspberry Pi, ESP32, and most pixel controllers.

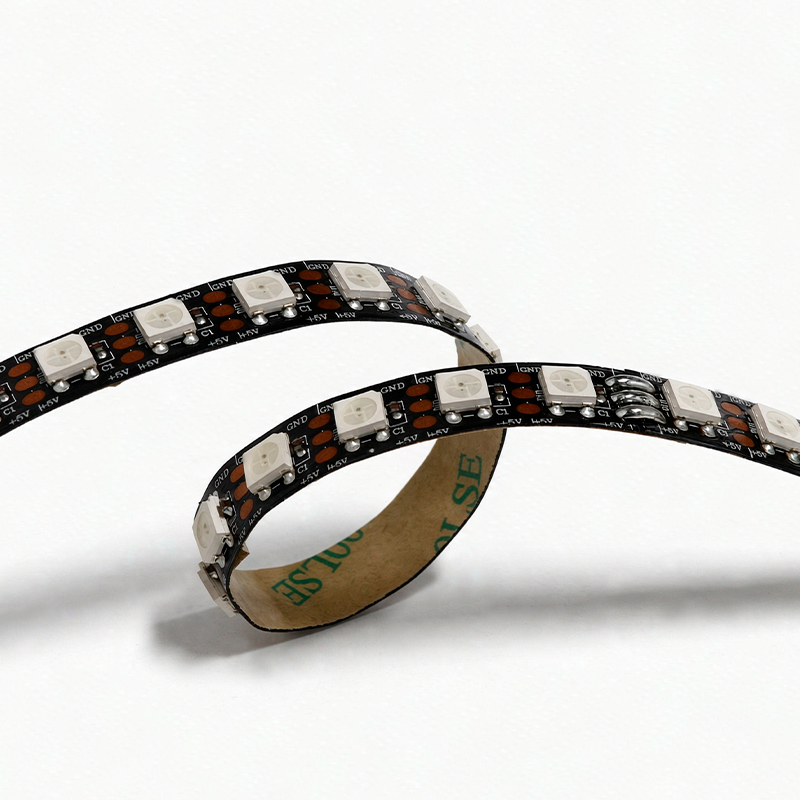

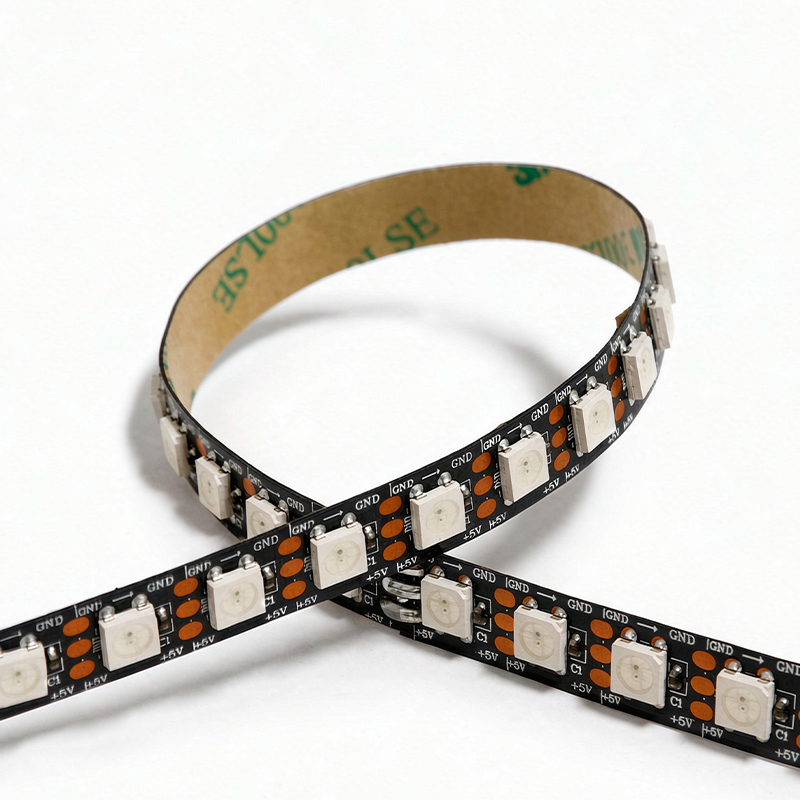

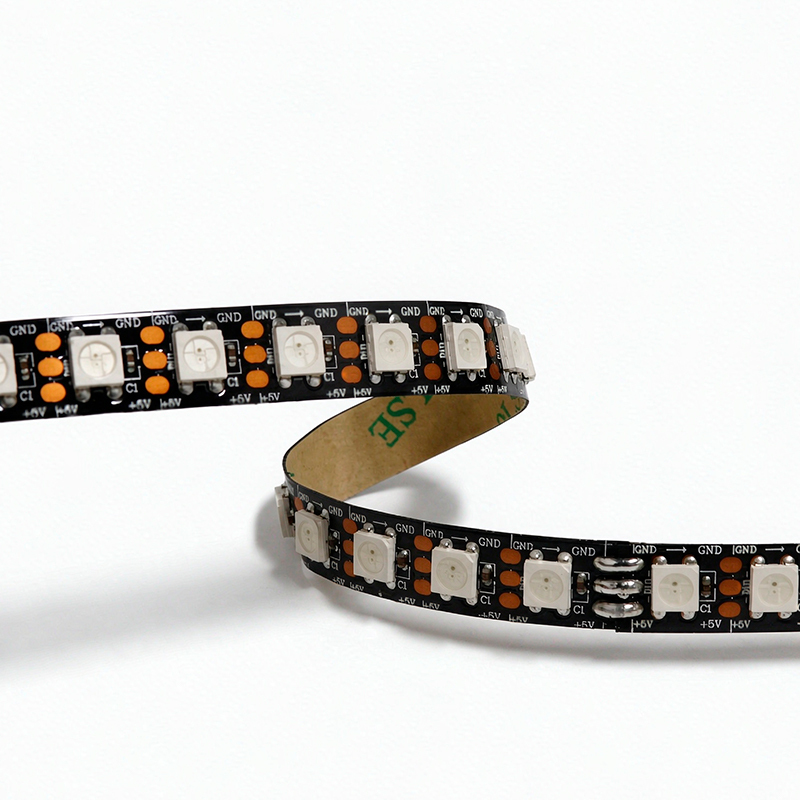

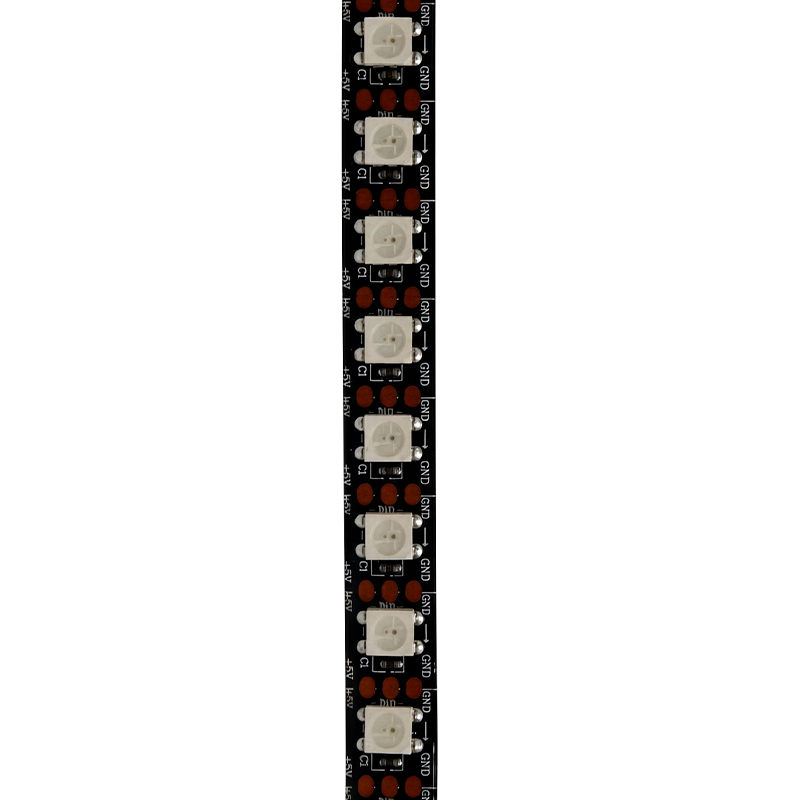

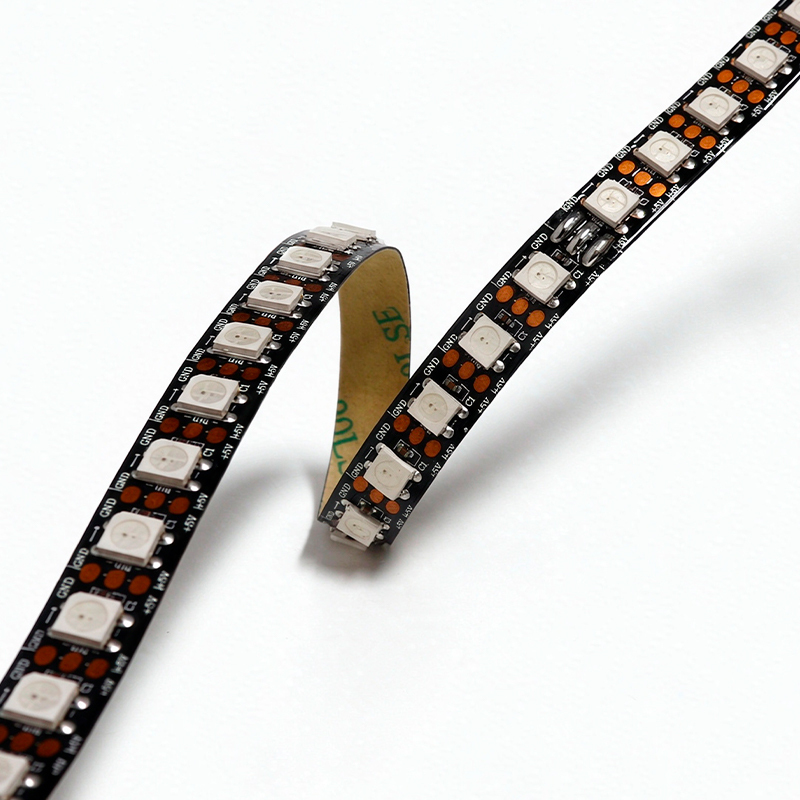

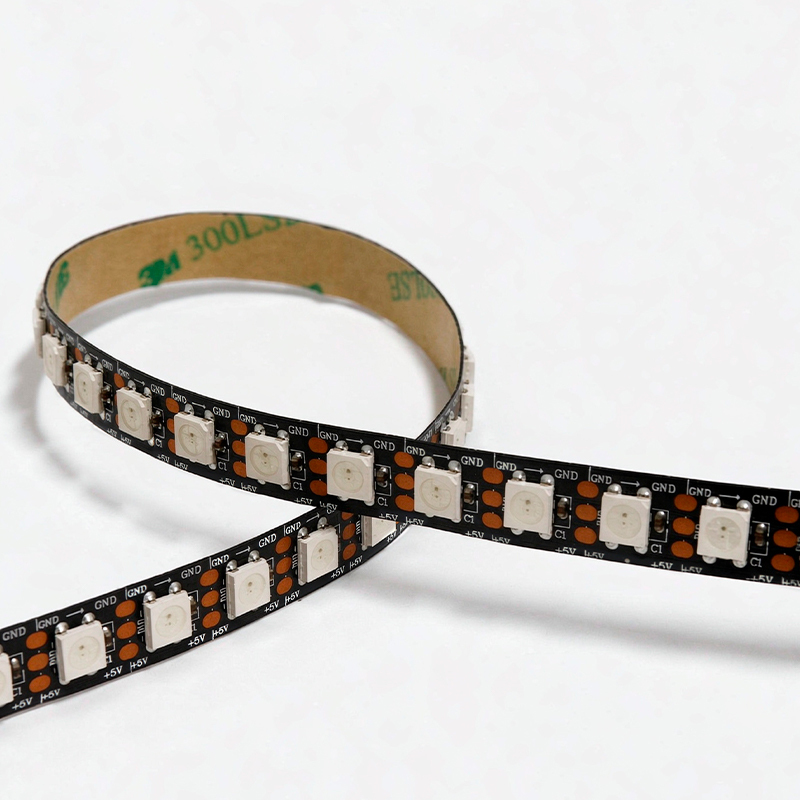

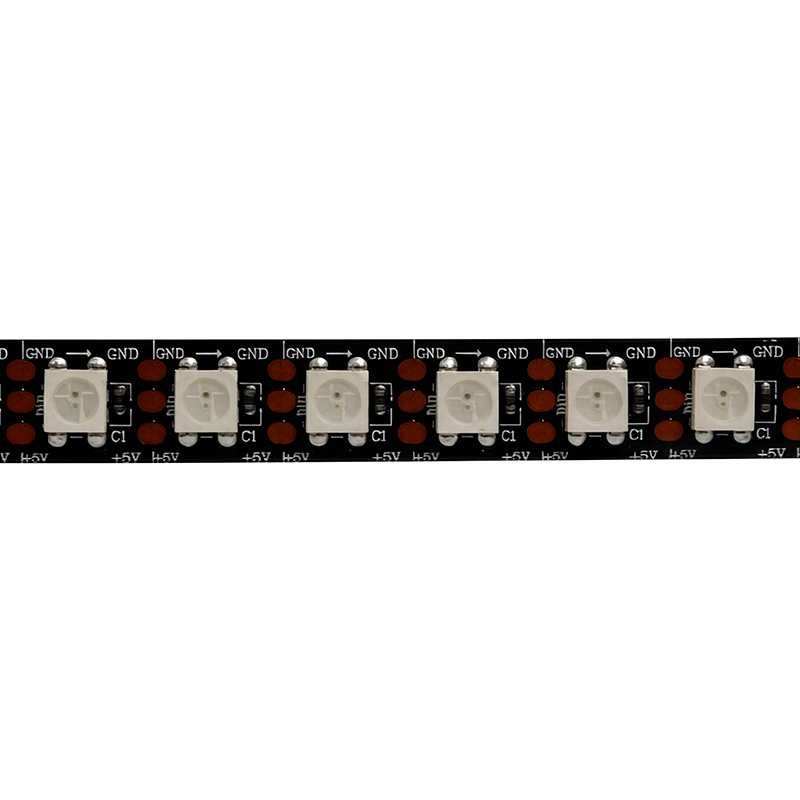

Black Bare FPC: 10mm black PCB minimizes glare, improves contrast, and gives a premium look for exposed installations.
Cut & Solder Friendly: Cut at every LED, solder pads or JST connectors, ideal for DIY, prototypes, LED walls, and custom fixtures.
Flexible 5V Platform: DC5V operation, IP20 bare board, supports power injection for long runs and high-density pixel mapping.
5V 96LED/m WS2812B SK6812 Addressable LED Strip — 10mm Black Bare PCB
|
Category |
Specification |
|---|---|
|
Model |
5V-96D-WS2812B/SK6812-10MM-BLACK-IP20 |
|
LED Type |
SMD5050 RGB |
|
IC Type |
WS2812B or SK6812 (built-in, 1 IC / 1 LED) |
|
Density |
96 LEDs/m = 96 pixels/m |
|
Voltage |
DC 5V |
|
Power |
~19.2W/m typical, up to ~28.8W/m at full white |
|
Current |
~3.84A/m typical, up to ~5.76A/m full white |
|
PCB Width |
10 mm |
|
PCB Color |
Black |
|
Protection |
IP20 bare board / non-waterproof |
|
Cut Unit |
1 LED (≈10.4 mm) |
|
Grayscale |
256 levels per channel, 24-bit color |
|
Data Rate |
800 kbps NRZ |
|
Beam Angle |
120° |
|
Lifespan |
50,000 hrs |
|
Control |
Arduino, Raspberry Pi, ESP32, SP105E/SP110E, Art-Net/sACN, DMX decoder |
|
Length |
Commonly 5m/roll (custom lengths available) |
|
Notes |
Power injection required for long runs; 3-pin: 5V / DIN / GND |
