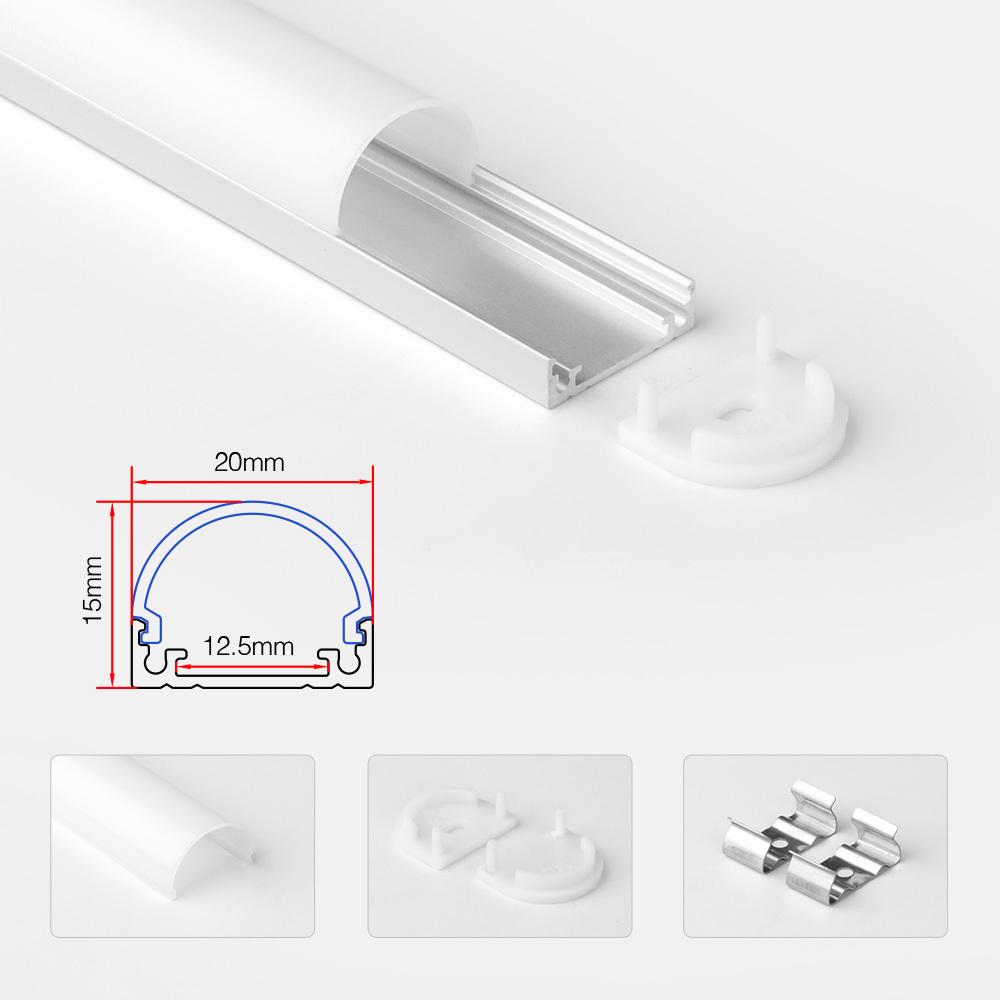

The U-shape design provides a clean, architectural housing that conceals the strip and wiring, while the snap-on milky diffuser transforms harsh LED dots into a smooth, continuous line of light. Ideal for under-cabinet lighting, retail displays, coves, and shelving, this profile offers both surface and recessed mounting options. Supplied with end caps and mounting clips, the AL-2015 is the professional's choice for achieving a sleek, modern lighting finish in any residential or commercial project.
Optimal Heat Dissipation: Made from 6063-T5 aluminum alloy, it efficiently draws heat away from LEDs, preventing brightness decay and extending service life.
Wide Strip Compatibility: Supports LED strips up to 17mm in width, making it suitable for single-color, RGB, RGBW, and high-density COB strips.
Dot-Free Illumination: The high-transmittance milky PC diffuser eliminates LED hotspots, delivering uniform, glare-free linear lighting.
Flexible Installation: Designed for both surface mounting and recessed installation, adapting to various architectural and furniture lighting needs.
Complete Kit & Cuttable: Comes with end caps and mounting clips; can be easily cut to any custom length with a standard fine-tooth saw.
|
Parameter |
Specification |
|---|---|
|
Product Model |
AL-2015 |
|
Shape |
U-Shape |
|
Dimensions (WxH) |
20mm x 15mm (0.79" x 0.59") |
|
Inner Width |
17mm (0.67") |
|
Max LED Strip Width |
17mm (0.67") |
|
Material |
6063-T5 Aluminum Alloy |
|
Surface Treatment |
Anodized (Silver / Black / White) |
|
Diffuser Material |
PC (Polycarbonate) / PMMA |
|
Diffuser Options |
Clear / Frosted / Milky (Opal) |
|
Standard Length |
1m / 2m / 3m (Custom lengths available) |
|
Installation Method |
Surface Mount / Recessed Mount |
|
Accessories Included |
End Caps (2 pcs), Mounting Clips, Screws |
|
IP Rating |
IP20 (Indoor Use) |
|
Applications |
Under-Cabinet, Cove, Shelf, Wardrobe, Retail Display, Architectural Lighting |
|
OEM/ODM |
Model code, laser logo, length, color customizable |
