Engineered for DC24V constant voltage, it ensures stable performance with minimal voltage drop. The high-density layout eliminates dark spots, making it ideal for premium cove lighting, architectural accents, retail displays, and TV backlighting. Rated IP20 (indoor), with IP65/IP67 options available. For best results, install with aluminum profiles to dissipate heat and extend lifespan. Compatible with standard RGBCCT controllers (6-pin: V+, R, G, B, WW, CW). Transform any space with vibrant ambiance or crisp white task lighting—all from a single strip.
🌈 True 5-in-1 RGBCCT Technology – Each SMD 5050 LED combines Red, Green, Blue, Warm White (3000K), and Cool White (6000K) chips. Enjoy 16 million colors plus tunable white from 3000K–6000K, eliminating the need for separate RGB and white strips.

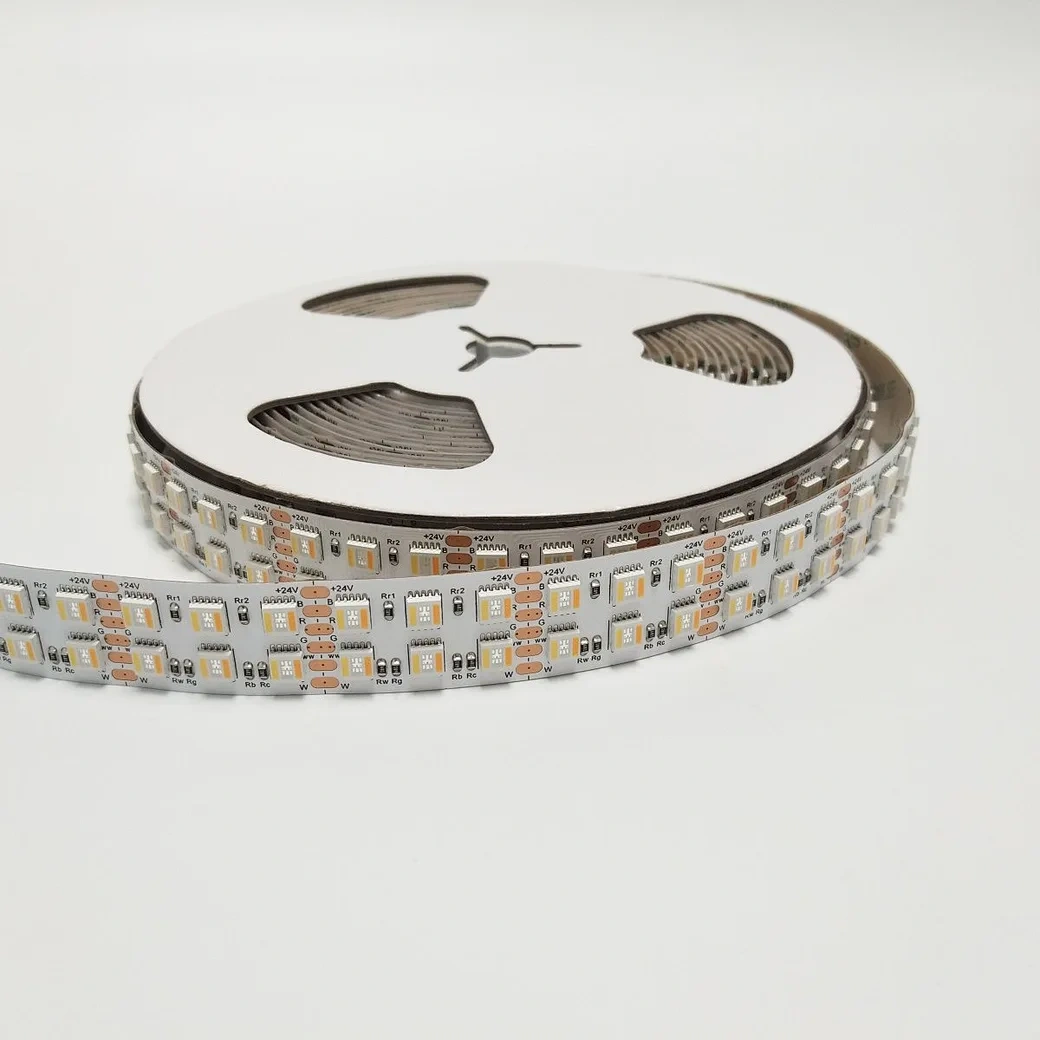

💡 Ultra-High Density & Brightness – 192 LEDs/m in a dual-row layout on a 20mm wide FPC board delivers up to 2200 lumens/meter and 40W/m power, producing smooth, dot-free illumination perfect for premium architectural and commercial applications.
⚡ Professional 24V DC System – Operates on DC24V constant voltage for reduced voltage drop, safer long-run installations, and compatibility with standard RGBCCT LED controllers (6-wire: V+, R, G, B, WW, CW).
🏗️ Built for Demanding Projects – Double-layer PCB and high-efficiency chips ensure consistent color and brightness. Recommended for use with aluminum extrusions to maximize heat dissipation and product lifespan.
🎯 Versatile Applications – Ideal for cove lighting, ceiling coves, retail shelving, hotel lobbies, home theaters, and accent walls. Available in IP20 (indoor), IP65 (splash-proof), and IP67 (waterproof) variants to suit any environment.
|
Item |
Specification |
|---|---|
|
Product Type |
RGBCCT 5-in-1 LED Strip Light |
|
LED Chip |
SMD 5050 (5-in-1: R+G+B+WW+CW) |
|
LED Density |
192 LEDs / Meter |
|
PCB Width |
20 mm (Dual Row) |
|
Input Voltage |
DC 24V Constant Voltage |
|
Power Consumption |
40W / Meter (Max) |
|
Luminous Flux |
2200 LM / Meter (Typical) |
|
Color Temperature |
Tunable White: 3000K (Warm) – 6000K (Cool) |
|
Color Rendering Index (CRI) |
Ra ≥ 80 (Ra ≥ 90 Optional) |
|
Beam Angle |
120° |
|
Cutting Unit |
Every 6 LEDs (approx. 3.125 cm / 1.23 in) |
|
Control Protocol |
RGBCCT / RGB+CCT (6 Channels: V+, R, G, B, WW, CW) |
|
IP Rating |
IP20 (Standard), IP65 / IP66 / IP67 / IP68 Optional |
|
Operating Temp. |
-20°C to +50°C |
|
Lifespan |
≥ 50,000 Hours (L70) |
|
Certifications |
CE, RoHS (Customs upon request) |
|
Recommended Use |
With Aluminum Profile / Heat Sink |
|
Typical Applications |
Cove lighting, architectural accents, retail displays, home theaters, task lighting |
