These LEDs are highly energy-efficient, consuming only 0.3W per pixel, yet deliver stunning brightness. Ideal for Arduino, ESP32, and Raspberry Pi enthusiasts, they are perfect for ambient lighting, cosplay props, or art installations. Simply connect to a 5V power supply and start coding. Unleash your creativity and bring your ideas to life with vibrant, dynamic lighting effects!

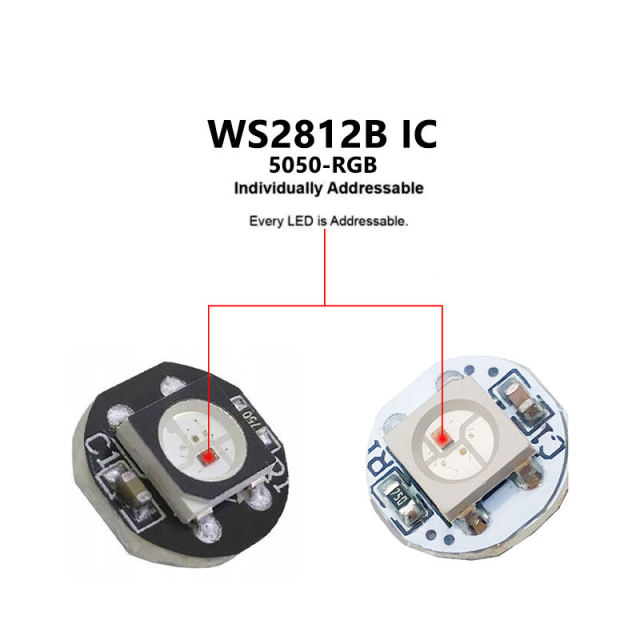

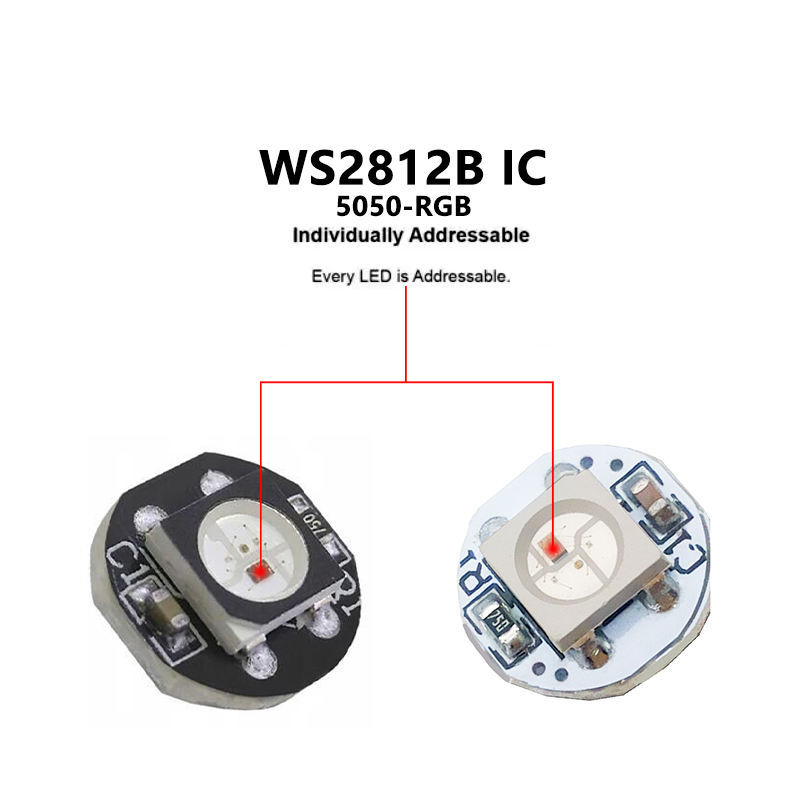

Individually Addressable: Each LED features a built-in WS2812B driver IC, allowing for independent 24-bit color control (16.7 million colors) and dynamic lighting effects.

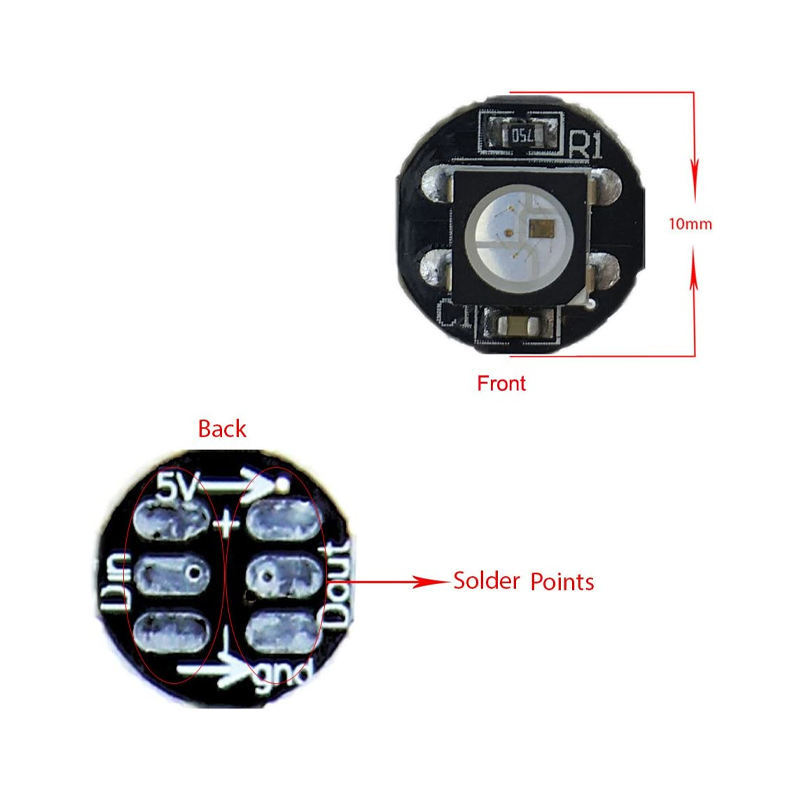

Compact & Versatile Design: The small round PCB (5050 SMD package) is easy to mount on curved surfaces, wearables, or custom enclosures, offering greater flexibility than traditional LED strips.
Simplified Wiring: Utilizes a single data line (NZR protocol) to control hundreds of pixels, significantly reducing wiring complexity and saving valuable MCU I/O ports.
High Compatibility: Fully compatible with popular platforms like Arduino, ESP32, and Raspberry Pi, and supports mainstream libraries such as FastLED and Adafruit NeoPixel.
Low Power & High Brightness: Operates on a safe 5V DC power supply with only 0.3W per LED, providing vivid illumination while maintaining energy efficiency.
|
Parameter |
Specification |
|---|---|
|
Product Name |
WS2812B 5050 RGB LED Pixel Module |
|
LED Type |
5050 SMD RGB |
|
Control IC |
WS2812B (Integrated) |
|
Operating Voltage |
DC 5V |
|
Power Consumption |
0.3W per pixel (Max 0.6W at full white) |
|
Current Draw |
~18mA (per color), ~54mA (full white) |
|
Color Resolution |
24-bit (256 levels per R/G/B channel) |
|
Communication Protocol |
Single-wire NZR (800kHz) |
|
PCB Shape |
Round / Small Board |
|

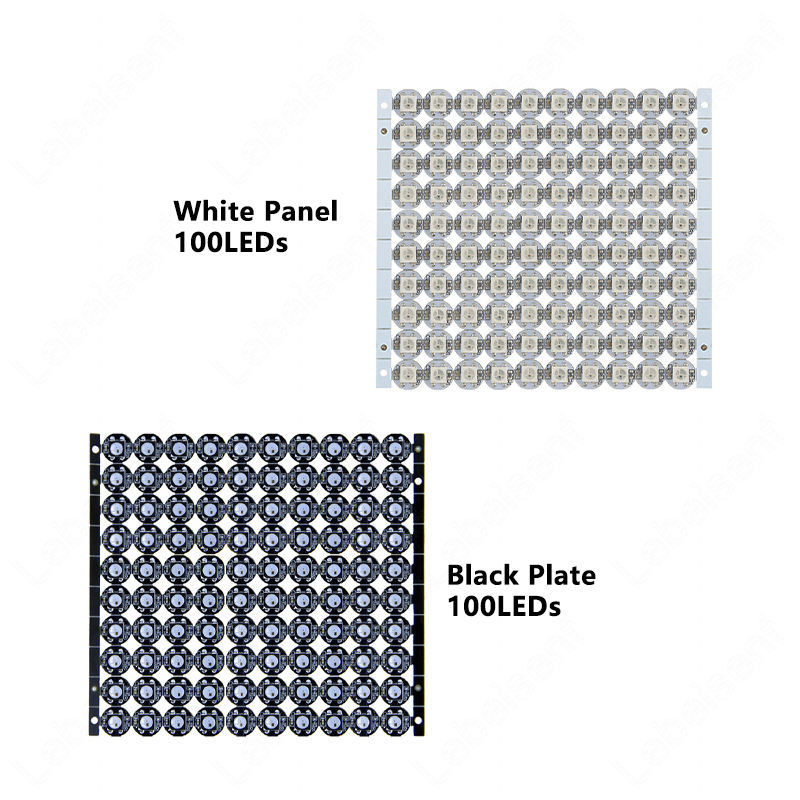

Quantity per Set |
100 Pieces |
|
Operating Temperature |
-25°C to +80°C |
|
Recommended Controller |
Arduino, ESP32, Raspberry Pi, SP series |
|
Applications |
DIY Lighting, Cosplay, Matrix Displays, Signal Indicators |
