Featuring SK6812 compatibility, each LED is individually addressable via a single data line, allowing you to create stunning, dynamic lighting effects with millions of color combinations. With a high data transmission rate of 800 Kbps and a refresh rate of up to 30 FPS, the visual performance is incredibly smooth and flicker-free. The 120° wide viewing angle ensures uniform light distribution. Built to last, it operates reliably in temperatures from -40°C to 85°C. Whether you are a DIY enthusiast or a professional manufacturer, the SK6812MINI offers the perfect blend of high performance, durability, and ease of integration for your next creative masterpiece.
Integrated Design (All-in-One): Combines a high-quality 3535 RGB LED and a SK6812 control IC into a single compact 4-pin package, drastically reducing PCB footprint and simplifying circuit design.
Individually Addressable: Features a single-wire communication protocol, allowing each LED to display a unique color and effect independently, enabling complex "Dream Color" animations.
High-Speed Data Transmission: Supports an 800 Kbps data rate with built-in signal reshaping and forwarding, ensuring stable performance and allowing for over 1024 pixels to be cascaded without signal degradation.
Vibrant & Consistent Lighting: Delivers full 24-bit color depth (256 levels per channel) with a wide 120° beam angle, providing bright, uniform, and highly saturated illumination.
Robust & Reliable: Operates on a 3.7V-5.5V supply with a low static current of 0.25µA. Engineered to withstand harsh environments with an operating temperature range of -40°C to +85°C and 2KV ESD protection.

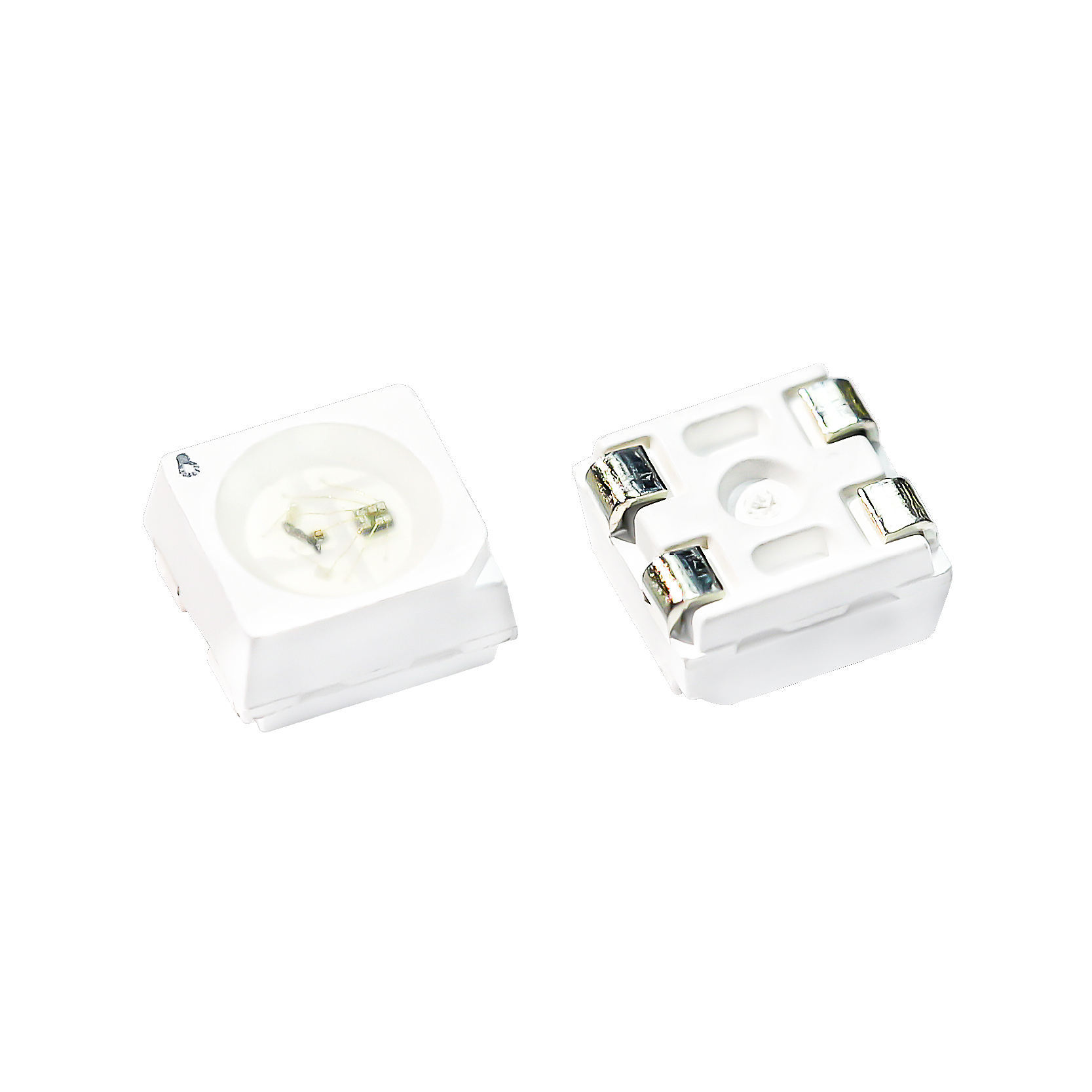

Product Model: OPSCO SK6812MINI
Package Type: 3535 SMD (4-Pin)
|
Electrical Characteristics |
Specification |
|---|---|
|
Operating Voltage (VDD) |
3.7V - 5.5V (Typical: 5.0V) |
|
Data Transfer Rate |
800 Kbps |
|
Static Current |
0.25 µA (Max) |
|
Dynamic Current |
12 mA per channel (R/G/B) |
|
Control Protocol |
Single-wire return-to-zero code |
|
Cascading Capability |
≥ 1024 pixels @ 30 fps |
|
Optical Characteristics |
Specification |
|
:--- |
:--- |
|
Color Type |
RGB Full Color |
|
Gray Level |
256 levels per channel (24-bit) |
|
Viewing Angle |
120° |
|
Wavelength (R/G/B) |
620-625 nm / 520-530 nm / 465-475 nm |
|
Luminous Intensity (Typ.) |
R: 240-450 mcd / G: 815-1275 mcd / B: 160-320 mcd |
|
Environmental & Physical |
Specification |
|
:--- |
:--- |
|
Operating Temperature |
-40°C to +85°C |
|
Storage Temperature |
-40°C to +85°C |
|
ESD Protection (HBM) |
2 KV |
|
Pin Configuration |
1: DIN, 2: VDD, 3: DOUT, 4: GND |
|
Special Features |
Built-in reset circuit, auto signal reshaping, power-on default OFF |
Application Areas: LED Pixel Strips, Smart Lighting, Wearable Devices, Keyboard Backlighting, DIY Electronics, Automotive Ambient Lighting.
