With multi-screen sync, partition management, web-based theme uploads, and enterprise-grade security, it is the ideal wall-mounted controller for hotels, stages, fountains, and architectural lighting installations.

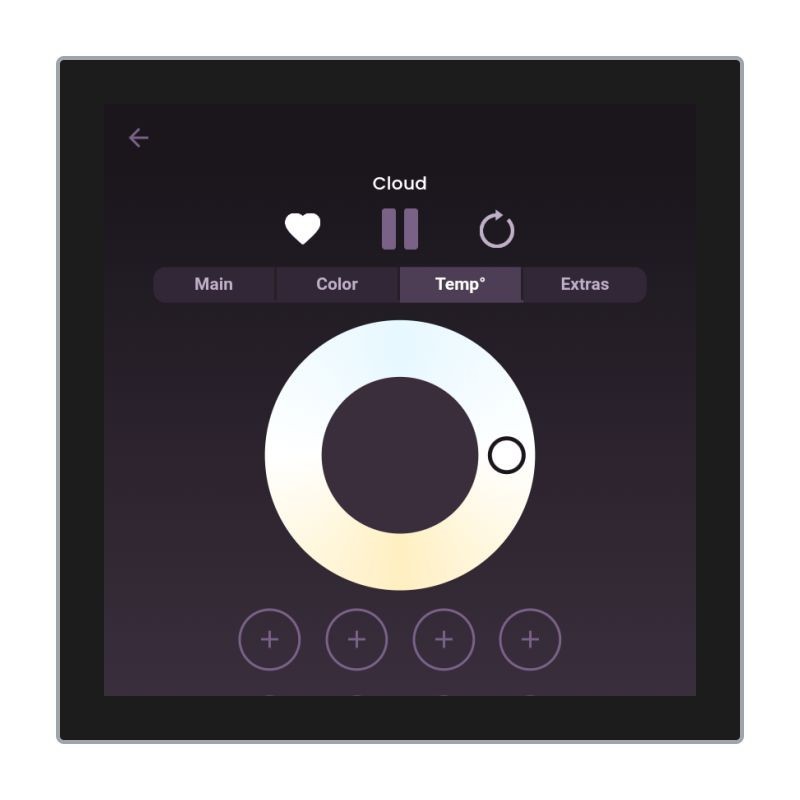

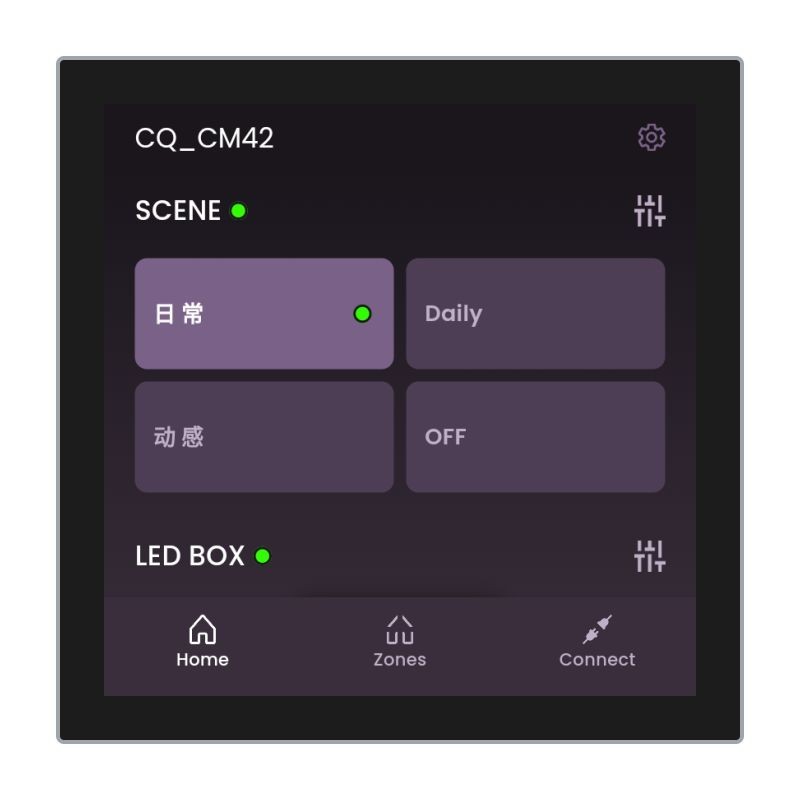

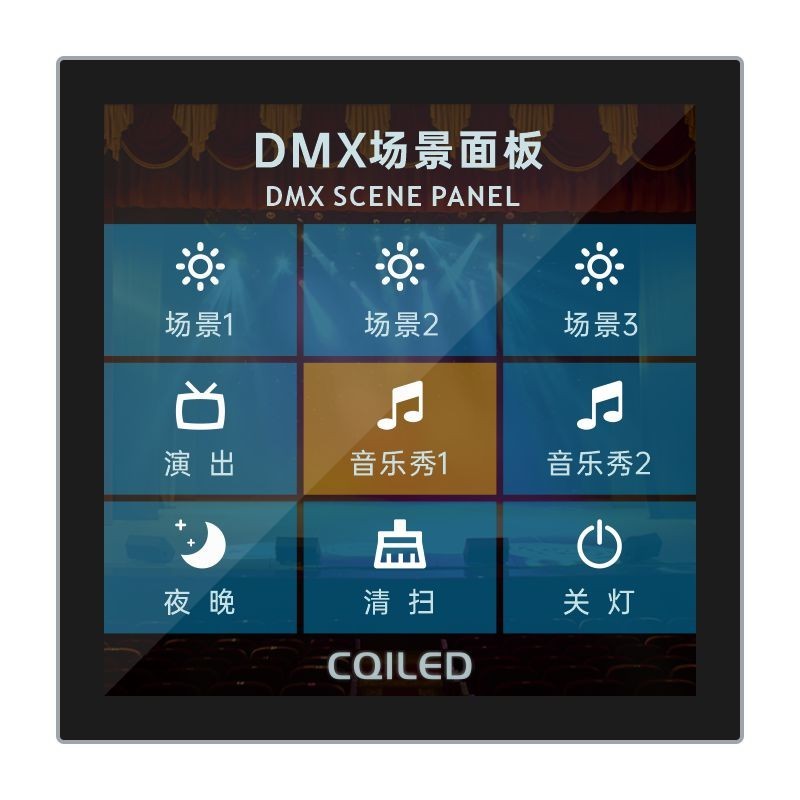

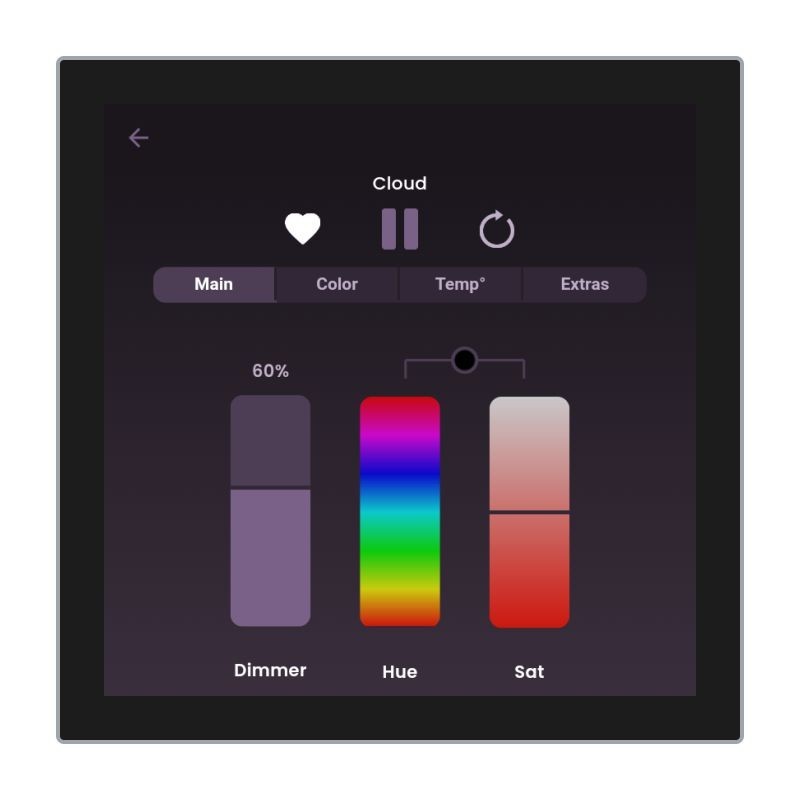

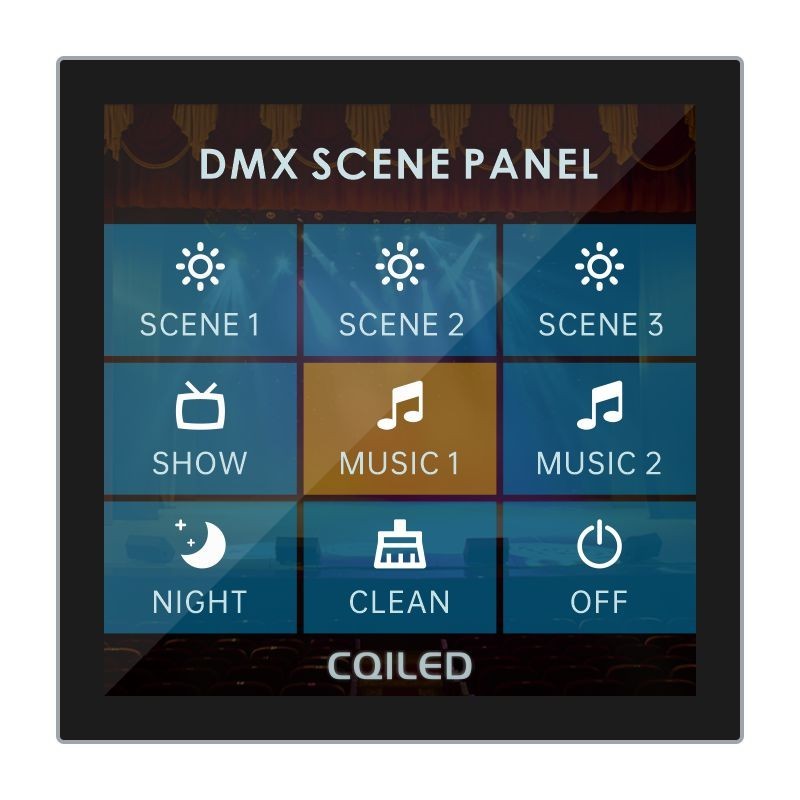

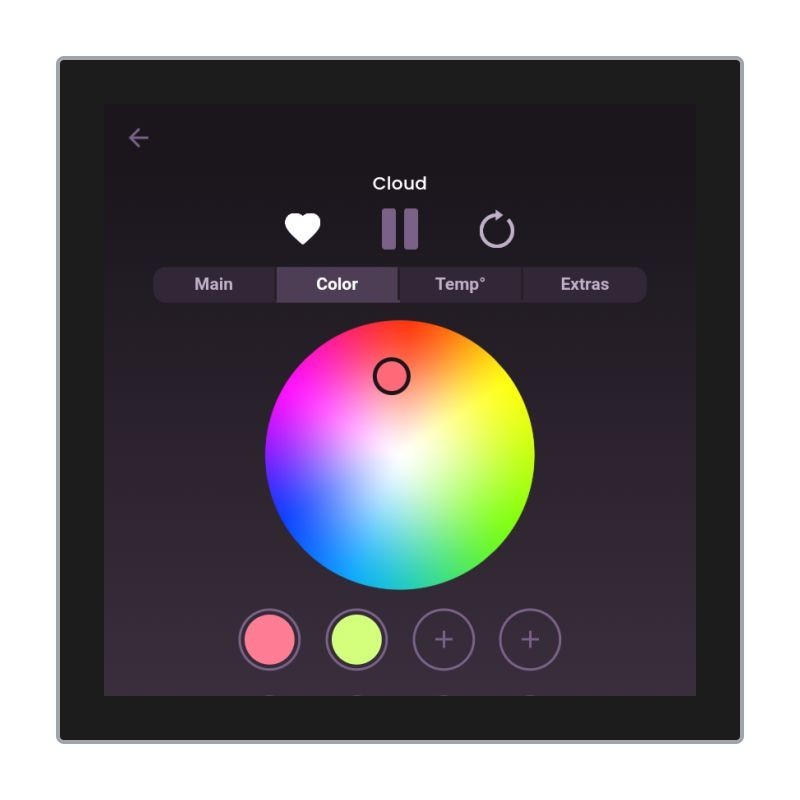

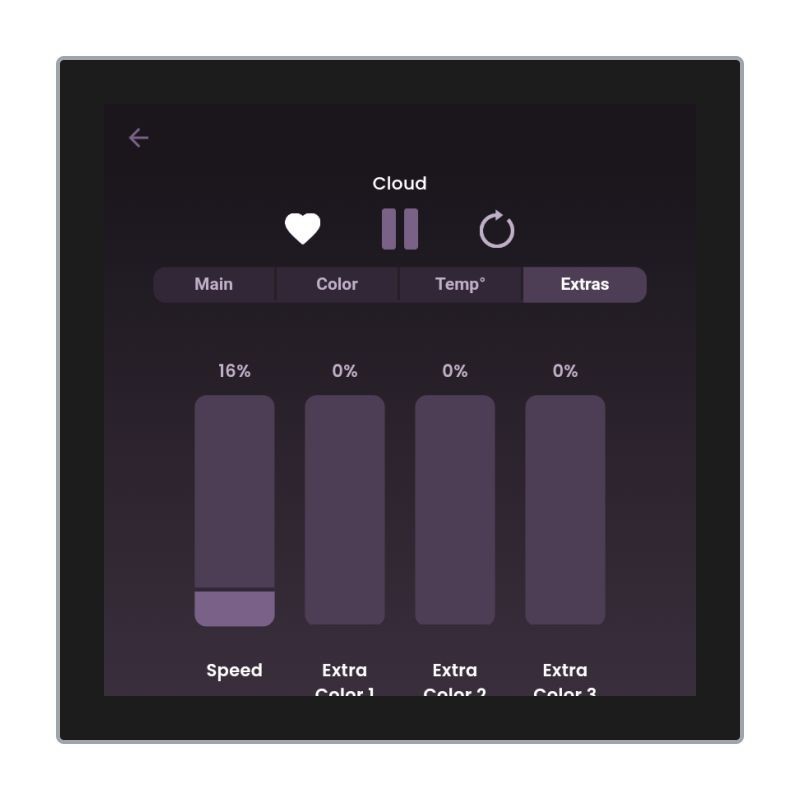

Compact Yet Powerful: 4-inch touchscreen fits tight spaces while delivering full scene control, RGBW/CCT tuning, and DMX device management.
Network-Native Protocols: Direct UDP/OSC output over Ethernet; seamless compatibility with Nicolaudie, Sunlite, Daslight, and multi-brand 8-ch LED controllers.
Flexible Power & Mounting: PoE (IEEE 802.3af/at) or 12V DC; installs in both CN 86-type and US/UK Gang boxes for worldwide deployment.
Advanced Scheduling & Sync: NTP time sync, timed tasks, multi-screen linkage with tablet two-way mirroring, and broadcast/single-point dual control modes.
Enterprise Security & Branding: Auto-lock, admin password, operation confirmation, partition isolation, custom themes via WEB upload, and neutral UI with enterprise logo support.
Q-DSP04BP 4" PoE Smart Scene Panel
|
Category |
Specification |
|---|---|
|
Model |
Q-DSP04BP |
|
Display |
4" TFT Touchscreen (optional 4"/5"/8"/10"+ sizes available) |
|
Power Supply |
PoE (IEEE 802.3af/at) or 12V DC external |
|
Communication |
Ethernet, UDP, OSC, DMX (via network controller) |
|
Control Output |
UDP / OSC commands, compatible with Nicolaudie, Sunlite, Daslight |
|
Control Functions |
Scene switch, RGBW dimming, CCT tuning, timed tasks, scheduling |
|
Network Features |
NTP sync, multi-screen linkage, tablet two-way sync, broadcast & single-point modes |
|
Compatibility |
Multi-brand 8-ch LED main controllers, music fountains, stage lighting, DMX devices |
|
UI Customization |
Custom themes, WEB background upload, enterprise logo, welcome screen, multi-partition |
|
Security |
Auto-lock, admin password, operation confirmation, partition isolation |
|
Installation |
CN 86-type back box / North American Gang box (flush mount) |
|
Configuration |
On-screen setup, WEB interface, no PC software required |
|
Language |
Neutral interface (multi-language support, customizable) |
