Compatible with Nicolaudie ecosystems and all DMX devices: wash lights, lasers, RGBWY LEDs, fountains, and more. RDM support enables remote fixture management. Powered by 5V USB-C or 8–15V DC, it mounts on any 35mm rail for compact, scalable lighting automation.
Scalable DMX Engine: 1×512 channels out of the box, upgradeable to 1024 or 1536 channels—handles everything from small displays to complex multi-zone installations.

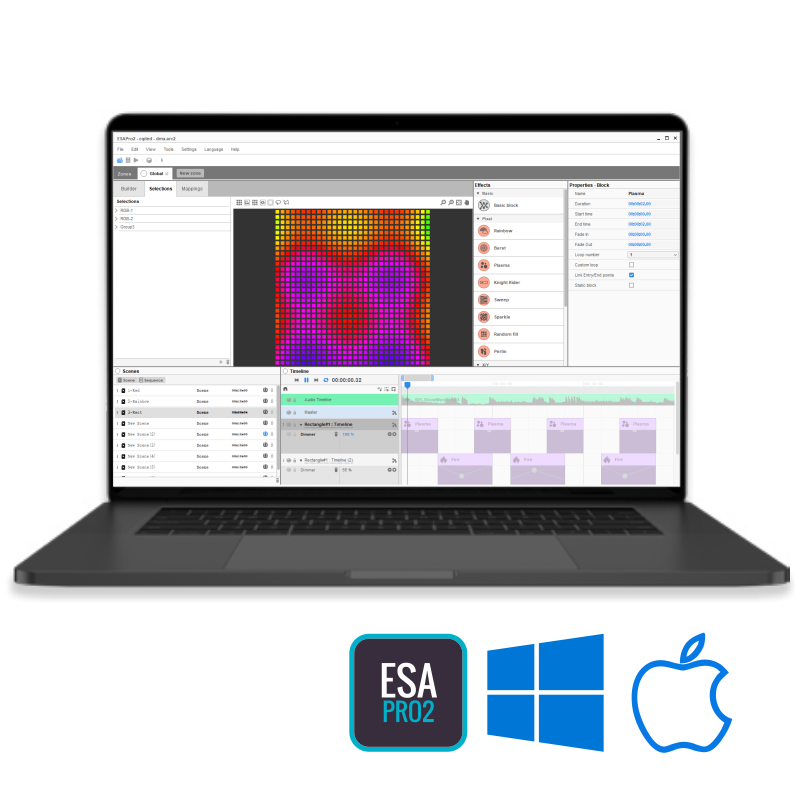

Professional Programming Suite: Win/Mac software with custom fixture library, per-channel precision, and real-time WYSIWYG preview; one-click download to TF card for offline playback.

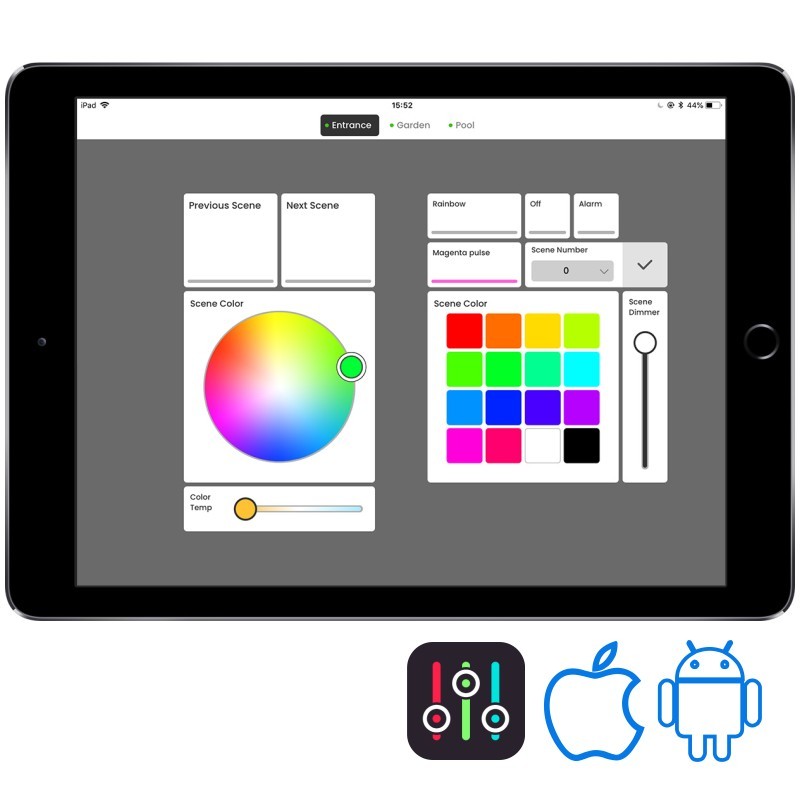

Universal Trigger Methods: Standalone operation controllable via UDP central control, WiFi APP (iOS/Android), 8 dry-contact logic inputs, sensors, RF remote, and timed schedules.
RDM & Multi-Device Sync: Remote device management for supported fixtures; master-slave cascade allows unlimited controllers to work in unison for large-scale projects.
Full Fixture Compatibility: Drives water ripple lights, beam lights, lasers, tunable white/CCT, RGB/RGBW/RGBWY LEDs, DMX music players, lifting balls, and fountains from a single rail-mounted unit.

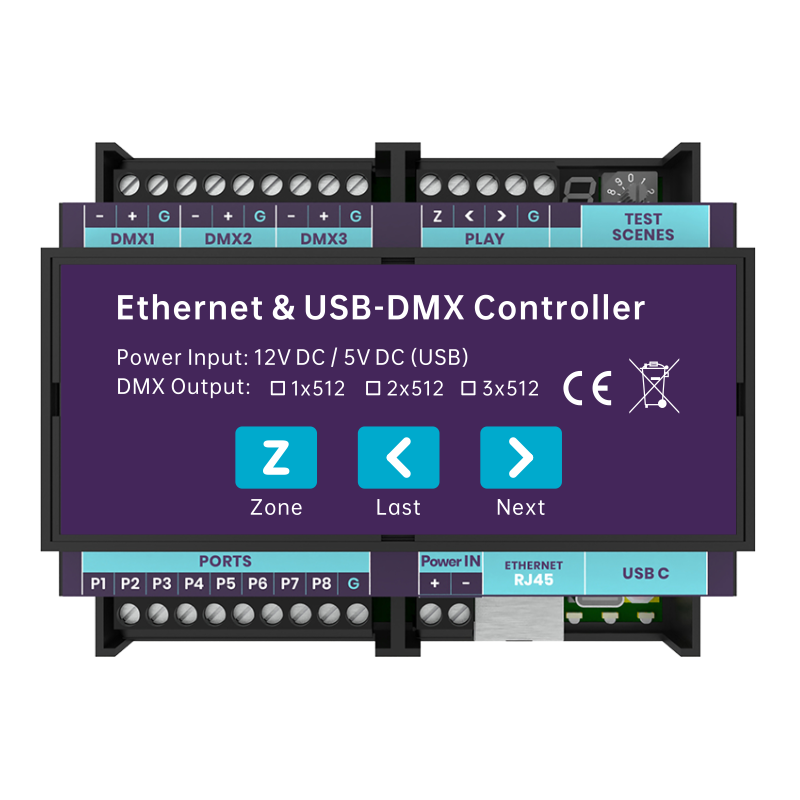

CQ-CE31 DIN-Rail Network DMX Controller
|
Category |
Specification |
|---|---|
|
Model |
CQ-CE31 |
|
DMX Output |
1 × 512 ch (upgradeable to 1024 / 1536 ch via license) |
|
Zones / Scenes |
5 Independent Zones, 99 Scenes |
|
Control Inputs |
UDP, WiFi APP, Scheduling, RF Remote, Sensors, 8 Dry Contacts |
|
Programming |
Win10 / macOS Software, Custom Fixture Library, Real-time Preview |
|
Storage |
TF Card (show storage & backup) |
|
Auto-Run |
One-click Download, Auto-Start on Power-Up (standalone) |
|
Remote Control |
iPad / Android APP, Web Interface |
|
Network Topology |
One-Master-Multiple-Slave, Multi-Unit Cascade |
|
DMX Management |
RDM (Remote Device Management) |
|
Fixture Support |
Single Color, CCT, RGB, RGBW, RGBWY LEDs; Wash, Laser, Gobo, Fountain, DMX Effects |
|
Power Supply |
5V DC (USB Type-C), 8–15V DC (Terminal) |
|
Installation |
35mm DIN Rail Mount |
|
Dimensions |
Compact DIN-rail form factor |
